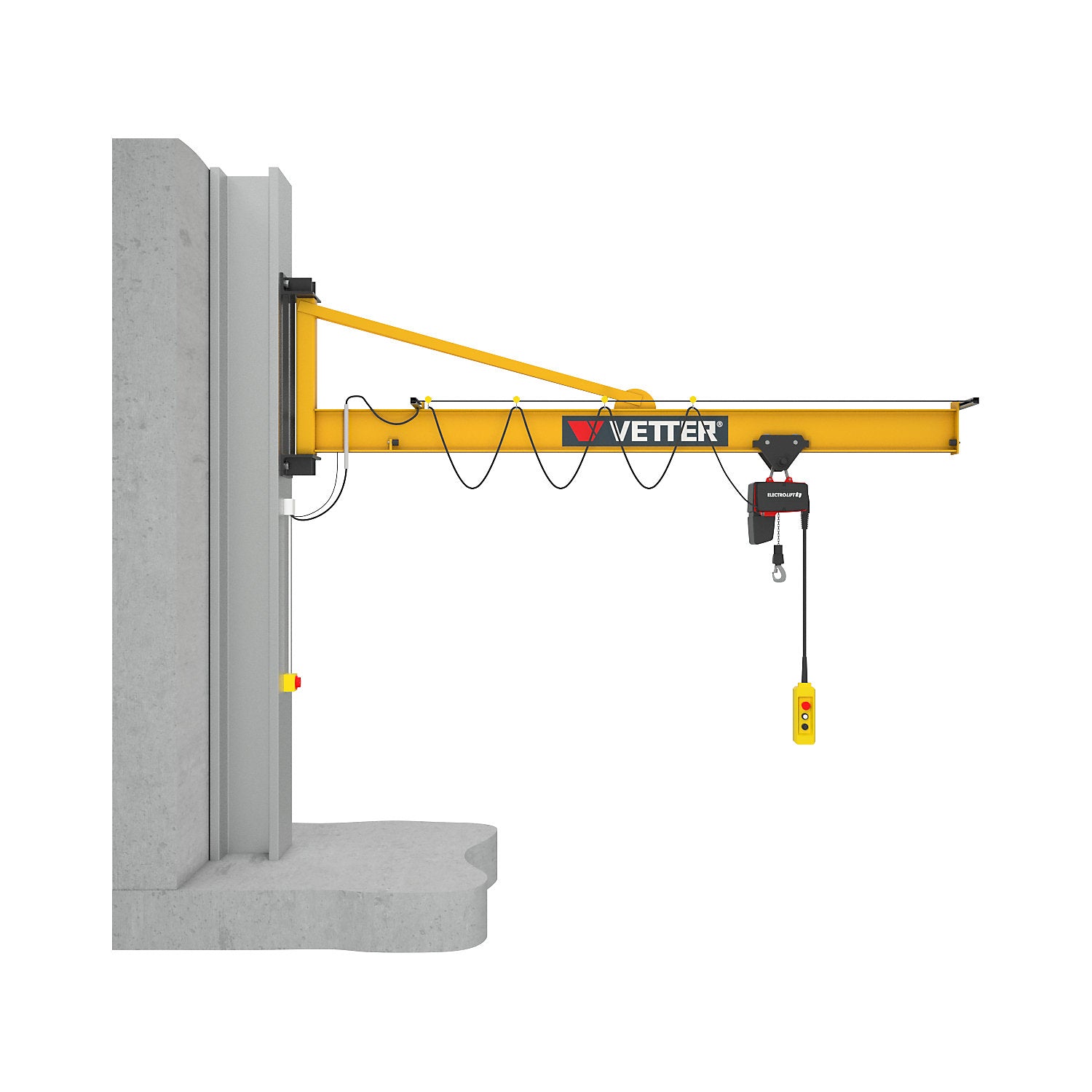

PRAKTIKUS PW wall mounted jib crane, with HF electric chain hoist, max. load 125 kg, reach 3 m, main and precise lifting 8/2 m/min.

Estimated delivery: 52 days

PRAKTIKUS PW wall mounted jib crane, with HF electric chain hoist, max. load 125 kg, reach 3 m, main and precise lifting 8/2 m/min

• Supplied = flat pack
• Max. load = 125 kg
• Operating voltage = 400 V / 50 Hz
• Swivel range = 180°
• Design of rotary crane = crane with electric chain hoist and manual drive dolly (lifting height 5 m)
• Flange width = 55 mm
• Overall height = 940 mm
• Height of lifting gear = 406 mm
• Reach = 3000 mm
• Horizontal force max. = 8 kN
• Vertical force max. = 2 kN
• Bracket module = A
• Crane jib bottom edge = 3406 mm
• Control voltage = 24 V
• Colour = daffodil yellow RAL 1007
• Material = steel
• Product type = wall mounted jib cranes
• Customs tariff number = 84261100
• Country of origin = DEU
• Gross weight = 321 kg
• Weight = 288 kg
• Sustainability = CO 2 footprint calculated
• Low empty weight of the stabilising arm and therefore easy to swivel
• High quality paintwork allows use outdoors
• Stabilising arm length can be adapted to the space available
• The PRAKTIKUS PW wall mounted jib crane is ideal for smaller jobs in the workshop
• The braced design and the low weight of the stabiliser arm makes it easy to swivel
• The high quality paintwork allows use both in the factory and outdoors
• This model features an electric chain hoist with a manual drive dolly
• This related product is also available as a post mounted jib crane from us
• The technical specifications for these cranes makes it necessary to manufacture them to order - no right of return.
