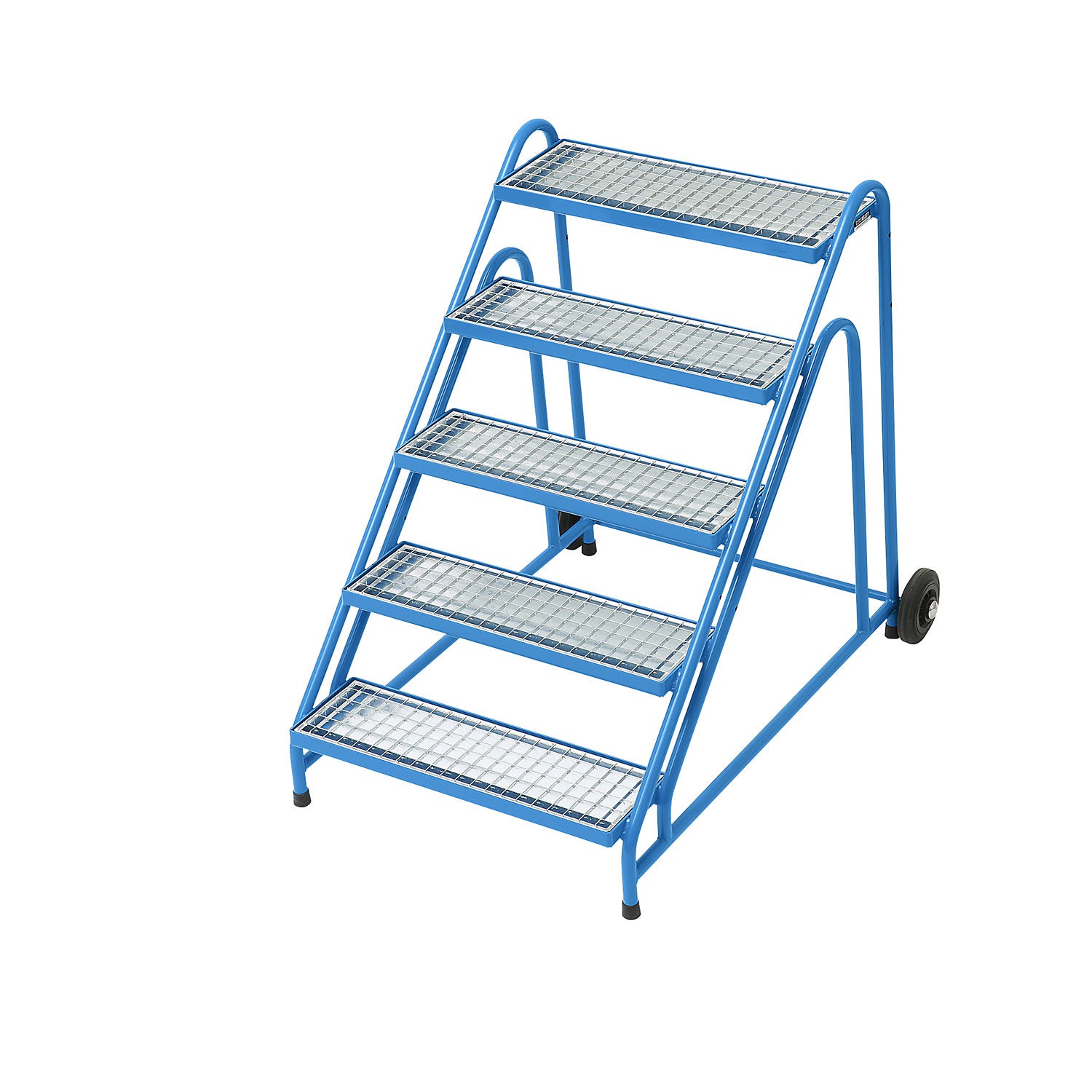

Machine step, steps with grate, 5 steps.

Estimated delivery: 31 days

Machine step, steps with grate, 5 steps

• Supplied = partially assembled
• Product type = tubular steel machine steps
• Step depth = 200 mm
• Step width = 710 mm
• Access = single sided
• Steps incl. platform = 5 pcs
• Platform height = 1000 mm
• Platform width = 710 mm
• Platform depth = 260 mm
• Frame material = steel, powder coated
• Material of treads = mesh grid
• Frame colour = light blue RAL 5012
• Height = 1020 mm
• Depth = 1220 mm
• Width = 913 mm
• Weight = 59 kg
• Max. load = 150 kg
• Working height = 3000 mm
• Wheel diameter = 160 mm
• Conforms to = EN 14183
• Customs tariff number = 73269030
• Country of origin = DEU
• Gross weight = 62 kg
• Weight = 59 kg
• Sustainability = CO 2 footprint calculated
• Robust - made of powder coated tubular steel
• Mobile - equipped with two castors as a standard feature
• Convenient - comfortable ascent on 45° slope
• Robust model made of tubular steel, powder coated in light blue RAL 5012
• Comfortable 45° climb angle
• Platform and steps optionally made of phenolic plywood, anti-slip ribbed rubber or robust grate
• Platform size 710 x 260 mm

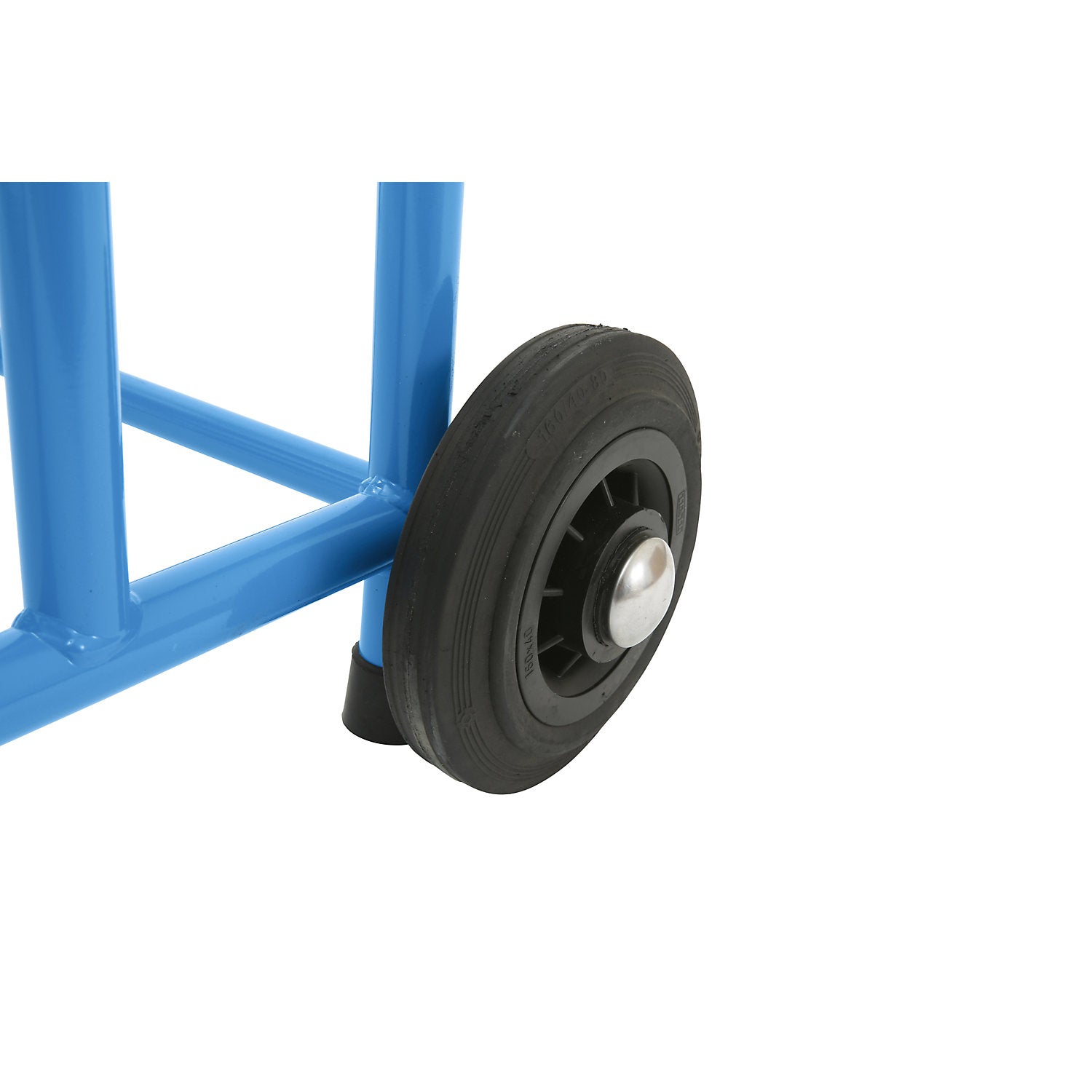

• Fitted with 2 castors as standard, wheel Ø 160 mm
• Made and tested in accordance with EN 14183.
