Carrier clamp, KL model, vertical use, gripping range 1 - 26 mm, max. load 1000 kg.

Estimated delivery: 42 days

Carrier clamp, KL model, vertical use, gripping range 1 - 26 mm, max. load 1000 kg

• Supplied = assembled
• Max. load = 1000 kg
• Gripping range = 1 - 26 mm
• Weight = 3.7 kg
• Product type = clamps
• Colour = orange
• Material = steel
• Customs tariff number = 73269098
• Country of origin = DEU
• Gross weight = 3.98 kg
• Weight = 3.7 kg
• Sustainability = CO 2 footprint calculated
• Safe lifting up to an angle of 120°
• Side attachment and vertical lifting
• Turning of steel components by 180°
• Locking in open and closed positions
• Large gripping range for different workpieces
• Slim housing
• The lifting clamp model KL, vertical application enables safe lifting and turning of various steel components up to an angle of 120°
• It combines a wide range of applications with a handy design
• The lifting clamp is suitable for side attachment and vertical lifting of sheet metal, steel plates, beams and other structural steel elements

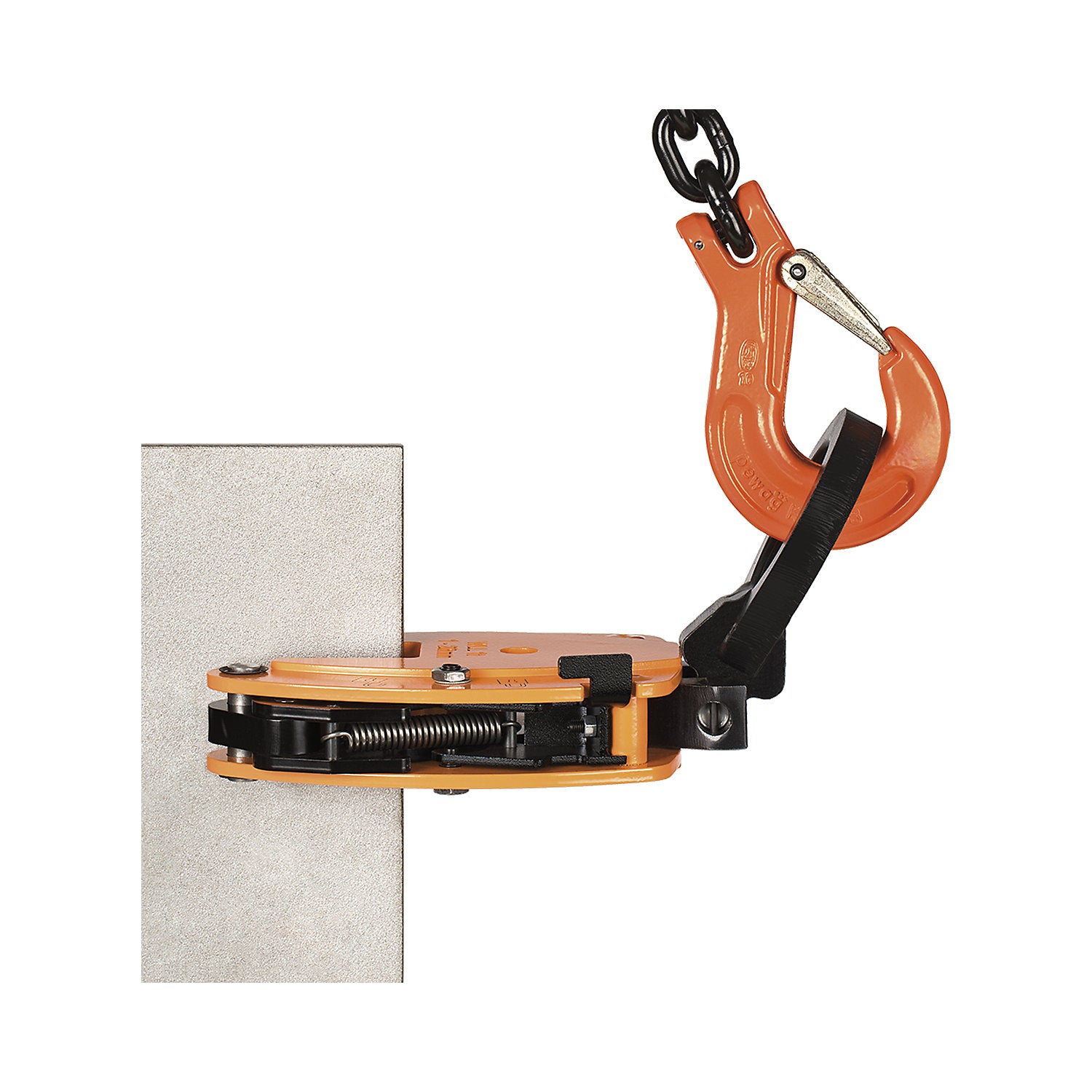

• In addition, workpieces can be turned through 180° with the lifting clamp
• This allows multiple work steps to be carried out with just a single lifting accessory
• The slim housing facilitates positioning even where space is restricted
• Despite its compact shape, the plate clamp is sturdily constructed
• The large gripping range allows workpieces of different dimensions to be picked up and reduces the need for multiple specialised clamps
• For additional safety, the lifting clamp can be locked in both the open and closed positions
• This facilitates the controlled positioning, picking up and setting down of the load
• The lifting clamp is suitable for metalworking shops, steel construction companies, workshops, production areas and assembly work
• It provides support wherever heavy steel parts need to be lifted, aligned or turned safely and a flexible solution for varying material dimensions is required.
