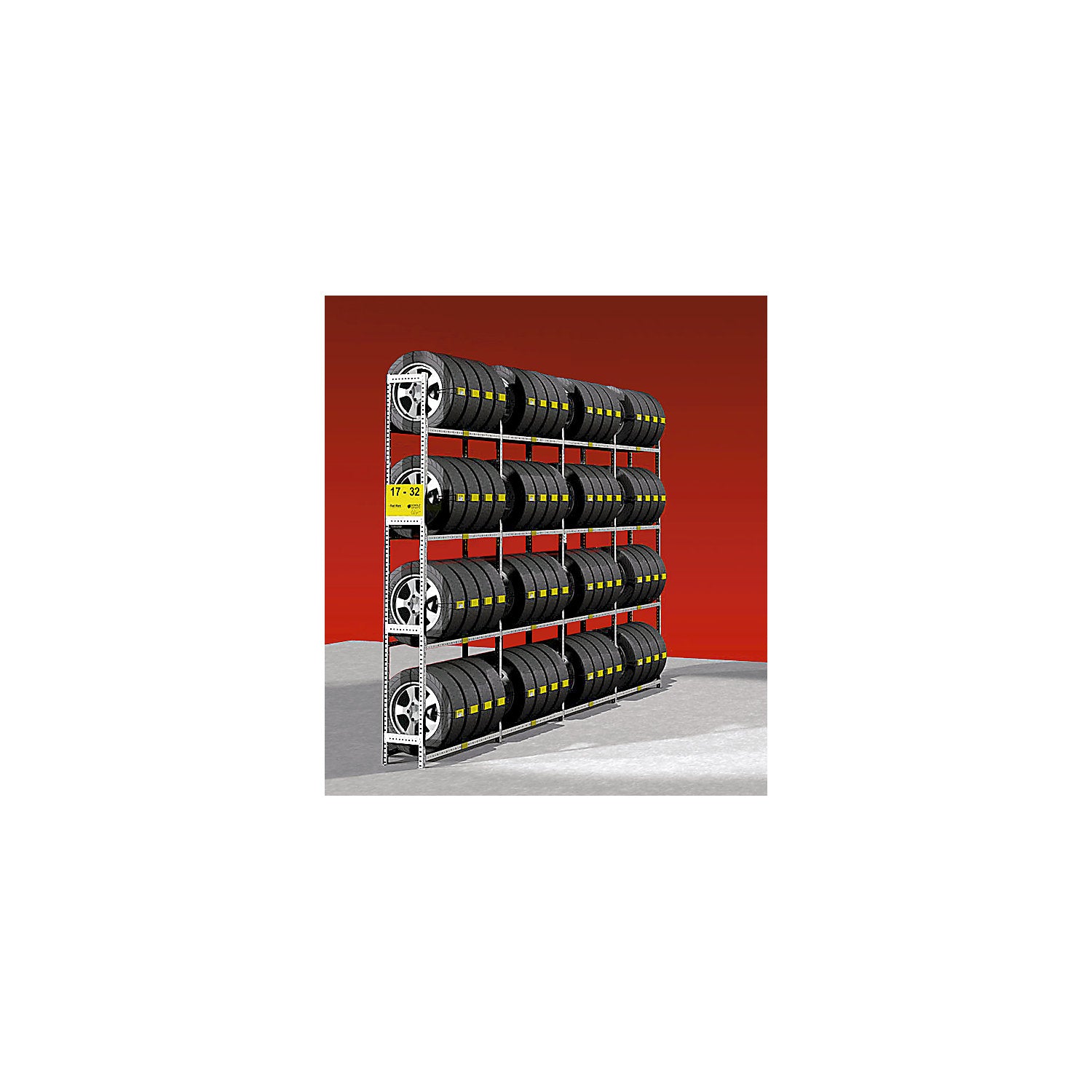

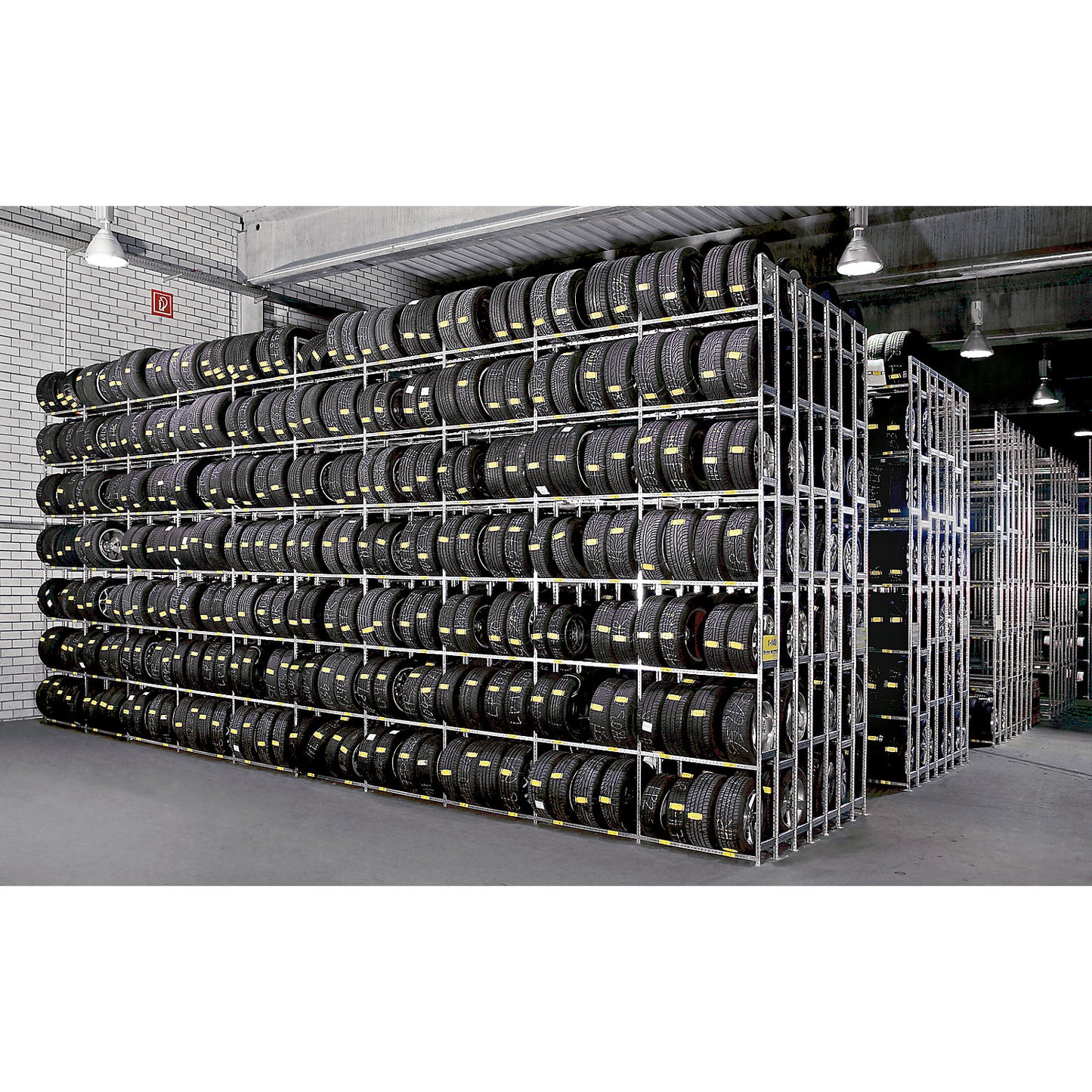

Tyre shelf unit, zinc plated, single sided, 7 levels, extension shelf unit.

Estimated delivery: 36 days

Tyre shelf unit, zinc plated, single sided, 7 levels, extension shelf unit

• Supplied = flat pack
• Shelf unit type = extension unit
• Shelf unit height = 5100 mm
• Width = 1030 mm
• Depth = 320 mm
• Shelf width = 1020 mm
• Shelf depth = 300 mm
• Wheel width = 255 mm
• Tyres per shelf bay = 28 pcs
• Shelf height adjustment increments = 60 mm
• Number of levels = 7 pcs
• Max. shelf load = 140 kg
• Max. bay load = 1000 kg
• Material = steel
• Finish = galvanised
• Colour = zinc plated
• Design = plug in
• Shelf unit design = single sided
• Product type = tyre shelving units
• Customs tariff number = 94032080
• Country of origin = DEU
• Gross weight = 45.4 kg
• Weight = 43.6 kg
• Sustainability = CO 2 footprint calculated
• Suitable for car tyres and rims up to 255 mm wide
• Uncomplicated assembly
• Zinc plated surface
• Tyre levels adjustable in 60 mm increments
• The specified room height is valid for max. tyre diameter of 685 mm
• If the tyre diameter is larger, the required room height is increased accordingly
• For single shelf units from 4 levels , the use of wall brackets and floor anchors is required
• Wall brackets for solid masonry walls (e.g. concrete, limestone) and floor anchors (for screed and concrete) are included in delivery
• Important information Please contact us if the supplied wall brackets and floor anchors are NOT suitable for your walls and/or floors
• If the height of the shelf unit equals more than 5 times its depth, it must be secured against tipping with suitable floor or wall fasteners
• The included assembly and installation instructions must be observed
• External dimensions Standard shelf unit shelf width + 50 mm Extension shelf unit shelf width + 10 mm Please note: For single shelf units from 4 levels, the use of wall brackets and floor anchors is required
• Wall brackets for solid masonry walls (e.g. concrete, limestone) and floor anchors (for screed and concrete) are included in delivery
• Please contact us if the supplied wall brackets and floor anchors are NOT suitable for your walls and/or floors
• The included assembly and installation instructions must be observed
• Also available for the storage of HGV tyres on request
• The specified max. load values are applicable with uniform load distribution
• Additional shelf levels may be used if the specified max. bay load is observed.
