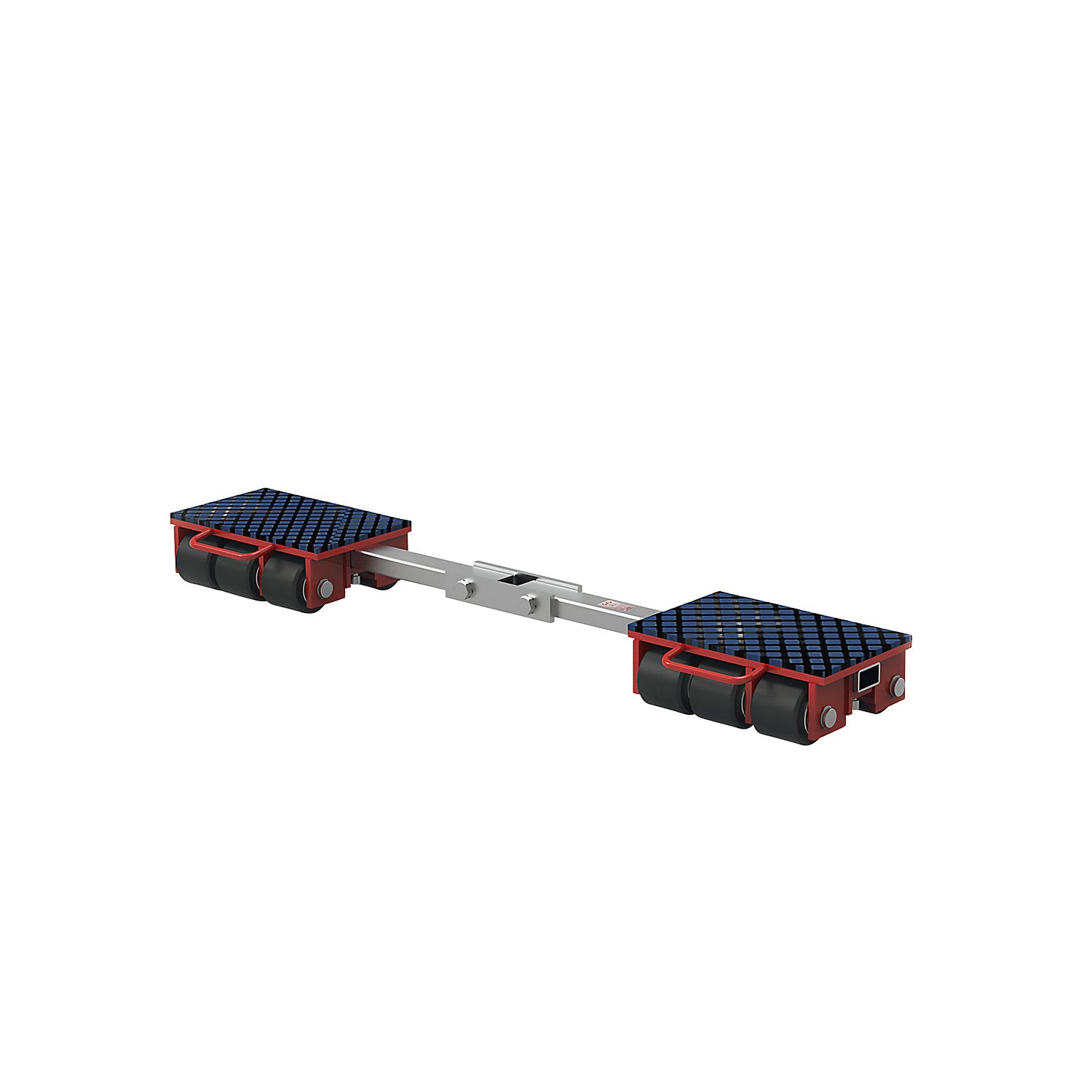

Transport chassis, fixed, with connecting rod and joint, max. load 9000 kg.

Estimated delivery: 34 days

Transport chassis, fixed, with connecting rod and joint, max. load 9000 kg

• Supplied = assembled
• Max. load = 9000 kg
• Number of wheels = 12 pcs
• Wheel material = nylon
• Castor width = 85 mm
• Castor diameter = 85 mm
• Loading height = 110 mm
• Height = 110 mm
• Width = 200 mm
• Platform material = rubber
• Platform width = 200 mm
• Platform length = 320 mm
• Material = metal
• Adjustment range = 840 - 1230 mm
• Platform colour = black
• Colour = red, silver grey
• Fittings = non-slip support base
• Application = diverse
• Product type = transport dollies
• Customs tariff number = 87168000
• Country of origin = DEU
• Gross weight = 46 kg
• Weight = 43 kg
• Sustainability = CO 2 footprint calculated
• Very low installation height of 110 mm, perfect for positioning under low-lying goods
• Castors with bearings in closed steel cartridges with an adjustable connecting rod width
• Load cannot slip due to rubber coated bearing plates
• Ideally suited for transporting long and bulky loads safely - ball bearing mounted castors ensure a smooth run
• The connecting rod with joint is used for compensating uneven flooring, and handles for lifting are also integrated.
