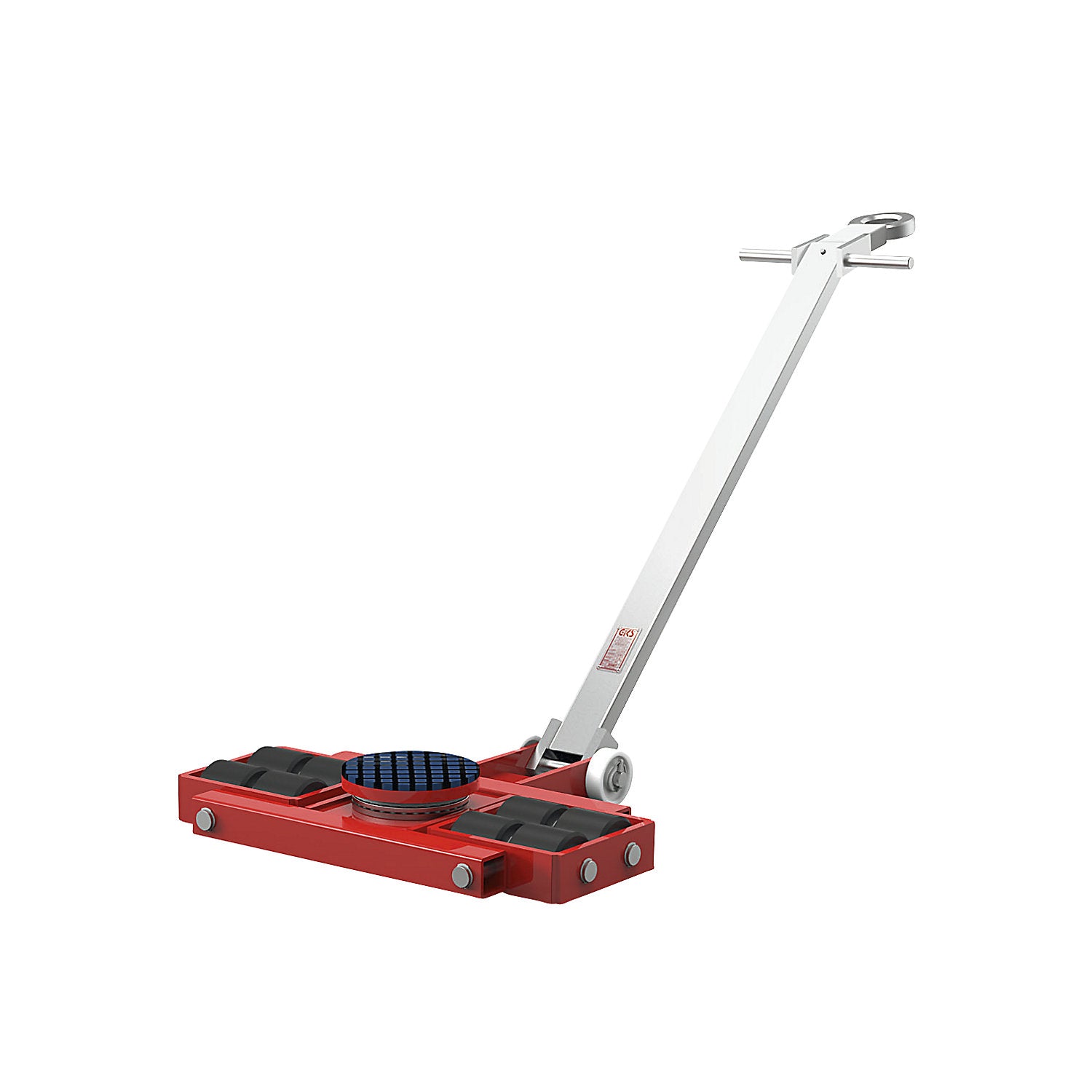

Transport chassis, steerable, with steering rod and trolley cartridges, max. load 6000 kg.

Estimated delivery: 34 days

Transport chassis, steerable, with steering rod and trolley cartridges, max. load 6000 kg

• Supplied = assembled
• Max. load = 6000 kg
• Number of wheels = 8 pcs
• Wheel material = nylon
• Castor width = 85 mm
• Castor diameter = 85 mm
• Loading height = 110 mm
• Height = 110 mm
• Length = 610 mm
• Width = 520 mm
• Platform material = rubber
• Platform diameter = 170 mm
• Material = metal
• Colour = silver grey, red
• Fittings = non-slip support base, drawbar
• Application = diverse
• Product type = transport dollies
• Customs tariff number = 87168000
• Country of origin = DEU
• Gross weight = 52 kg
• Weight = 41 kg
• Sustainability = CO 2 footprint calculated
• Very low installation height of 110 mm, perfect for positioning under low-lying goods
• Load cannot slip due to rubber coated bearing plates of Ø 170 mm
• With 950 mm steering rod
• Ideally suited for transporting long and bulky loads safely - ball bearing mounted castors ensure a smooth run
• The chassis is also steerable (±90°) in order to make manoeuvring easier
• The steering rod (1080 mm) features a handle with towing eyelets
• The trolley cartridges feature pendulum axles as bearings to compensate uneven flooring.
