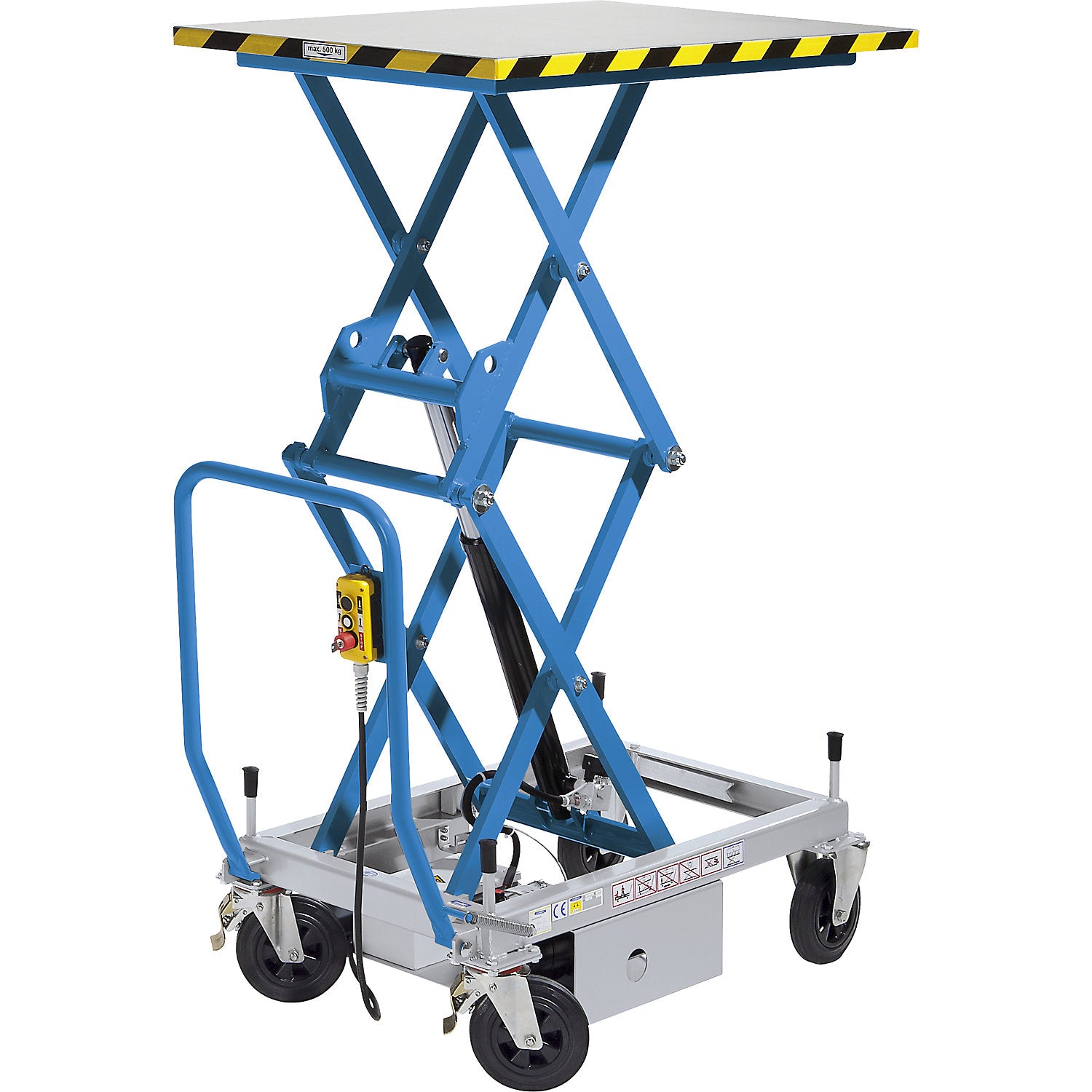

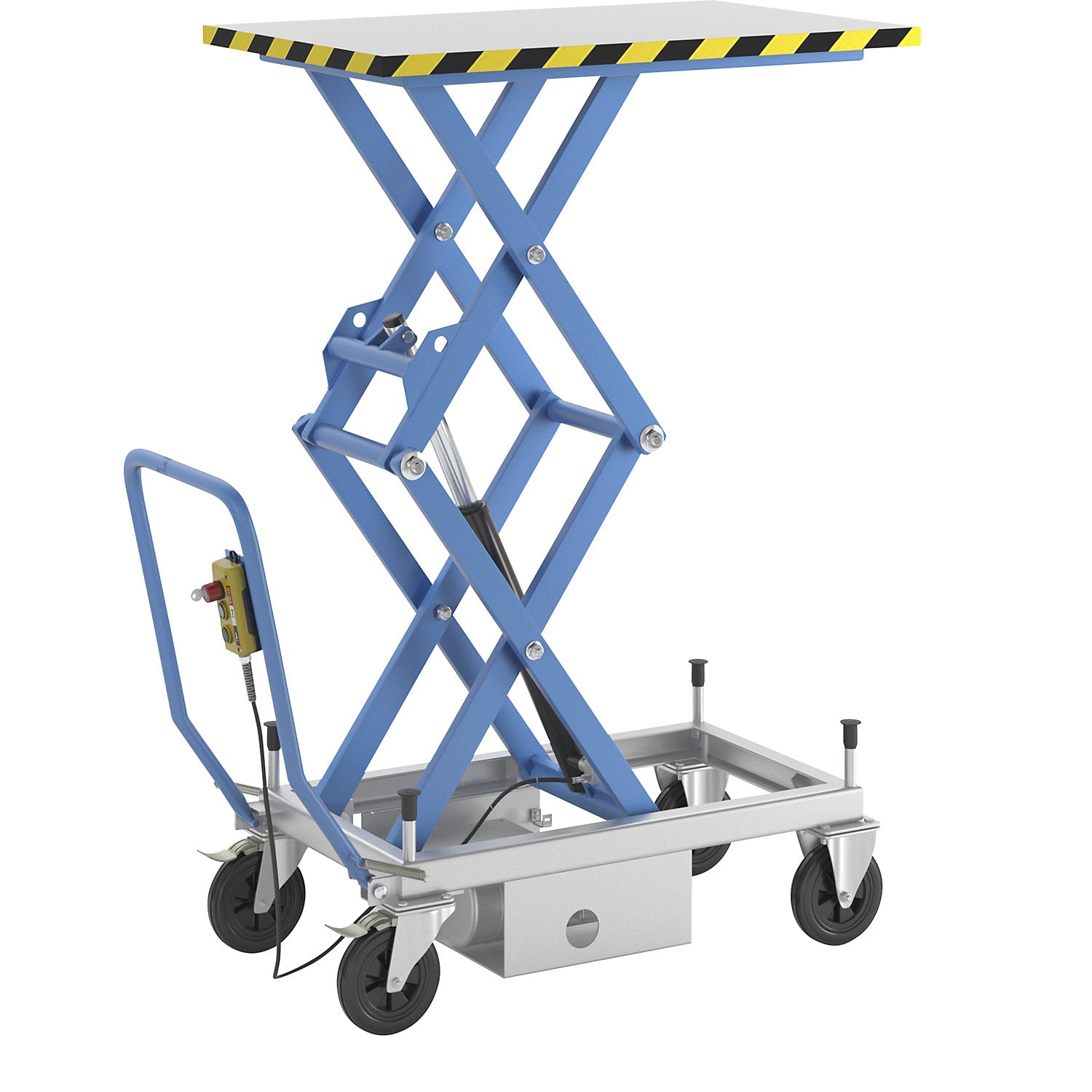

Double scissor lifting platform truck, electro-hydraulic lift, 230 V, max. load 500 kg.

Estimated delivery: 31 days

Double scissor lifting platform truck, electro-hydraulic lift, 230 V, max. load 500 kg

• Supplied = assembled
• Max. load = 500 kg
• Lifting range = 510 - 1800 mm
• Wheel material = solid rubber
• Feature = mobile, electro-hydraulic
• Platform length = 1190 mm
• Platform width = 740 mm
• Length = 1435 mm
• Width = 740 mm
• Platform material = steel, zinc plated
• Push handle version = bolted on
• Frame colour = light blue RAL 5012
• Frame material = steel, powder coated
• Lifting time = 20 sec
• Lift drive = electro-hydraulic, mains 230 V
• Wheel fittings = 2 steering wheels with double stops, 2 fixed castors
• Wheel diameter = 200 mm
• Wheel bearing = roller bearing
• Model = double scissors
• Customs tariff number = 84279000
• Country of origin = DEU
• Gross weight = 192 kg
• Weight = 180 kg
• Sustainability = CO 2 footprint calculated
• Quality products - Made in Germany
• Rust free, zinc plated platform
• Scissor lift mechanism and push handle powder coated in light blue RAL 5012, base frame in white aluminium RAL 9006. 2 swivel castors and 2 fixed castors, roller bearings
• Swivel castors with double stops
• Hydraulic cylinder with biodegradable oil
• Electro-hydraulic devices are fully compliant with protection class IP54

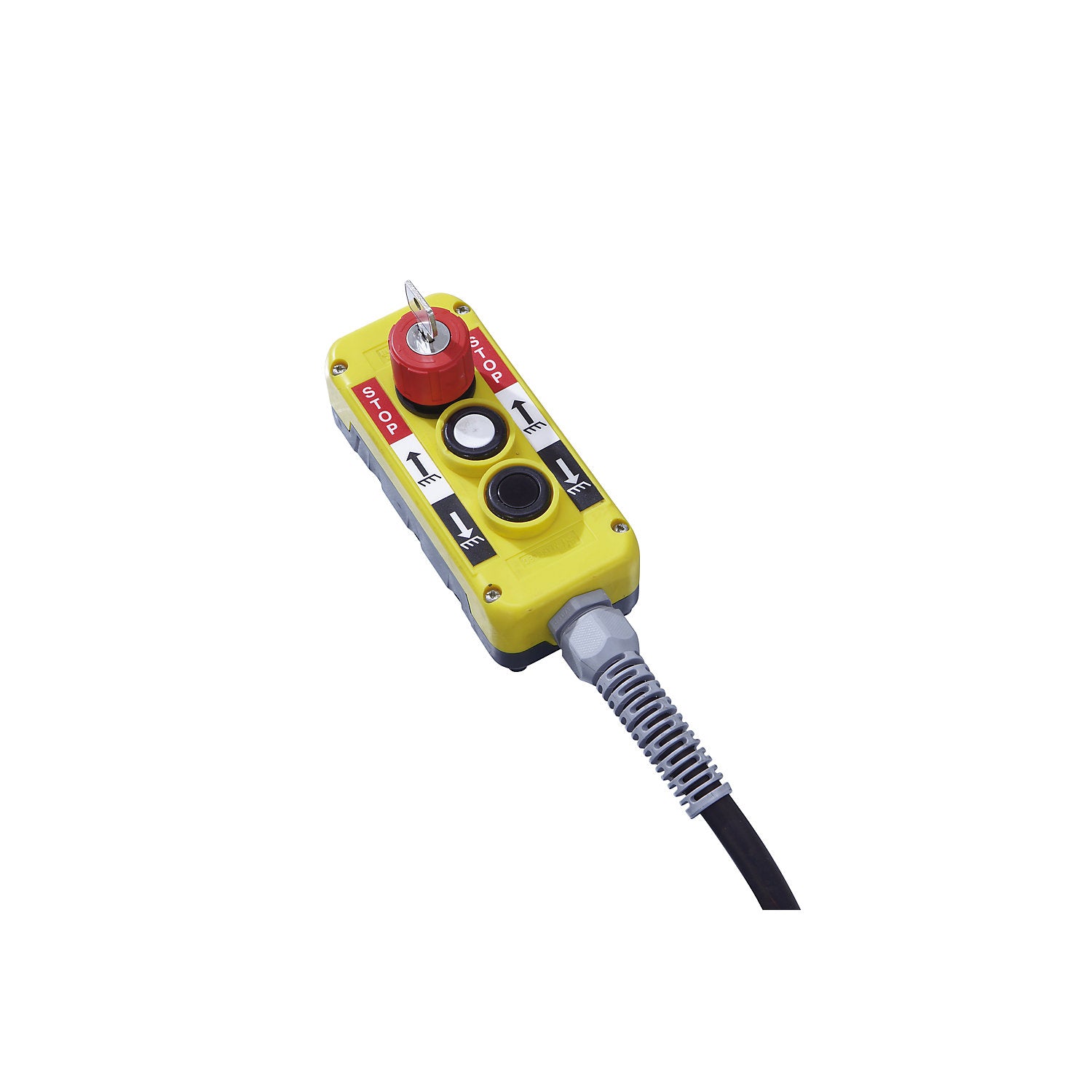

• Suitable for max. 20 cycles per hour under full load. 230-volt model With up/down and emergency off hand control
• For long term, intensive use in two-shift operation
• Drawbar not mounted on delivery - easy self-assembly.
