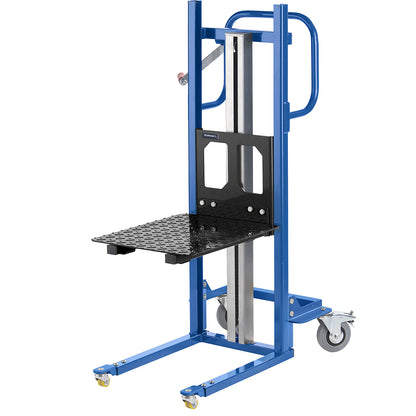

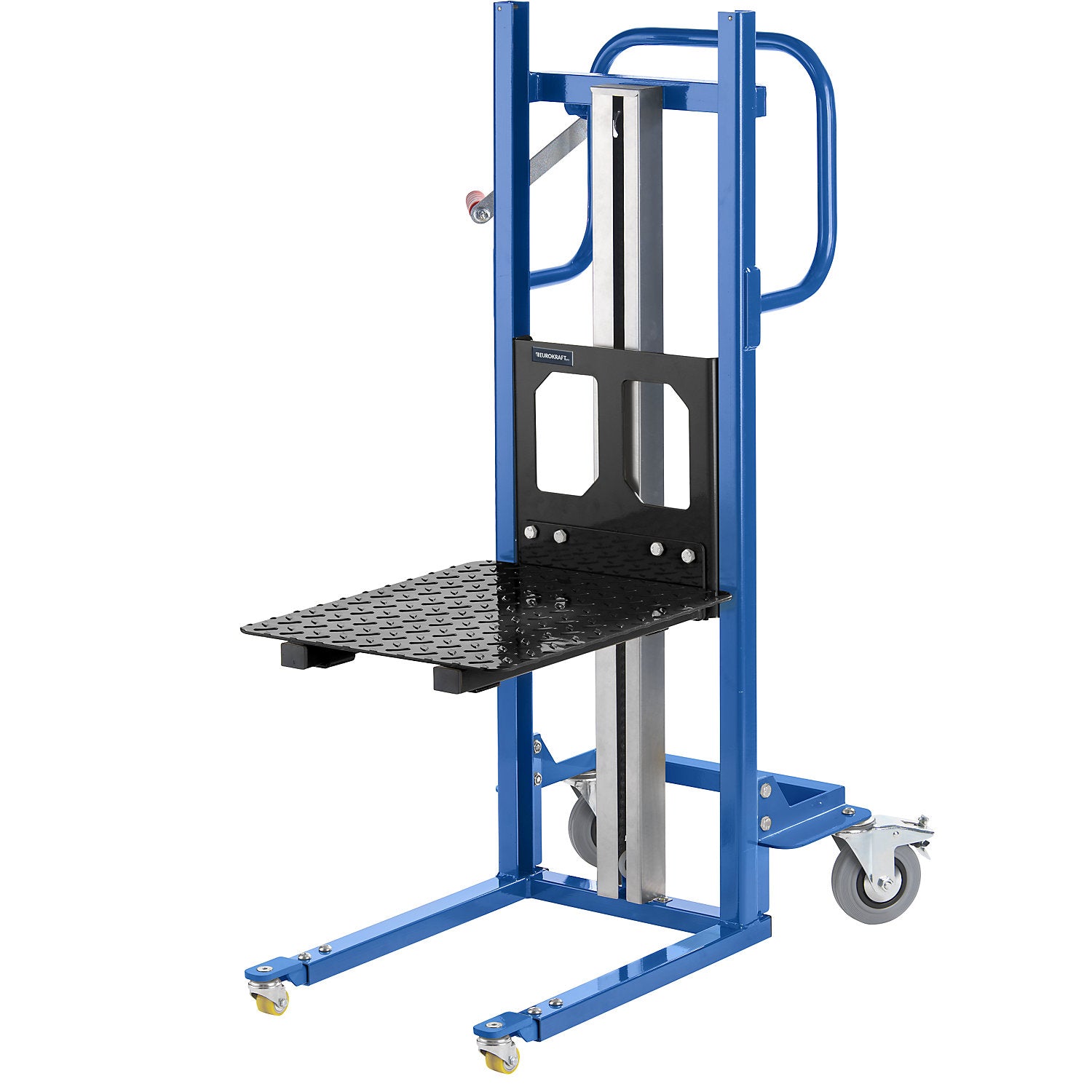

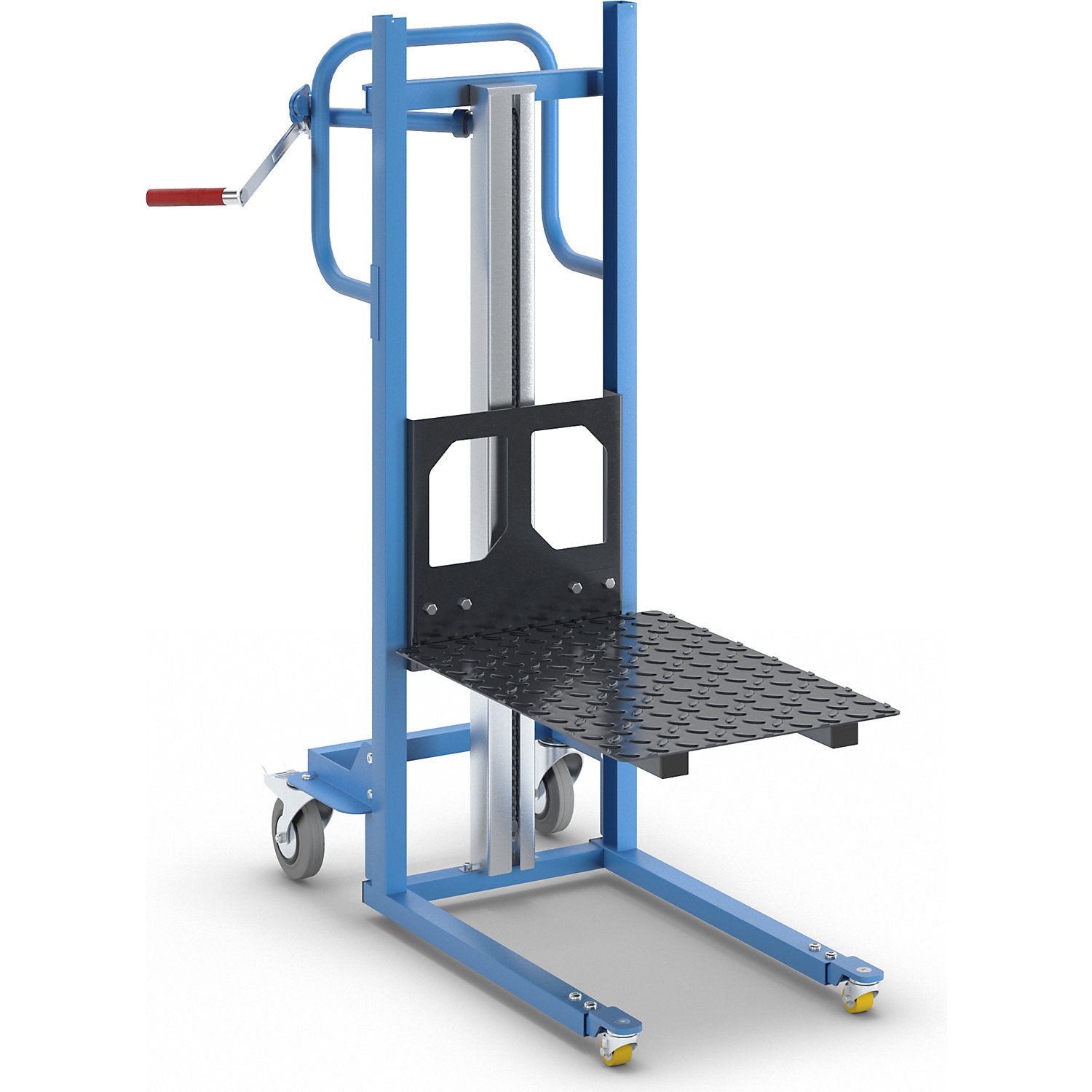

Material lifter, with platform, with 4 swivel castors.

Estimated delivery: 31 days

Material lifter, with platform, with 4 swivel castors

• Supplied = partially assembled
• Model = platform / 4-way chassis
• Load suspension device LxW/Ø = 600x430 mm
• Max. load = 120 kg
• Load centre = 300 mm
• Lifting range = 80 - 945 mm
• Distance across forks = 430 mm
• Length = 970 mm
• Width = 506 mm
• Height = 1265 mm
• Clearance height = 75 mm
• Material = steel
• Feature = manual
• Finish = powder coated
• Colour = light blue RAL 5012
• Customs tariff number = 87168000
• Country of origin = DEU
• Gross weight = 46.6 kg
• Weight = 45.6 kg
• Sustainability = CO 2 footprint calculated
• Exchangeable load support
• Optionally available with fixed castors or 4-way chassis
• Swivel castors with wheel stops
• Material lifters with different load support equipment for many applications
• Load centre 300 mm
• Brings materials or tools to the ideal working height
• Can be transported using 2 swivel castors with wheel stops and 2 fork rollers or with a 4-way chassis

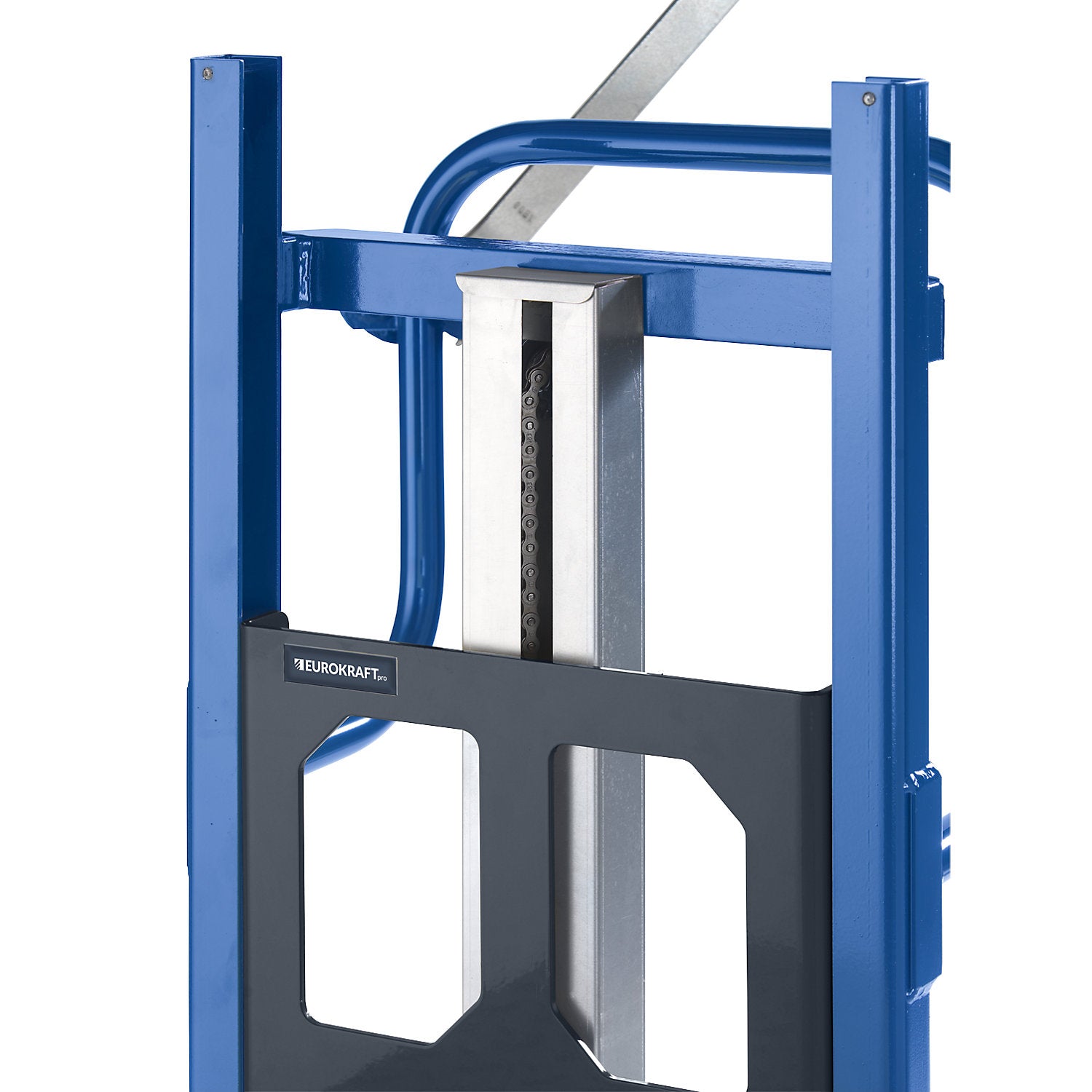

• Lifting motion produced by self locking safety winch and precision roller chain
• Particularly large platform for more applications
• Available in almost any RAL colour
• Surcharge of just 10%
• Custom colours are manufactured to individual customer specifications and are therefore excluded from the right of cancellation and return.
