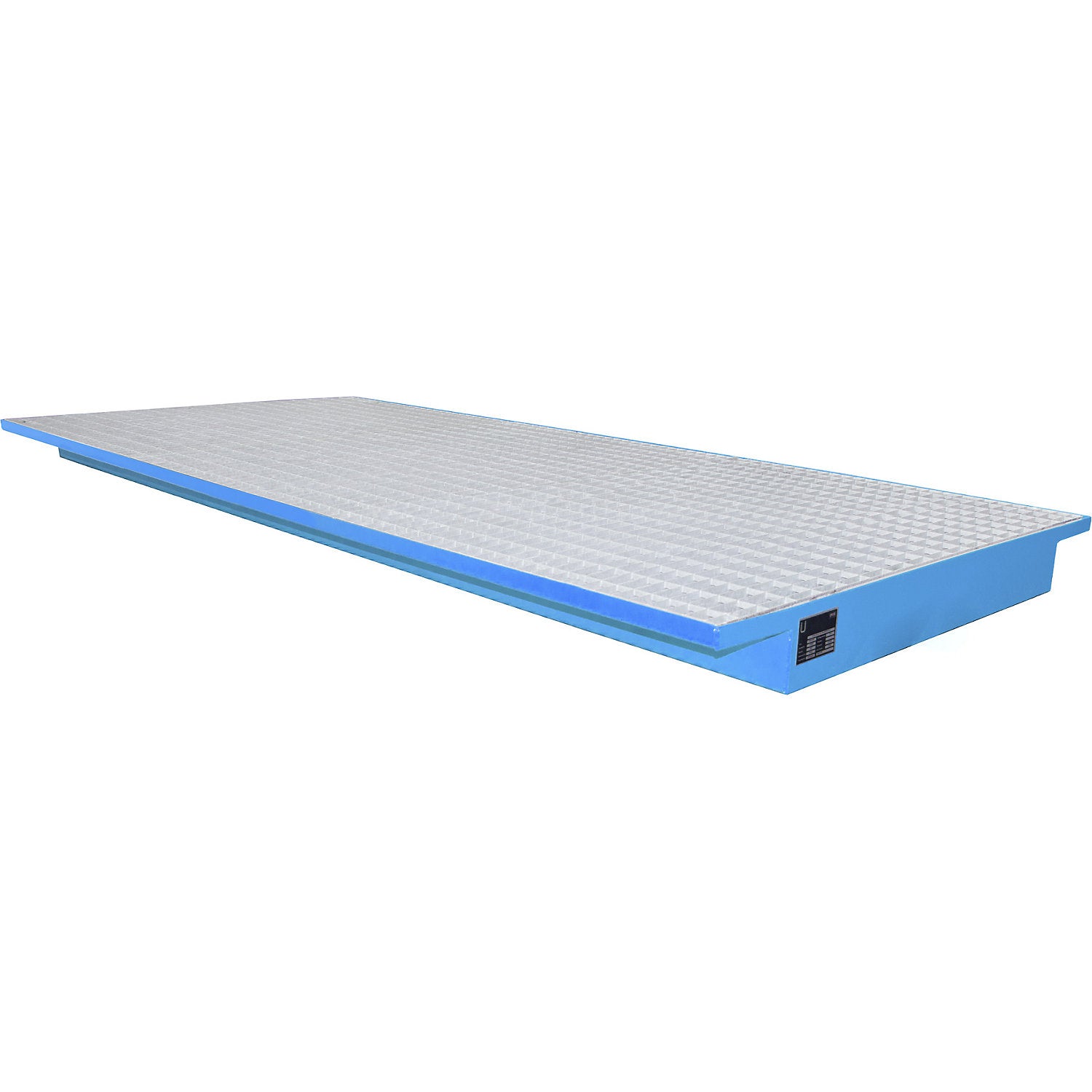

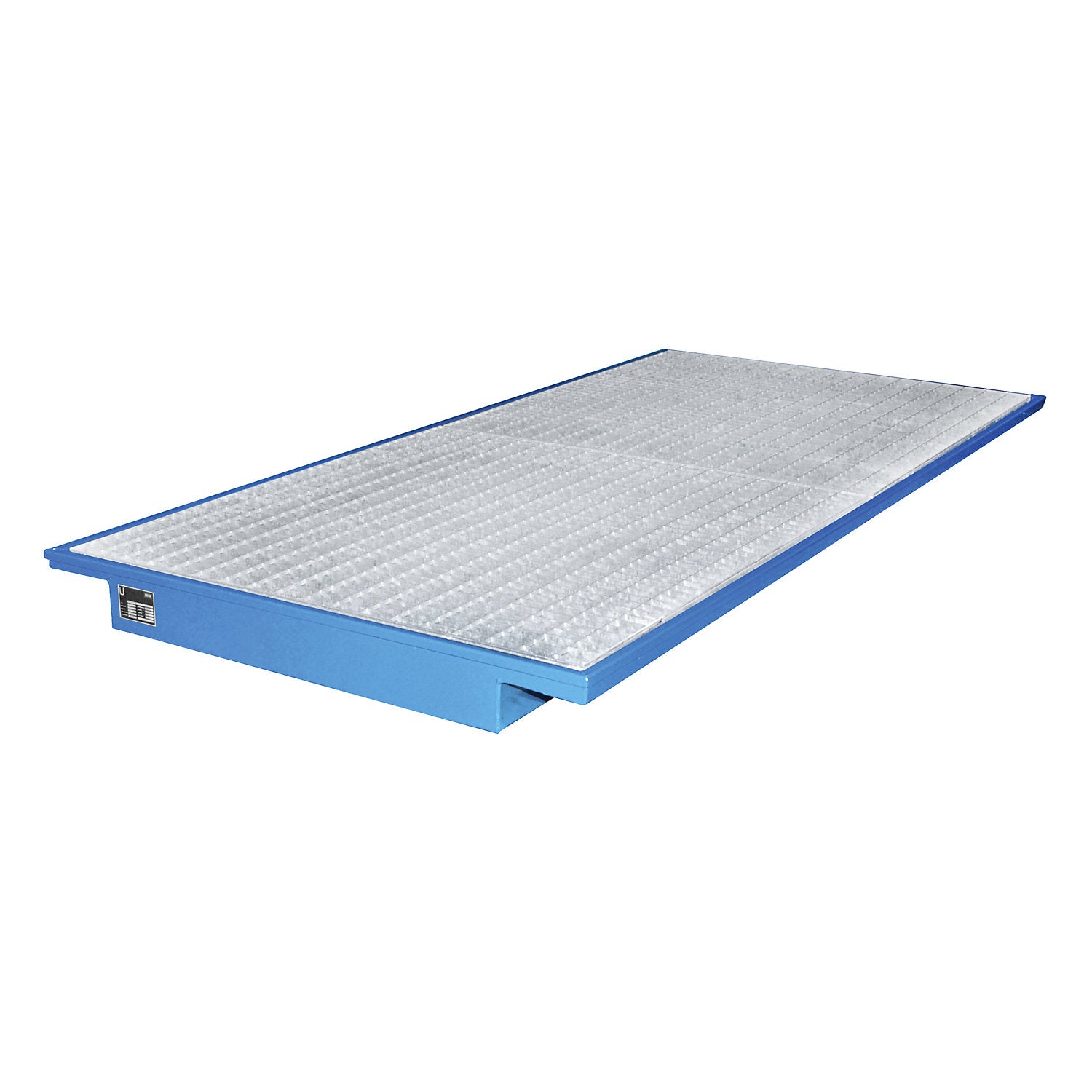

Hook-in sump tray, with zinc plated grate, LxW 2650 x 1250 / 915 mm, painted blue.

Estimated delivery: 46 days

Hook-in sump tray, with zinc plated grate, LxW 2650 x 1250 / 915 mm, painted blue

• Supplied = assembled
• Type of grate = with zinc plated grate
• Sump capacity = 233 l
• Length = 2650 mm
• Width = 1250 mm
• Height = 130 mm
• Material = sheet steel
• Finish = painted
• Colour = light blue RAL 5012
• Max. load = 1000 kg/m²
• Test symbol = manufacturers declaration of conformity in accordance with StawaR
• Material thickness = 3 mm
• For media = flammable and water hazardous liquids
• Hazard class = for flammable liquids in GHS categories 1 - 3 as well as water hazardous liquids in GHS categories 1 - 4
• Customs tariff number = 73101000
• Country of origin = DEU
• Gross weight = 162 kg
• Weight = 162 kg
• Sustainability = CO 2 footprint calculated
• Convert existing shelving systems into regulation compliant hazardous goods storage shelving
• Placement on the cross beams or suspension directly in the shelf unit - distance between cross beams 915 mm
• For regulation compliant indoor storage of drums and small containers on pallets etc
• Robust 3 mm sheet metal construction
• With zinc plated grate, max. load 1000 kg/m² (evenly distributed load)
• Approved for water hazardous liquids
• Collection capacity 200 litres

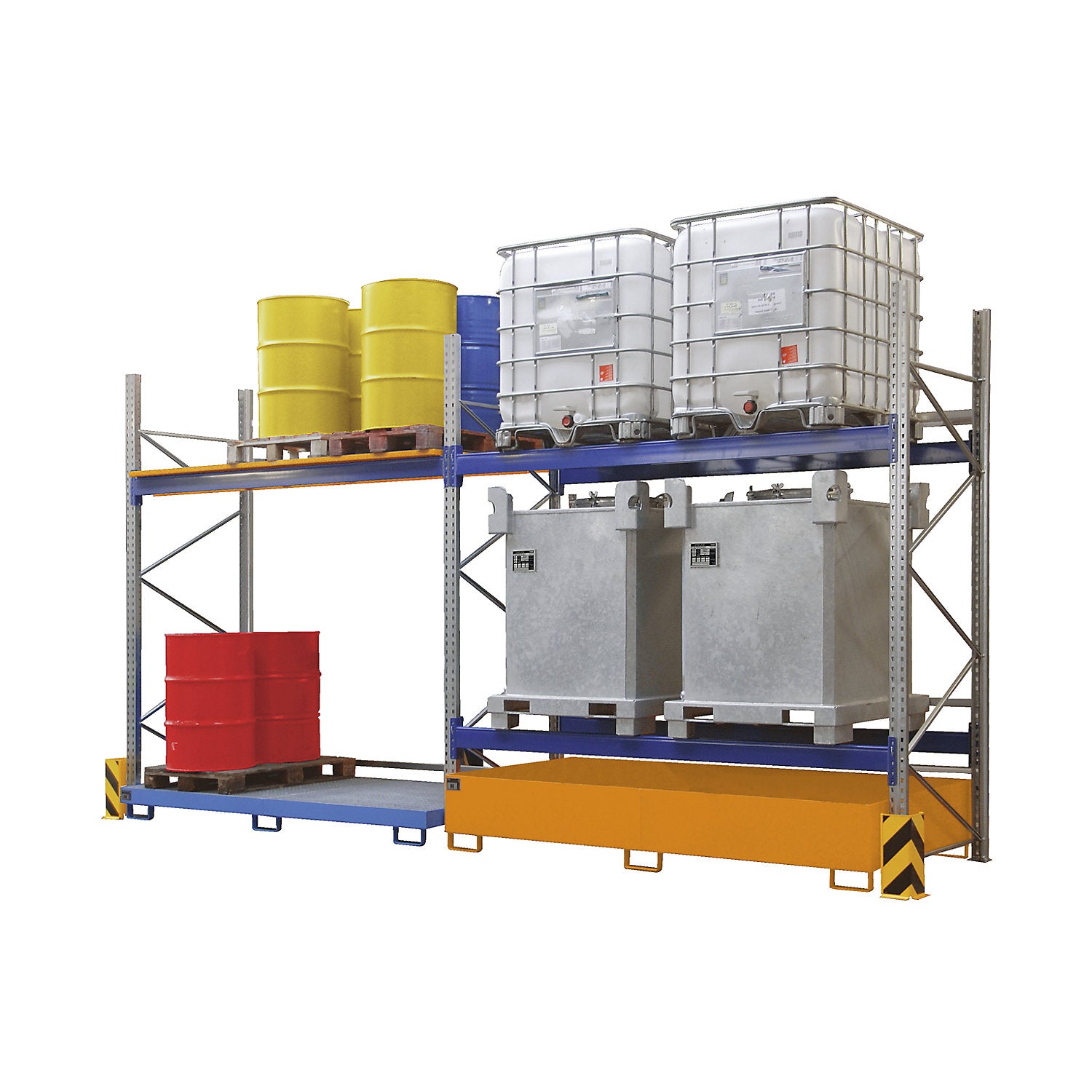

• Hanging rack sump tray - for retrofitting existing racking systems Hanging rack sump trays enable the simple retrofitting of existing racking systems into a legally compliant hazardous material store
• With a sump capacity of 200 litres and direct integration into existing racking structures, this rack sump tray offers a practical solution for the safe storage of drums and small containers
• The stable and robust tray construction made of 3 mm thick sheet steel is designed for daily use in industry, workshop and warehouse
• A zinc plated grate with a max. load of 1000 kg/m² under an evenly distributed load ensures a resilient storage surface
• As a result, the sump tray is suitable both for packages on pallets and for individual containers with liquids hazardous to water
• The rack sump trays are placed directly onto existing beams or suspended in the racking system
• The dimension between the beams is 915 mm
• This allows uncomplicated integration into many existing racking installations, thereby avoiding complex modifications
• Approved for the storage of liquids hazardous to water, the sump tray supports compliance with statutory requirements for the indoor storage of hazardous materials
• At the same time, it helps to safely collect escaping liquids and protect sensitive storage areas
• As a functional rack sump tray, it creates an economical way to continue using existing storage capacities and adapt existing racking systems to current requirements for hazardous substance storage.
