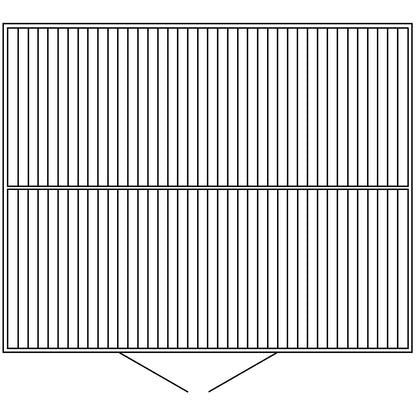

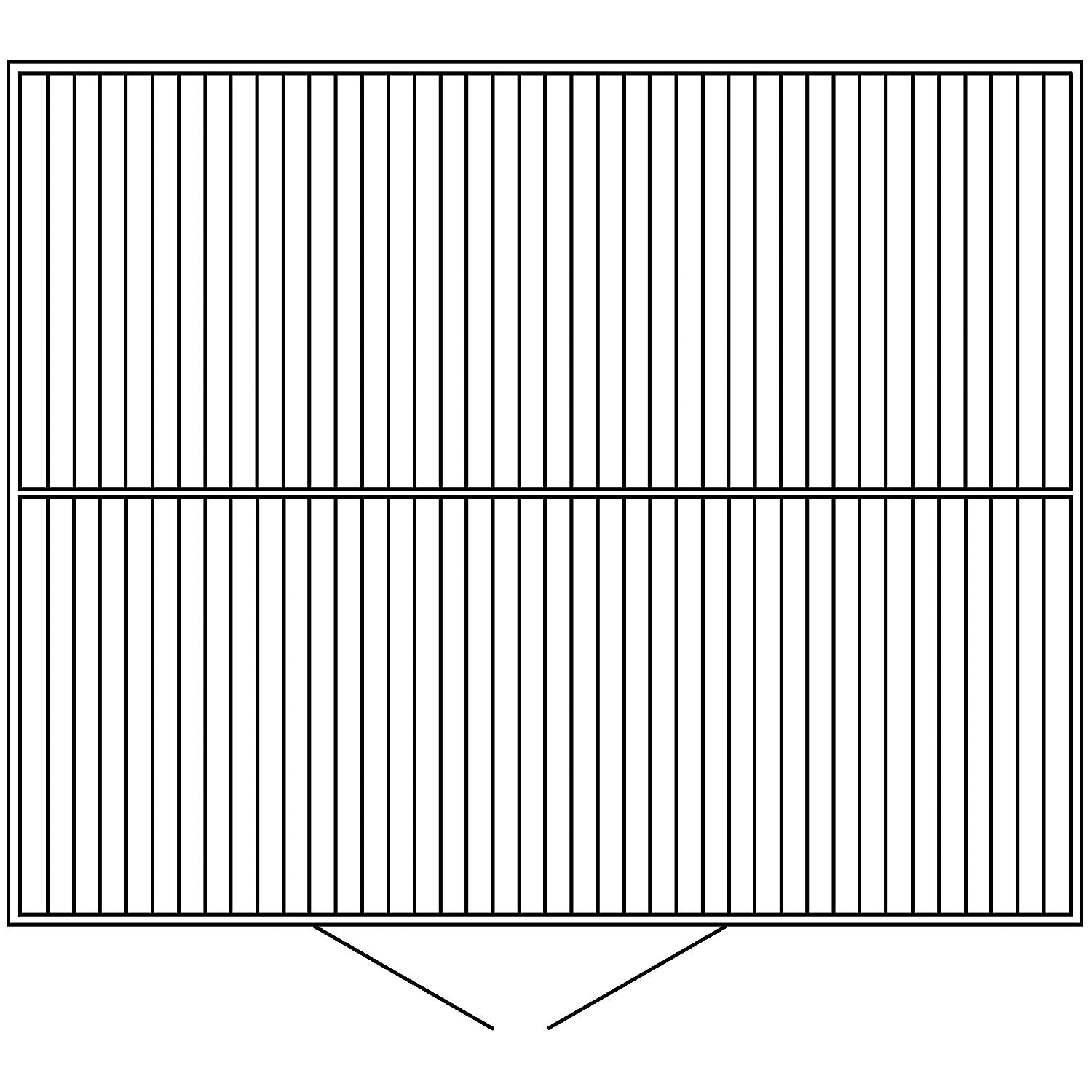

Hazardous goods storage container for flammable media, cold-insulated, external HxWxD 2585 x 5075 x 4200 mm, zinc plated.

Estimated delivery: 71 days

Hazardous goods storage container for flammable media, cold-insulated, external HxWxD 2585 x 5075 x 4200 mm, zinc plated

• Supplied = pre-assembled, final assembly by customer
• Width = 5075 mm
• Depth = 4200 mm
• Height = 2585 mm
• Place of use = outdoor use
• Sump capacity = 2400 l
• Position of hinged door = long side
• Internal height = 1910 mm
• Internal width = 4840 mm
• Internal depth = 3940 mm
• Material = sheet steel
• Finish = zinc plated
• Door clearance width = 1950 mm
• Door clearance height = 1900 mm
• Max. snow load = 150 kg/m²
• Door type = double hinged doors
• For media = flammable liquids
• Type of floor = hot dip galvanised sump tray with grate, max. load 1000 kg/m² with evenly distributed load
• Heat output = 2x2 kW
• Colour = zinc plated
• Hazard class = for flammable liquids in GHS categories 1 - 3
• Test symbol = with general certification from the DIBt (German Institute for Construction Technology) Berlin
• Lock type = security lock
• Product type = cold insulated hazardous goods containers
• Customs tariff number = 94069038
• Country of origin = DEU
• Gross weight = 2800 kg
• Weight = 2800 kg
• Sustainability = CO 2 footprint calculated

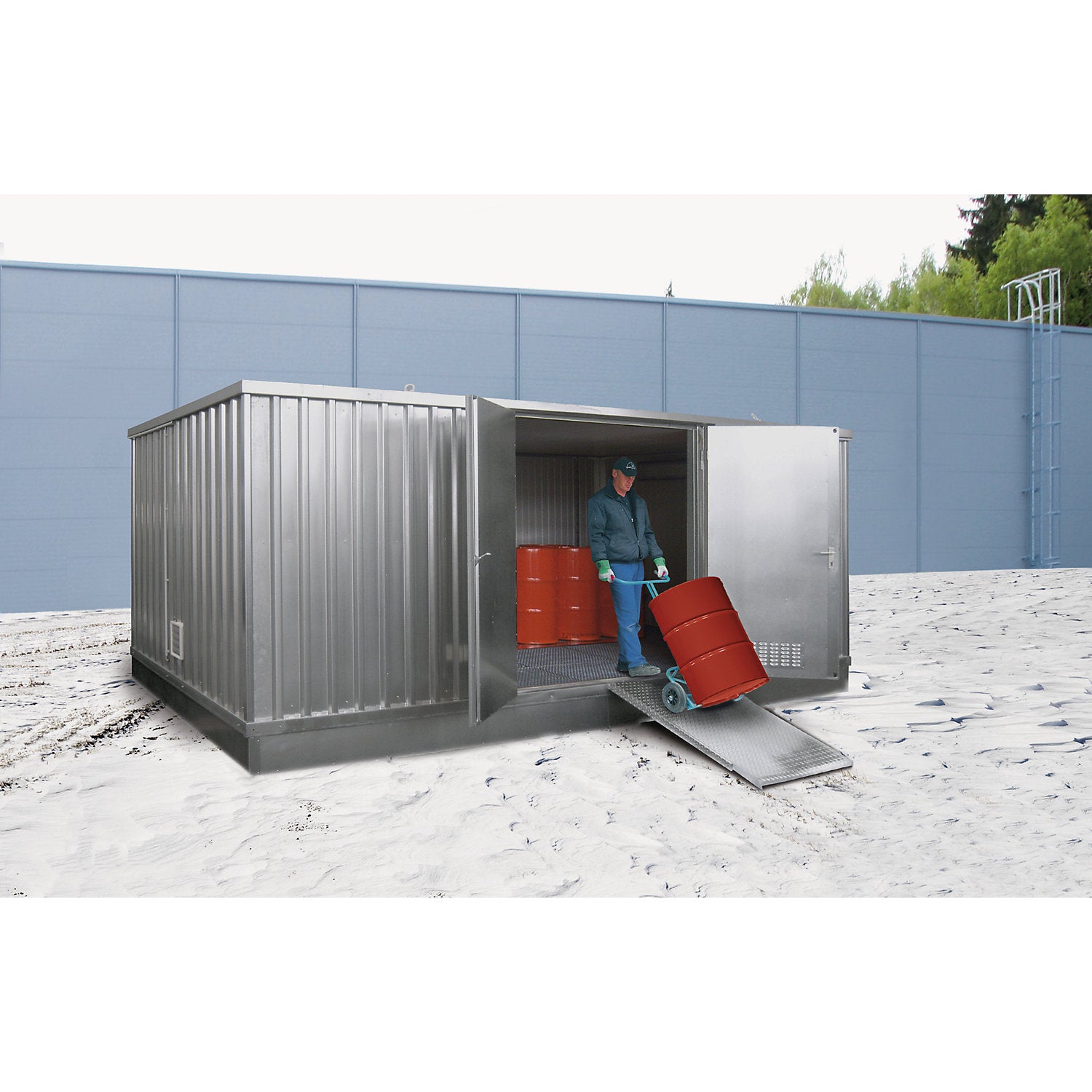

• For frost-free, regulation compliant, versatile and mobile outdoor storage of temperature sensitive hazardous goods
• Thermally insulated containers protect valuable media against the effects of frost and low temperatures
• Approved for flammable liquids in GHS categories 1 - 3
• The inside of all walls, doors and the roof are insulated with 60 mm thick, non-flammable insulation material

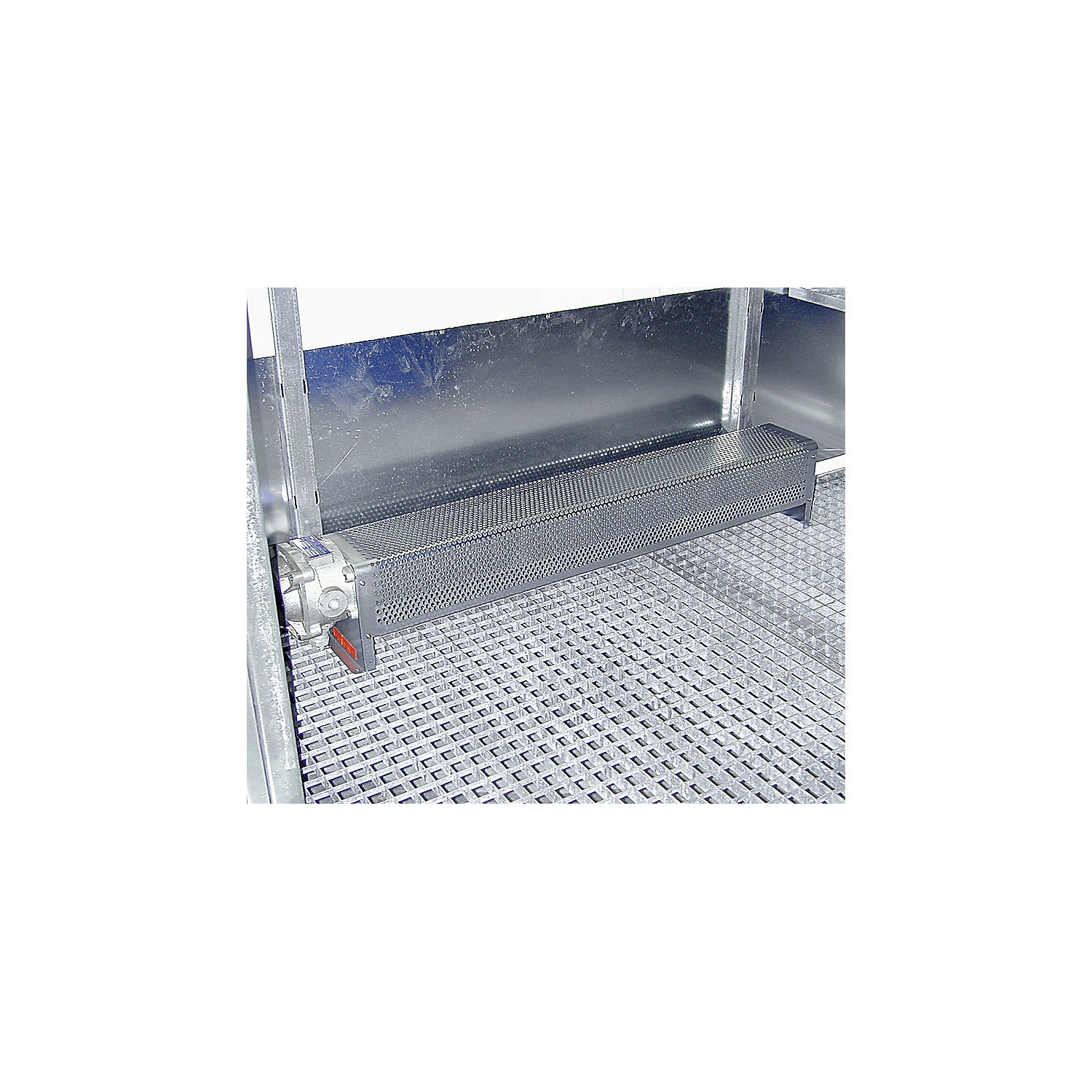

• Heated with explosion protected electric heater
• Robust, zinc plated steel construction
• Can be moved at any time when empty - crane eyelets, forklift access
• With double doors as standard
• Hot dip galvanised sump tray with grate, max. load 1000 kg/m² with evenly distributed load
• Can be used as small container storage in conjunction with shelving (accessory)
• For frost-free, active or passive storage of flammable media in GHS categories 1 - 3 For storing opened containers
• Approved for opening, filling and emptying of containers in storage
• With electric heater (T3 explosion protection), factory fitted and explosion protected forced ventilation to comply with regulatory 5-fold air exchange requirement
• Wired to exterior mounted switch box, 230 V
• Zinc plated, particularly stable, profiled wall and roof panels made of sheet steel
• Reinforced roof and floor frame profiles, all round drainage rails (except for doors)
• Weather protected ventilation openings in the doors and rear wall
• Double doors With security lock
• Options available at extra cost Insulated sump tray
• Exterior paintwork in sky blue RAL 5015
• Fume monitoring device - Monitors effectiveness of ventilation in accordance with TRGS 510 - Proscribed with at least twofold air exchange - Including flow sensor with evaluation unit, equipotential bonding bar, alarm horn Please order together with container, no retrofitting possible
• Snow load: 150 kg/m² EN 1055 compliant
• Pre-assembled, final assembly by customer
• Please enquire about additional models such as containers with air conditioning and fire protection containers.
