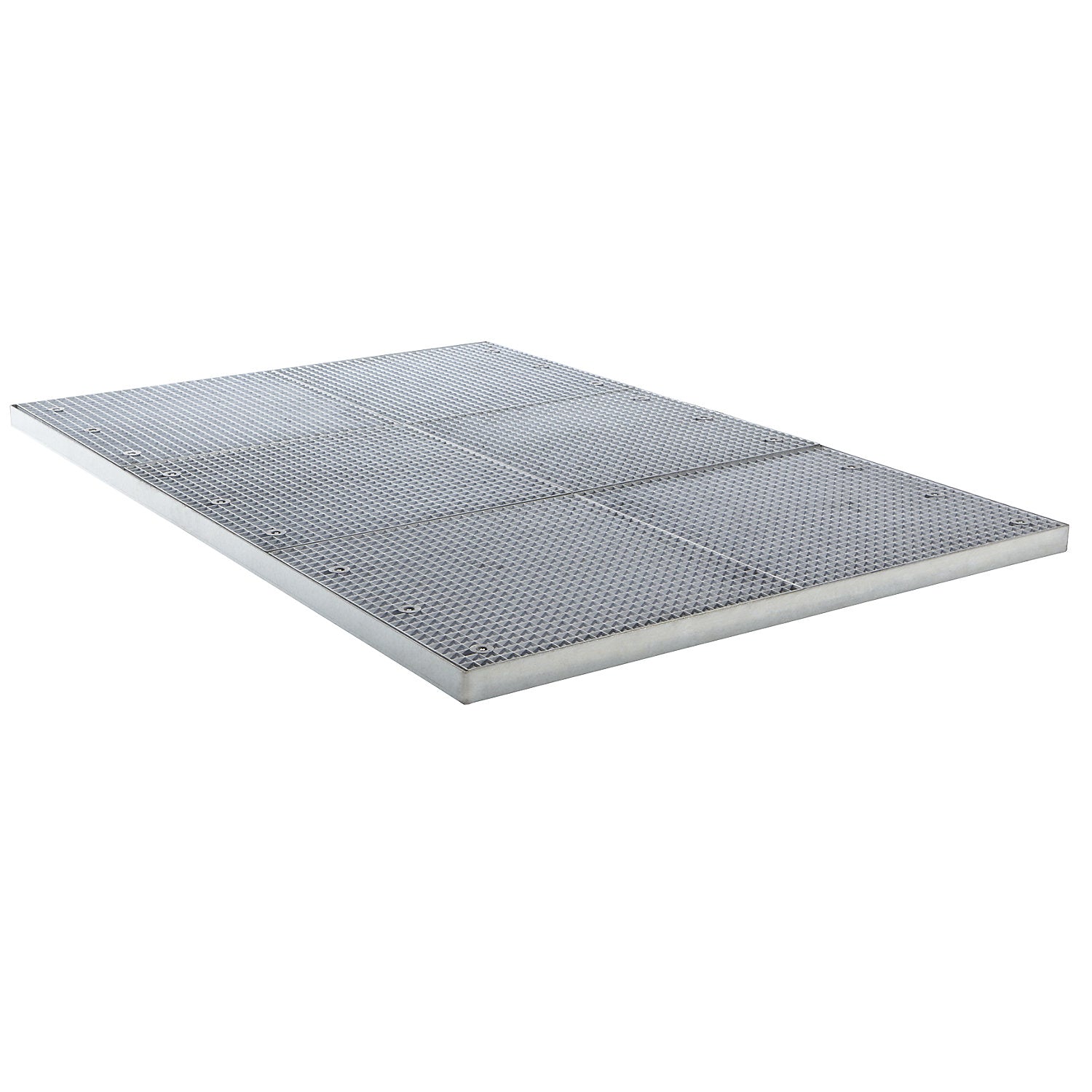

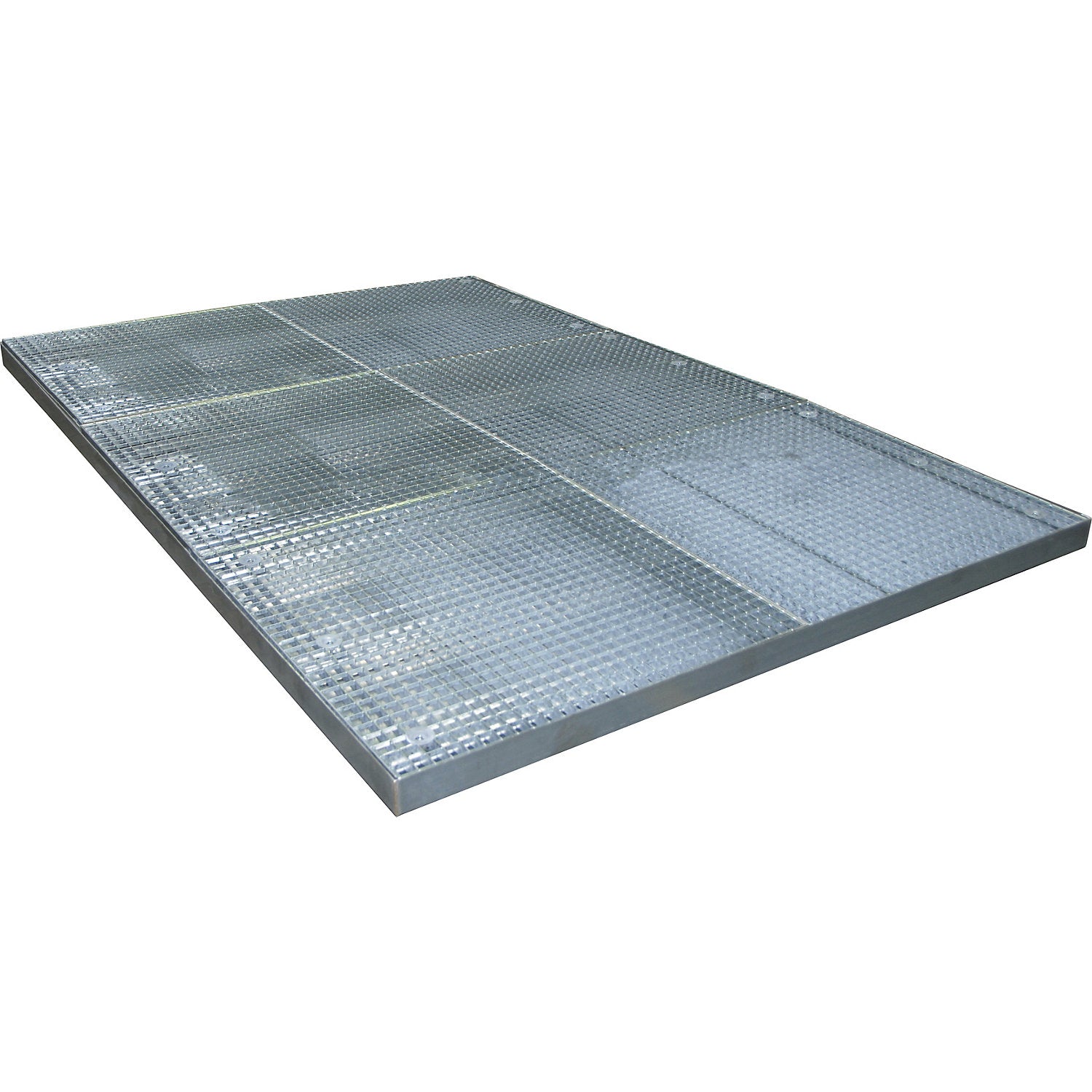

Low profile steel sump tray, width 1900 mm, length 2850 mm, capacity 242 l.

Estimated delivery: 44 days

Low profile steel sump tray, width 1900 mm, length 2850 mm, capacity 242 l

• Supplied = assembled
• Type of grate = with zinc plated grate
• Sump capacity = 242 l
• Length = 2850 mm
• Width = 1900 mm
• Height = 78 mm
• Material = sheet steel
• Finish = hot dip galvanised
• Colour = hot dip galvanised
• Design of sump tray = can be walked/driven on
• Max. load = 5000 kg/m²
• Test symbol = with general certification from the DIBt (German Institute for Construction Technology) Berlin
• Material thickness = 3 mm
• For media = flammable and water hazardous liquids
• Hazard class = for flammable liquids in GHS categories 1 - 3 as well as water hazardous liquids in GHS categories 1 - 4
• Distributed load = 5000 kg/m²
• Max. wheel load = 500 kg
• Customs tariff number = 73101000
• Country of origin = DEU
• Gross weight = 347 kg
• Weight = 347 kg
• Sustainability = CO 2 footprint calculated
• Easily driven over, minimal space required, large trays

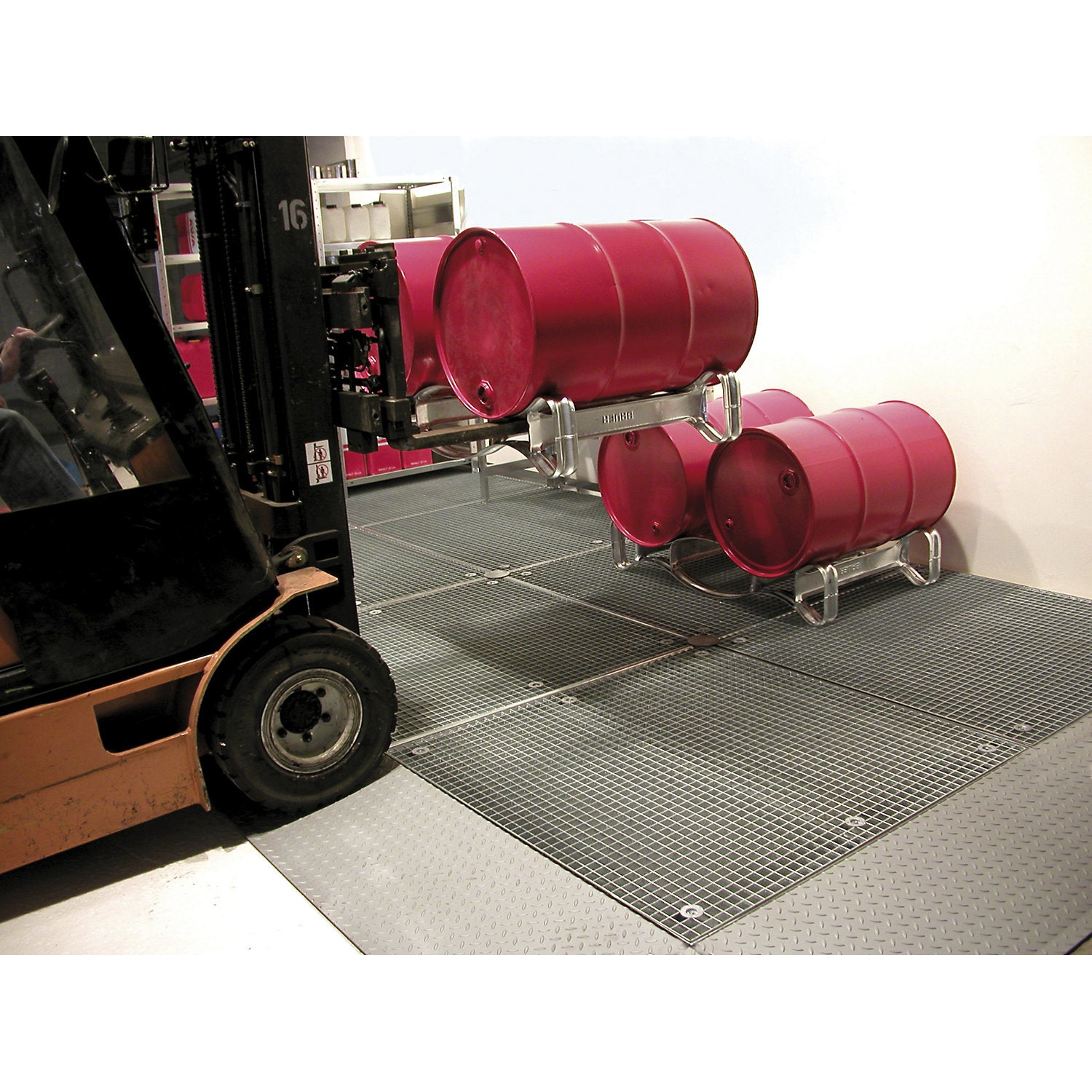

• Can be easily accessed and driven over with drum trucks, pallet trucks, forklifts etc. due to particularly low overall height of only 78 mm
• Large footprint - large areas can be covered with only a few trays - and are thus cost effective as well
• Minimal space requirement due to narrow ramps (see accessories)
• Approved for flammable liquids in GHS categories 1 - 3 as well as water hazardous liquids in GHS categories 1 - 4
• Made of hot dip galvanised 3 mm sheet steel
• Includes removable, hot dip galvanised grates
• Max. wheel load 500 kg, max. load 5000 kg/m² (distributed load)

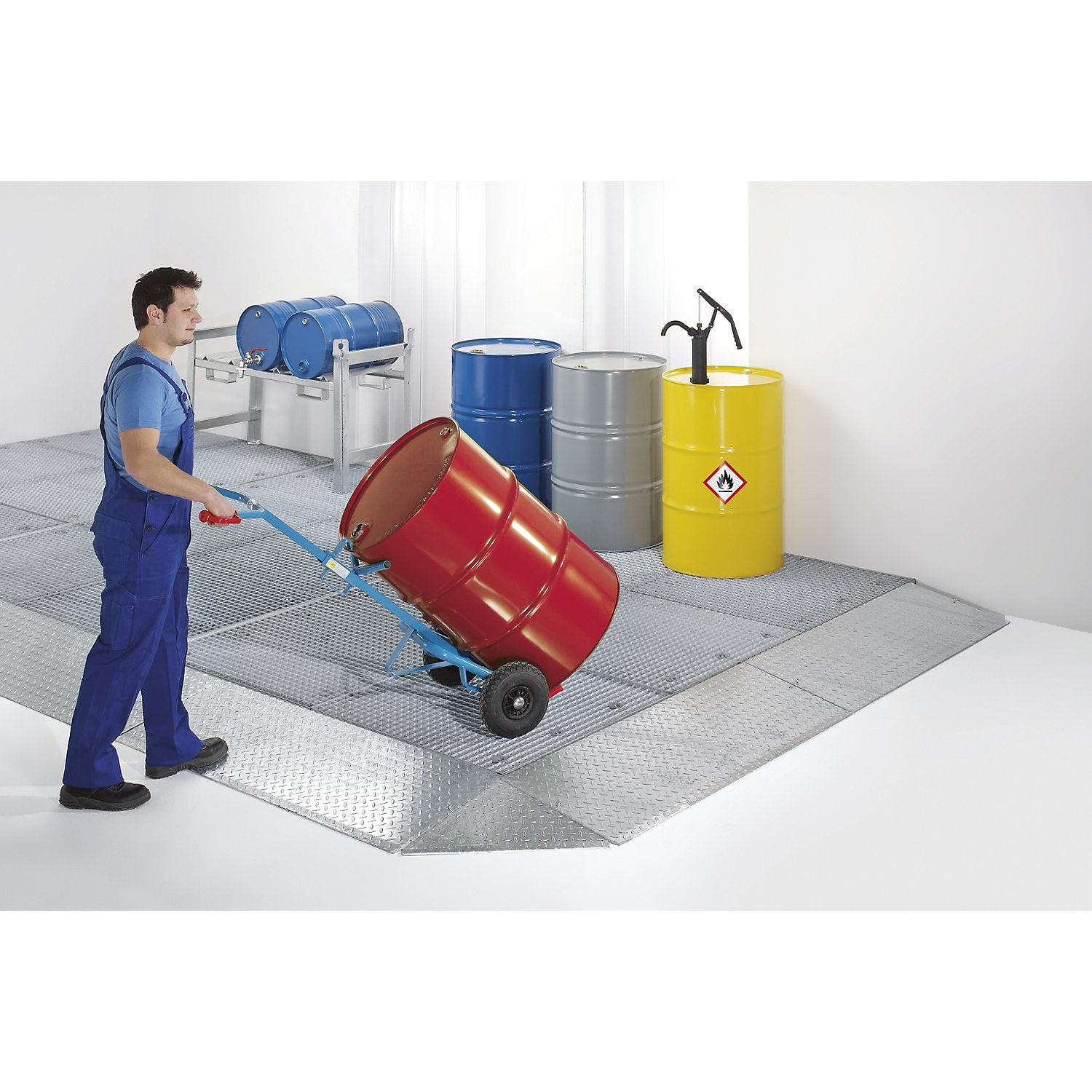

• Suitable for the storage of 200 litre drums
• Tray with 242 litre sump capacity is suitable for the storage of 200 litre drums.
