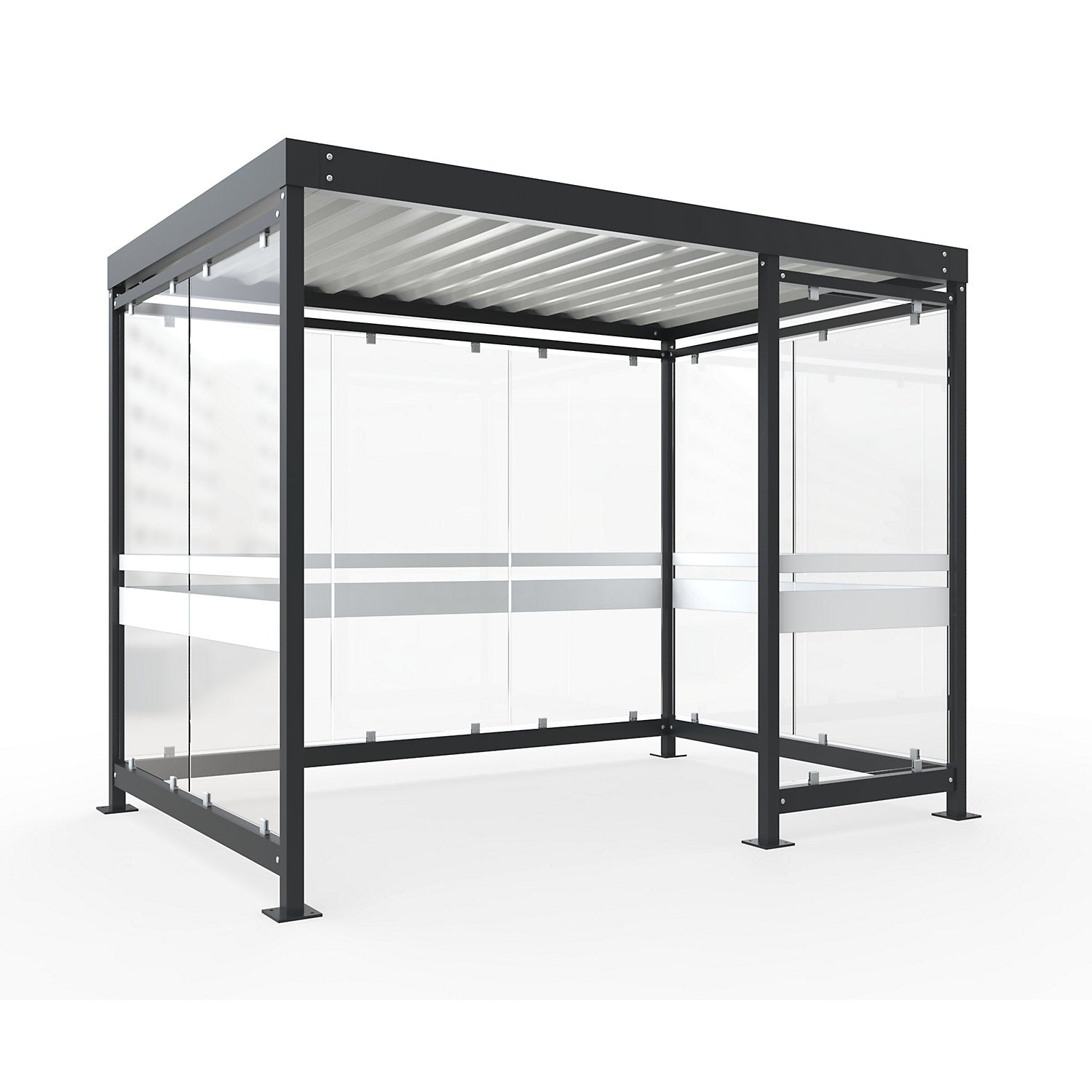

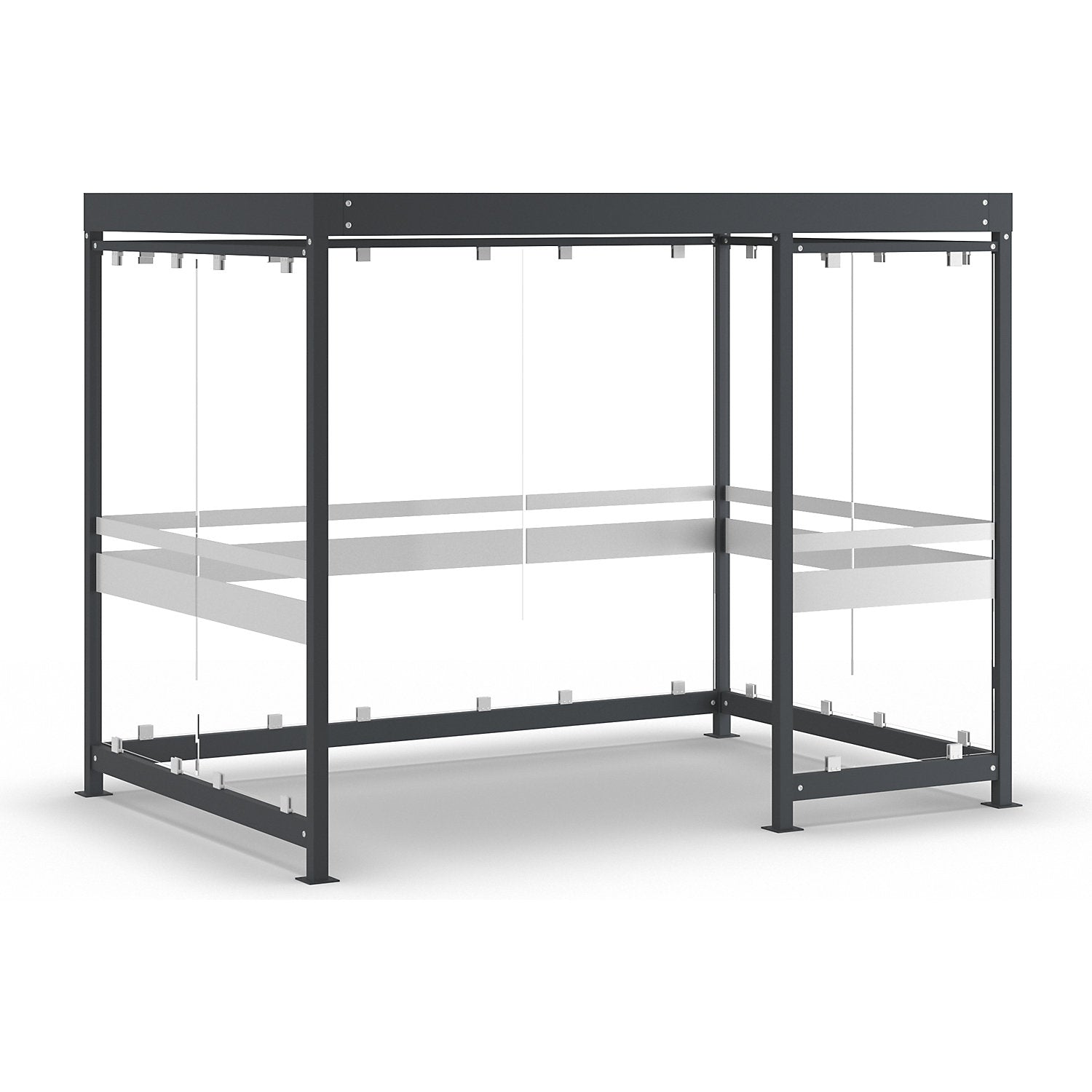

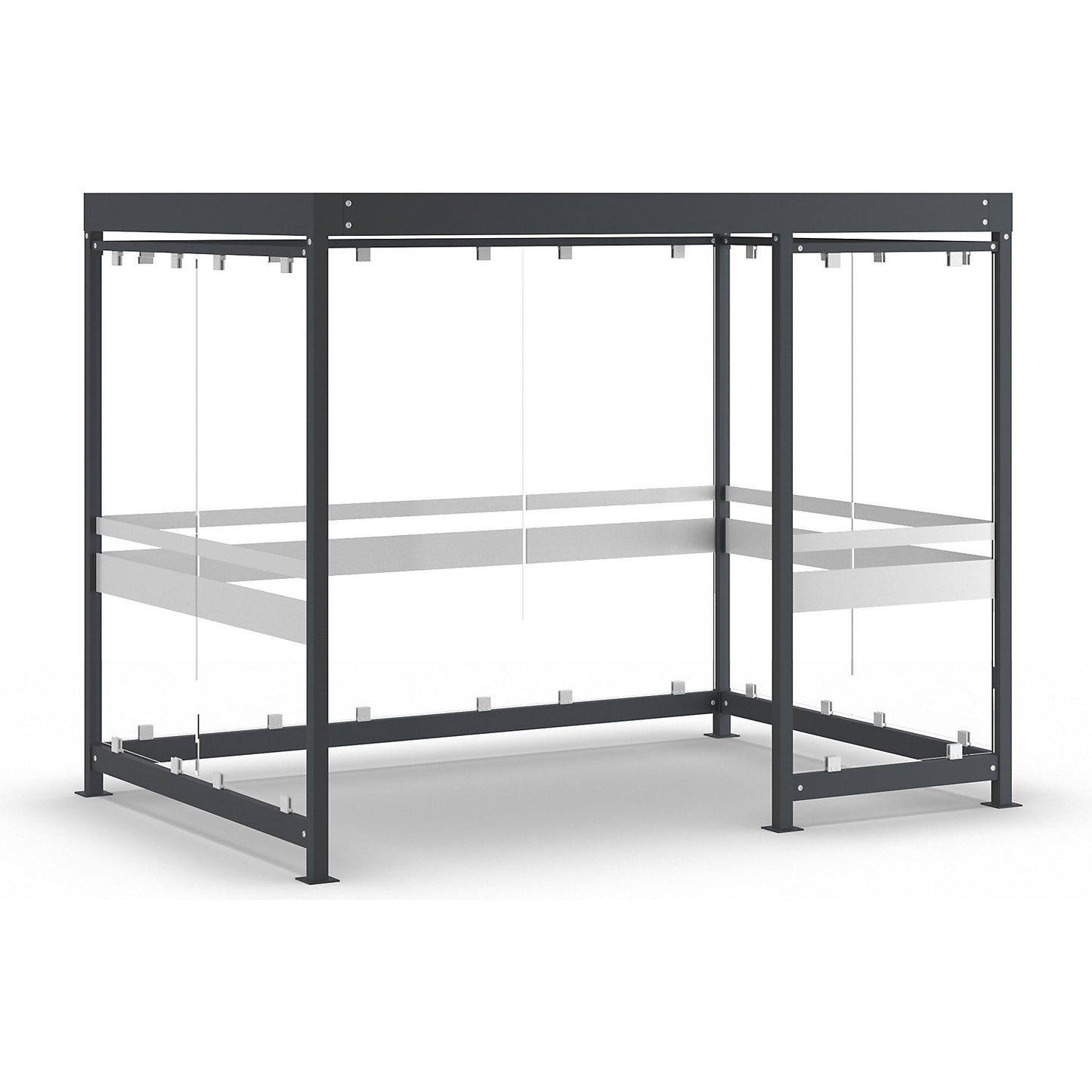

Canopy Köln with steel roof, 8 glass units, open to the left, complete kit, charcoal RAL 7016.

Estimated delivery: 46 days

Canopy Köln with steel roof, 8 glass units, open to the left, complete kit, charcoal RAL 7016

• Supplied = flat pack
• Construction = full back panel, full side panels, 1 glass element in front
• Height = 2510 mm
• Width = 3180 mm
• Depth = 2165 mm
• Finish = zinc plated and coated with paint
• Frame material = tubular steel
• Frame colour = charcoal RAL 7016
• For no. of people = 7
• Max. snow load = 110 kg/m²
• Clear height = 2360 mm
• Type of mounting = for bolting in place
• Side panel material = single pane safety glass
• Product type = shelters
• Customs tariff number = 94069038
• Country of origin = CZE
• Gross weight = 796 kg
• Weight = 600 kg
• Sustainability = CO 2 footprint calculated

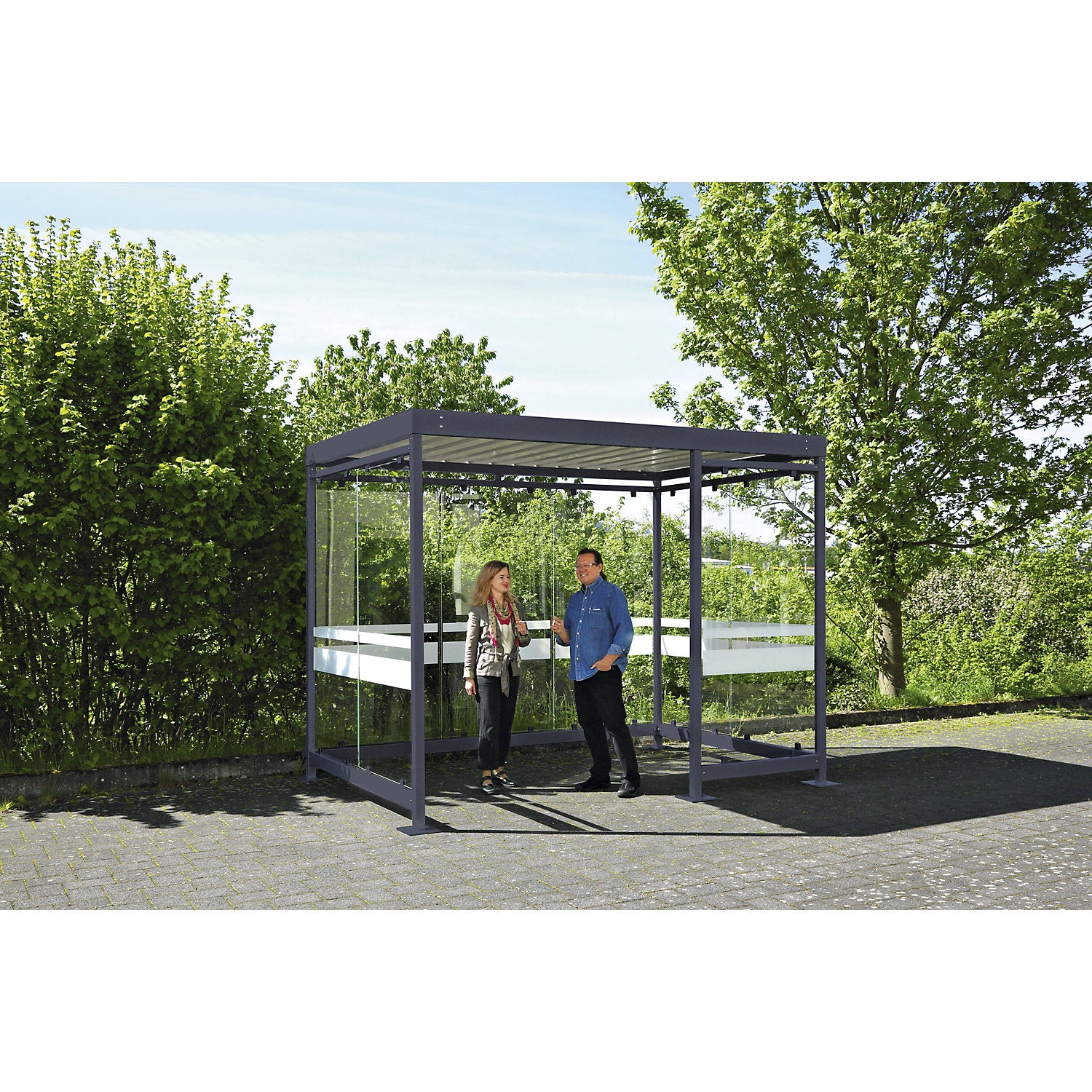

• Shelter for people suitable for versatile use - as a waiting room, smoking area or refuge
• Weather resistant, hot dip galvanised flat roof steel construction
• Rear and side walls made of single pane safety glass (ESG)

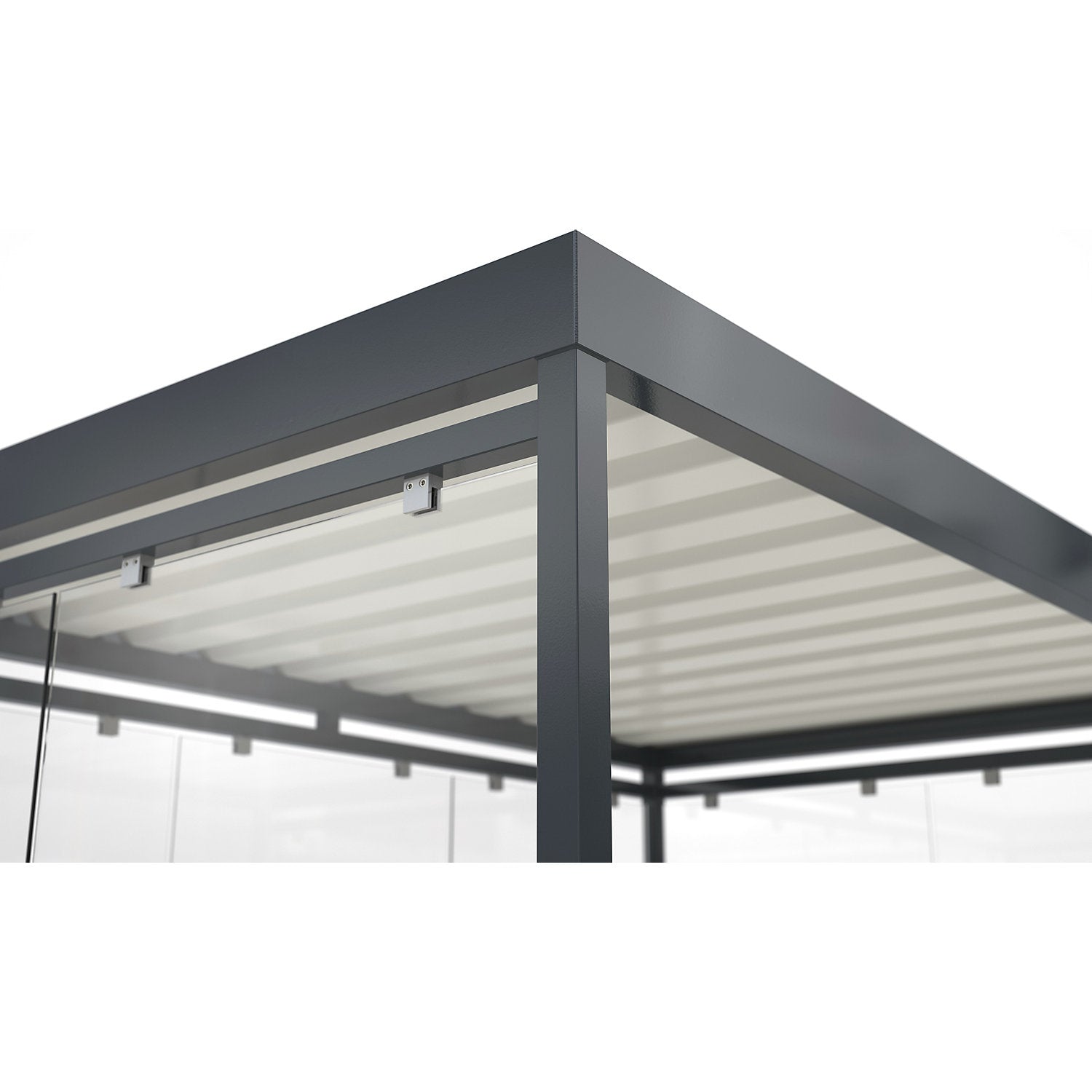

• Weatherproof trapezoidal sheet metal roof
• Drainage through water spouts at ground level
• Type tested statics for high wind loads and snow loads
• Delivery as a complete kit for self-assembly
• Shelter for persons in a modern design, glass with two stylish screen printed stripes
• Ceiling always in grey white RAL 9002
• Robust, load bearing steel construction made of tubular profiles with base plates to bolt in place
• Max. snow load 110 kg/m²
• Rear, side and front glazing (width x height 1000 x 2000 mm) made of 8 mm single pane safety glass
• Fastened directly to the steel construction by glass holders
• The shelters must be anchored to a level, firm foundation provided by the customer
• Supplied flat pack - easy self-assembly
• Note: this product is made to order and the right of return is therefore excluded
• Available upon request - Paintwork in additional RAL colours - Custom screen printing on glass - Custom designs - Higher max. snow loads
