Manual hoist dolly LST-G, adjustment width max. 203 mm, max. load 500 kg.

Estimated delivery: 51 days

Manual hoist dolly LST-G, adjustment width max. 203 mm, max. load 500 kg

• Supplied = pre-assembled, final assembly by customer
• Max. load = 500 kg
• Gripping range = 50 - 203 mm
• Weight = 11 kg
• Product type = chain hoist chassis
• Colour = blue
• Material = steel
• Customs tariff number = 84311000
• Country of origin = CHN
• Gross weight = 11.5 kg
• Weight = 11 kg
• Controlled movement of heavy loads via the hand chain
• Even load distribution across four wheels
• Self-alignment via two load-bearing pins
• Wide adjustment range for different beam widths
• Sturdy side plates
• Rubber buffers on both sides to cushion impacts

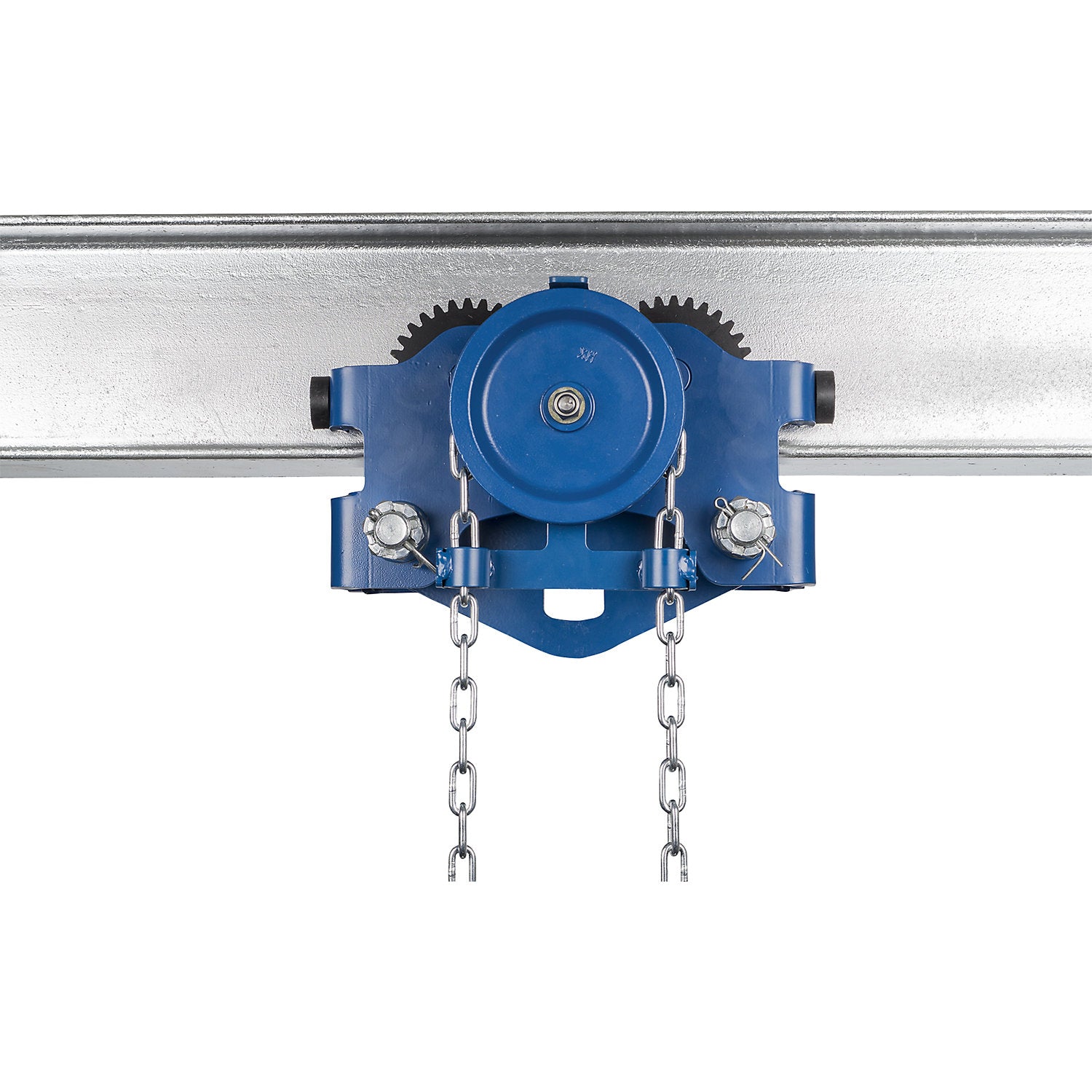

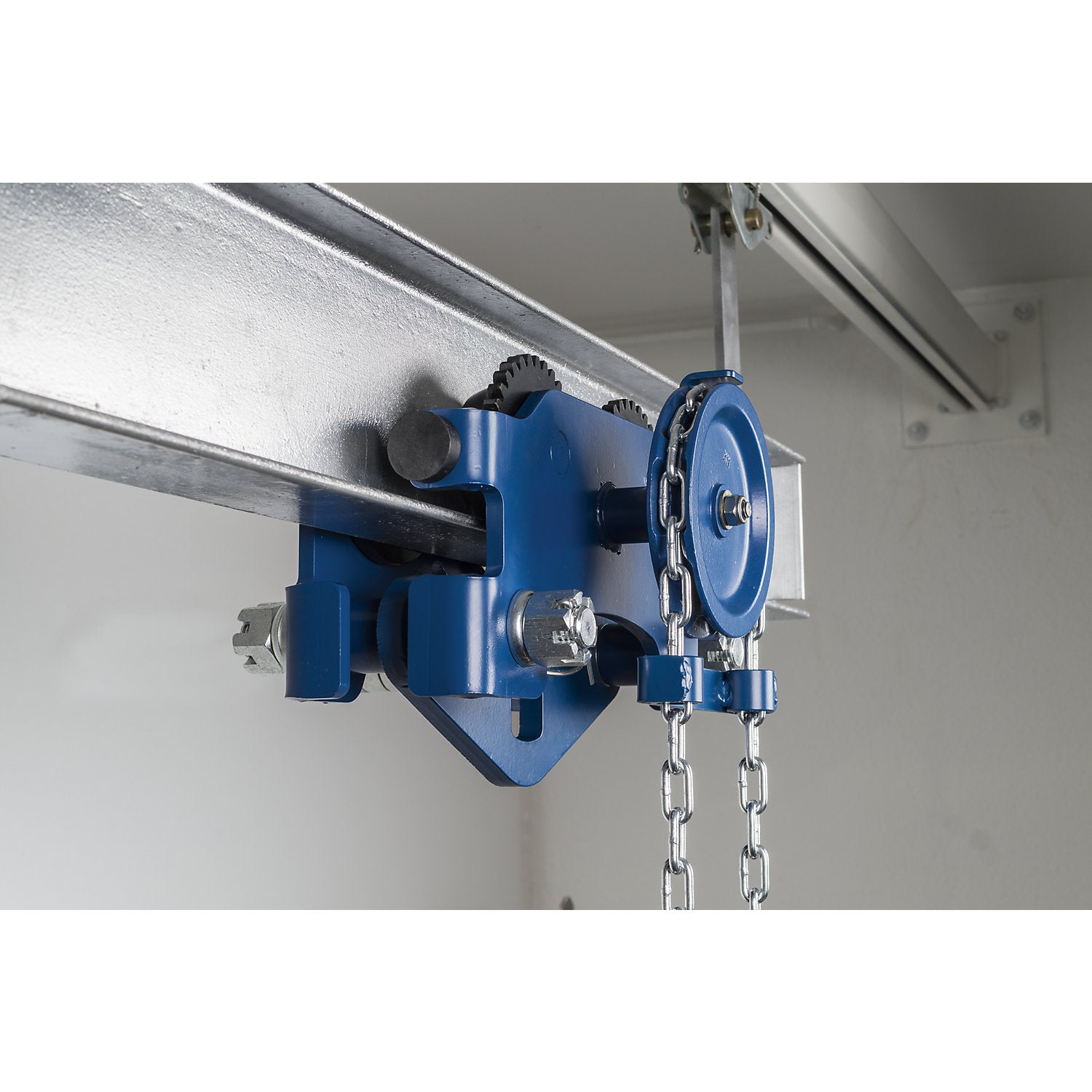

• The LST-G geared trolley enables the controlled movement of heavy loads along a beam and is also suitable for demanding operating conditions
• Operation via the hand chain supports precise positioning of the load without having to push it directly
• This facilitates material transport, especially on beams that are mounted high up or difficult to access
• Two load-bearing bolts enable self-adjustment of the trolley
• As a result, the load is evenly distributed across all four wheels
• Sturdy side plates increase durability during daily operations
• Rubber buffers on both sides cushion impacts at the end positions and protect the trolley as well as adjacent components
• The wide adjustment range allows the trolley to be adapted to different beam widths
• Hoists from the Premium PRO and PULLMASTER-II series with the same max. load can be hooked in and detached easily via the carrying hook
• The LST-G geared trolley is suitable for workshops, manufacturing facilities, assembly areas and warehouses
• It handles transport tasks where heavy loads must be safely moved along a beam and positioned precisely at the required workstation.
