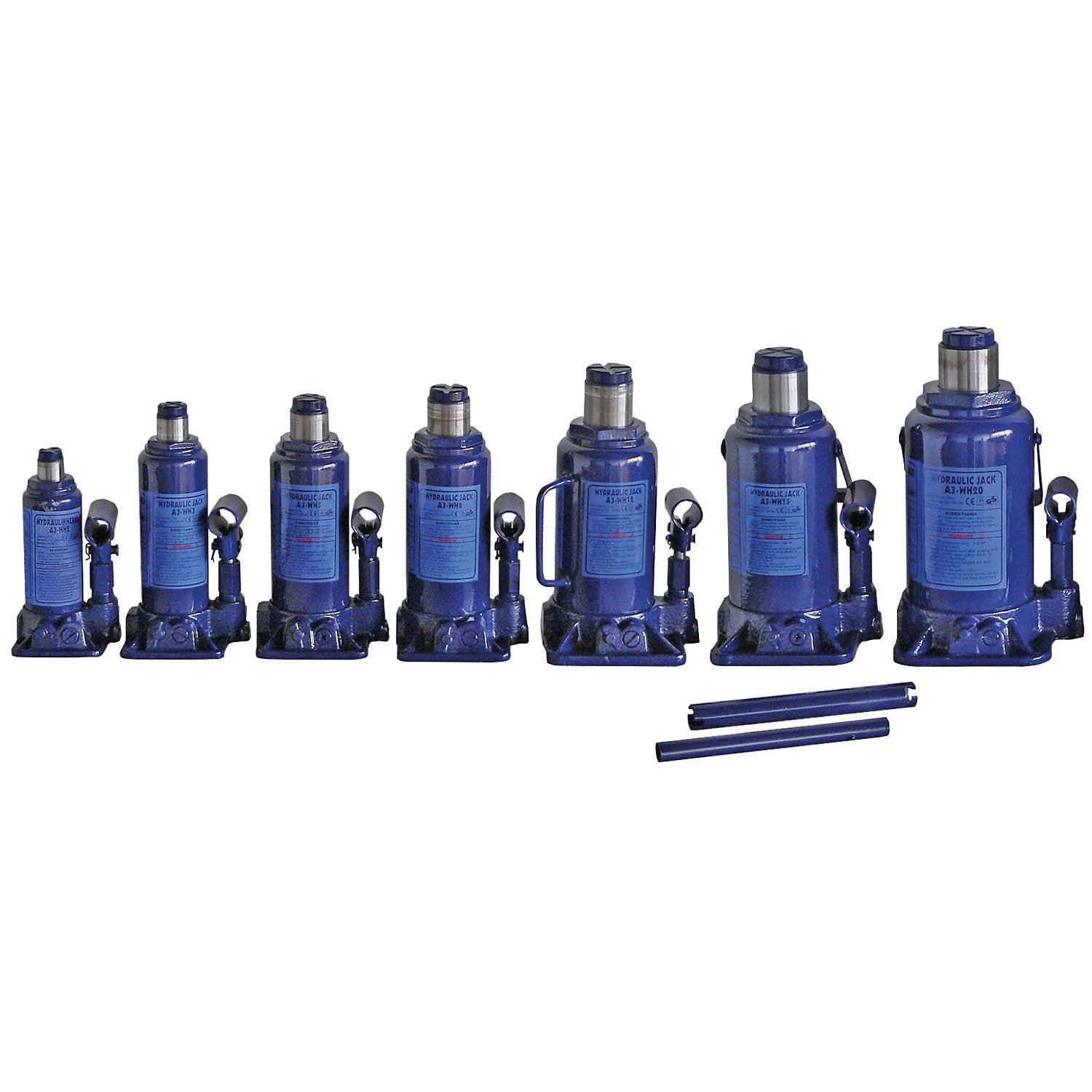

Bottle jack, with hydraulic unit, max. load 8 t.

Estimated delivery: 41 days

Bottle jack, with hydraulic unit, max. load 8 t

• Supplied = assembled
• Max. load = 8 t
• Lifting range with lifting head = 200 - 385 mm
• Lift = 125 mm
• Weight = 5 kg
• Piston diameter = 38 mm
• Base plate length = 110 mm
• Base plate width = 118 mm
• Additional height when unwound = 60 mm
• Overall height from - to = 200 - 385 mm
• Product type = hydraulic jacks
• Customs tariff number = 84254200
• Country of origin = CHN
• Gross weight = 5.2 kg
• Weight = 5 kg
• Sustainability = CO 2 footprint calculated
• Pressure relief value protects the hydraulic unit from overloading
• Large foot plate for extra stability. 2-part lever
• The high quality hydraulic cylinder features a large foot plate for increased stability
• The pump lever moves easily, and is driven by a 2-part lever with a fitting for the valve control
• The saddle is ribbed and can also be unscrewed by means of a thread
• The bottle jack is a reliable tool in the workshop and as a vehicle accessory
• Overload protection is provided by a pressure relief valve.
