PE sump tray for IBC/KTC tank containers, for 1 x IBC/CTC filling attachment container, with steel grate.

Estimated delivery: 52 days

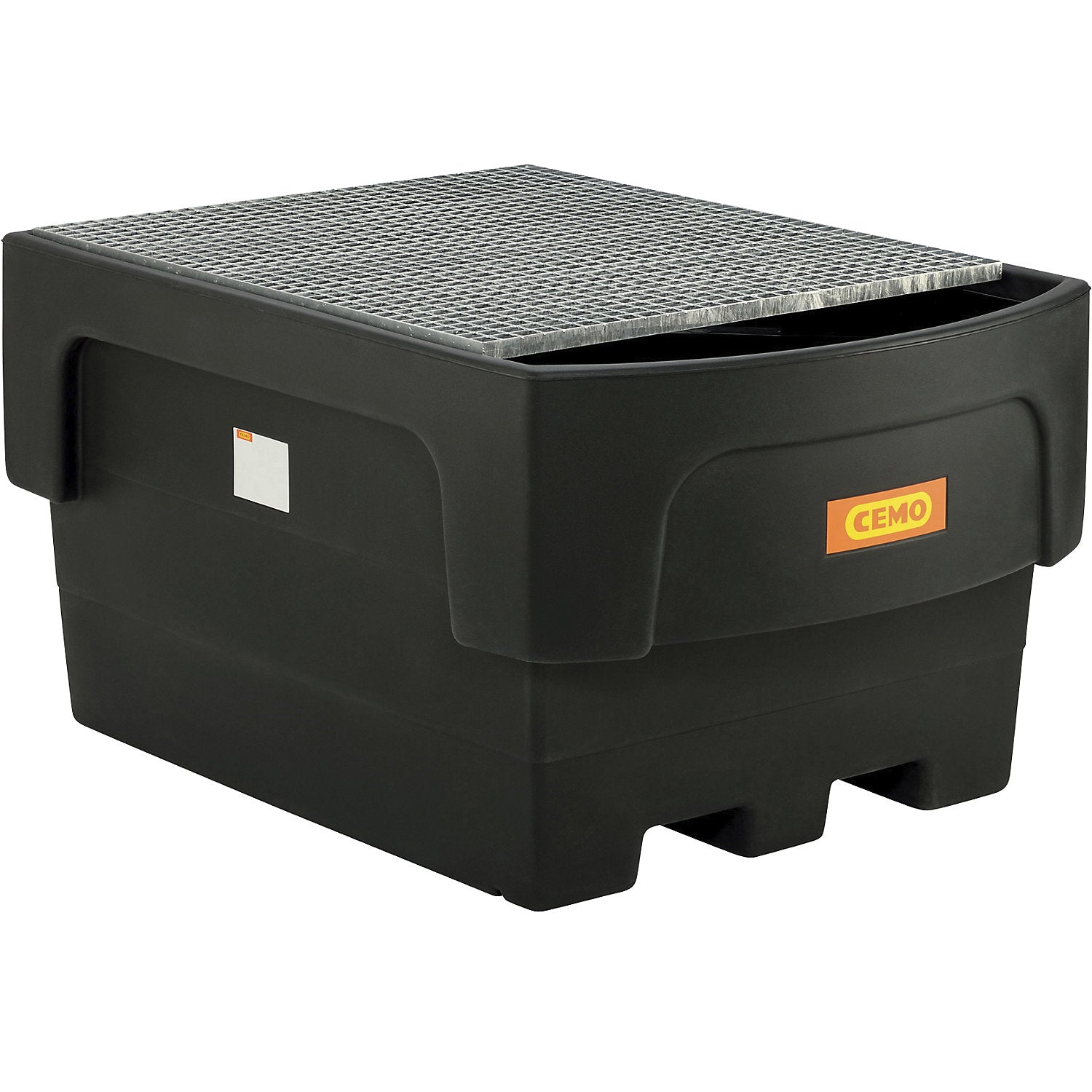

PE sump tray for IBC/KTC tank containers, for 1 x IBC/CTC filling attachment container, with steel grate

• Supplied = partially assembled
• Type of grate = with zinc plated grate
• Sump capacity = 1100 l. 1000 l container capacity = 1 pcs
• Length = 1620 mm
• Width = 1170 mm
• Height = 870 mm
• Colour = black
• Material = polyethylene
• Design of sump tray = with filling attachment
• Max. load = 1500 kg
• Test symbol = with general certification from the DIBt (German Institute for Construction Technology) Berlin
• For media = water hazardous dangerous goods, chemicals, acids and alkalis, oils
• Hazard class = for corrosive and water hazardous liquids in accordance with GHS
• Feature = stackable, clearance for forklift
• Customs tariff number = 39251000
• Country of origin = DEU
• Gross weight = 80.35 kg
• Weight = 65 kg
• Sustainability = CO 2 footprint calculated
• For compliant indoor storage of aggressive and water-polluting liquids
• Made of high-quality polyethylene (LDPE), highly resistant to aggressive media, acids, alkalis, oils etc
• Accessible from 2 sides with a stacker and manual pallet truck (transport only when empty - without IBC/KTC)
• With storage surface (support cross/grate) for easy and safe positioning of the tank containers
• Stackable - for transport or storage (without support cross / grate)
• With general technical approval from the DIBt, Berlin (Z-40.22-564)

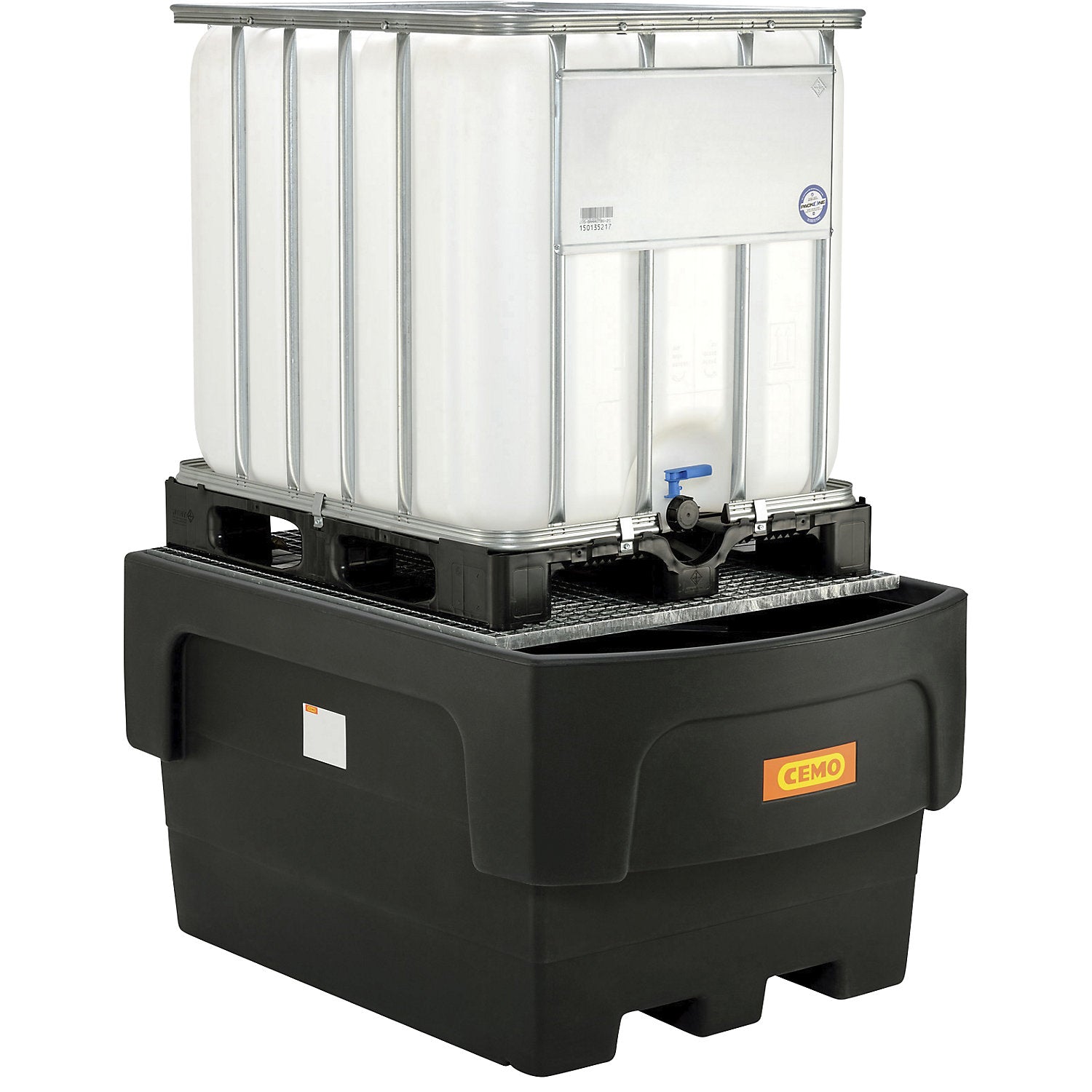

• PE sump tray for IBC/KTC tank containers - safe dispensing station for storage containers The PE sump tray for IBC/KTC tank containers is designed for compliant indoor storage and the controlled dispensing of water-polluting liquids
• It accommodates a 1000 l IBC or KTC tank container and provides a sump capacity of 1100 litres
• This reliably retains leaking liquids and effectively protects work areas, floors and the environment
• The robust sump tray made of high-quality polyethylene is resistant to oils, acids, alkalis and many other aggressive chemicals
• Tank containers can be placed directly on the integrated support cross or on an optional steel grate or PE perforated plate
• This allows the storage surface to be selected to match the respective container, application and handling concept
• An integrated front dispensing attachment catches drips and allows dispensing containers to be placed on it
• The PE support cross transfers the weight directly to the floor and enables a load capacity of up to 1500 kg per storage station
• The generous storage surface ensures safe positioning of the tank container
• The well-conceived design also facilitates internal handling
• The tray can be accessed from two sides with a stacker or manual pallet truck
• Transport is strictly permitted only when empty and without an IBC/KTC in place
• For storage and transport without a support cross, perforated plate or grate, the sump tray can be stacked to save space
• The support cross is delivered partially assembled and can be easily assembled
• With general technical approval from the DIBt, Berlin, the PE sump tray meets key requirements for the safe handling of hazardous substances that pollute water
• Support cross is delivered partially assembled - easy assembly.
