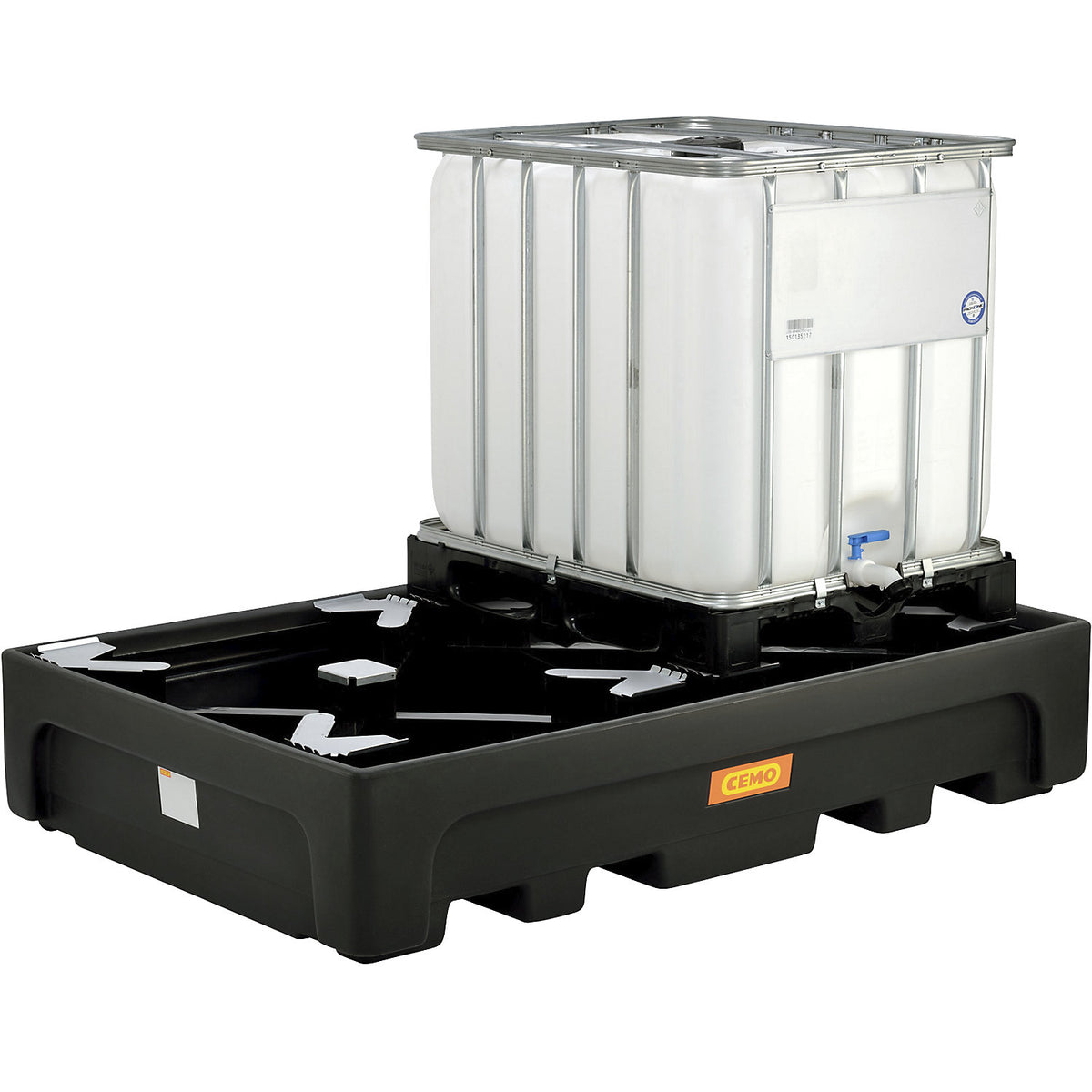

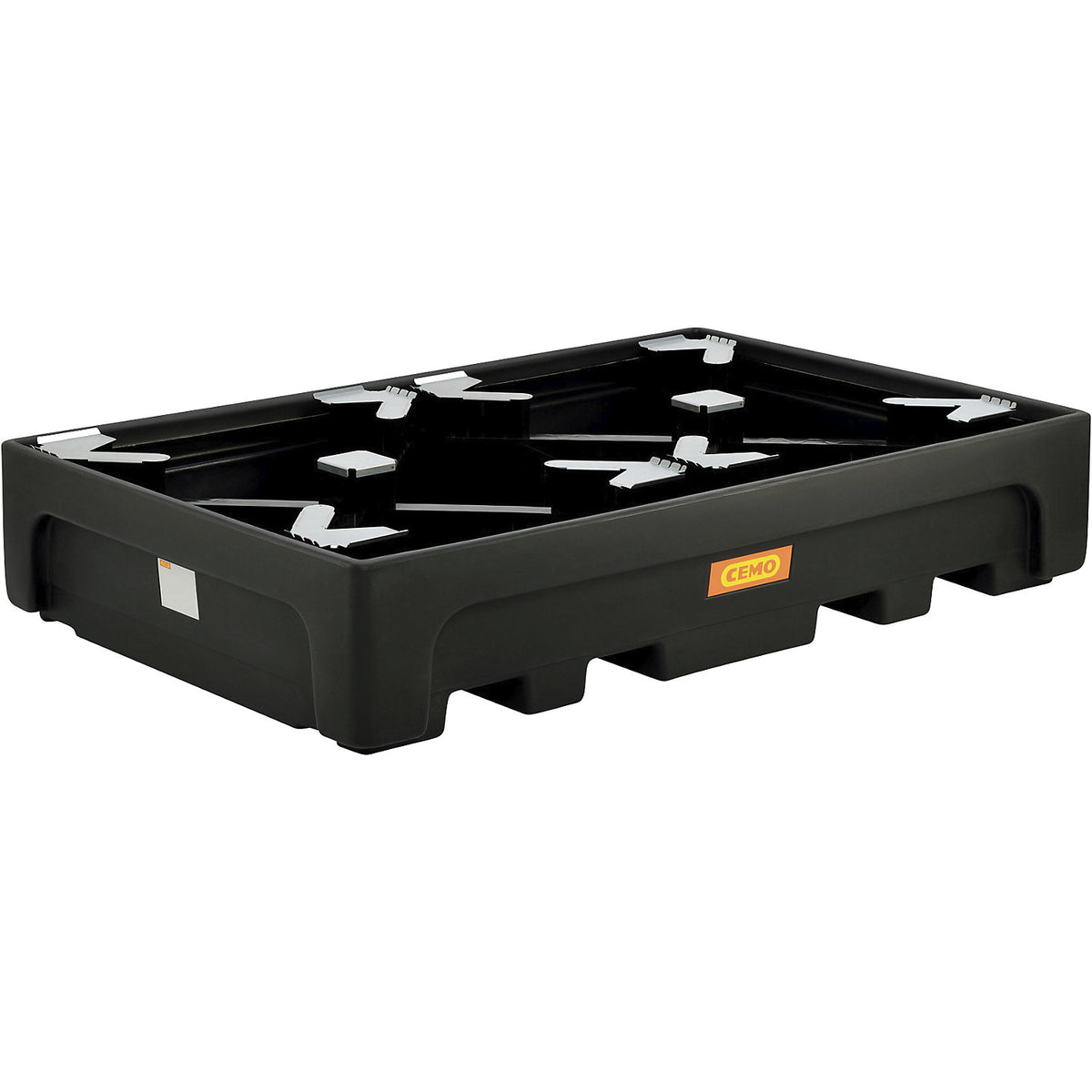

PE sump tray for IBC/CTC tank containers, for 2 x IBC/CTC, with PE cross brace.

Estimated delivery: 52 days

PE sump tray for IBC/CTC tank containers, for 2 x IBC/CTC, with PE cross brace

• Supplied = partially assembled
• Type of grate = with PE cross brace
• Sump capacity = 1100 l. 1000 l container capacity = 2 pcs
• Length = 2230 mm
• Width = 1460 mm
• Height = 440 mm
• Colour = black
• Material = polyethylene
• Max. load = 3000 kg
• Test symbol = with general certification from the DIBt (German Institute for Construction Technology) Berlin
• For media = water hazardous dangerous goods, chemicals, acids and alkalis, oils
• Hazard class = for corrosive and water hazardous liquids in accordance with GHS
• Feature = stackable, clearance for forklift
• Customs tariff number = 39251000
• Country of origin = DEU
• Gross weight = 72.5 kg
• Weight = 47 kg
• Sustainability = CO 2 footprint calculated
• For the compliant indoor storage of aggressive and water-polluting liquids
• Made of high-quality polyethylene (LDPE), highly resistant to aggressive media, acids, alkalis, oils etc
• Can be accessed from 2 sides with a stacker and pallet truck (transport only when empty - without IBC/KTC)
• With a platform (support cross/grate) for easy and safe placement of the tank containers
• Stackable - for transport or storage (without cross brace / grate)
• With national technical approval of the DIBt, Berlin (Z-40.22-564)
• The PE sump tray for IBC/KTC tank containers is designed for compliant indoor storage and the controlled dispensing of water-hazardous liquids
• Depending on the model, it accommodates one or two 1000 l IBC or KTC tank containers and offers a sump capacity of 1100 litres
• This reliably retains escaping liquids and effectively protects work areas, floors and the environment
• The robust sump tray made of high-quality polyethylene is resistant to oils, acids, alkalis and many other aggressive chemicals
• Tank containers can be placed directly on the integrated cross support or on an optional steel grate or PE perforated plate
• This allows the placement area to be selected to suit the respective container, application and handling concept
• The PE cross support transfers the weight directly to the floor and enables a load capacity of up to 1500 kg per storage space
• The generous placement area ensures secure positioning of the tank container
• The well-thought-out design also facilitates in-plant handling
• The tray can be accessed from underneath from two sides with a stacker or manual pallet truck
• Transport must only take place in an empty state and without an IBC/KTC in place
• For storage and transport without a cross support, perforated plate or grate, the sump tray can be stacked to save space
• The cross support is delivered partially assembled and can be easily assembled
• With the general technical approval from the DIBt, Berlin, the PE sump tray meets important requirements for the safe handling of hazardous substances that endanger water
• The cross brace is supplied partly assembled - easy self-assembly.
