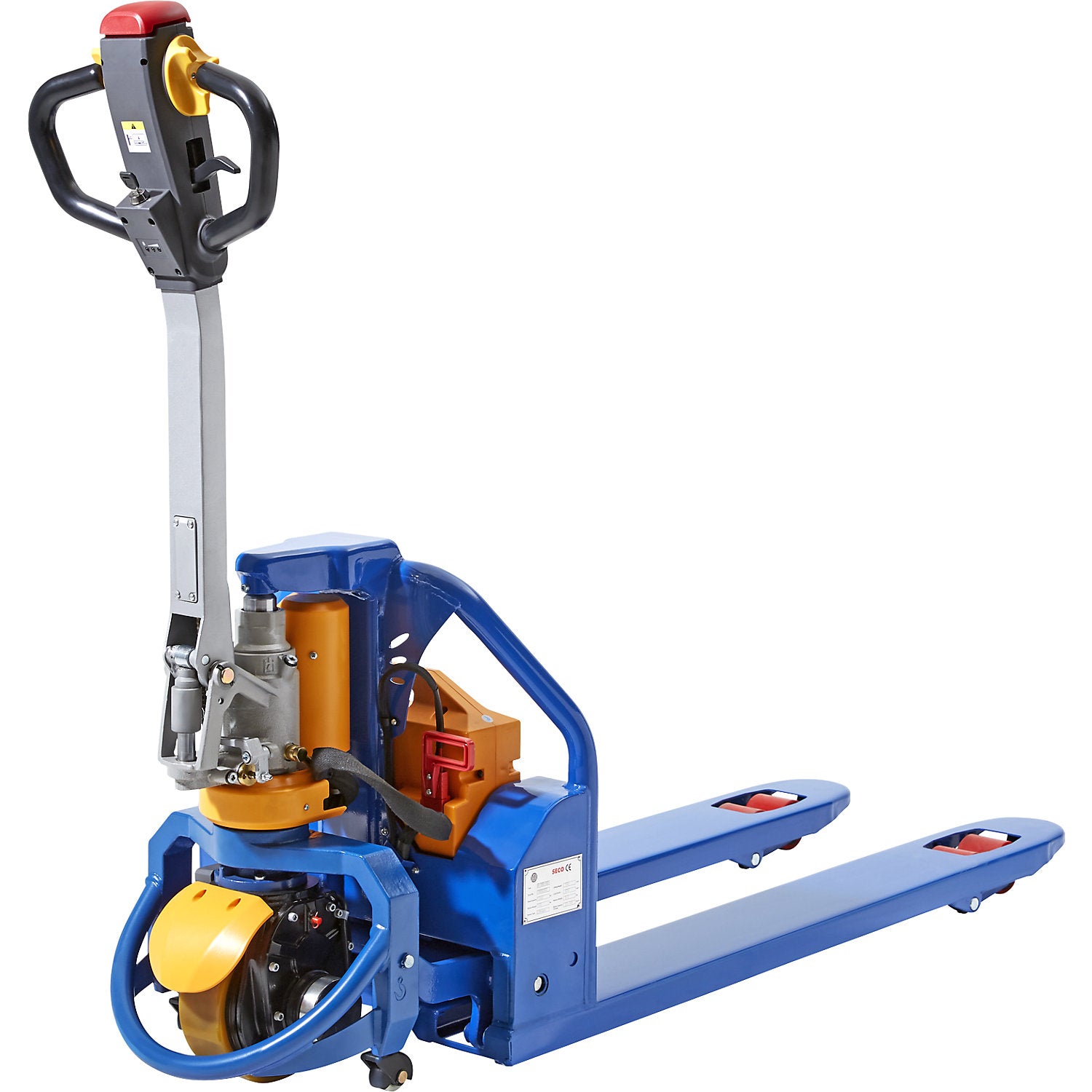

Electric pallet truck E15, max. load 1500 kg, fork dimensions LxW 1150 x 550 mm.

Estimated delivery: 31 days

Electric pallet truck E15, max. load 1500 kg, fork dimensions LxW 1150 x 550 mm

• Supplied = assembled
• Lifting range = 80 - 190 mm
• Fork length = 1150 mm
• Fork width = 160 mm
• Distance across forks = 550 mm
• Length = 1651 mm
• Width = 550 mm
• Overall height = 1300 mm
• Min. lifting speed = 35 mm/s
• Max. lifting speed = 43 mm/s
• Min. driving speed = 4.8 km/h
• Max. driving speed = 5 km/h
• Climbing performance with load = 8 %
• Climbing performance without load = 20 %
• Turning radius = 1494 mm
• Thickness of fork prong = 45 mm
• Battery = 48 V / 20 Ah
• Battery charger = 6 A impulse charger
• Working gangway for pallet length = 1900 mm
• Roller material = polyurethane
• Fork roller version = tandem
• Fork roller diameter = 80 mm
• Fork roller width = 70 mm
• Steering wheel width = 75 mm
• Steering wheel diameter = 250 mm
• Travel motor = 0.65 kW
• Customs tariff number = 84271090
• Country of origin = CHN
• Gross weight = 135.3 kg
• Weight = 135 kg
• Sustainability = CO 2 footprint calculated
• Electric lift and drive
• Lithium interchangeable battery 48 V / 20 Ah - maintenance free
• Charging time max. 3 hours
• The electric pallet truck E15 is the worthy successor to the classic pallet truck
• It combines its robustness and flexibility with modern drive and lifting technology with similar dimensions
• Little physical effort is required from operators, thereby protecting their backs and joints, reducing sickness levels and increasing productivity
• The maintenance free lithium-ion battery can be swapped in a flash, therefore also enabling multiple shift operation
• External charger
• Interim recharging of the innovative 48 V/20 Ah battery possible at any time
• Short charging time of 3 hours
• Can be used for up to 6 hours on one battery
• Long service life

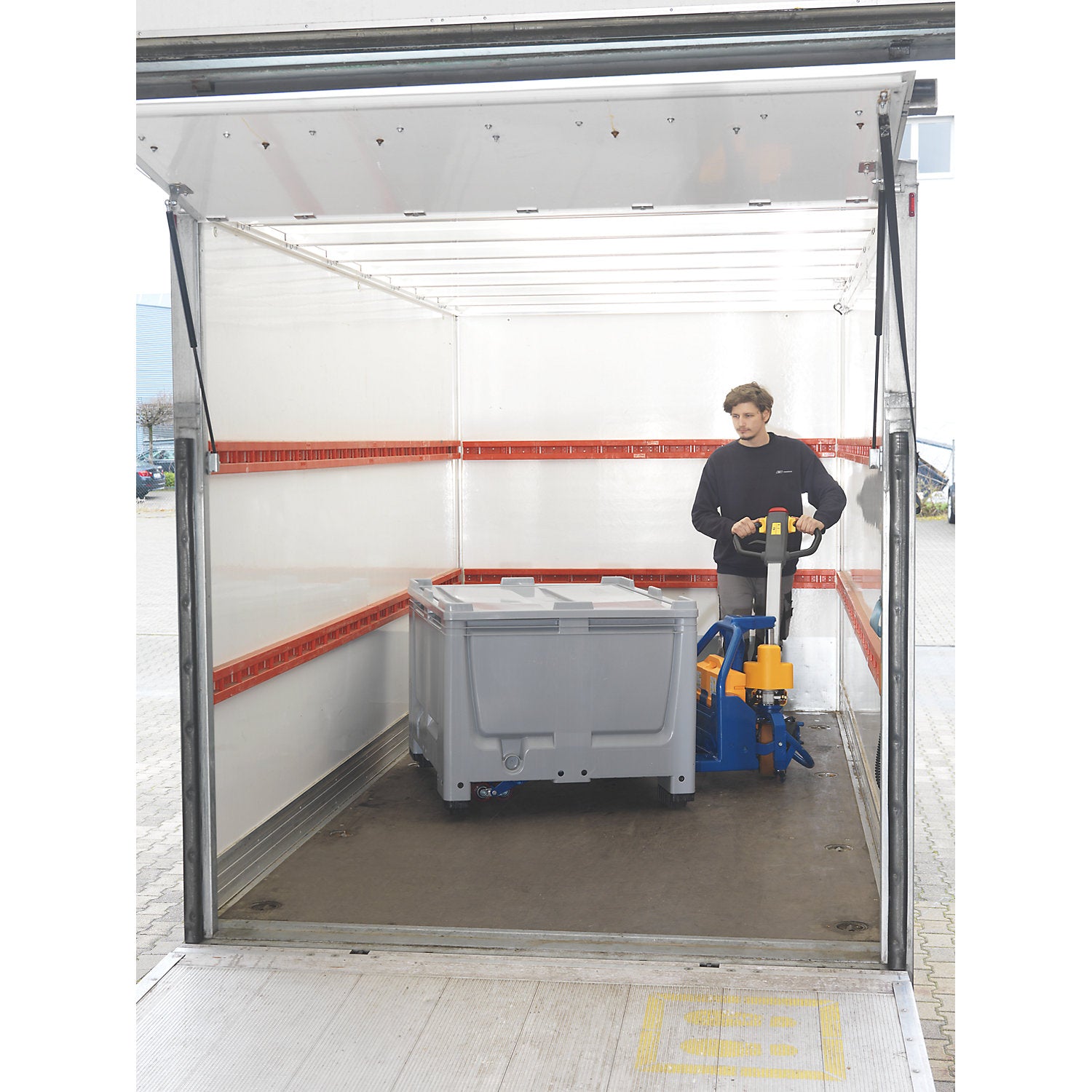

• Application: in multiple shift operation, warehouses and branches, on lorries, for long routes and frequent lifting
• High torque drive motor for excellent climbing capability on ramps and reinforced brake
• Maintenance free and brushless motor integrated in the drive wheel
• Maintenance free battery
• Service-friendly construction
• Steel protection bar on the motor and in front of the battery
• Operation: butterfly switches designed for left and right handed operators for infinitely adjustable speed control
• Forwards and backwards travel
• Lift/lower switches in the centre
• Horn
