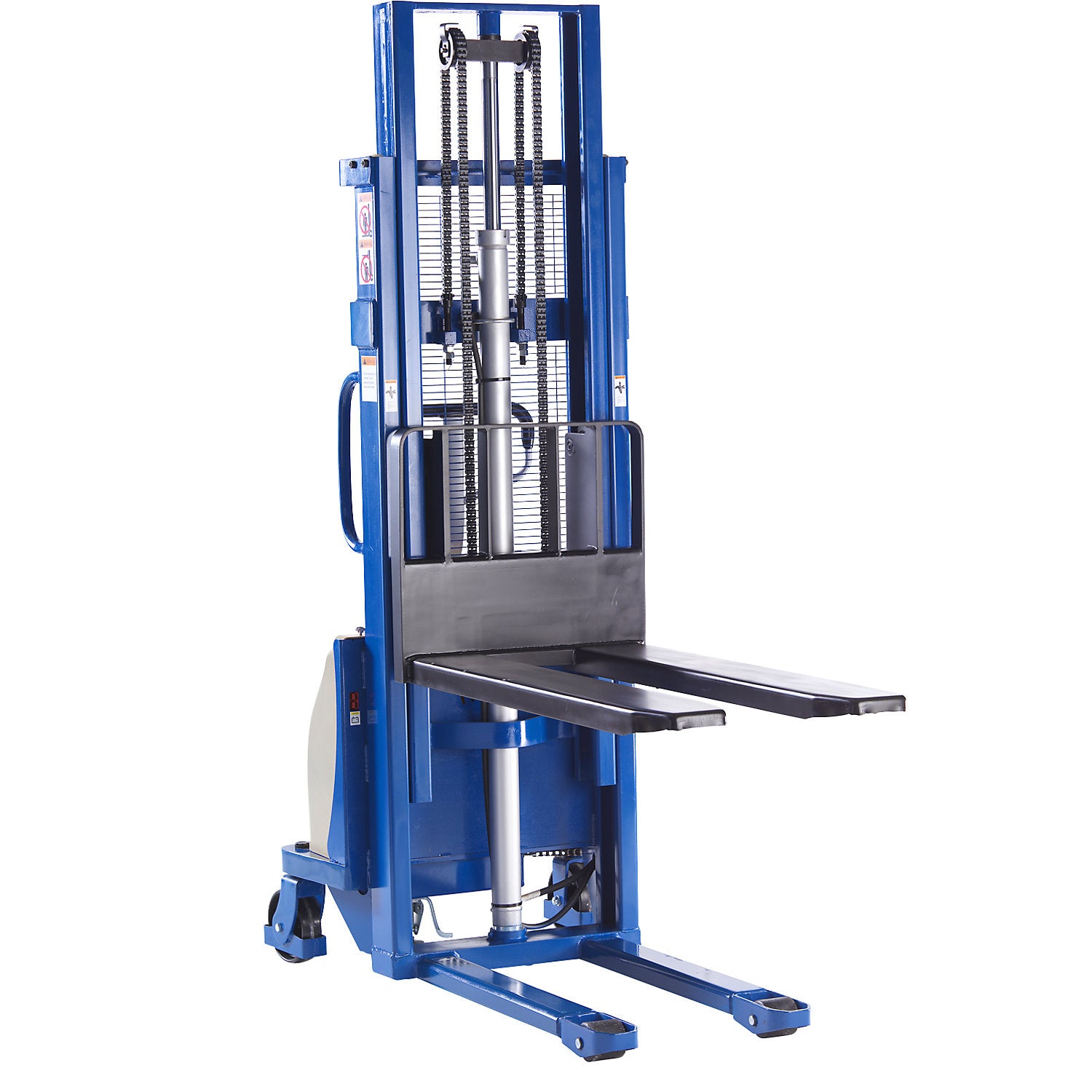

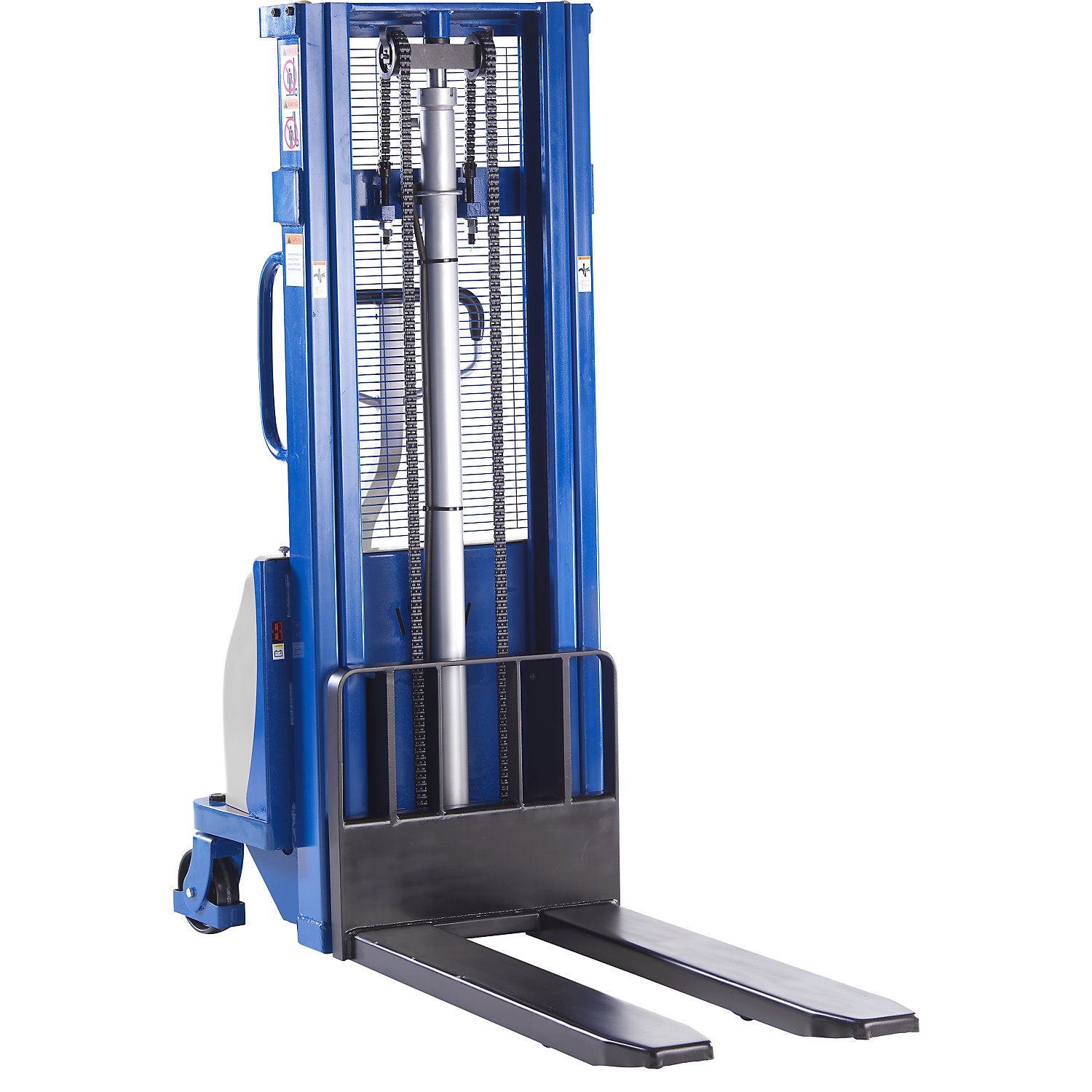

Semi-electric drawbar stacker, max. load 1200 kg, lifting height 2500 mm.

Estimated delivery: 31 days

Semi-electric drawbar stacker, max. load 1200 kg, lifting height 2500 mm

• Supplied = assembled
• Max. load = 1200 kg
• Lifting range = 90 - 2500 mm
• Fork length = 1150 mm
• Fork width = 170 mm
• Distance across forks = 570 mm
• Length = 1678 mm
• Width = 800 mm
• Overall height = 1840 mm
• Min. lifting speed = 70 mm/s
• Max. lifting speed = 90 mm/s
• Design of mast = telescopic mast
• Turning radius = 1425 mm
• Thickness of fork prong = 60 mm
• Battery = 12 V / 125 Ah
• Battery charger = 230 V / 12 V, 10 A
• Working gangway for pallet length = 2267 mm
• Roller material = nylon
• Fork roller version = single
• Fork roller diameter = 80 mm
• Fork roller width = 70 mm
• Steering wheel width = 50 mm
• Customs tariff number = 84271010
• Country of origin = CHN
• Gross weight = 411 kg
• Weight = 410 kg
• Sustainability = CO 2 footprint calculated
• Electric lift - manual drive
• Powerful lift
• Strong battery
• Easy to operate
• Slight change of direction
• With safety valve
• The electric drawbar stacker is characterised by its electro-hydraulic load lifting mechanism
• It is moved by pulling on the drawbar or pushing the two powerful handles
• It is therefore ideal for occasionally loading and unloading commercial vehicles and for storing and removing goods in warehouses with shorter routes
• Max. load 1500 kg, battery 125 Ah with powerful external 10 A charger
• Lifting heights up to 3000 mm
• Drawbar is connected to the steering wheels via a chain
• The advantage is an easy change of direction
• Central foot operated wheel stop for firm stand
• Safety valve prevents the fork from falling in case of failure
• Overload and deep discharge protection for battery prolongs its service life.
