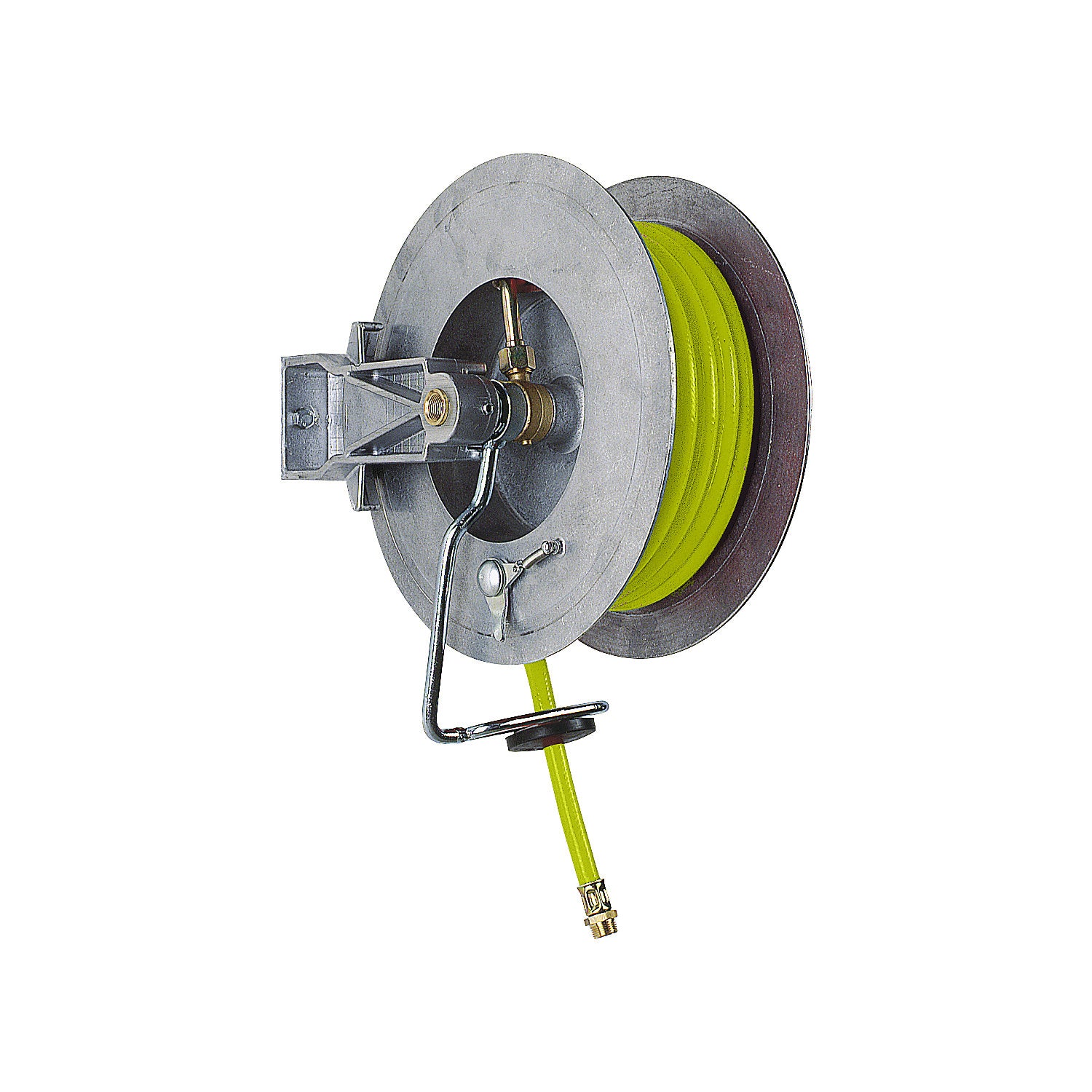

Hose reel, flexible hose, hose length 10 m.

Estimated delivery: 33 days

Hose reel, flexible hose, hose length 10 m

• Supplied = assembled
• Area of application = for air
• Max. pressure up to = 15 bar
• Nominal hose diameter = DN 10
• External connection = G 3/8 inch
• Hose length = 10 m
• Housing material = cast aluminium
• Type of mounting = Can be fastened to wall, ceiling, floor, machines and vehicles
• Length = 355 mm
• Width = 166 mm
• Height = 325 mm
• Fittings = flexible hose
• Model = without SCS® duplex brake
• Colour = silver grey
• Product type = hose reels
• Customs tariff number = 84798997
• Country of origin = DEU
• Gross weight = 7.2 kg
• Weight = 6.4 kg
• Sustainability = CO 2 footprint calculated
• Durable and high-quality industrial design
• High-quality special flex hose - great handling even at low temperatures
• Optionally available with automatic roll up for controlled, braked retraction
• Robust and durable cast aluminium reel
• Zinc plated, swivelling hose guide
• Includes a quick release coupling
• Multiple latches per turn
• With recoil spring and recoil locks
• The automatic reel is fitted with a high-quality and durable special flexible DN10 hose, stopper and automatic lock
• The flexible hose efficiently prevents hoses from tangling even in cold working environments
• The hose reel is approved for use for pressure ranges up to 15 bar, and media temperatures of up to 20 °C
• Material: cast aluminium with zinc plated, pivoting outlet bracket
• Including quick release coupling
• The hose reels can be fitted with the Rapid-SCS® safety system as an option
• It limits the retraction speed and therefore reduces the risk of injury or property damage due to uncontrolled hose retraction.
