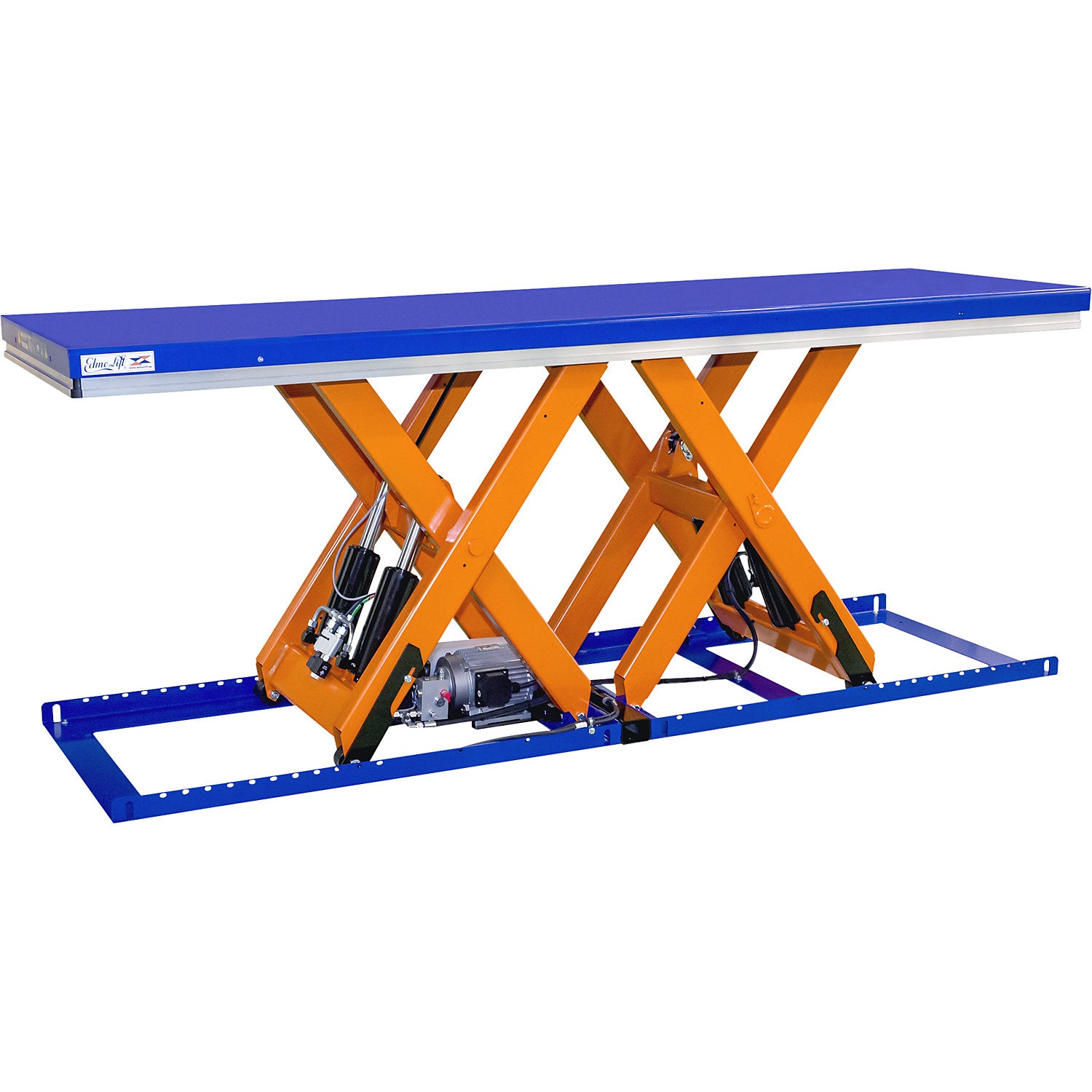

Tandem scissor lift table, lifting range 230 - 1230 mm, max. load 4000 kg.

Estimated delivery: 71 days

Tandem scissor lift table, lifting range 230 - 1230 mm, max. load 4000 kg

• Supplied = pre-assembled, final assembly by customer
• Max. load = 4000 kg
• Lifting range = 230 -1230 mm
• Platform design = closed
• Lifting time = 40 sec
• Power = 1.5 kW
• Operating voltage = 400 V
• Control voltage = 24 V
• Lift drive = electro-hydraulic
• Platform colour = ultramarine blue RAL 5002
• Platform material = steel
• Material = steel
• Frame colour = signal orange RAL 2010
• Lifting capacity at full load in multiple-shift operations = max. 10 cycles per hour
• Lifting time without load = 40 sec
• Lifting time with full load = 40 sec
• Platform width = 1000 mm
• Platform length = 3000 mm
• Protection class = IP54
• Feature = electro-hydraulic, stationary
• Customs tariff number = 84289090
• Country of origin = SWE
• Gross weight = 580 kg
• Weight = 560 kg
• Sustainability = CO 2 footprint calculated
• Lift tables featuring specific properties are required for handling heavy and lengthy products
• The solution is horizontal double scissor lift tables or tandem lift tables
• They are a combination of two individual scissor mechanisms that are used to create the required tabletop length and lift height
• To ensure the lift function operates parallel, the mechanical lifting motion by the two scissor mechanism is regulated precisely
• The horizontal double scissor lift tables allow bulky items to be handled effectively and safely
• Controlled via hand switch with 3 m cable and emergency off switch.
