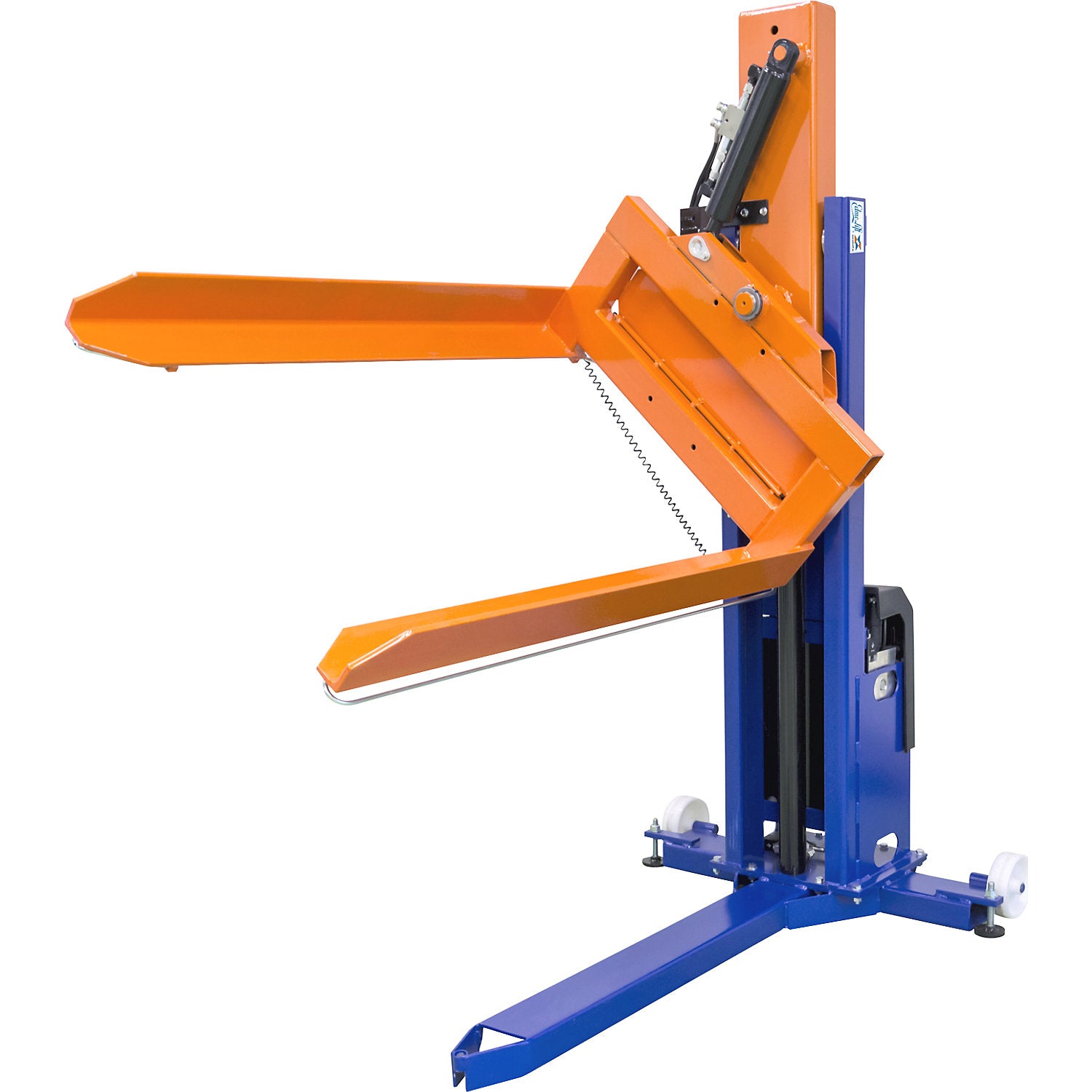

Pallet lifter, with 2 x 40° tilt function, lifting range 70 - 970 mm, max. load 750 kg.

Estimated delivery: 71 days

Pallet lifter, with 2 x 40° tilt function, lifting range 70 - 970 mm, max. load 750 kg

• Supplied = pre-assembled, final assembly by customer
• Max. load = 750 kg
• Lifting range = 70 - 970 mm
• Platform design = closed
• Lifting time = 13 sec
• Power = 0.75 kW
• Operating voltage = 400 V
• Control voltage = 24 V
• Lift drive = electro-hydraulic
• Platform colour = signal orange RAL 2010
• Platform material = steel
• Material = steel
• Finish = sheet metal
• Frame colour = ultramarine blue RAL 5002
• Internal width = 850 mm
• Lift = 900 mm
• Lifting capacity at full load in multiple-shift operations = max. 10 cycles per hour
• Lifting time without load = 13 sec
• Lifting time with full load = 13 sec
• Platform width = 850 mm
• Platform length = 1245 mm
• Protection class = IP54
• Feature = stationary, electro-hydraulic
• Customs tariff number = 84289090
• Country of origin = SWE
• Gross weight = 285 kg
• Weight = 265 kg
• The pallet lifters made by EdmoLift allow items to be lifted to a working height of up to 970 mm with no effort at all
• The pallet lift provides legroom and space for the user's feet on three sides, with this excellent degree of accessibility ensuring work proceeds smoothly
• Pallets, mesh pallets or containers can be placed directly on the pallet lifter using a pallet truck or forklift truck
• Product features - Customer-specific adaptations possible, we will provide forks tailored to your specific requirements on request - Good accessibility from three sides - Compliant with EN 1570-1 - features the CE mark - 24 V DC control unit and operating devices with dead man switch - Electrical system compliant with IP54 - Overload protection - Adjustable, high sensitivity protective bars on the outside of the forks - Pallet lifters feature electrical safety valves
• TSL/TSE do not feature mechanical service locks - Maintenance free bearings These pallet lifters are equipped with a variable tilting function and can be tilted to the left or right by 40°
• This makes the work much easier, as it opens an ''ergonomic window'' that helps the operator to avoid stretching, while ensuring a good overview of the contents of the load unit.
