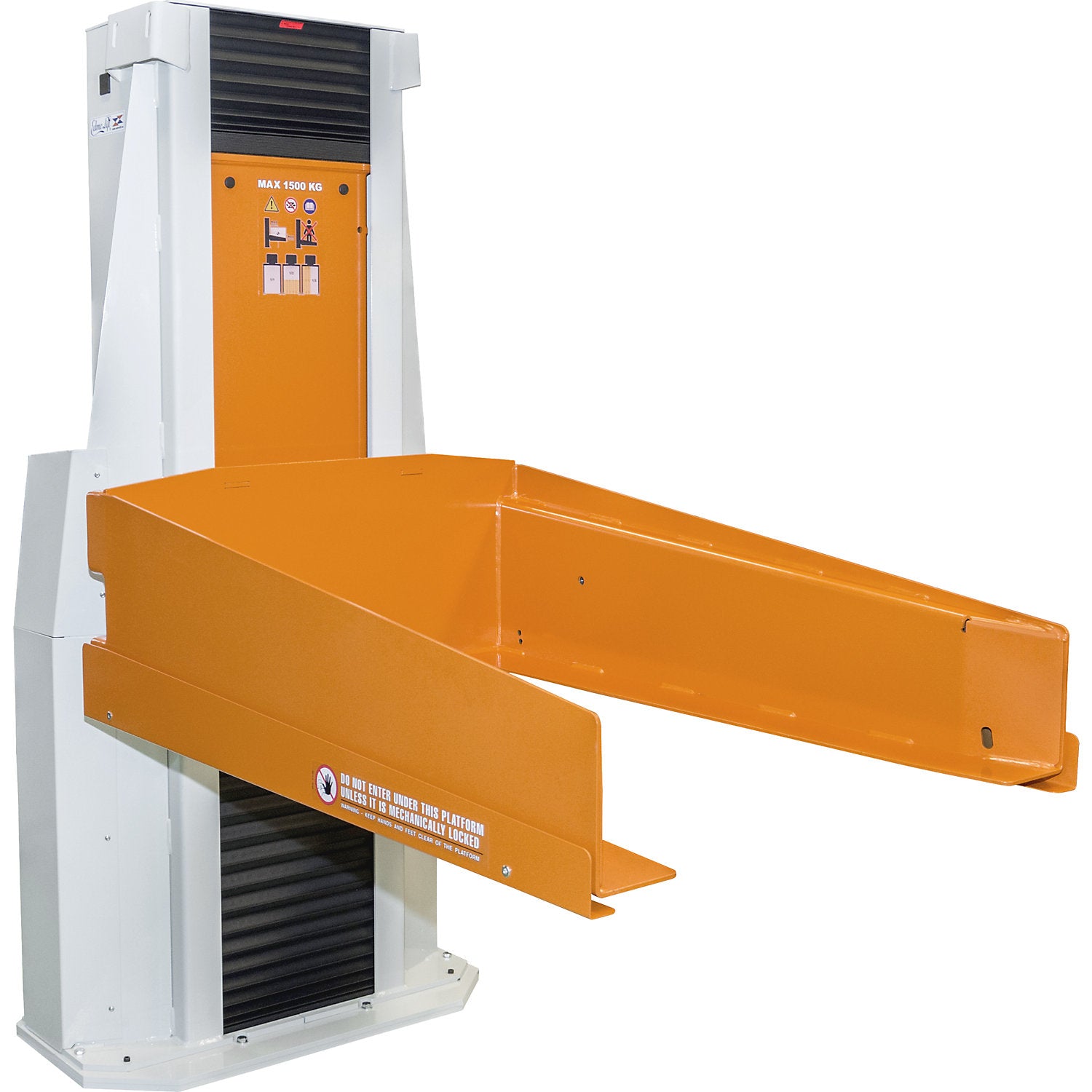

Pallet lifter, no tilt function, lifting range 50 - 930 mm, max. load 1500 kg.

Estimated delivery: 71 days

Pallet lifter, no tilt function, lifting range 50 - 930 mm, max. load 1500 kg

• Supplied = pre-assembled, final assembly by customer
• Max. load = 1500 kg
• Lifting range = 50 - 930 mm
• Platform design = closed
• Lifting time = 26 sec
• Power = 0.75 kW
• Operating voltage = 400 V
• Control voltage = 24 V
• Lift drive = electro-hydraulic
• Platform colour = signal orange RAL 2010
• Platform material = steel
• Material = steel
• Finish = sheet metal
• Frame colour = light grey RAL 7035
• Internal width = 840 mm
• Lift = 880 mm
• Lifting capacity at full load in multiple-shift operations = max. 10 cycles per hour
• Lifting time without load = 26 sec
• Lifting time with full load = 26 sec
• Platform width = 840 mm
• Platform length = 1250 mm
• Protection class = IP54
• Feature = stationary, electro-hydraulic
• Customs tariff number = 84289090
• Country of origin = SWE
• Gross weight = 680 kg
• Weight = 660 kg
• The pallet lifters made by EdmoLift allow items to be lifted to a working height of up to 970 mm with no effort at all
• The pallet lift provides legroom and space for the user's feet on three sides, with this excellent degree of accessibility ensuring work proceeds smoothly
• Pallets, mesh pallets or containers can be placed directly on the pallet lifter using a pallet truck or forklift truck
• Product features - Customer-specific adaptations possible, we will provide forks tailored to your specific requirements on request - Good accessibility from three sides - Compliant with EN 1570-1 - features the CE mark - 24 V DC control unit and operating devices with dead man switch - Electrical system compliant with IP54 - Overload protection - Adjustable, high sensitivity protective bars on the outside of the forks - Pallet lifters feature electrical safety valves
• TSL/TSE do not feature mechanical service locks - Maintenance free bearings
