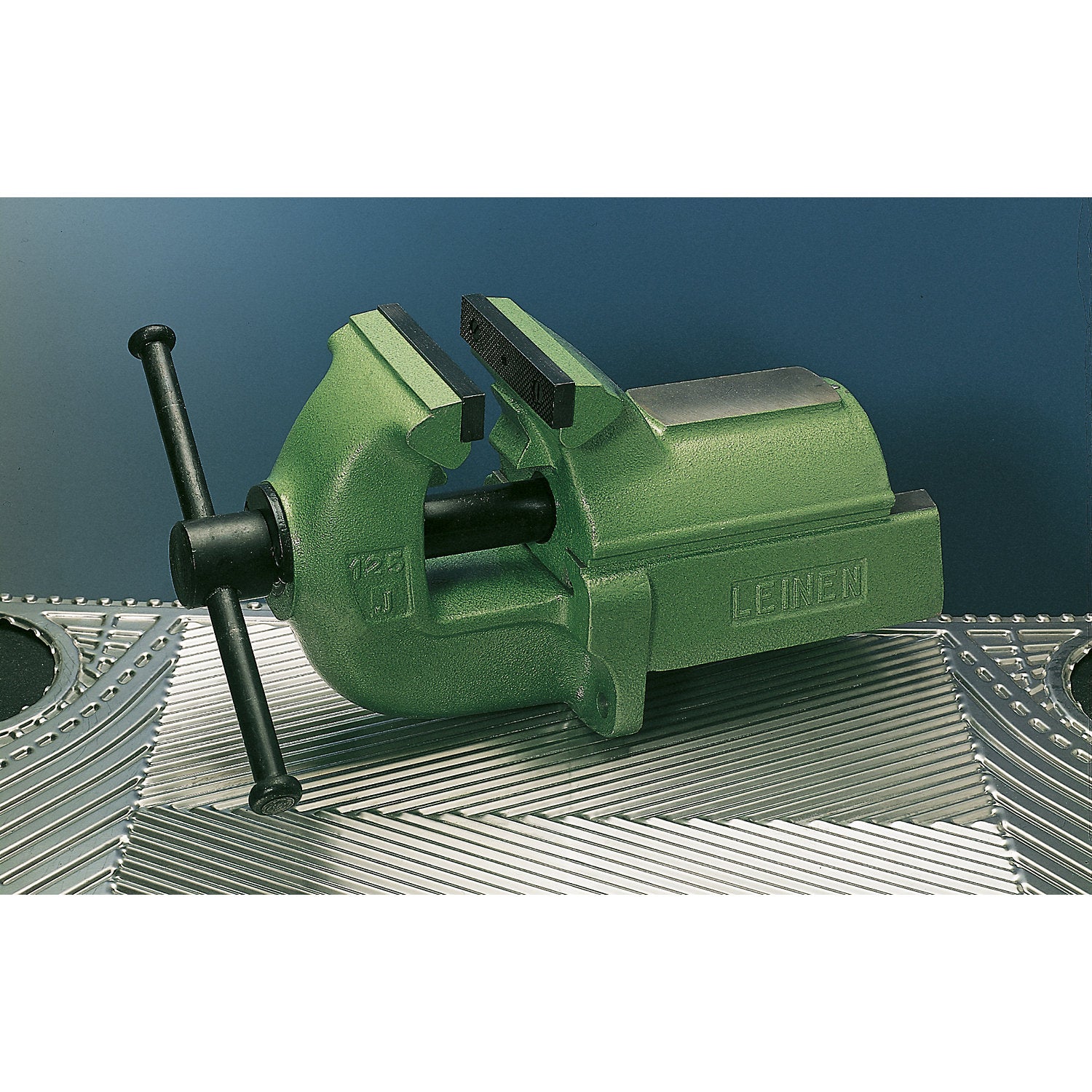

LEINEN JUNIOR parallel vice, full grey cast iron, green, jaw width 150 mm.

Estimated delivery: 42 days

LEINEN JUNIOR parallel vice, full grey cast iron, green, jaw width 150 mm

• Supplied = assembled
• Max. jaw width = 280 mm
• Material = cast iron
• Colour = reseda green RAL 6011
• Product type = vices
• Customs tariff number = 82057000
• Country of origin = ITA
• Gross weight = 46.5 kg
• Weight = 41 kg
• Sustainability = CO 2 footprint calculated
• Maximum stability due to high strength full grey cast iron (G25)
• Particularly exact, precision-machined dovetail guide
• Smooth running, dust protected jackscrew with trapezoidal thread
• Large, face-milled anvil surface for straightening and hammering work
• Reversible jaws with knurled and ground sides
• Jaw locking device to prevent loosening under impact stress
• The LINEN JUNIOR parallel vice combines maximum stability with permanently precise workpiece clamping
• Its high-strength solid grey cast iron G25 withstands high impact loads and ensures a long service life
• The precision-machined dovetail guide enables completely backlash-free movement of the upper and lower sections
• Even when the vice is opened wide, the top slide remains securely guided
• The smooth-running, dust-protected spindle drive with trapezoidal thread allows precise adjustment and protects the mechanism from dirt
• Replaceable and reversible jaws expand the application options of the clamping tool
• Depending on the workpiece, a knurled or ground clamping surface is available
• A special jaw locking device prevents the jaws from loosening or shifting position under impact stress
• Cast-in pipe clamping jaws are provided for pipes and other round workpieces
• The large, face-milled anvil surface also provides a stable base for straightening and light hammering work
• The rear-opening parallel vice is suitable for metalworking workshops, toolmaking and maintenance
• Its high jaw parallelism reduces inaccurate clamping and supports precise working results - even after many years of use
• If required, the vice can be converted from a fixed to a swivel model.
