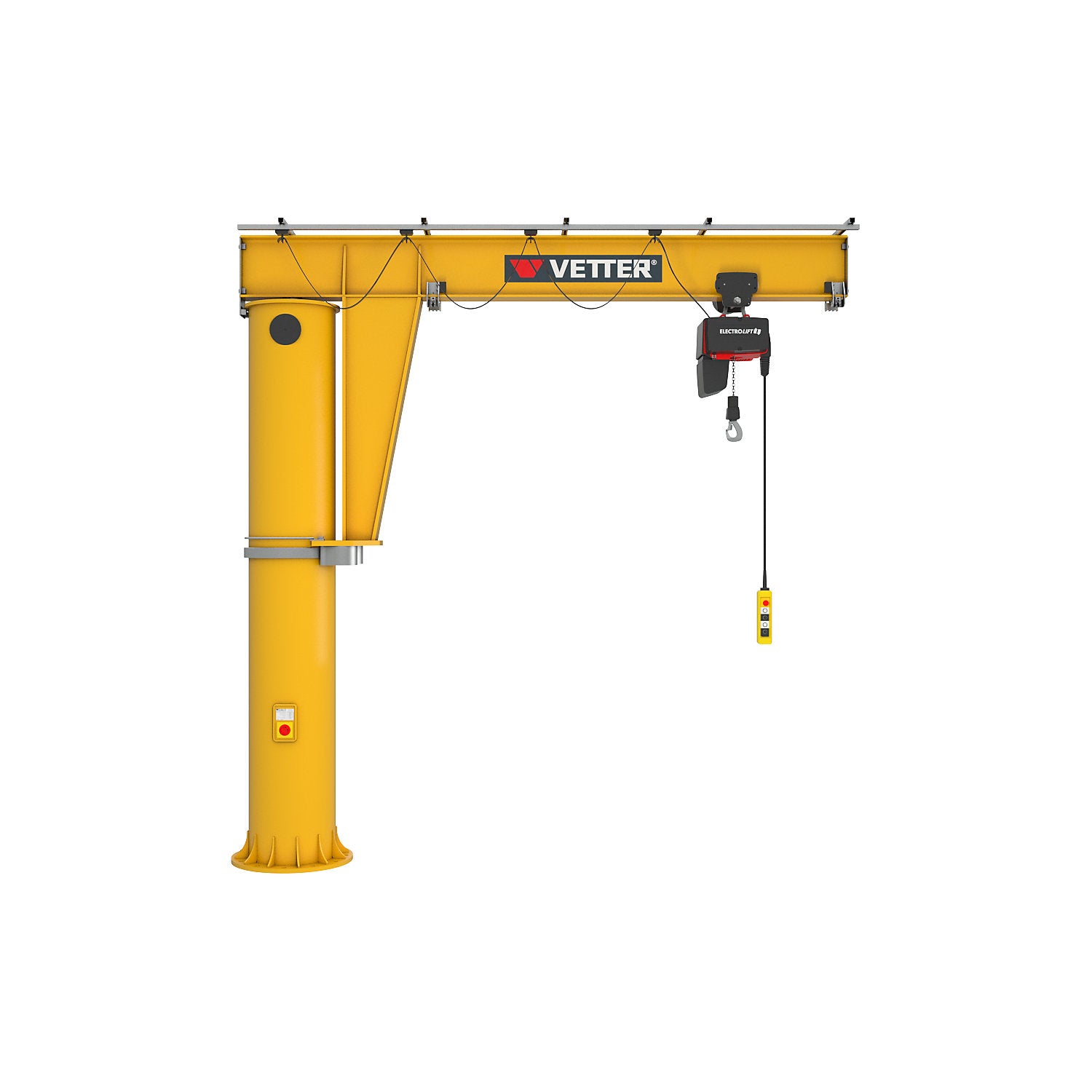

MEISTER M post mounted jib crane, with HF electric chain hoist, max. load 500 kg, reach 4 m.

Estimated delivery: 52 days

MEISTER M post mounted jib crane, with HF electric chain hoist, max. load 500 kg, reach 4 m

• Supplied = flat pack
• Max. load = 500 kg
• Operating voltage = 400 V
• Swivel range = 360°
• Design of rotary crane = crane with electric chain hoist and manual drive dolly
• Flange width = 120 mm
• Overall height = 3610 mm
• Height of lifting gear = 480 mm
• Main lift = 4.5 m/min
• Precise lift = 1.1 m/min
• Reach = 4000 mm
• Crane jib bottom edge = 3300 mm
• Control voltage = 24 V
• Lifting height = 2820 mm
• Colour = daffodil yellow RAL 1007
• Material = steel
• Product type = post mounted jib cranes
• Customs tariff number = 84269900
• Country of origin = DEU
• Gross weight = 724 kg
• Weight = 688 kg
• Sustainability = CO 2 footprint calculated
• Swivels continuously through 360° due to power supply through slip ring housing
• High quality coating
• Includes SECURING ANCHOR system VAS2 for fast and easy assembly
• The powerful, robust MEISTER post mounted jib crane is the world's most manufactured crane in its class
• The technical specifications for these cranes makes it necessary to manufacture them to order - no right of return.
