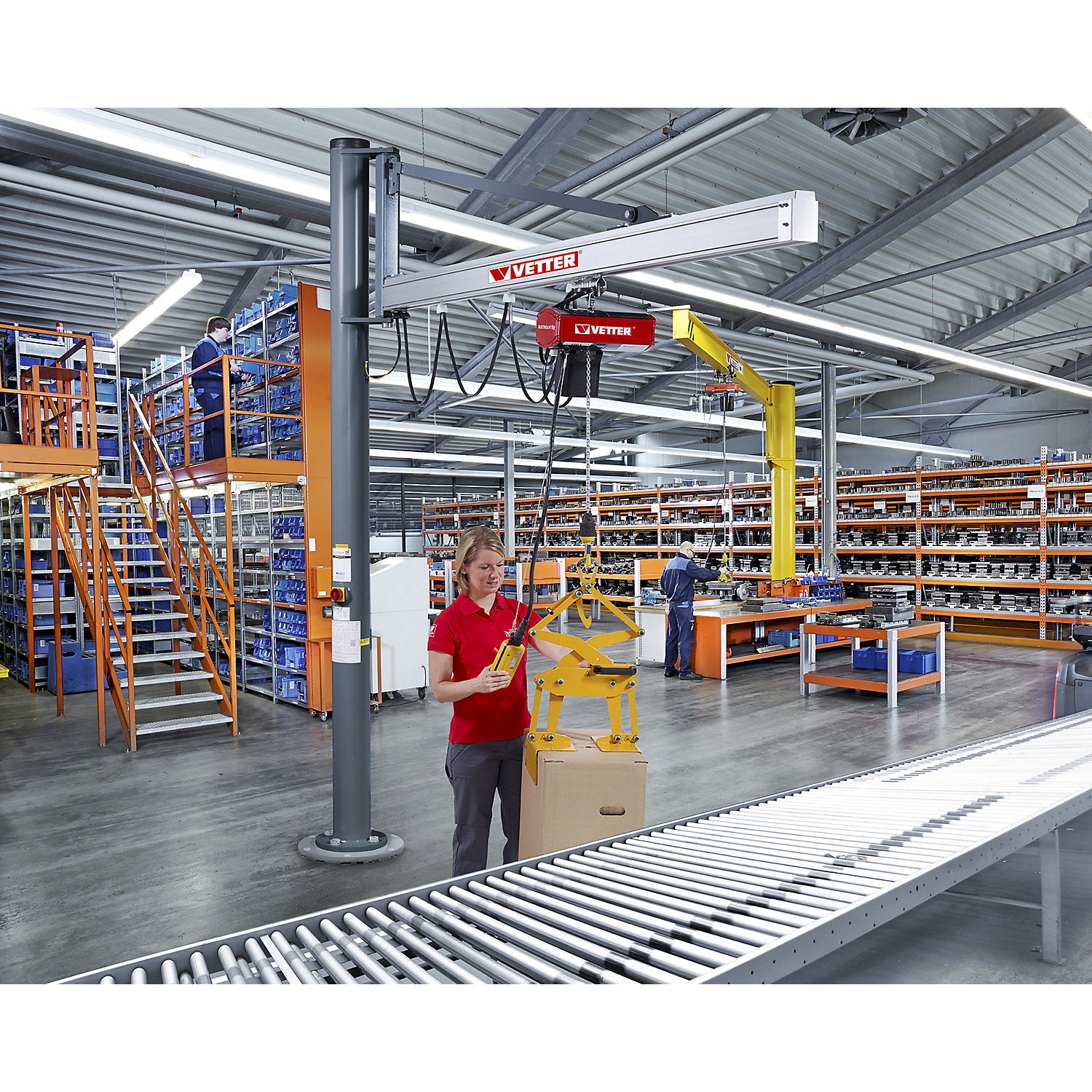

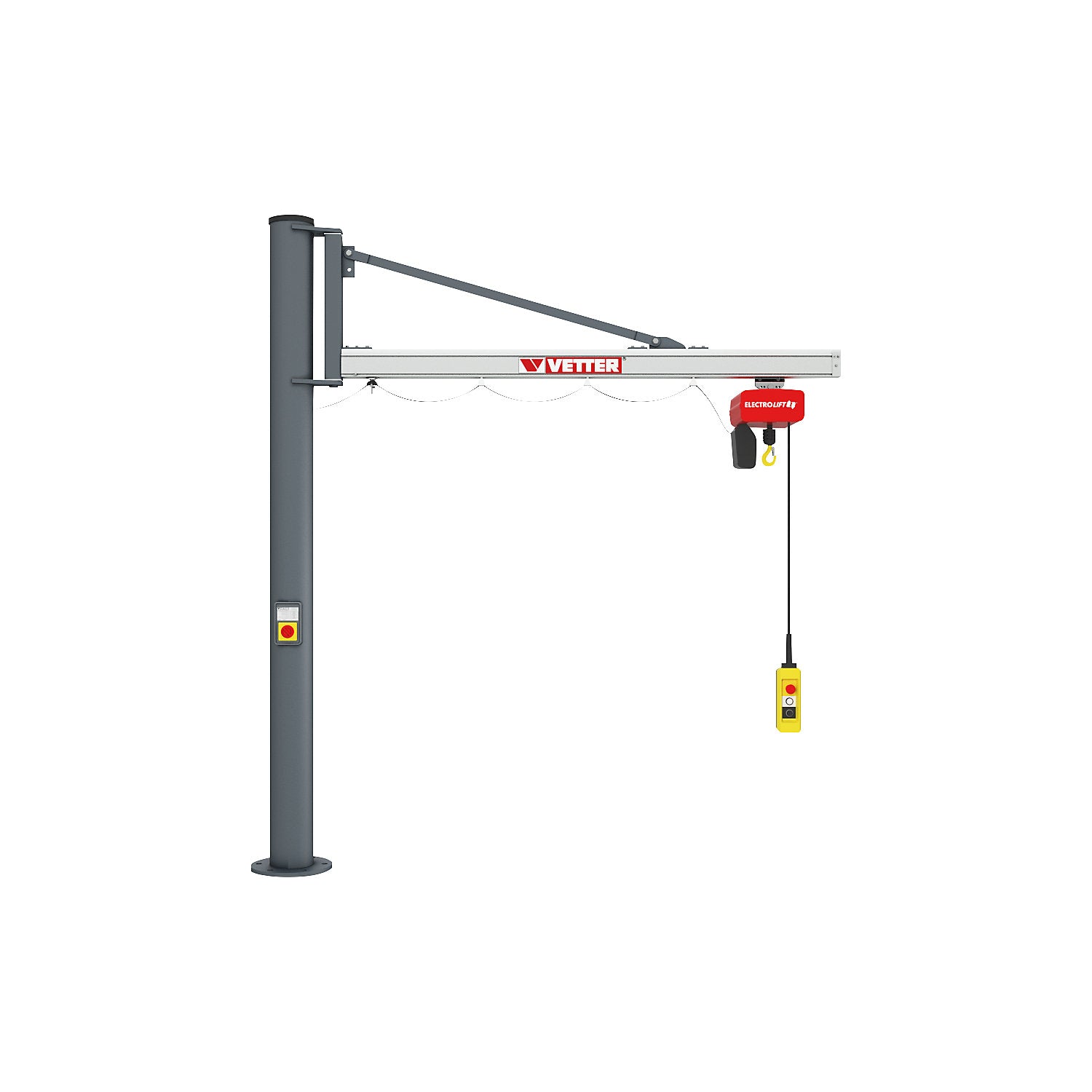

UNILIFT US post mounted jib crane, with BL electric chain hoist, max. load 250 kg, reach 2.9 m.

Estimated delivery: 43 days

UNILIFT US post mounted jib crane, with BL electric chain hoist, max. load 250 kg, reach 2.9 m

• Supplied = flat pack
• Max. load = 250 kg
• Operating voltage = 400 V
• Swivel range = 270°
• Design of rotary crane = crane with electric chain hoist
• Overall height = 3787 mm
• Height of lifting gear = 405 mm
• Main lift = 6 m/min
• Precise lift = 1.5 m/min
• Reach = 2895 mm
• Crane jib bottom edge = 3000 mm
• Control voltage = 24 V
• Lifting height = 2595 mm
• Mounting system diameter = 530 mm
• Colour = charcoal RAL 7016
• Material = steel
• Product type = post mounted jib cranes
• Customs tariff number = 84261100
• Country of origin = DEU
• Gross weight = 391 kg
• Weight = 327 kg
• Sustainability = CO 2 footprint calculated
• Jib with aluminium profile
• Ergonomic handling and smooth swivelling
• Includes SECURING ANCHOR system VAS2 for fast and easy assembly
• Move light loads of up to 500 kg easily, quickly and safely
• The braced design and the low weight of the aluminium profile jib means this jib crane makes easy work out of swivelling
• The technical specifications for these cranes makes it necessary to manufacture them to order - no right of return.
