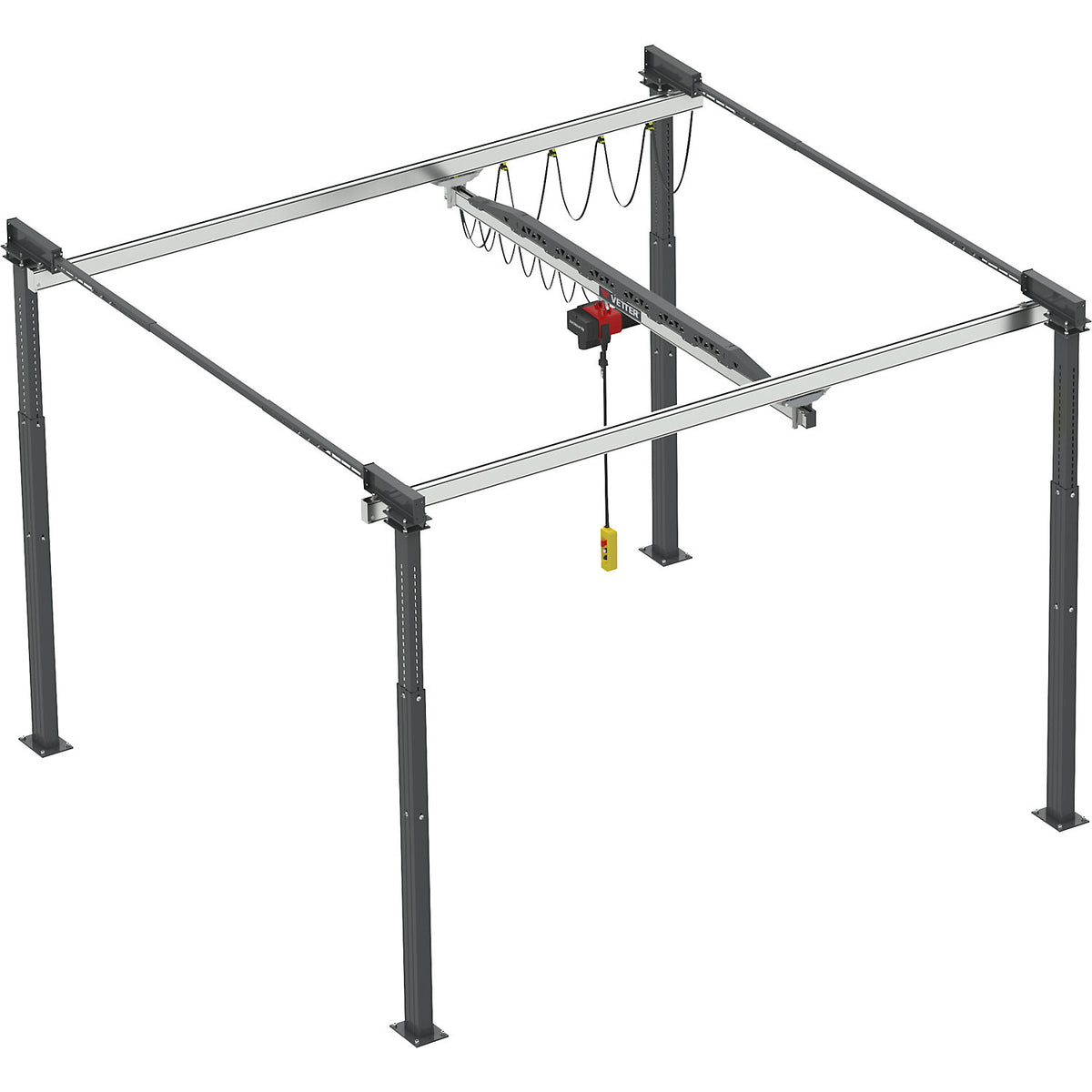

ErgoLine® gantry crane system, with electric chain hoist, max. load 250 kg, width 3.5 m, length 4.0 m.

Estimated delivery: 59 days

ErgoLine® gantry crane system, with electric chain hoist, max. load 250 kg, width 3.5 m, length 4.0 m

• Supplied = flat pack
• Max. load = 250 kg
• Design of mobile gantry crane = crane with electric chain hoist
• Material = steel
• Overall height from - to = 3600 - 4299 mm
• Main lift = 6 m/min
• Precise lift = 1.5 m/min
• Operating voltage = 400 V
• Control voltage = 24 V
• Weight = 935 kg
• Colour = silver, black
• Width = 3820 mm
• Product type = gantry crane systems
• Customs tariff number = 84261900
• Country of origin = DEU
• Gross weight = 1027 kg
• Weight = 935 kg
• Ideal for linking up several workstations
• No load placed on the hall structure
• Support height can be adjusted variably
• The double rail ErgoLine® smooth running gantry is outstandingly suited for handling loads up to 250 kg that need to be moved quickly and without fuss
• While conventional crane systems are easiest to move from the centre, this system offers precise and incomparably easy movability from any position
• The ErgoLine® system is modular and further adaptations can be made to suit your requirements
• The steplessly adjustable cantilever arms are quick to mount to the supports, and ensure effortless installation using DYNAMIK securing bolts, which make complicated foundation work unnecessary

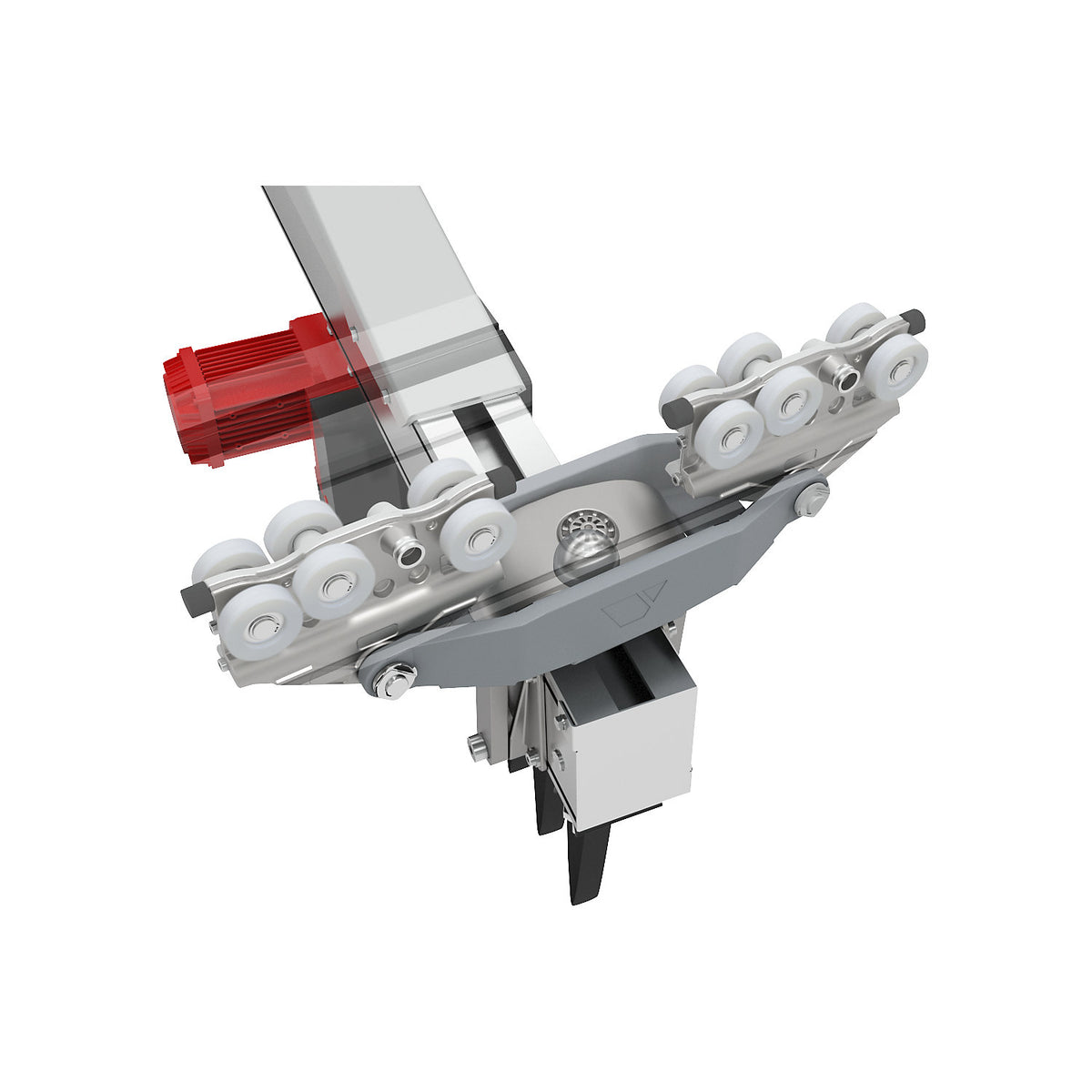

• ErgoLine® gantry crane system with height adjustable supports and aluminium crane and trolley tracks, bridge with gimbal bearing
• The technical specifications for these cranes makes it necessary to manufacture them to order - no right of return

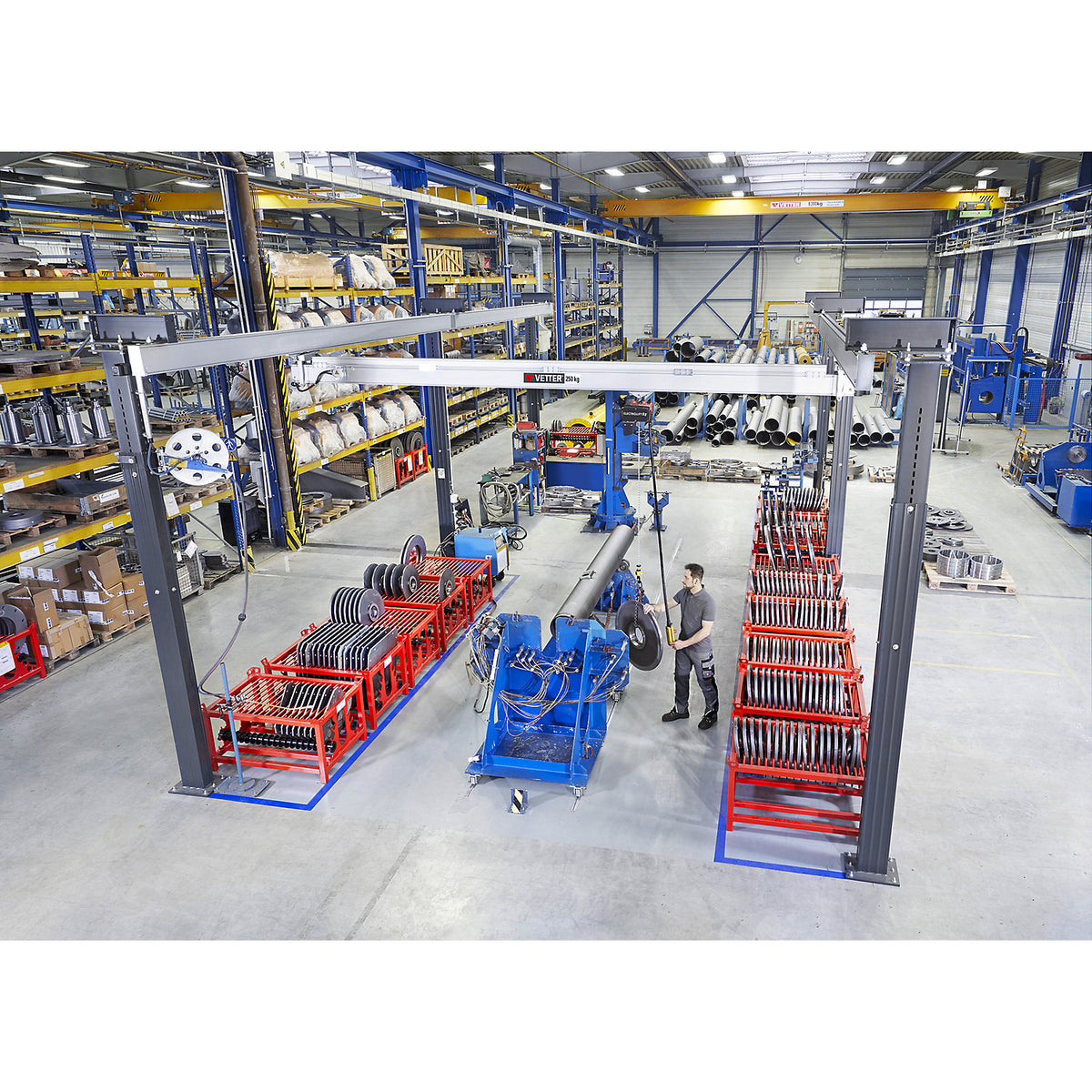

• Illustration with example of use shows accessories, special lengths and special equipment
• Please enquire!
