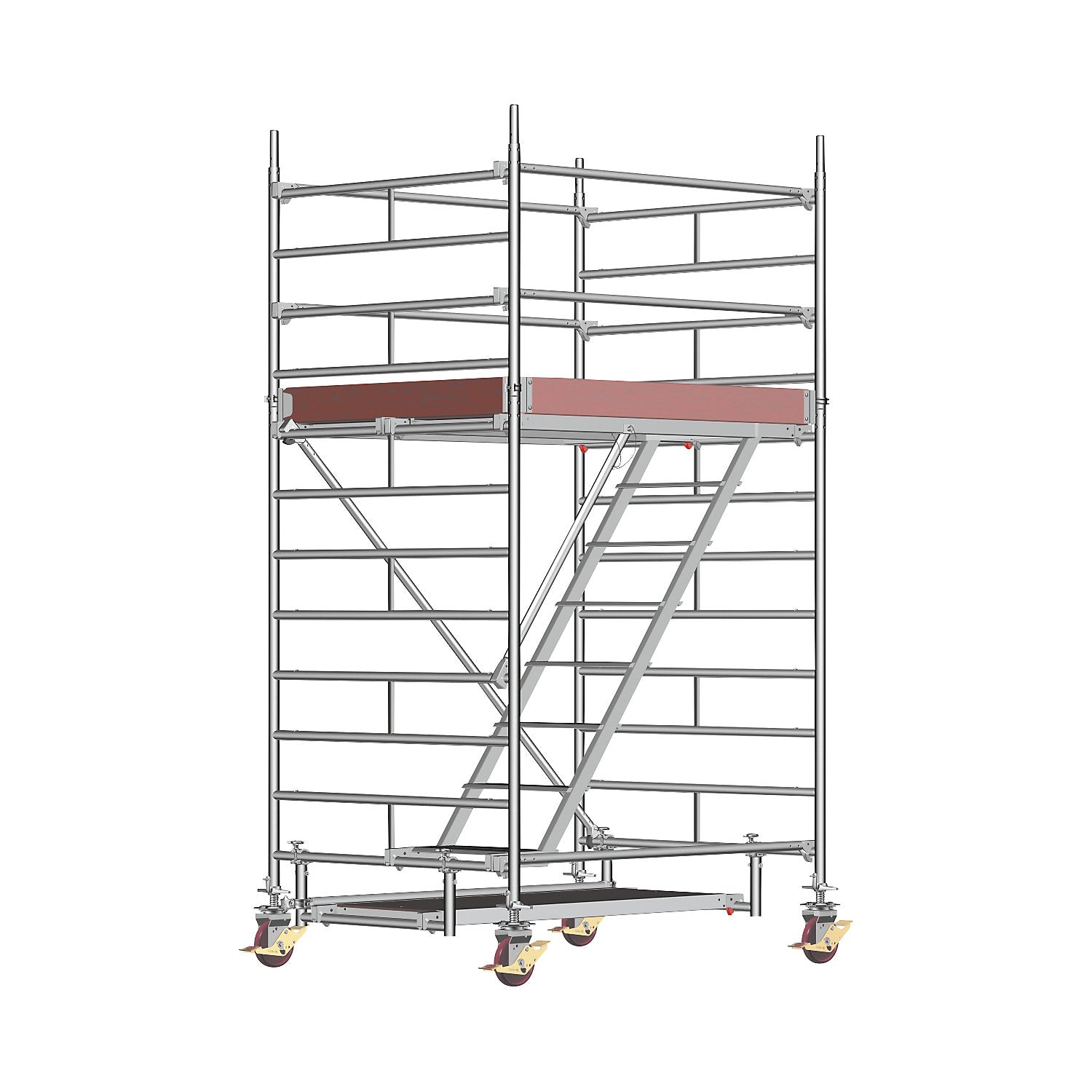

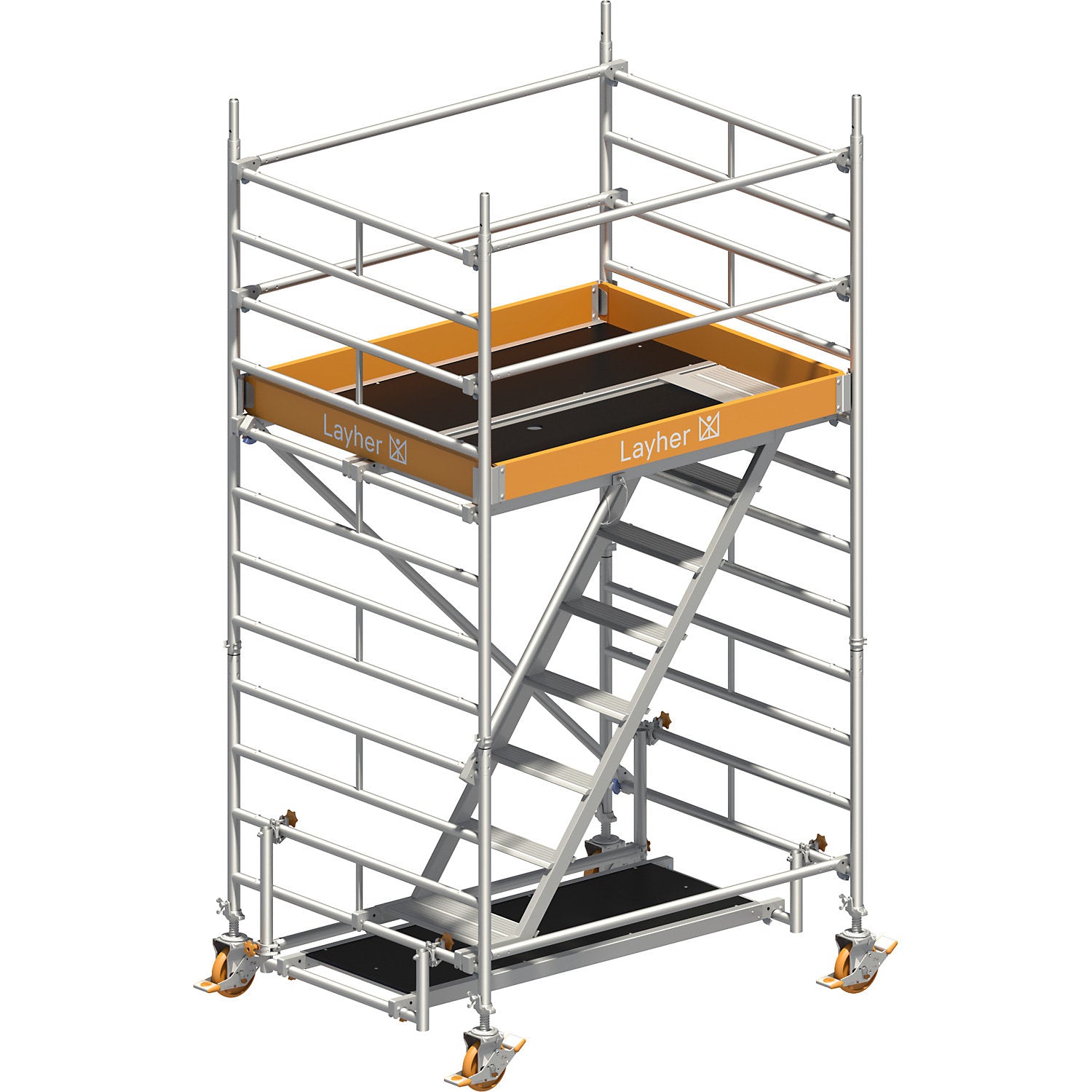

Universal mobile access tower, with ladder frame, platform 1.80 x 1.50 m, tower height 3.43 m.

Estimated delivery: 37 days

Universal mobile access tower, with ladder frame, platform 1.80 x 1.50 m, tower height 3.43 m

• Supplied = flat pack
• Platform length = 1800 mm
• Platform width = 1500 mm
• Platform height = 2200 mm
• Working height = 4.2 m
• Standing height = 2200 mm
• Material = aluminium
• Weight = 166.3 kg
• Max. load = 2 kN/m²
• Conforms to = DIN EN 1004-1
• Height = 3.43 m
• Wheel fittings = plastic wheel with base spindle
• Wheel diameter = 200 mm
• Product type = stairway towers
• Customs tariff number = 76169990
• Country of origin = DEU
• Gross weight = 191.3 kg
• Weight = 166.3 kg
• Sustainability = CO 2 footprint calculated
• Light, robust, durable
• Designed for heights
• Height adjustable castors for levelling
• Safety guaranteed by TÜV testing
• Comfortable work - due to a particularly large platform area and step ladder
• The aluminium mobile access tower is a compact scaffold, ideally suited for maintenance work
• The convenient stairway with an end-to-end handrail allows multiple ascents and descents, easily spans great heights and leaves one hand free for carrying tools and materials
• Ladder frames (1.50 m wide) made of aluminium ensure easy plug-in assembly, railings and diagonals made of aluminium engage quickly
• Platforms made of an aluminium frame and plywood inserts with a full length opening as an access point make it convenient to climb from the inside
• Robust swivel castors with centric load application provide stability after being locked in place, and steel spindles allow levelling
• A stabiliser to widen the base can be affixed without tools, and the castors inside it allow the scaffold to be moved safety without disassembling it
• Permissible load 200 kg/m² (2.0 kN/m²) in accordance with group 3 scaffolding
• Please observe the ballast weight guidelines for the individual tower sizes
• Please observe the required ballasting in accordance with the assembly and usage instructions.
