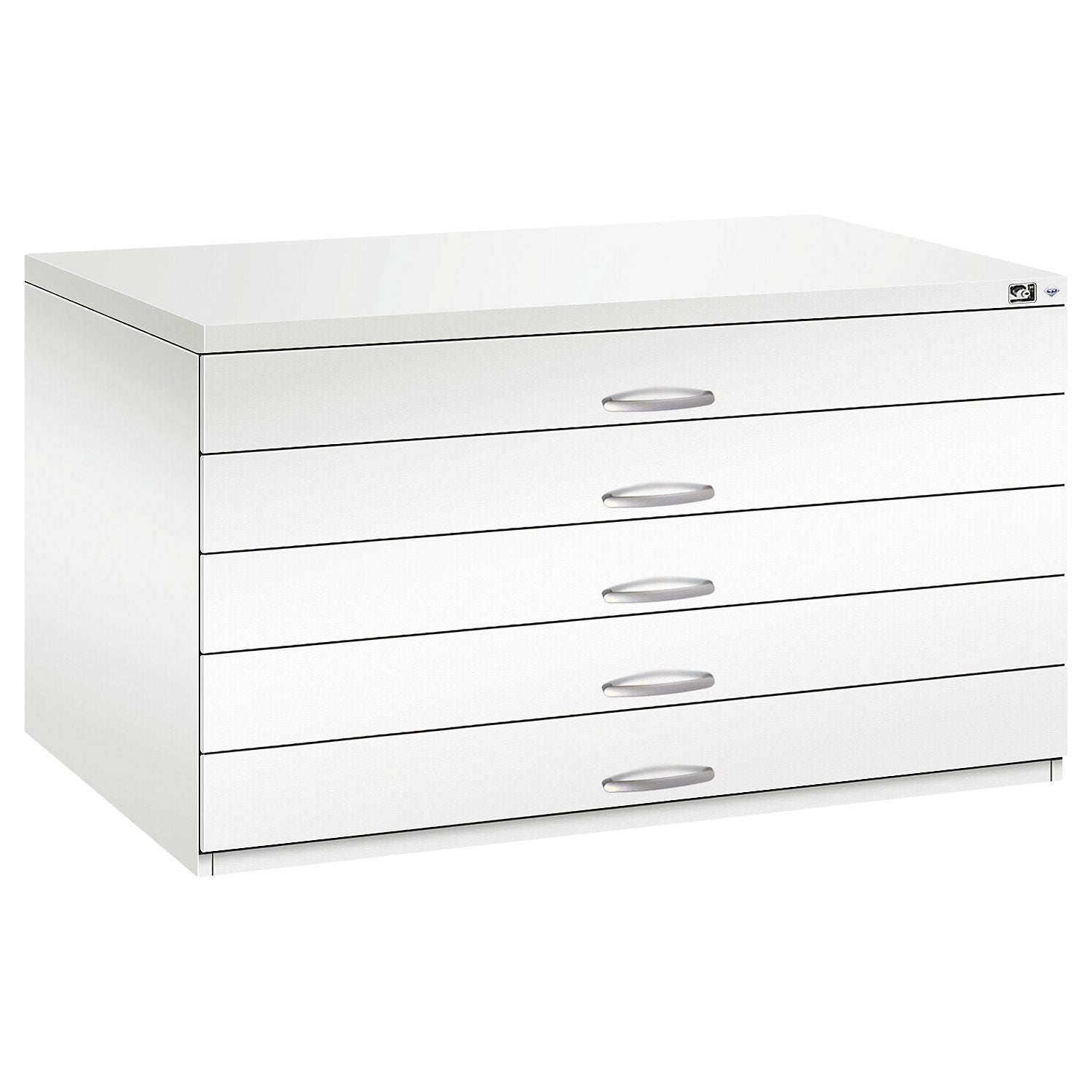

Drawing cabinet, A0, 5 drawers, height 760 mm, traffic white.

Estimated delivery: 51 days

Drawing cabinet, A0, 5 drawers, height 760 mm, traffic white

• Supplied = assembled
• Material = sheet steel, stove enamelled
• Body colour = traffic white RAL 9016
• Drawing format = A0
• Height = 760 mm
• Width = 1350 mm
• Depth = 960 mm
• Number of drawers = 5 pcs
• Drawer extension = 80%
• Drawer guide = with drawers on ball bearing telescopic runners
• Max. drawer load = 40 kg
• Drawer height = 100 mm
• Drawer width = 1255 mm
• Drawer depth = 905 mm
• Drawer colour = traffic white RAL 9016
• Lock type = push cylinder lock
• Weight = 145.1 kg
• Product type = drawing cabinets
• Customs tariff number = 94031058
• Country of origin = DEU
• Gross weight = 145.1 kg
• Weight = 145.1 kg
• Sustainability = CO 2 footprint calculated
• Drawers with 4/5 extension for A0
• For horizontal storage
• Sturdy sheet steel construction, welded model with high quality stove enamelling
• High quality telescopic rails with ball bearings for quiet operation, drawers close automatically when fully extended
• Drawers with pull-out stops, max. load up to 40 kg
• Drawers with a retaining bar at the front and a cover strip at the back to prevent drawings from rolling up
• Push cylinder lock with central locking and a pull-out stop, incl. 2 keys
• One plastic label holder is included for each drawer
• Perforated drawer bases for partitioning into DIN formats using drawer dividers, see accessories
• This product is made to order and is therefore excluded from the right of return
• Plinth, base frame and melamine coated cover plate available upon request.
