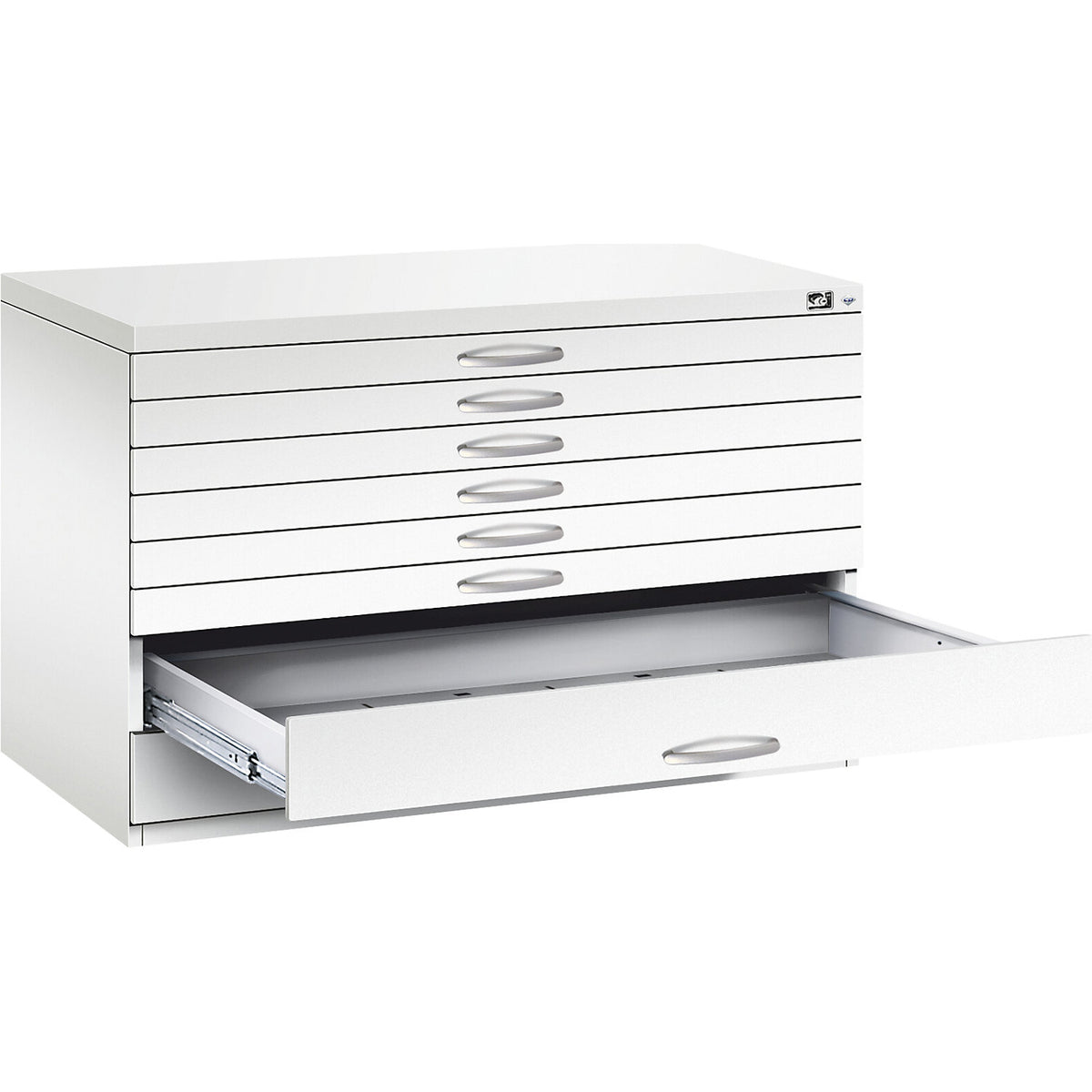

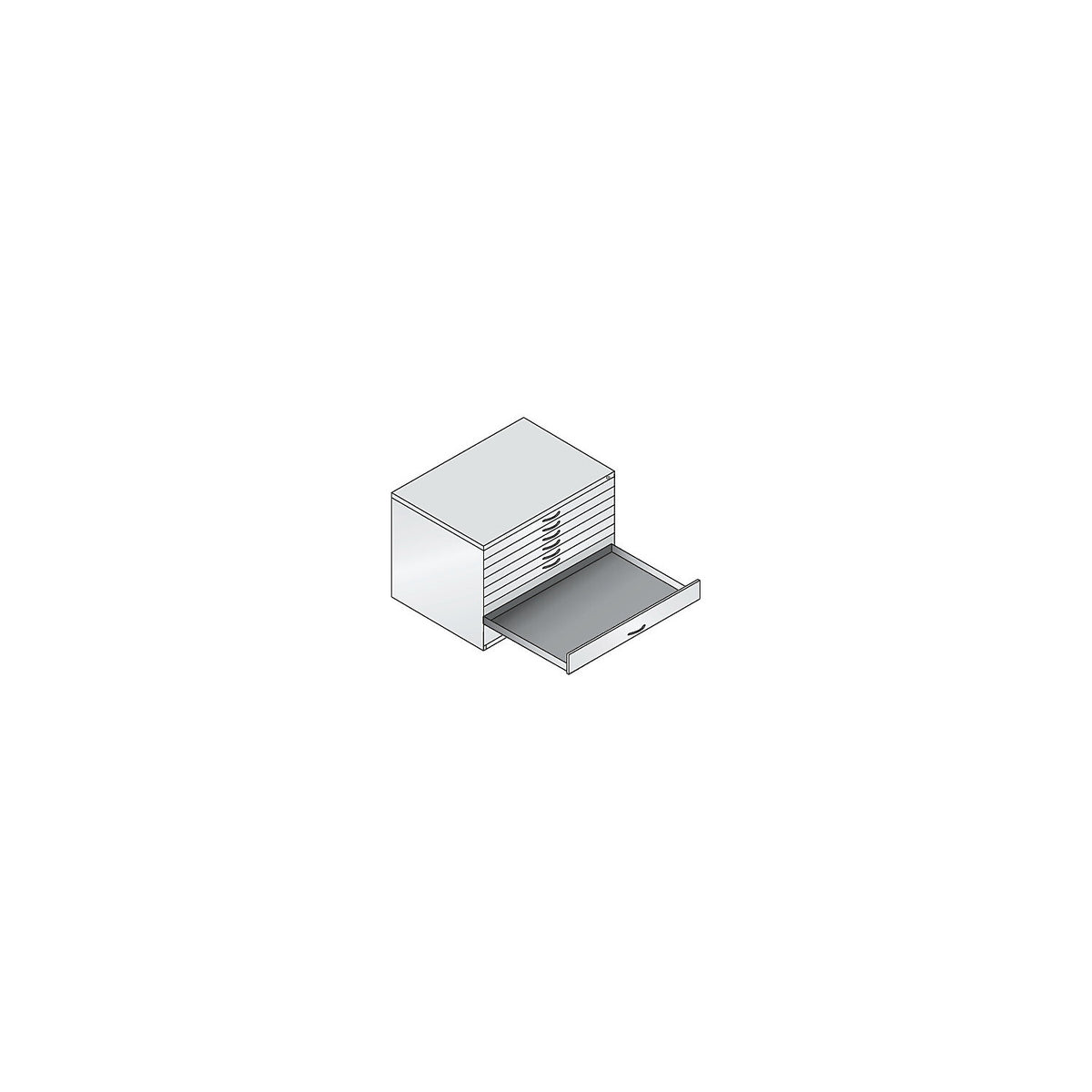

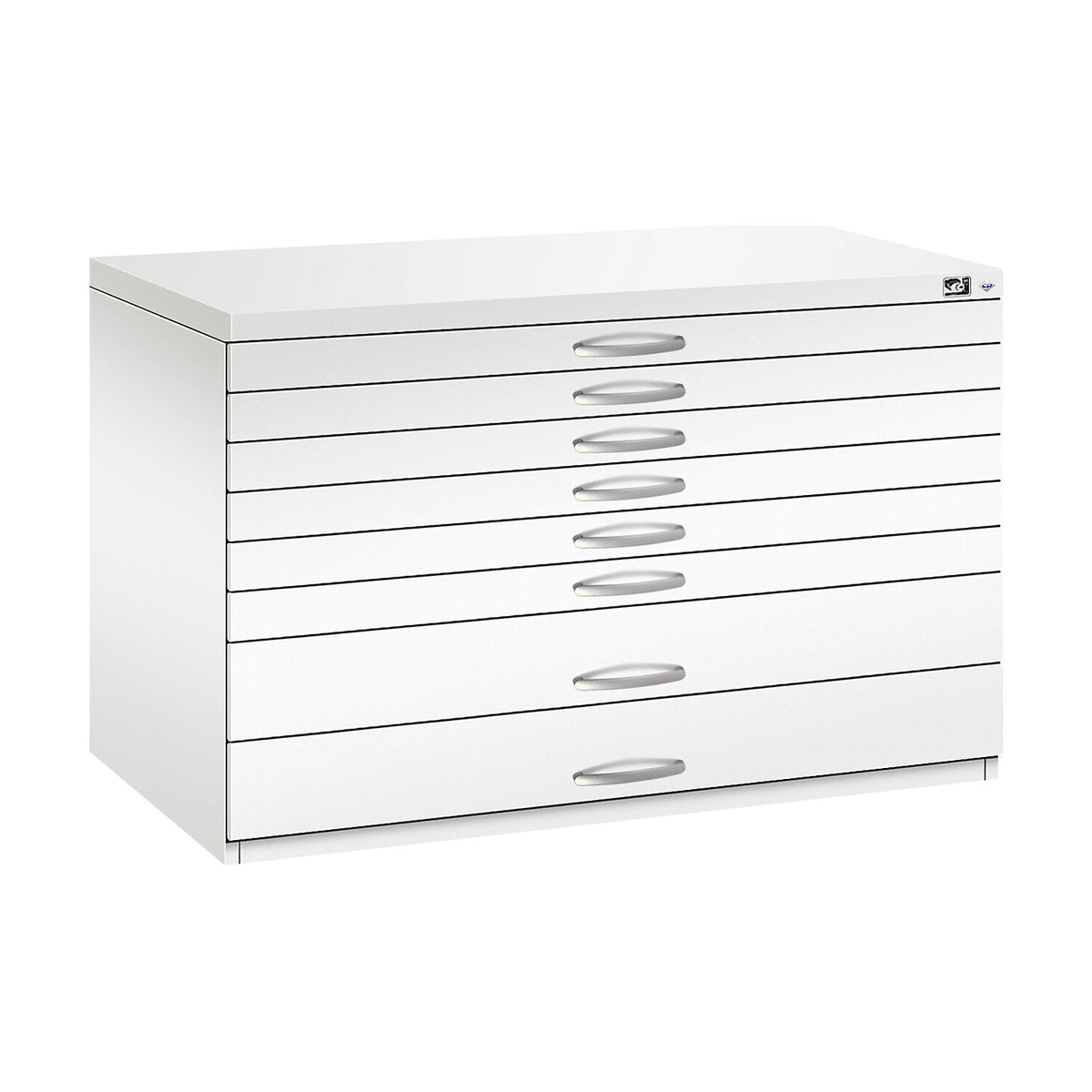

Drawing cabinet, A1, 8 drawers, height 760 mm, traffic white.

Estimated delivery: 57 days

Drawing cabinet, A1, 8 drawers, height 760 mm, traffic white

• Supplied = assembled
• Material = sheet steel, stove enamelled
• Body colour = traffic white RAL 9016
• Drawer colour = traffic white RAL 9016
• Drawing format = A1
• Number of drawers = 8 pcs
• Height = 760 mm
• Width = 1100 mm
• Depth = 765 mm
• Drawer extension = 100%
• Drawer guide = with drawers on ball bearing telescopic runners
• Max. drawer load = 40 kg
• Drawer width = 1005 mm
• Drawer depth = 710 mm
• Lock type = push cylinder lock
• Weight = 150.58 kg
• Product type = drawing cabinets
• Customs tariff number = 94031093
• Country of origin = DEU
• Gross weight = 155.58 kg
• Weight = 150.58 kg
• Sustainability = CO 2 footprint calculated
• For the horizontal storage of drawings up to DIN A0
• Welded sheet steel construction with stove-enamelled finish
• Ball-bearing telescopic rails with end self-closing mechanism
• Drawers with pull-out stop, load capacity up to approx. 40 kg
• Perforated drawer bottoms for flexible DIN partitioning
• Central locking with push-cylinder lock and 2 keys

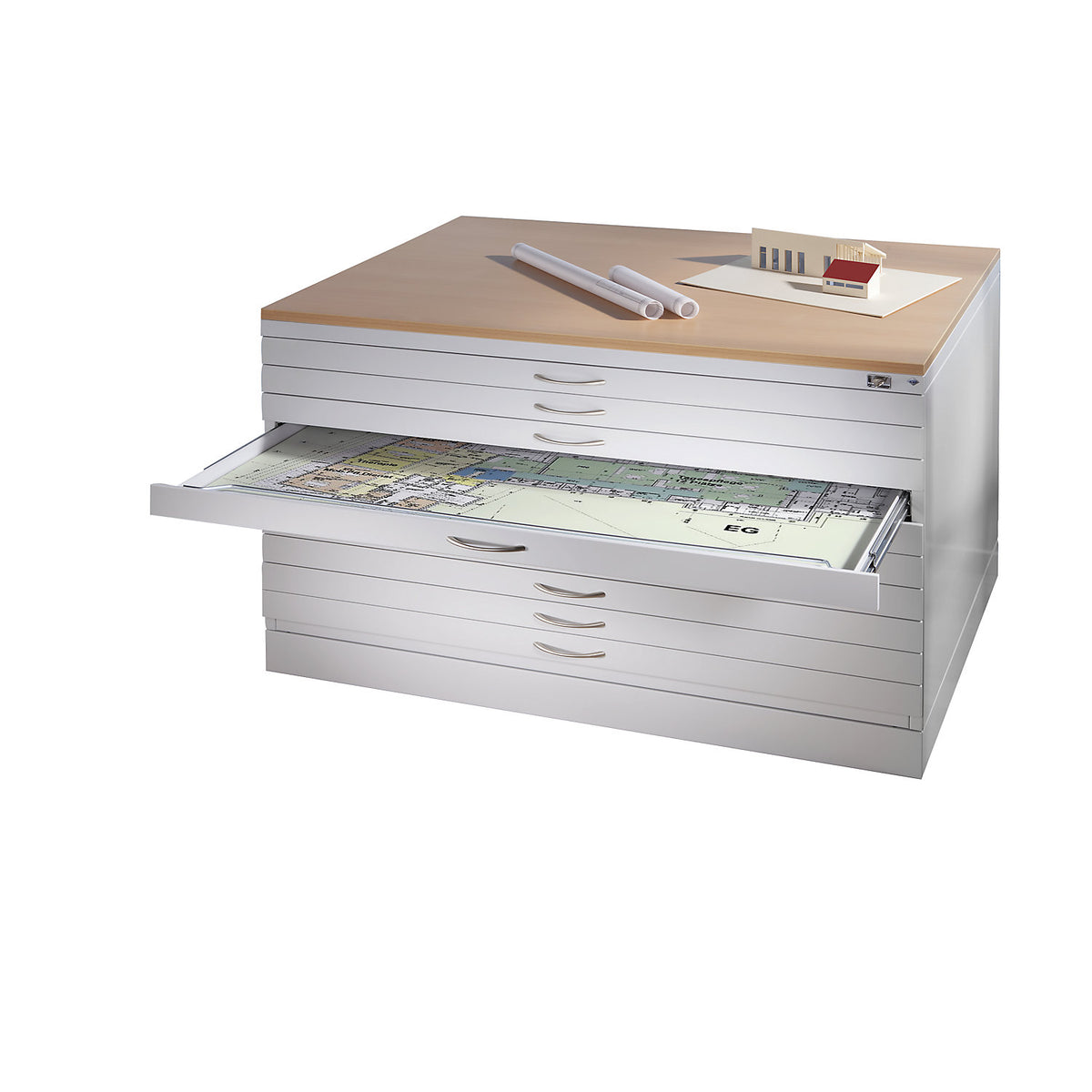

• The C+P drawing cabinet offers a functional solution for the horizontal storage of large-format drawings, plans and other documents up to DIN A0 format
• The sturdy, welded sheet steel construction features a stove-enamelled finish and is suitable for orderly document filing in planning offices, technical departments and comparable work areas
• The cabinet features ten drawers guided on ball-bearing telescopic rails
• The rails enable quiet running and are equipped with an end self-closing mechanism
• The drawer extension is 80 %, and the max. load is up to 40 kg per drawer
• An integrated pull-out stop complements the drawer guide
• For the storage of drawings, the drawers are equipped with hold-downs at the front and cover strips at the rear
• These prevent the inserted documents from rolling up
• Perforated drawer bottoms enable the use of suitable drawer dividers for subdivision into different DIN formats
• Each drawer also features a plastic label holder for labelling the contents
• A push-cylinder lock with central locking enables all drawers to be locked together
• Two keys are included in the scope of delivery
• A selection of different colours is available for the body and drawers, so that different colour combinations are possible
• The drawing cabinet is delivered fully assembled
• Plinth, base frame and a melamine-resin-coated cover plate are available on request
• The combination of ten drawers, ball-bearing telescopic runners, central locking and flexible partitioning options provides comprehensive equipment for the structured storage of large-format documents
• Plinth, base frame and melamine coated cover plate available upon request.
