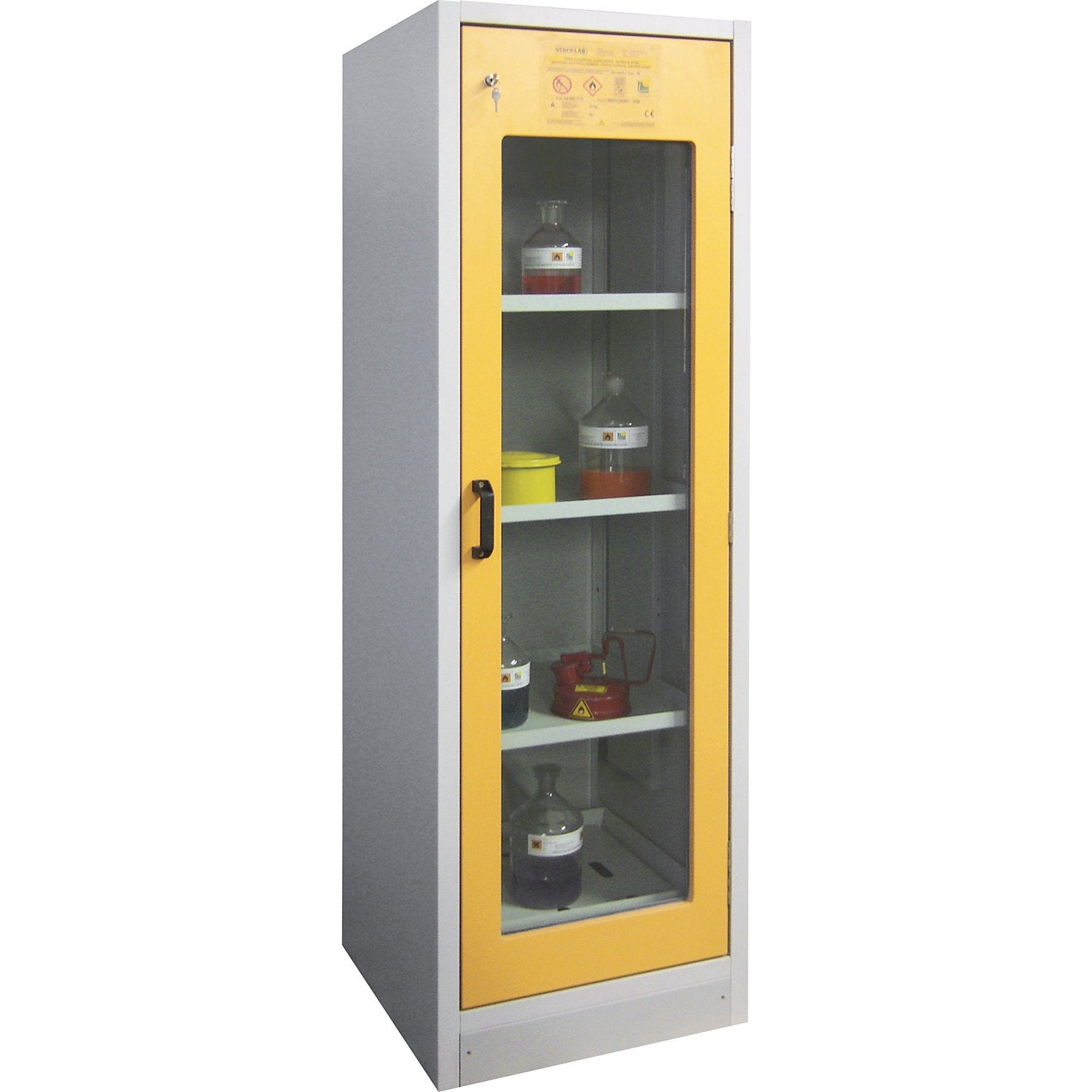

Fire resistant hazardous goods storage cupboard type 30, 1 vision panel door, HxWxD 1935 x 595 x 535 mm.

Estimated delivery: 71 days

Fire resistant hazardous goods storage cupboard type 30, 1 vision panel door, HxWxD 1935 x 595 x 535 mm

• Supplied = assembled
• Fire resistance = 30 minutes
• Material = moulded chipboard, flame retardant (class B1), fire resistant glass
• Height = 1935 mm
• Width = 595 mm
• Depth = 535 mm
• Body colour = light grey RAL 7035
• Door colour = daffodil yellow RAL 1007
• Internal height = 1600 mm
• Internal width = 475 mm
• Internal depth = 515 mm
• Door type = vision panel double doors
• Door version = 1 door
• Lock type = cylinder lock
• Number of doors = 1 pcs
• Number of shelves = 3 pcs
• Shelf material = sheet steel
• Max. shelf load = 75 kg
• Shelf height adjustment increments = 32 mm
• Customs tariff number = 94036090
• Country of origin = DEU
• Gross weight = 205.5 kg
• Weight = 190 kg
• Sustainability = CO 2 footprint calculated
• Limited approval for storage of flammable liquids at the workplace in compliance with EN 14470-1 (type 30) and TRGS 510 (Annex 3)
• Type approved as fireproof for >30 minutes, GS tested
• Fire resistant glazing in the door - the required hazardous substances are immediately visible even when the door is closed, no unnecessary searching required - saves time
• Ideal for set-up in sales showrooms, material distribution, etc
• Doors close automatically in the event of fire
• Supplied complete with perforated metal cover for the base sump
• Operation in accordance with TRGS 510 (also approved without extraction - the explosion protected area around the cupboard must be complied with)
• Cupboard body and doors made of B1 material in light grey RAL 7035, doors in daffodil yellow RAL 1007, with fire resistant glazing
• Ventilation connected using DN 80 pipe sockets
• Adjustable feet for levelling on uneven surfaces
• Earth connection compliant with BGR 132 (Avoidance of ignition sources)
• Identification in accordance with EN 14470-1 / TRGS 510, Annex 3 / ISO 3864 / ASR A1.3
• Interior fittings 1 x base sump, in acc. with StawaR / manufacturer's declaration of conformity 1 x perforated metal cover as 1st storage level 3 x shelves, height adjustable in increments of 32 mm Type 30 cupboards only have limited approval for the storage of flammable media in Germany (TRGS 510), Switzerland, the Netherlands, Belgium, and Luxembourg
• They are not approved for use in Austria Please observe the regulations binding for your country
• All specified max. loads apply with uniform load distribution
• Door lockable using cylinder lock, DIN right sided door hinge (left sided hinge available upon request).
