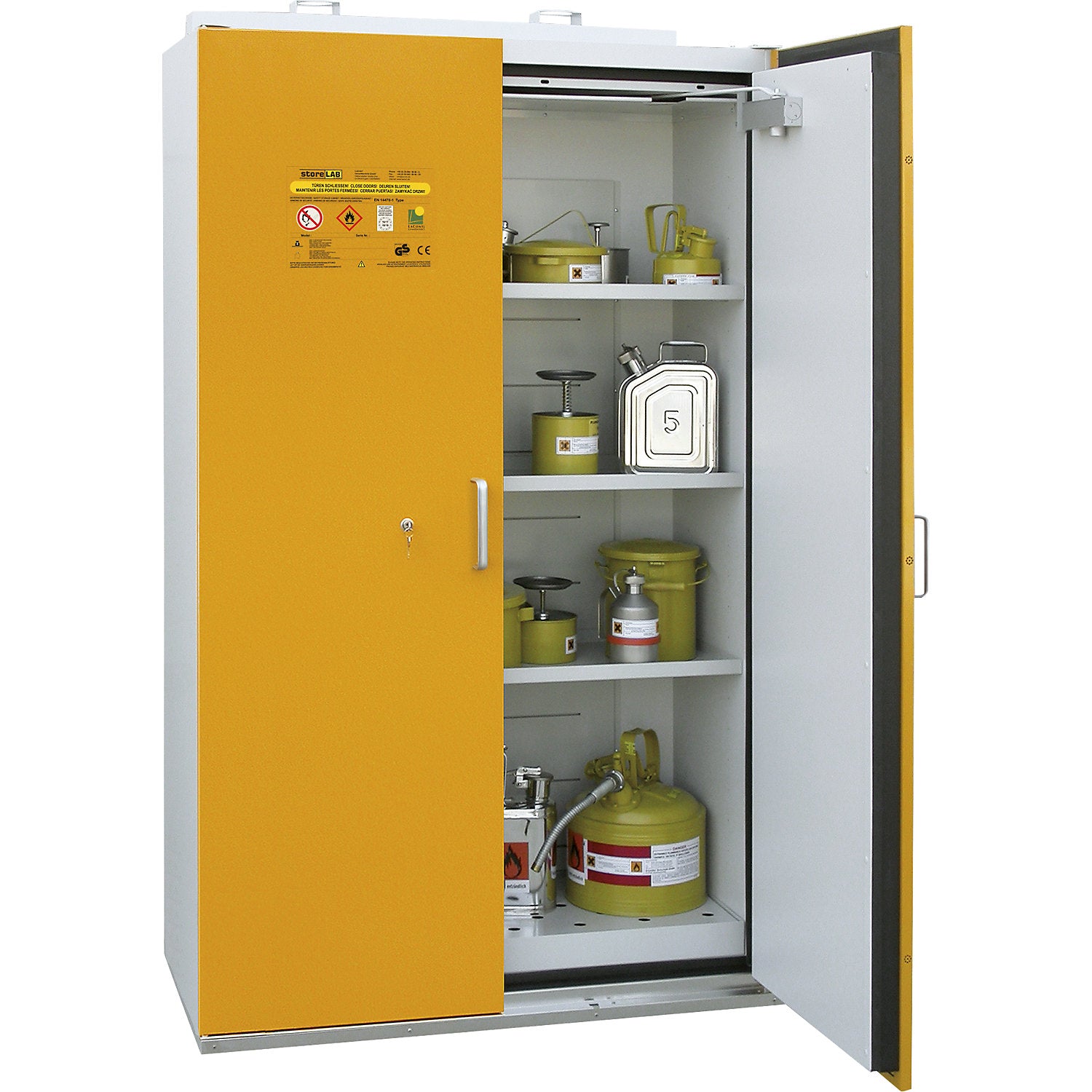

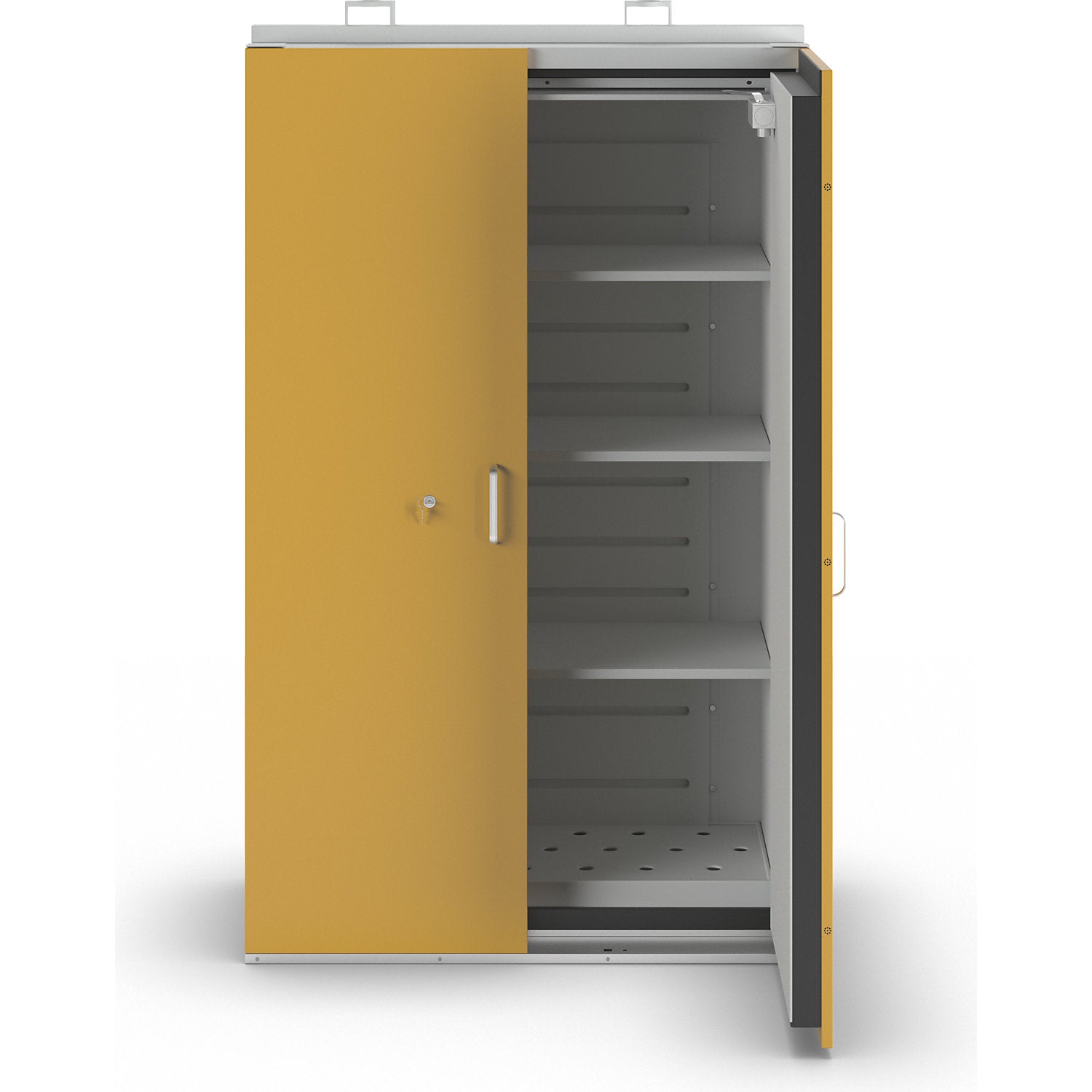

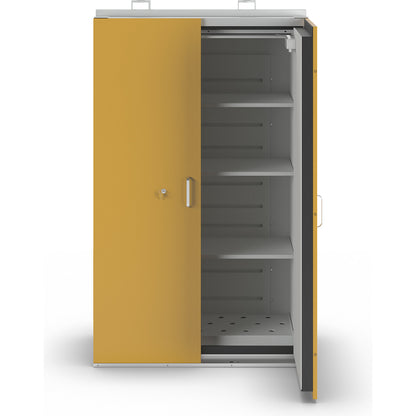

Fire resistant hazardous goods storage cupboard type 90, 2 doors, HxWxD 1935 x 1190 x 598 mm.

Estimated delivery: 71 days

Fire resistant hazardous goods storage cupboard type 90, 2 doors, HxWxD 1935 x 1190 x 598 mm

• Supplied = assembled
• Fire resistance = 90 minutes
• Material = special fire resistant boards, sheet steel, powder coated
• Height = 1935 mm
• Transfer height = 2200 mm
• Width = 1190 mm
• Depth = 598 mm
• Body colour = light grey RAL 7035
• Door colour = daffodil yellow RAL 1007
• Internal height = 1700 mm
• Internal width = 1087 mm
• Internal depth = 430 mm
• Door type = hinged door
• Door version = 2 doors
• Lock type = cylinder lock
• Number of doors = 2 pcs
• Number of shelves = 3 pcs
• Shelf material = sheet steel
• Max. shelf load = 75 kg
• Shelf height adjustment increments = 64 mm
• Customs tariff number = 94032080
• Country of origin = DEU
• Gross weight = 523 kg
• Weight = 505 kg
• Sustainability = CO 2 footprint calculated
• Approval for storage of flammable liquids at the workplace in compliance with EN 14470-1 (type 90) and TRGS 510, Annex 3
• Type approved as fireproof for >90 minutes, GS tested
• Insulated in accordance with DIN 4102
• Doors close automatically in the event of fire
• Supplied complete with perforated metal cover for the base sump
• Operation in accordance with TRGS 510 (also approved without extraction - the explosion protected area around the cupboard must be complied with)
• Safe storage of flammable liquids at the workplace with the fire-resistant hazardous material cabinet Type 90 LaCont
• With a fire resistance of >90 minutes according to EN 14470-1 (Type 90) and TRGS 510, Annex 3, this cabinet offers reliable protection for your flammable liquids
• The robust construction as well as the type-tested and GS-certified fire resistance make this cabinet a reliable choice for demanding work environments
• In case of fire, the doors are self-closing to quickly protect the flammable liquids
• Additionally, the insulation according to DIN 4102 provides further protection
• The fire-resistant hazardous material cabinet Type 90 LaCont impresses not only with its safety, but also with its functionality
• Three shelves are height-adjustable in a 64 mm grid and are supplemented with a sump tray plus perforated sheet cover as the first storage level
• Spilled liquids are reliably collected and accumulation on the cover is prevented by the perforated sheet
• The outer body consists of powder-coated steel sheet in light grey, the two hinged doors are lockable with a cylinder lock and powder-coated in striking daffodil yellow
• The inner body made of HPL-coated panels offers high fire and chemical resistance as well as robustness and durability
• This design facilitates cleaning and maintenance and ensures additional safety during the storage of hazardous materials
• The bottom trim rail is made of stainless steel (Niro-Raute)
• Operation of the hazardous material cabinet is approved according to TRGS 510 even without exhaust air, the Ex-zone around the cabinet must be observed
• The ventilation connection via DN80 pipe stub enables an optional connection of an exhaust air system
• Levelling feet for compensating uneven floors ensure optimal use in any environment (max. 3 mm height difference, adjustment is made via the 4 screws)
• With the fire-resistant hazardous material cabinet Type 90 LaCont, you choose the highest safety standards and reliability
• Earthing connection according to TRBS 2153 (prevention of ignition sources) Marking according to EN 14470-1 / TRGS 510, Annex 3 / ISO 3864 / ASR A1.3
• Interior features: 1 x sump tray according to StawaR / ÜHP 1 x perforated sheet cover as 1st storage level 3 x shelf height-adjustable in a 64 mm grid All stated load capacities apply with even load distribution
• Doors can be locked with cylinder lock
• NOTE: The access height of the cupboard including packaging and exhaust duct is approx. 2200 mm
• The exhaust duct on the cupboard can also be removed for transport.
