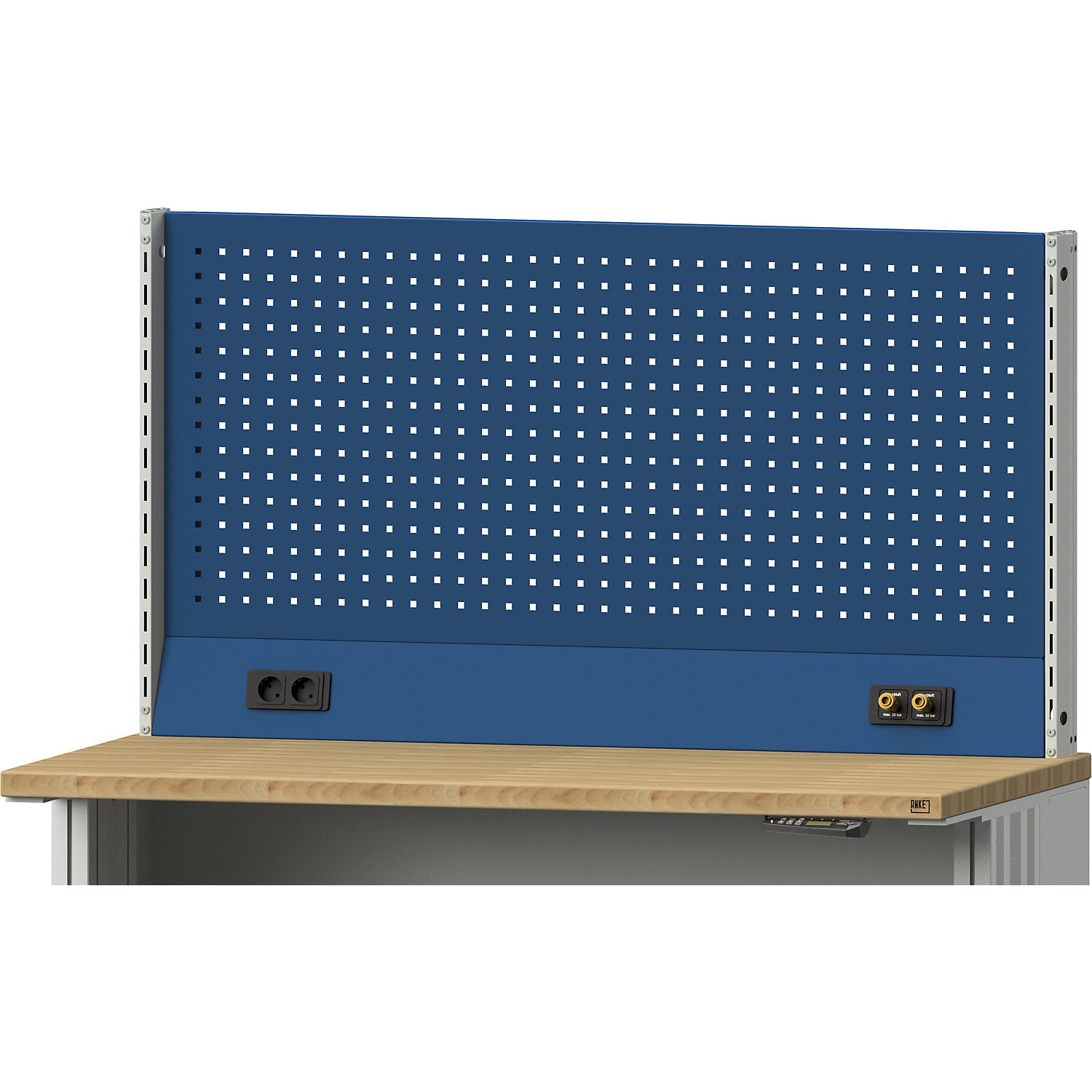

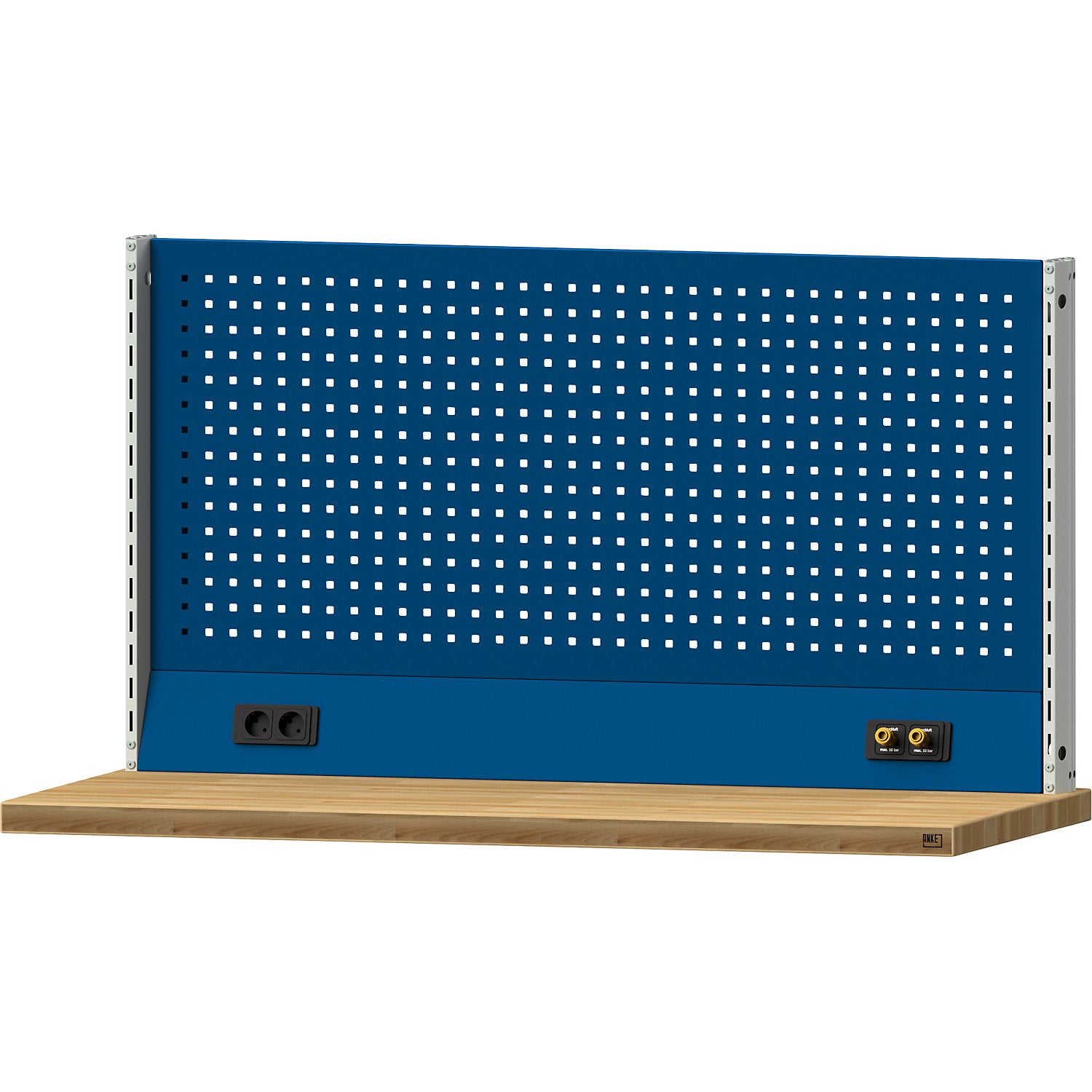

Modular system for electric LIFT work table, with 2 perforated panels, media duct, for width 1500 mm.

Estimated delivery: 41 days

Modular system for electric LIFT work table, with 2 perforated panels, media duct, for width 1500 mm

• Supplied = flat pack
• Width = 1480 mm
• Depth = 107 mm
• Colour = light grey RAL 7035, gentian blue RAL 5010
• For table width = 1500 mm
• Number of uprights = 2 pcs
• Height = 800 mm
• Product type = workbenches, electrically height adjustable
• Customs tariff number = 94032080
• Country of origin = DEU
• Gross weight = 47 kg
• Weight = 25 kg
• Set up for electricity and compressed air directly at the workstation
• Sturdy and robust
• Can be expanded with numerous hook-in and add-on modules
• Modular system for workbenches, consisting of 2 add-on supports 800 mm high in light grey RAL 7035
• The add-on supports feature a profile that is identical on the front and rear
• Two attachment points in 50 mm slotted grids allow add-on and hook-in elements such as perforated panels to be secured on each side
• A solid steel mounting plate with threaded drill holes is integrated into the add-on support, allowing it to be sturdily bolted to the worktop, so that no bulky gusset plates for reinforcement are required at all
• The customer is responsible for installation on existing workplaces at the usage site. 1 perforated panel in gentian blue RAL 5010 (WxH 1401 x 650 mm) and one media duct is hooked into supports in the modular system, one above the other
• Perforated panel with 10 mm square holes, 38 mm centre to centre distance
• Media duct fitted with: double plug socket 230 V, 10/16 A, 2-wire, prewired with mains plug and 2 x compressed air quick couplings.
