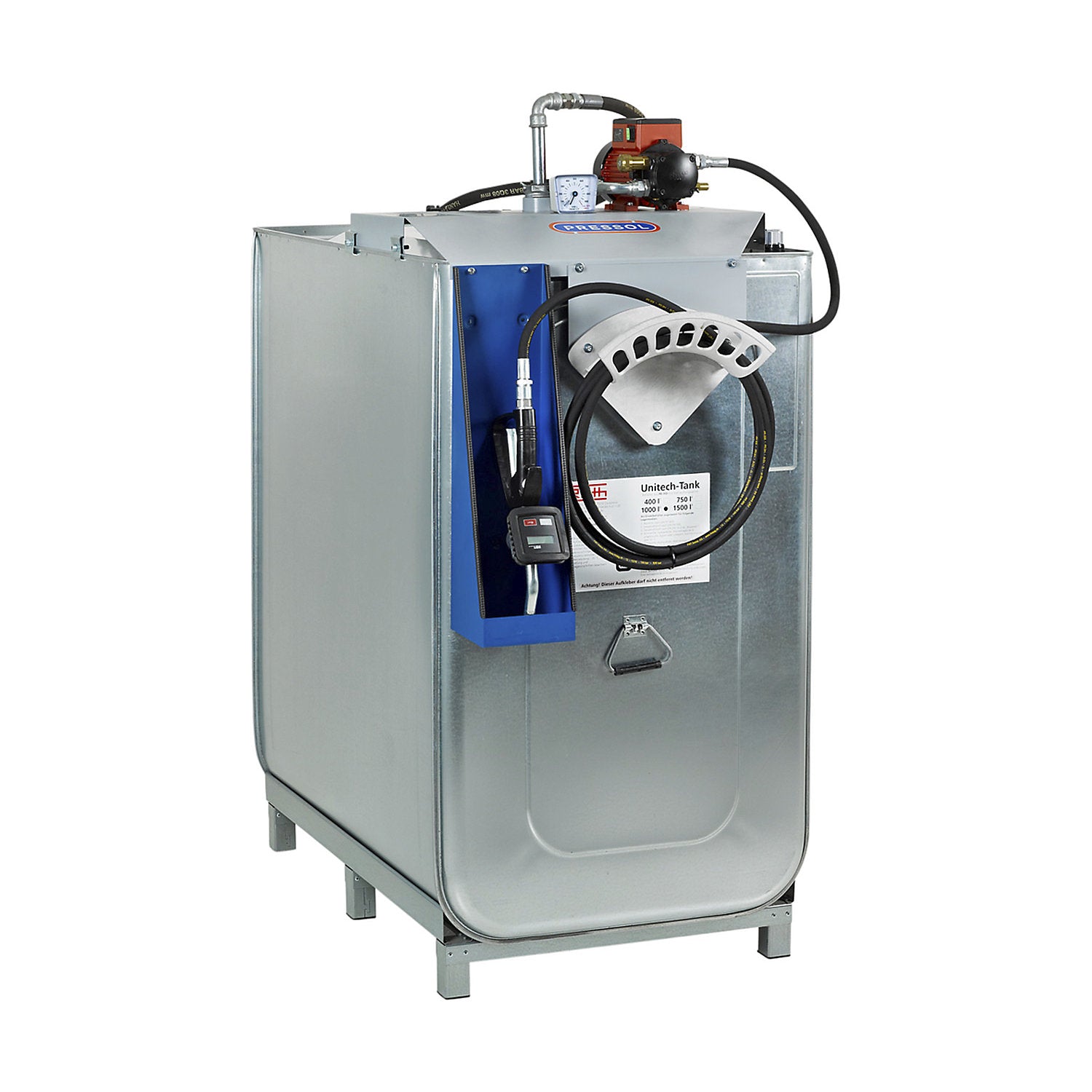

Compact oil tank system for fresh oil / low flammability oils, capacity 1000 l, electric pump, hose length 8 m.

Estimated delivery: 47 days

Compact oil tank system for fresh oil / low flammability oils, capacity 1000 l, electric pump, hose length 8 m

• Supplied = partially assembled
• Place of use = indoor use
• Length = 1350 mm
• Width = 800 mm
• Height = 1700 mm
• Colour = zinc plated, red
• Material = steel, polyethylene
• For media = oily media
• Hose length = 8 m
• Product type = tank systems
• Customs tariff number = 73101000
• Country of origin = CZE
• Gross weight = 136 kg
• Weight = 134 kg
• Sustainability = CO 2 footprint calculated
• For above ground storage of fresh oils / low flammability oils
• Double-walled tank with DIBt approval
• Electric 230 V pump with up to 10 l/min delivery rate
• Dispensing components fully assembled on fixed mounting plate
• Integrated carrying handles, removable steel pallet base. 1000 l capacity for oil storage as needed. 8 m long delivery hose for a large working radius
• Integrated level and leak monitoring
• Compact oil tank system - safe storage and efficient oil supply The compact oil tank system with a 1000 l capacity combines the above-ground storage of fresh oils and flame-resistant oils with powerful electric delivery technology
• The approved double-walled tank is suitable for installation in enclosed spaces and offers reliable monitoring of the operating status thanks to a level indicator and visual leak detector
• The outer container is made of hot dip galvanised sheet steel, whilst the inner container is made of HDPE
• The robust design is engineered for everyday operational use and offers a capacity of 1000 litres
• All dispensing components are clearly arranged on a fixed mounting plate
• This keeps the system compact and ensures easy access for daily operation
• For convenient oil delivery, the system is equipped with a self-priming 230 V gear pump
• The delivery rate is up to 10 l/min at free discharge, and the maximum suction height is 3.5 m
• The 8 m long delivery hose provides a generous working radius
• The scope of delivery also includes a suction set, a non-return valve, a digital manual flow meter, a discharge spout with anti-drip nozzle, and a swivel joint
• Integrated carrying handles make handling easy
• The removable steel pallet base facilitates transport, installation, and repositioning
• The PRESSOL compact system is ideal for workshops, vehicle fleets, manufacturing plants, and maintenance areas where fresh oil needs to be stored safely and dispensed as needed
• Included: Electric oil pump Voltage: 230 V Delivery rate at free discharge: 10 l/min Suction height: 3.5 m Delivery hose: length 8 m, G 1/2'' female/male Hose holder, suction set, mounting plate Pumping media: oils up to SAE 90
