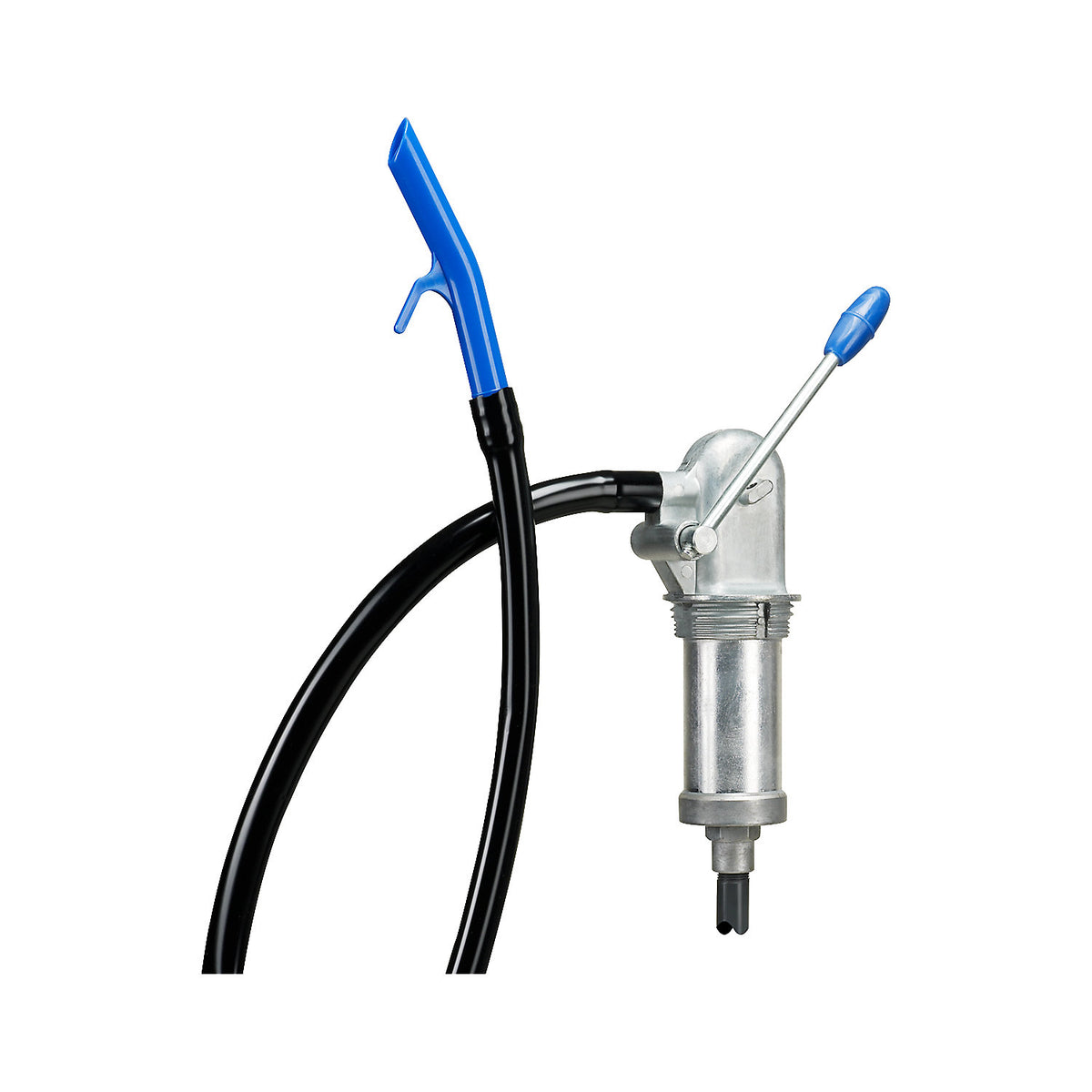

Lever operated cylinder-type manual pump, pump rate 8 l/min, with discharge hose, for oil, diesel.

Estimated delivery: 45 days

Lever operated cylinder-type manual pump, pump rate 8 l/min, with discharge hose, for oil, diesel

• Supplied = partially assembled
• Design of pump = hand pump with immersion tube
• For media = low viscosity oil and diesel, self-lubricating liquids, heating oil and diesel, non aggressive media
• Material of pump = die-cast zinc
• Pump rate = 8 l/min
• Immersion tube length = 1200 mm
• Thread = G 2 inch
• Max. viscosity at +20 °C = 750 mPas
• Weight = 1.2 kg
• Discharge hose length = 1000 mm
• Colour = silver, black, blue
• Product type = hand pumps
• Customs tariff number = 84132000
• Country of origin = CZE
• Gross weight = 1.4 kg
• Weight = 1.2 kg
• Two-part suction pipe, can be individually cut to length
• Pump housing made of impact resistant die-cast zinc
• For oils up to SAE 50, self lubricating, non aggressive media, anti-freeze, heating oil, diesel, petroleum
• Hand piston pump with discharge hose
• For 60/200/220 l containers
• Pump rate: 8 l/min or 0.14 l/stroke
• Including PVC discharge hose , 1000 mm, with plastic outlet
• Suction pipe length: 1200 mm
• Drum screw connection: G 2'' and M 64 x 4
• For oils up to SAE 50, self lubricating, non aggressive media, undiluted anti-freeze, heating oil, diesel, petroleum
• Materials for the parts in contact with media: Pump housing: impact resistant die-cast zinc
• Seals: NBR
• Please note: if media compatibility is unclear, please enquire about the suitability of pumps beforehand.
