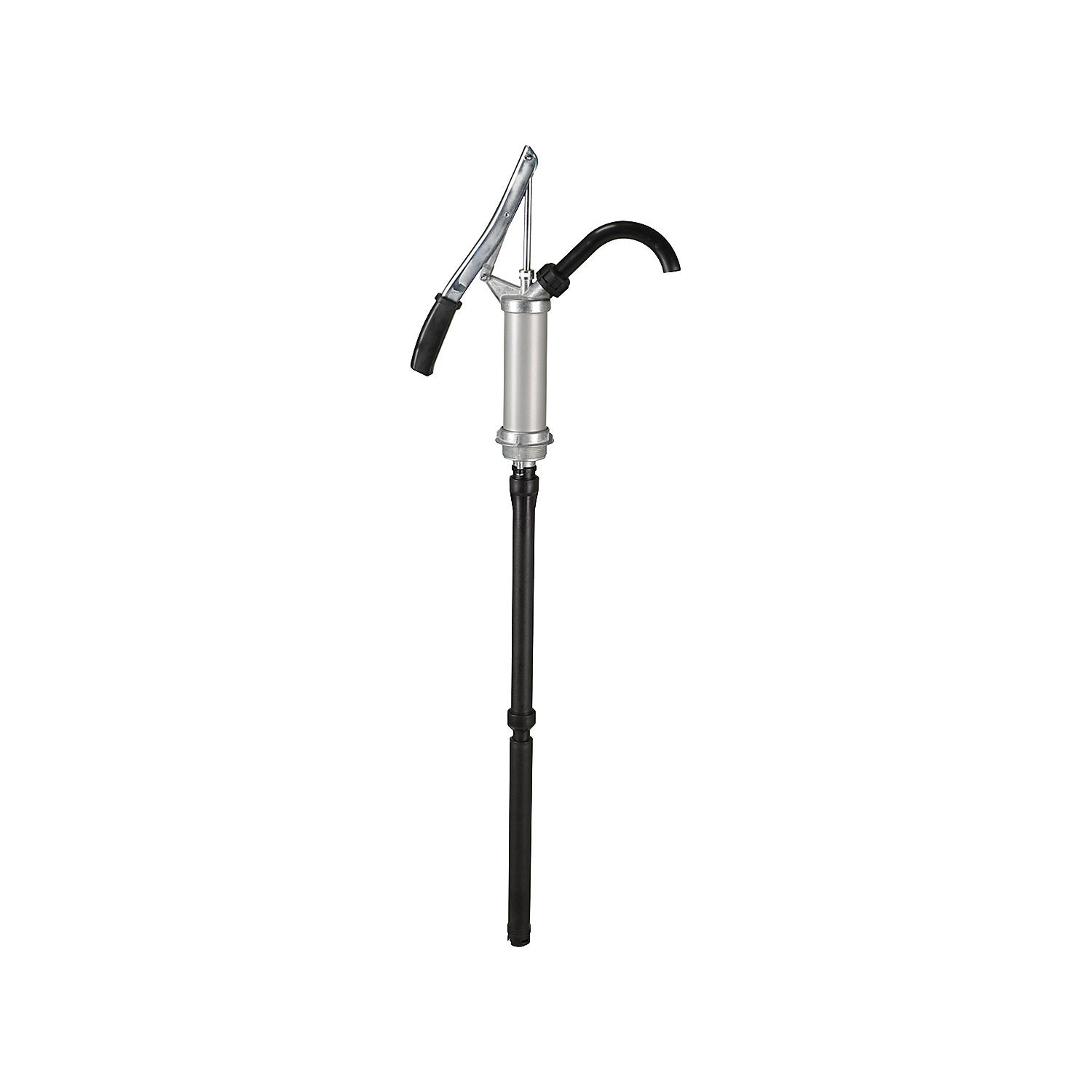

Lever operated cylinder-type manual pump, pump rate 18 l/min, with drainage elbow, for oil, diesel.

Estimated delivery: 39 days

Lever operated cylinder-type manual pump, pump rate 18 l/min, with drainage elbow, for oil, diesel

• Supplied = partially assembled
• Design of pump = hand pump with immersion tube
• For media = oil and diesel, new and used oil, heating oil and diesel, low viscosity mineral oil products, such as diesel, heating fuel, hydraulic, machine and motor oil, etc
• Material of pump = aluminium
• Pump rate = 18 l/min
• Immersion tube length = 355 - 955 mm
• Thread = G 2 inch
• Max. viscosity at +20 °C = 750 mPas
• Weight = 1.59 kg
• Colour = silver, black
• Product type = hand pumps
• Customs tariff number = 84132000
• Country of origin = CZE
• Gross weight = 1.77 kg
• Weight = 1.59 kg
• Two-part suction pipe, can be cut to length
• For motor oil, gear oil, heating oil, diesel, machine oil, cutting oil, petroleum, anti-freeze
• With plastic drainage elbow
• Hand piston pumps with plastic drainage elbow
• For 60/200/220 l containers
• Pump rate: 18 l/min or 0.3 l/stroke

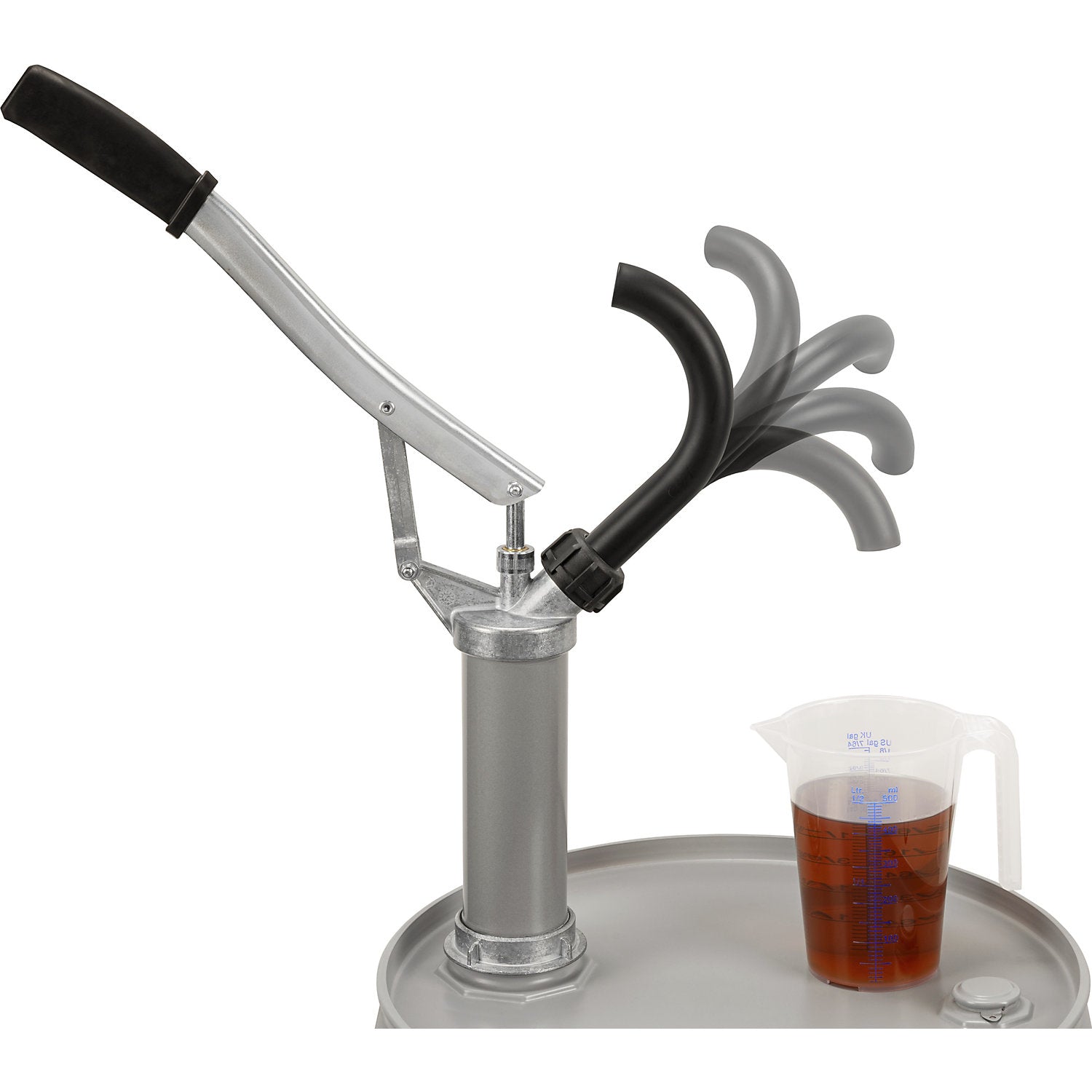

• With drainage elbow (plastic outlet manifold, attached with coupling ring)
• Suction pipe length: 355 - 955 mm (can be individually cut to length)
• Drum screw connection: G 2''
• For motor oils from SAE 5 W to SAE 50, gear oil from SAE 75 W to SAE 90, heating oil, diesel, machine oil, cutting oil, petroleum, undiluted anti-freeze
• Materials for the parts in contact with media: Pump head: impact resistant die-cast zinc Pump body: aluminium Suction pipe: HDPE (high density polyethylene) Outlet manifold: PP Seals: PVC, NBR, FKM Please note: if media compatibility is unclear, please enquire about the suitability of pumps beforehand.
