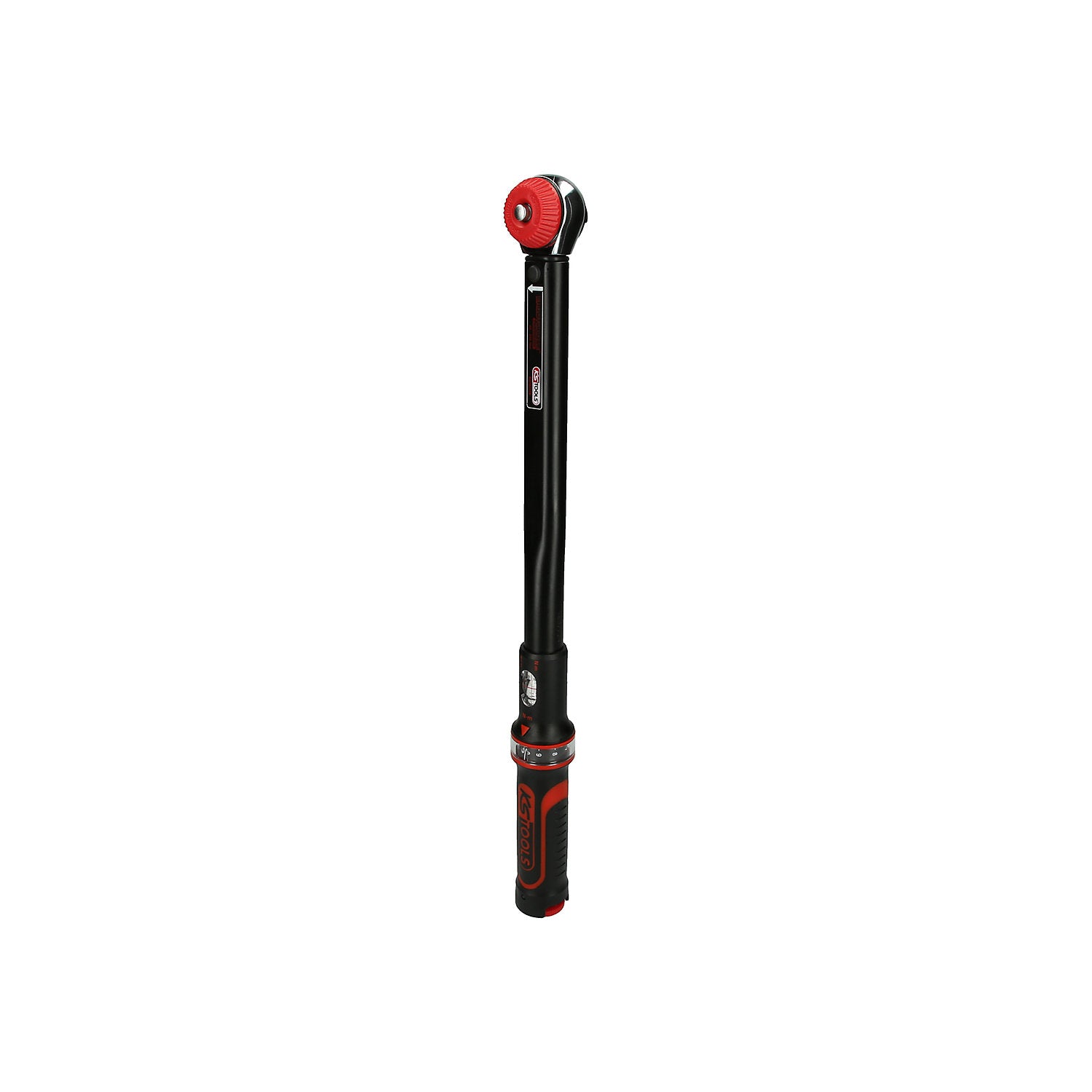

ERGOTORQUE®precision torque wrench with reversible ratchet head, 1/4'', 5 - 25 Nm.

Estimated delivery: 32 days

ERGOTORQUE®precision torque wrench with reversible ratchet head, 1/4'', 5 - 25 Nm

• Supplied = assembled
• Weight = 0.46 kg
• Display type = graduation (mechanical)
• Actuation accuracy = ±3 %
• Diameter = 35 mm
• Handle = 2-component handle
• Height = 18 mm
• Length = 289 mm
• Material = chrome-vanadium steel
• Measuring range Nm = 5 - 25 N·m
• Square drive in inches = 1/4''
• Tool holder = ratchet
• Colour = black
• Product type = torque wrenches
• Customs tariff number = 82041100
• Country of origin = TWN
• Gross weight = 0.62 kg
• Weight = 0.46 kg
• Actuation accuracy: ±3% tolerance from the value set on the scale
• Repeat accuracy and precision for at least 5000 load changes
• For controlled clockwise and anti-clockwise tightening
• Clearly audible and palpable torque actuation by quick release function

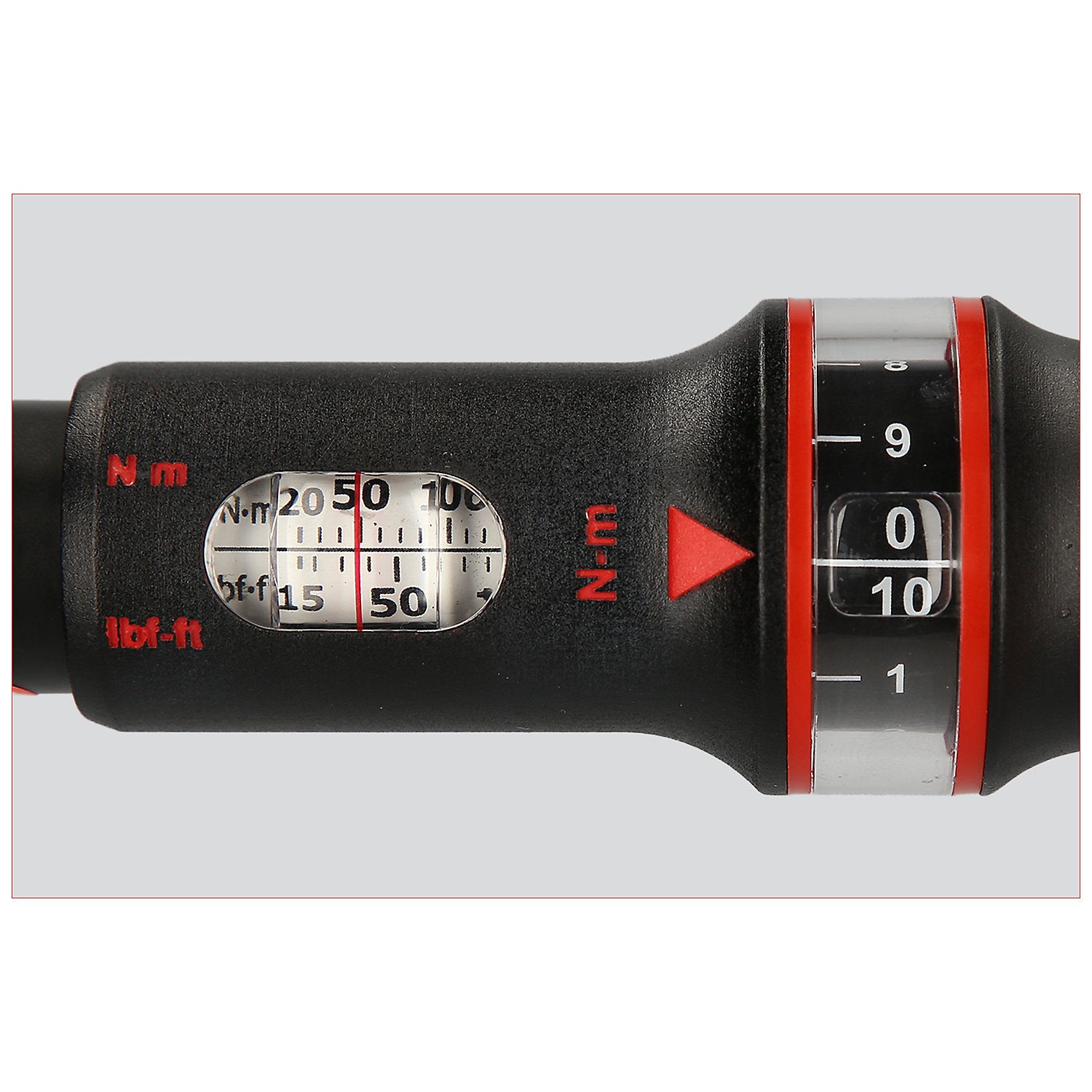

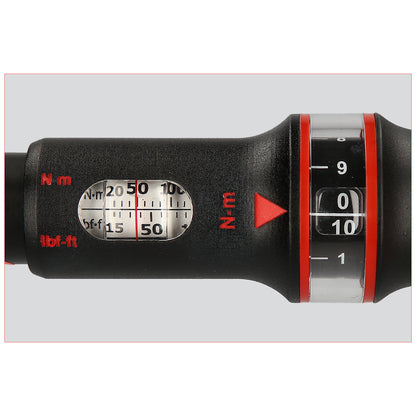

• Double scale with Nm and lbf ft divisions for precise adjustment
• Ergonomic and comfortable 2 component handle with soft zone
• With textured reversible ratchet head on the square drive for manual pretightening
• Includes an Nm micrometre scale with exact divisions for fine and precise adjustment
• Large vision panel with magnifying function to optimise readability
• With a robust 30 tooth ratchet mechanism
• Turning the handle adjusts the torque quickly and reliably
• The direction of operation is changed by pushing through the square edge of the drive
• Secure locking mechanism on the handle
• With ejection mechanism on the ratchet head by pressing a button
• Includes a declaration of calibration conformity in accordance with EN ISO 6789:2017(E) - traceable to national standards
• Square drive in accordance with DIN 3120 - ISO 1174 with ball locking device.
