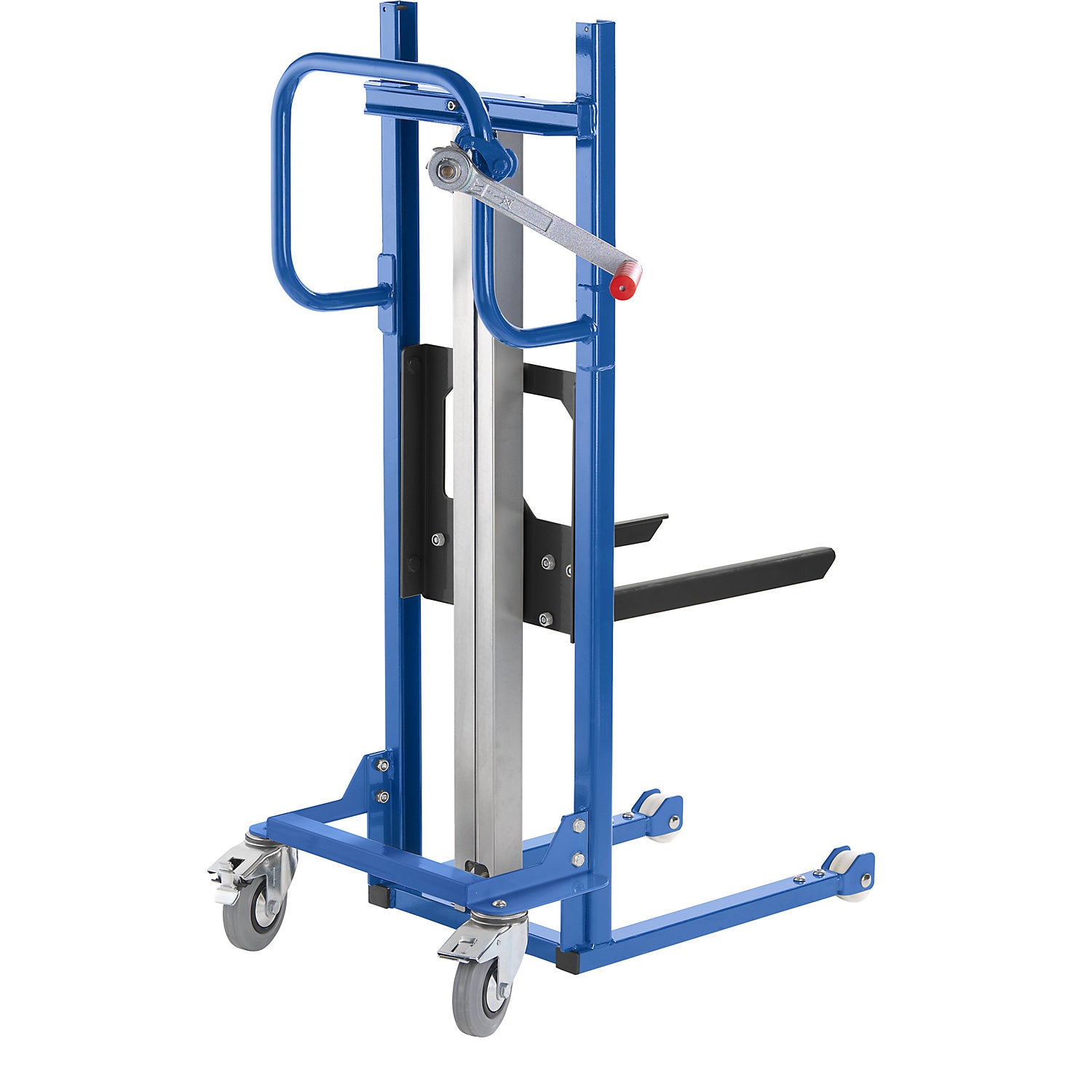

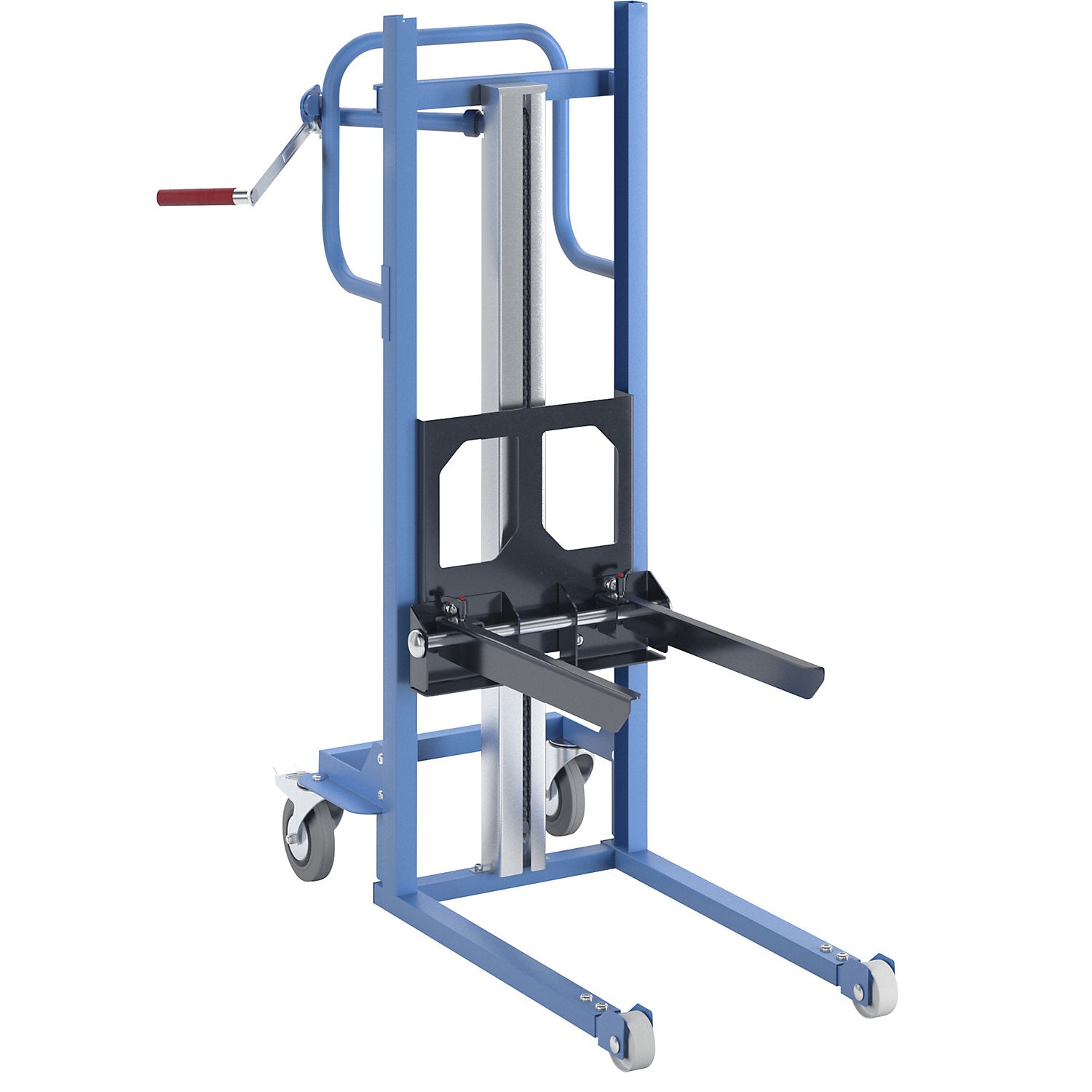

Material lifter, with adjustable box fork, with fork rollers.

Estimated delivery: 52 days

Material lifter, with adjustable box fork, with fork rollers

• Supplied = partially assembled
• Model = adjustable box fork / fixed castors
• Load suspension device LxW/Ø = 450x140 - 330 mm
• Max. load = 100 kg
• Load centre = 270 mm
• Lifting range = 110 - 970 mm
• Length = 970 mm
• Width = 506 mm
• Height = 1265 mm
• Clearance height = 75 mm
• Material = steel
• Feature = manual
• Finish = powder coated
• Colour = light blue RAL 5012
• Customs tariff number = 87168000
• Country of origin = DEU
• Gross weight = 39.11 kg
• Weight = 38.31 kg
• Sustainability = CO 2 footprint calculated
• For different bins
• Loading and unloading at an ideal height
• Can be adjusted to the bin width
• Exchangeable load support
• Optionally available with fixed castors or 4-way chassis
• Swivel castors with wheel stops
• Material lifters with different load support equipment for many applications
• Load centre 300 mm
• Brings materials or tools to the ideal working height
• Can be transported using 2 swivel castors with wheel stops and 2 fork rollers or with a 4-way chassis

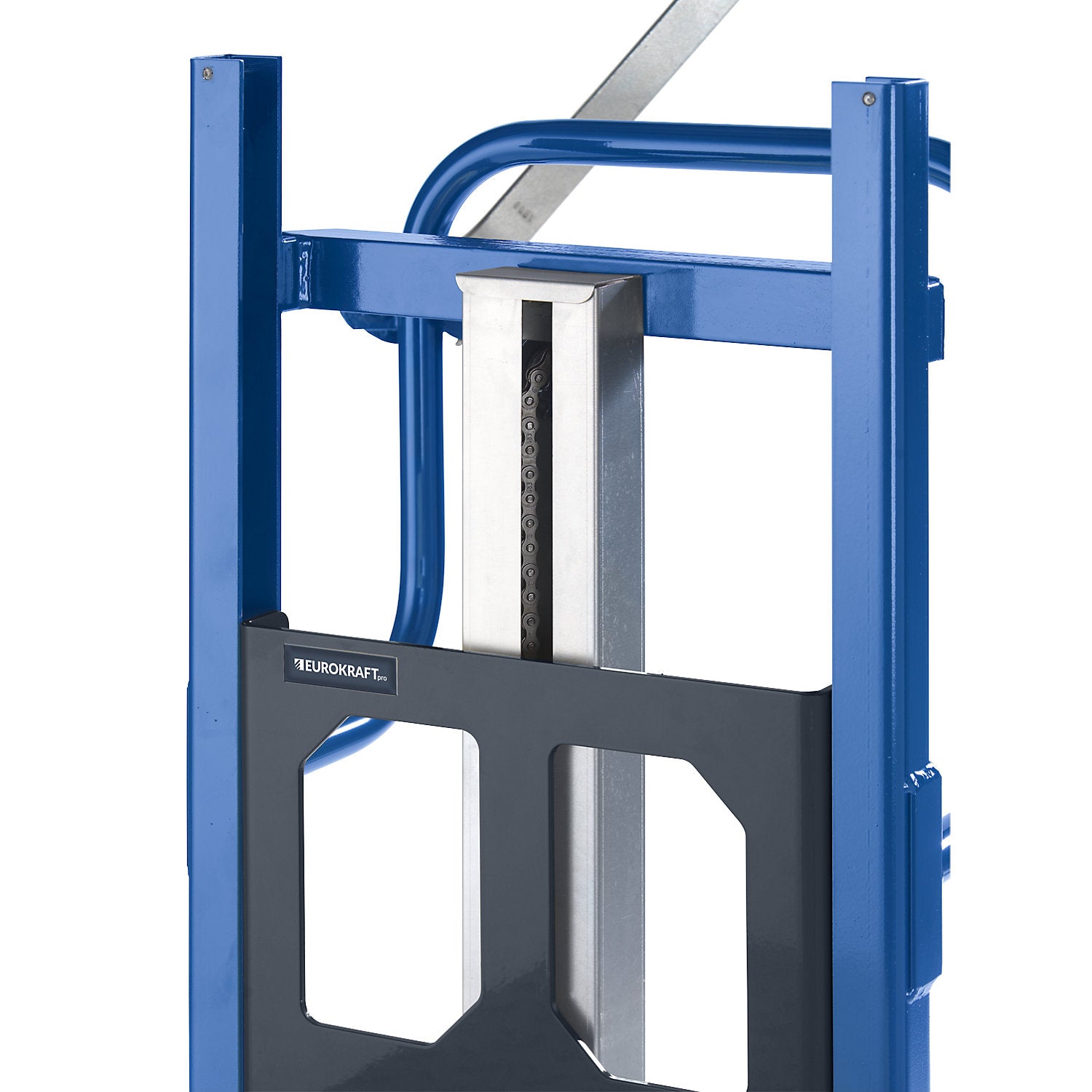

• Lifting motion produced by self locking safety winch and precision roller chain
• Available in almost any RAL colour
• Surcharge of just 10%
• Custom colours are manufactured to individual customer specifications and are therefore excluded from the right of cancellation and return.
