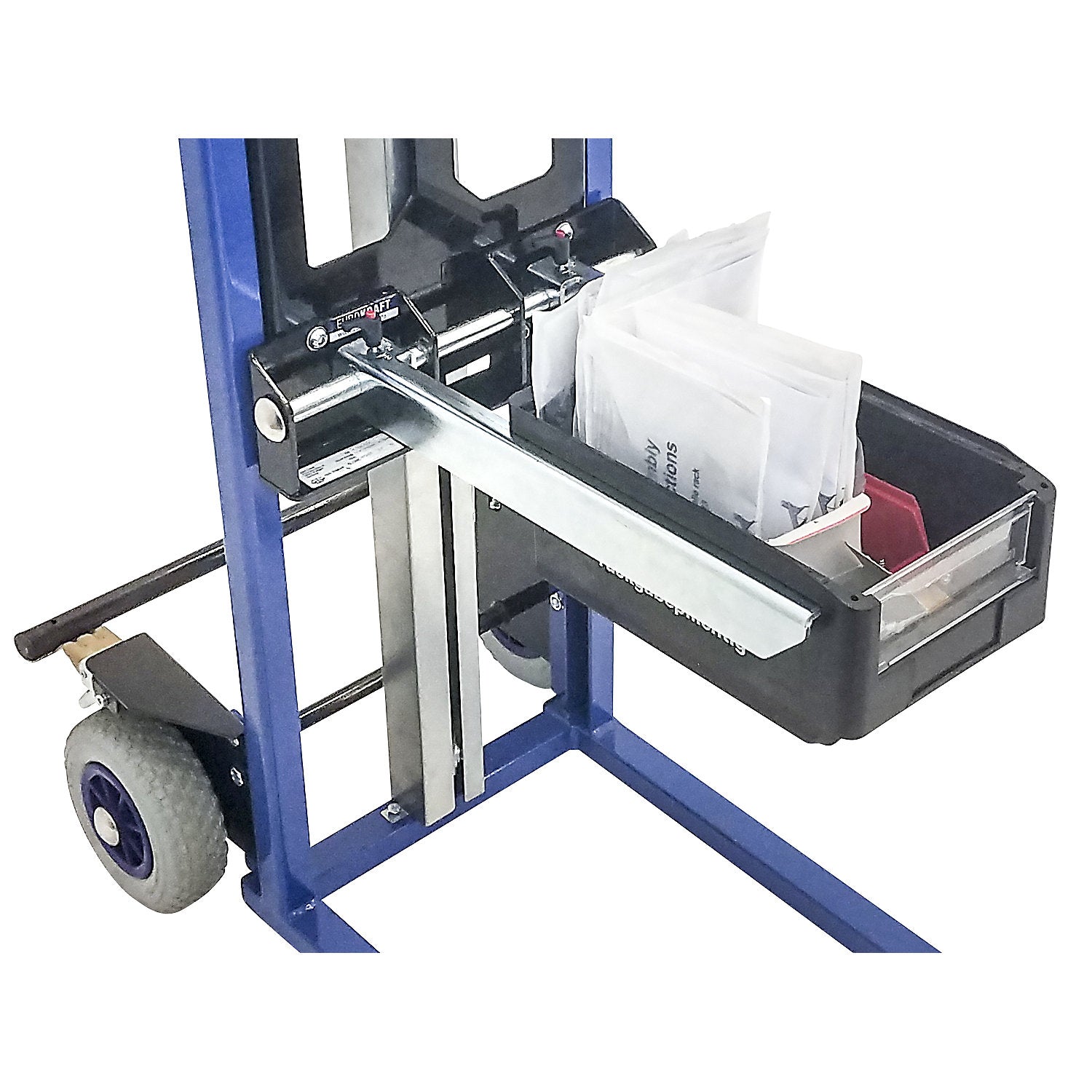

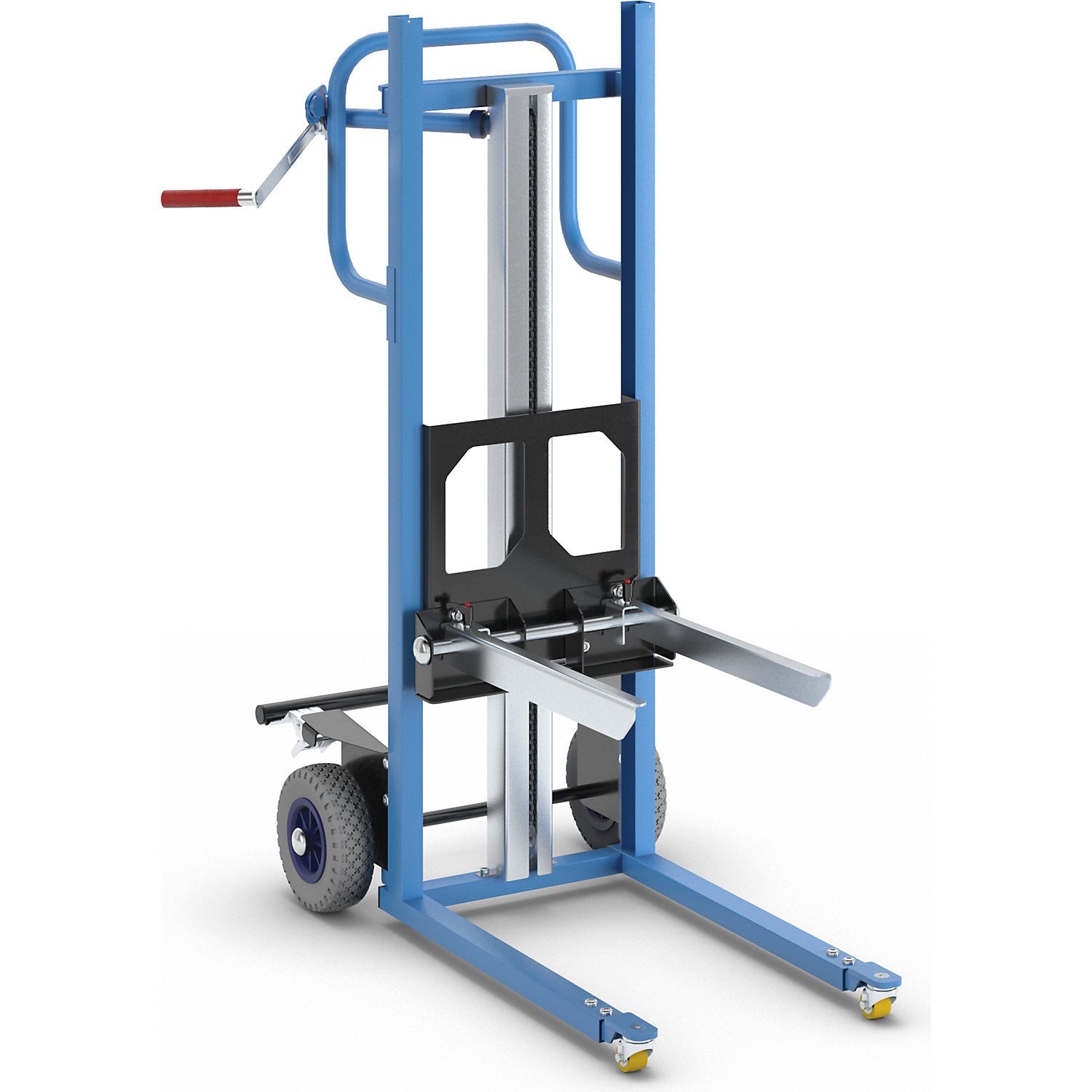

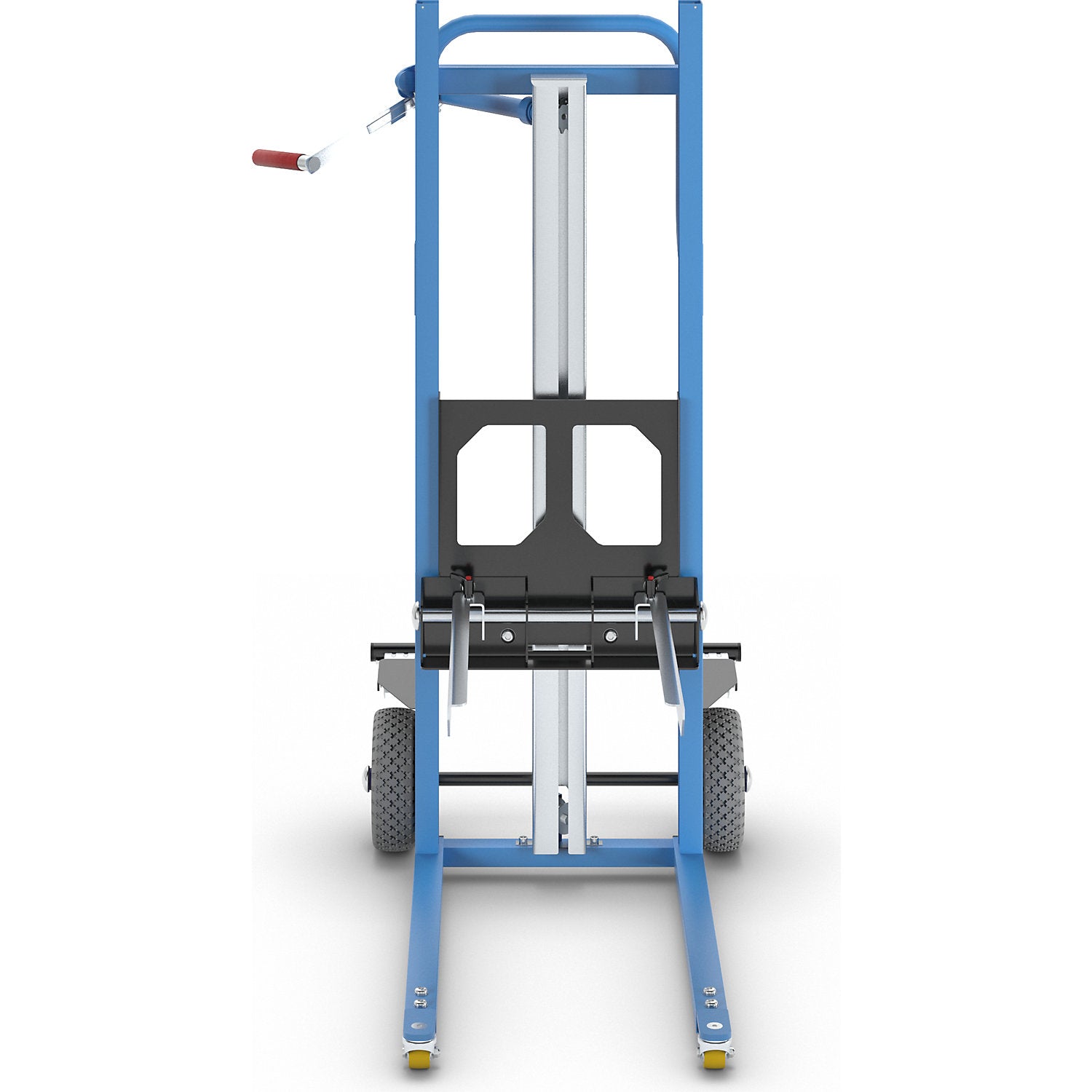

Lift truck, with adjustable box fork, lifting range 110 - 970 mm.

Estimated delivery: 52 days

Lift truck, with adjustable box fork, lifting range 110 - 970 mm

• Supplied = partially assembled
• Model = with adjustable box fork
• Load suspension device LxW/Ø = 450x140-330 mm
• Max. load = 100 kg
• Load centre = 270 mm
• Lifting range = 110 - 970 mm
• Length = 925 mm
• Width = 575 mm
• Height = 1265 mm
• Clearance height = 75 mm
• Material = steel
• Feature = manual
• Finish = powder coated
• Colour = light blue RAL 5012
• Customs tariff number = 87168000
• Country of origin = DEU
• Gross weight = 40.71 kg
• Weight = 40.11 kg
• Sustainability = CO 2 footprint calculated
• For different bins
• Loading and unloading at an ideal height
• Can be adjusted to the bin width
• Can be moved as a truck for long routes
• Exact positioning on 4 wheels
• Exchangeable load supports
• Lift truck with different load support equipment for many applications
• Load centre 300 mm
• Puncture proof wheels with central brake and 2 swivel castors for exact moving and positioning

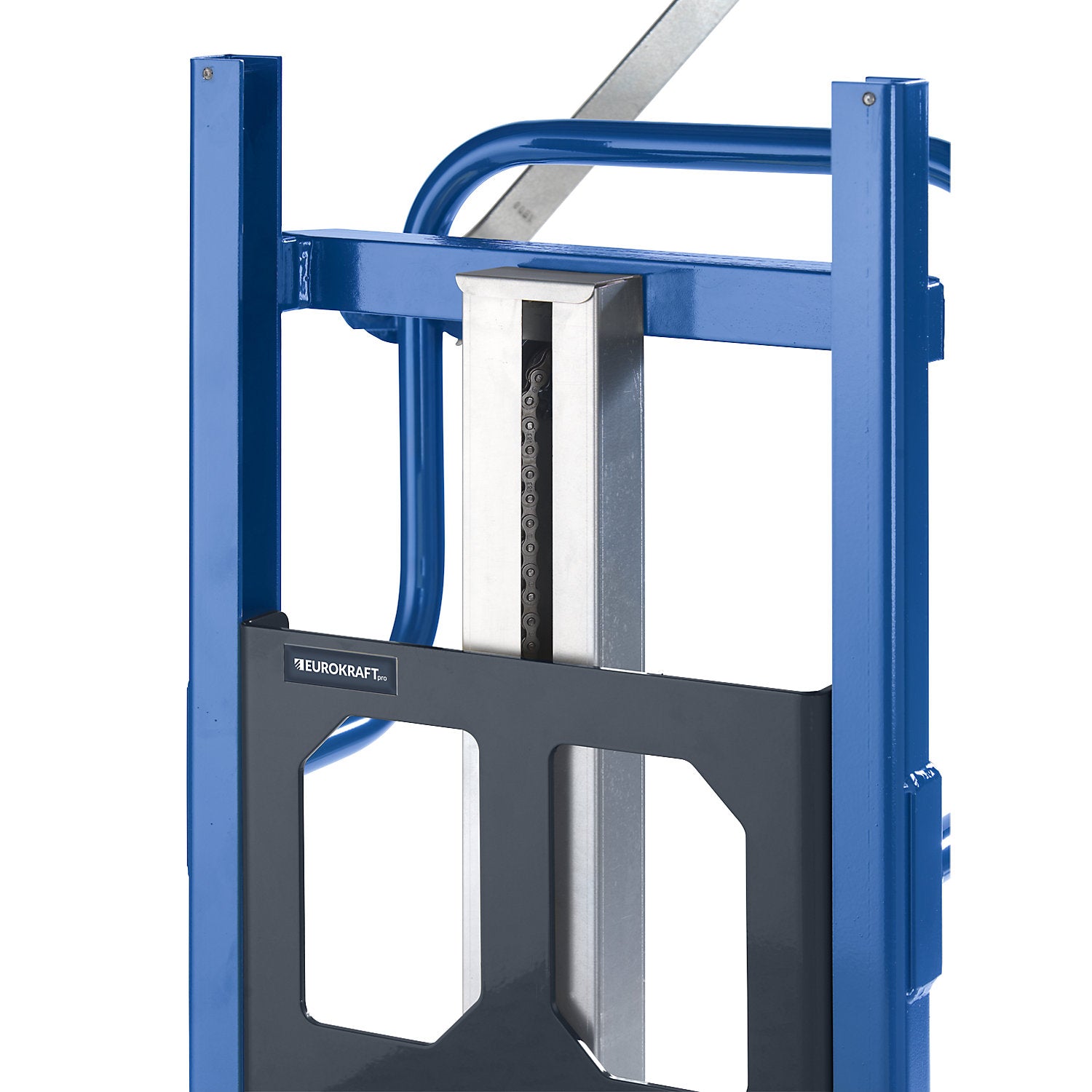

• Lifting motion produced by means of self locking safety winch and precision roller chain.
