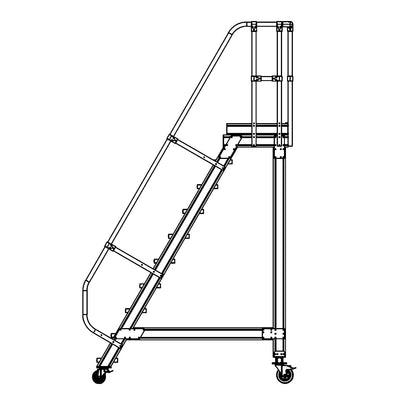

Mobile safety steps, slope 60°, 9 steps.

Estimated delivery: 38 days

Mobile safety steps, slope 60°, 9 steps

• Supplied = assembled
• Platform depth = 800 mm
• Platform width = 600 mm
• Platform height = 2180 mm
• Access type = steps
• Steps incl. platform = 9 pcs
• Material of treads = aluminium, ribbed
• Step width = 800 mm
• Step depth = 200 mm
• Weight = 85.1 kg
• Frame material = aluminium
• Max. load = 300 kg
• Height = 3280 mm
• Width = 1400 mm
• Depth = 1920 mm
• Access = single sided
• Feature = mobile
• Working height = 4180 mm
• Slope = 60°
• Customs tariff number = 76169990
• Country of origin = DEU
• Gross weight = 94.1 kg
• Weight = 85.1 kg
• Sustainability = CO 2 footprint calculated
• Practical for mobile use
• Rails made of sturdy aluminium profiles
• Non-slip steps made of ribbed aluminium
• Slope 60°
• Top ends of rails closed and bolted to the sides of the platform
• Steps rigidly connected
• Step width x depth 800 x 200 mm
• Platform length 600 mm
• Hand rail on both sides and 3-sided platform railing, 1100 mm high, with knee and foot rail. 2 swivel castors on step rails, wheel Ø 125 mm, 2 fixed castors on the cross strut of the support side, wheel Ø 160 mm, all with wheel stops
• Delivered partially assembled - easy final assembly
• Custom designs and other platform and step coverings are available on request.
