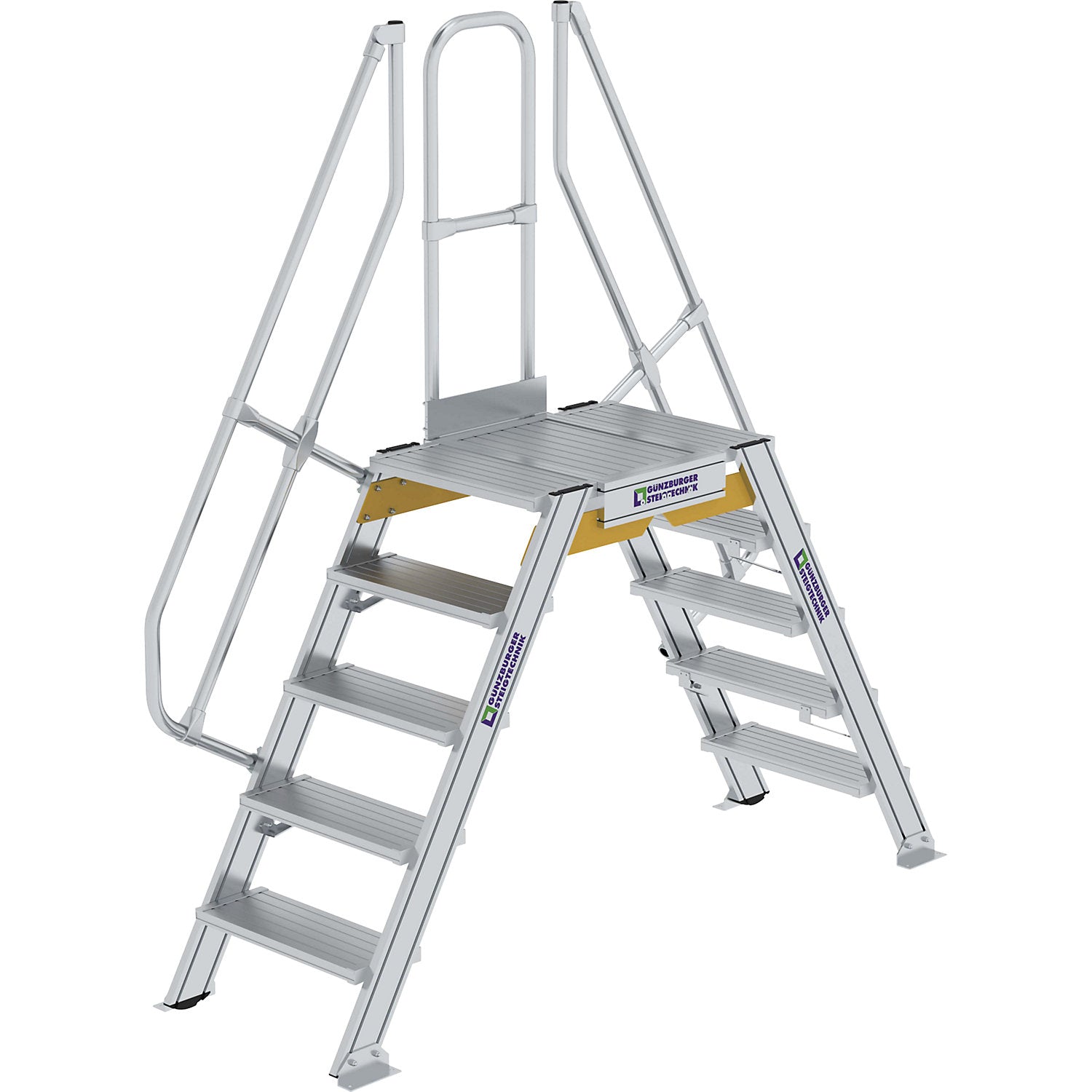

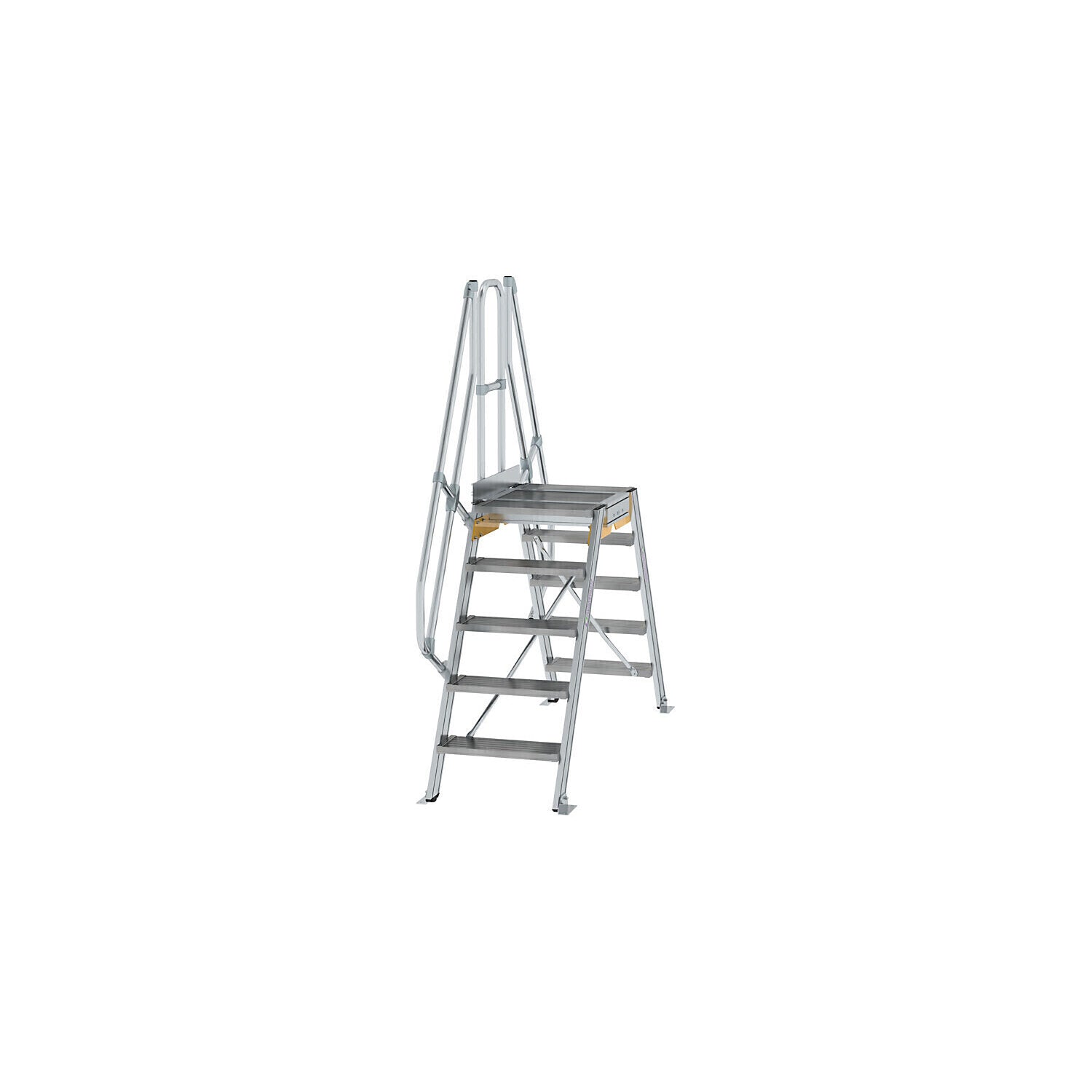

Crossover platform, total max. load 300 kg, 5 steps, platform 800 x 600 mm.

Estimated delivery: 38 days

Crossover platform, total max. load 300 kg, 5 steps, platform 800 x 600 mm

• Supplied = assembled
• Platform length = 800 mm
• Platform width = 600 mm
• Clear height = 1174 mm
• Steps incl. platform = 5 pcs
• Material of treads = aluminium, ribbed
• Step depth = 200 mm
• Step width = 600 mm
• Overall max. load = 300 kg
• Reach = 2142 mm
• Frame material = aluminium extruded profile
• Slope = 60°
• Product type = crossover platforms
• Customs tariff number = 76109090
• Country of origin = DEU
• Gross weight = 55 kg
• Weight = 44 kg
• Sustainability = CO 2 footprint calculated
• For bridging machines, conveyor belts or pits
• Safe, fatigue-free working - even over longer periods
• Comfortable ascent - 60° slope
• Overall max. load 300 kg
• Lower end of steps with foot brackets for ground stability
• Top ends of rails closed and bolted to the sides of the platform
• Steps rigidly connected
• One hand rail 1100 mm in height included, can be mounted on left or right
• Second hand rail as an accessory
• Delivered partially assembled - easy final assembly
• Additional sizes, mobile version, 45° angle of inclination as well as alternative designs available on request.
