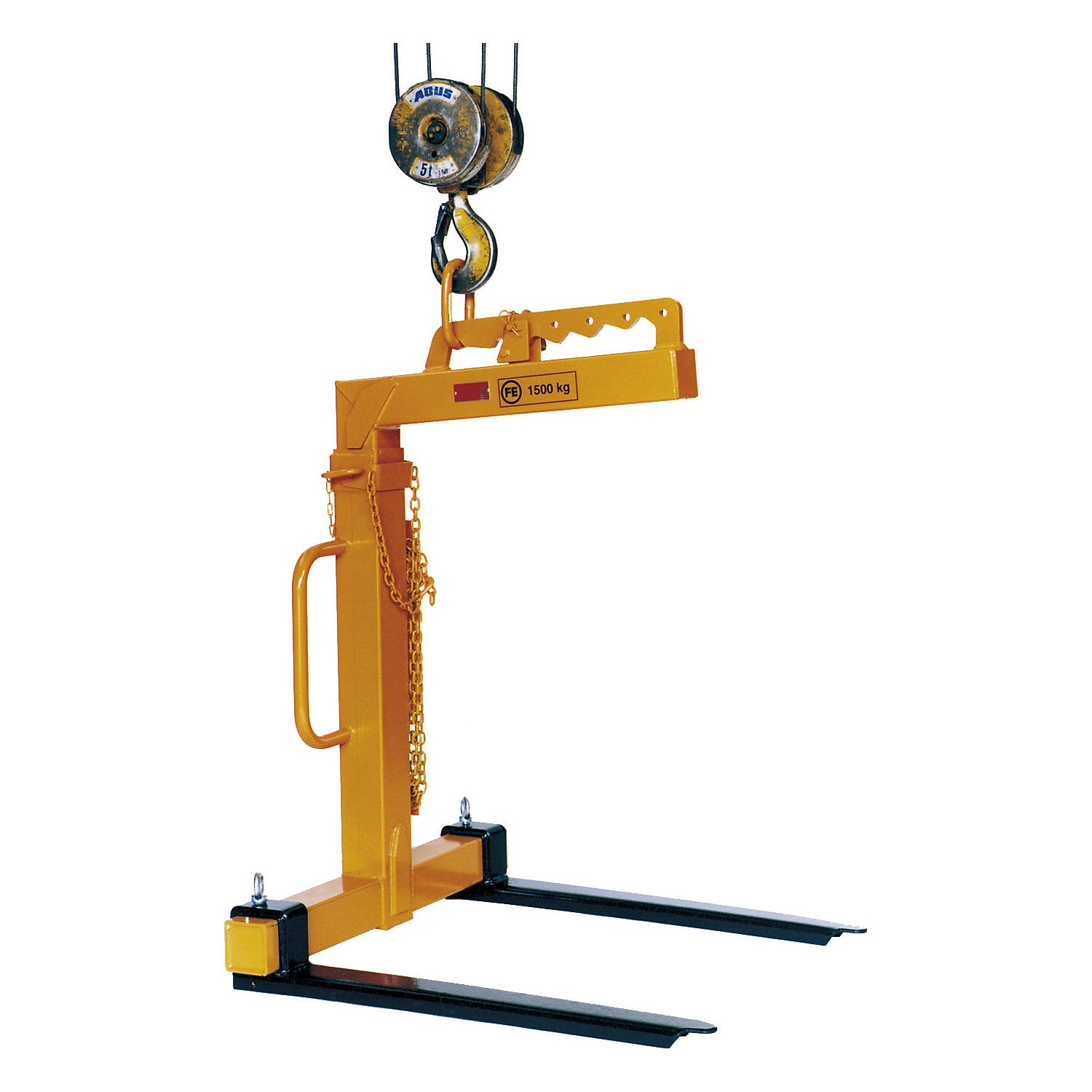

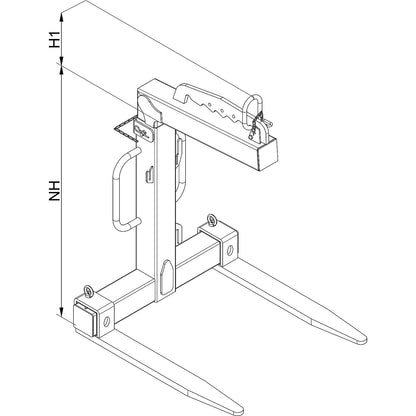

Balanced crane fork, manual, effective height 1150 - 1750 mm, light duty version, max. load 1500 kg.

Estimated delivery: 51 days

Balanced crane fork, manual, effective height 1150 - 1750 mm, light duty version, max. load 1500 kg

• Supplied = assembled
• Max. load = 1500 kg
• Load centre = 680 mm
• Effective height from = 1150 mm
• Fork length = 1000 mm
• Weight compensation = manual
• Fork width = 120 mm
• Thickness of fork prong = 40 mm
• Material = steel, painted
• Colour = pure orange RAL 2004
• Effective height up to = 1750 mm
• Fork adjustment range = 450 - 950 mm
• Product type = crane forks
• Customs tariff number = 84314100
• Country of origin = DEU
• Gross weight = 140 kg
• Weight = 140 kg
• Sustainability = CO 2 footprint calculated
• Manual weight balancing
• Low weight
• Adjustable effective height and fork width
• Infinite manual fork width adjustment from 450 - 950 mm and effective height can be adjusted from 1150 - 1750 mm using locking pins
• Weights are balanced manually by positioning the individual support ring
• Supplied complete with 4 m safety chain
• Forks made of tubular material
• Available upon request with safety cage or loading box in normal size or in any other special size required.
