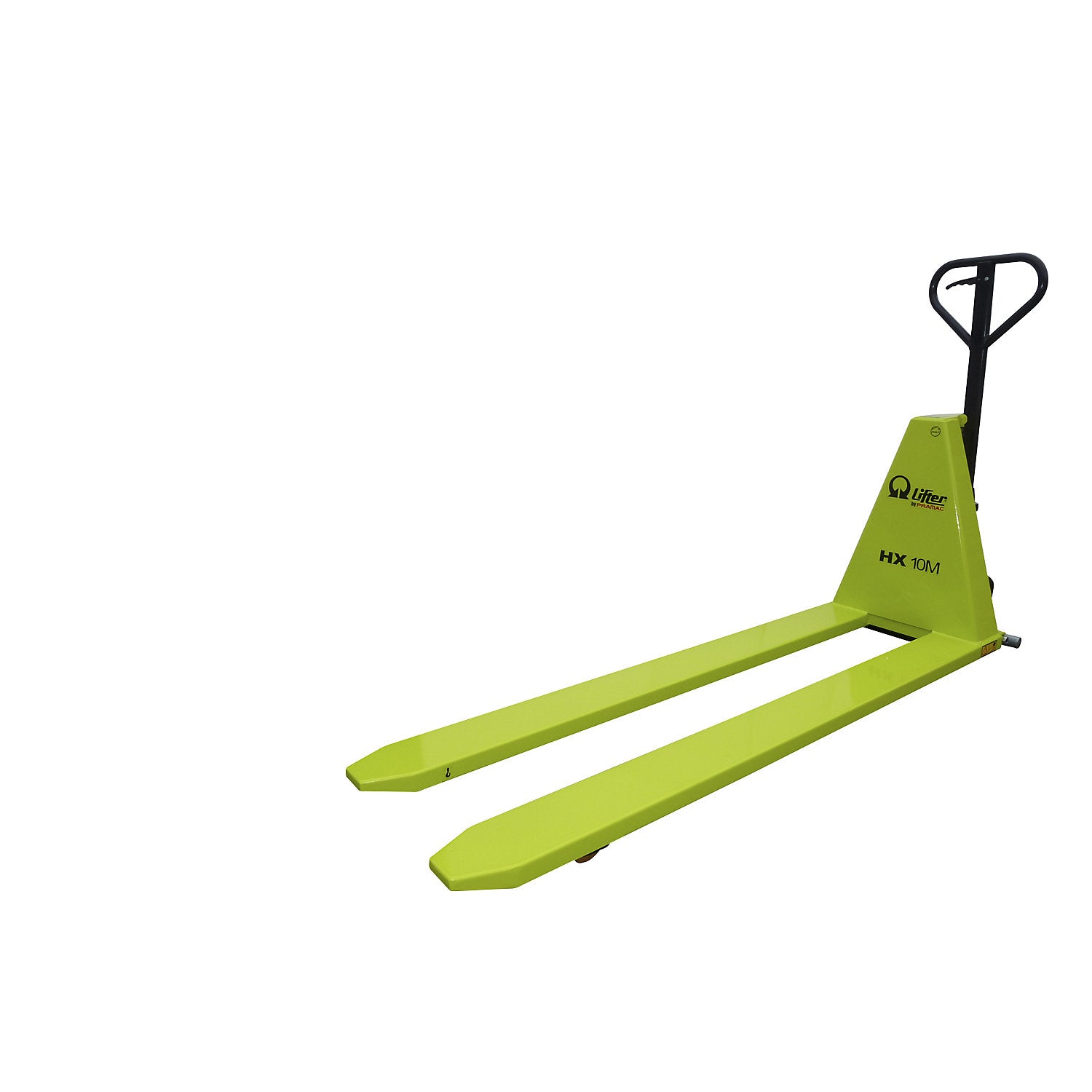

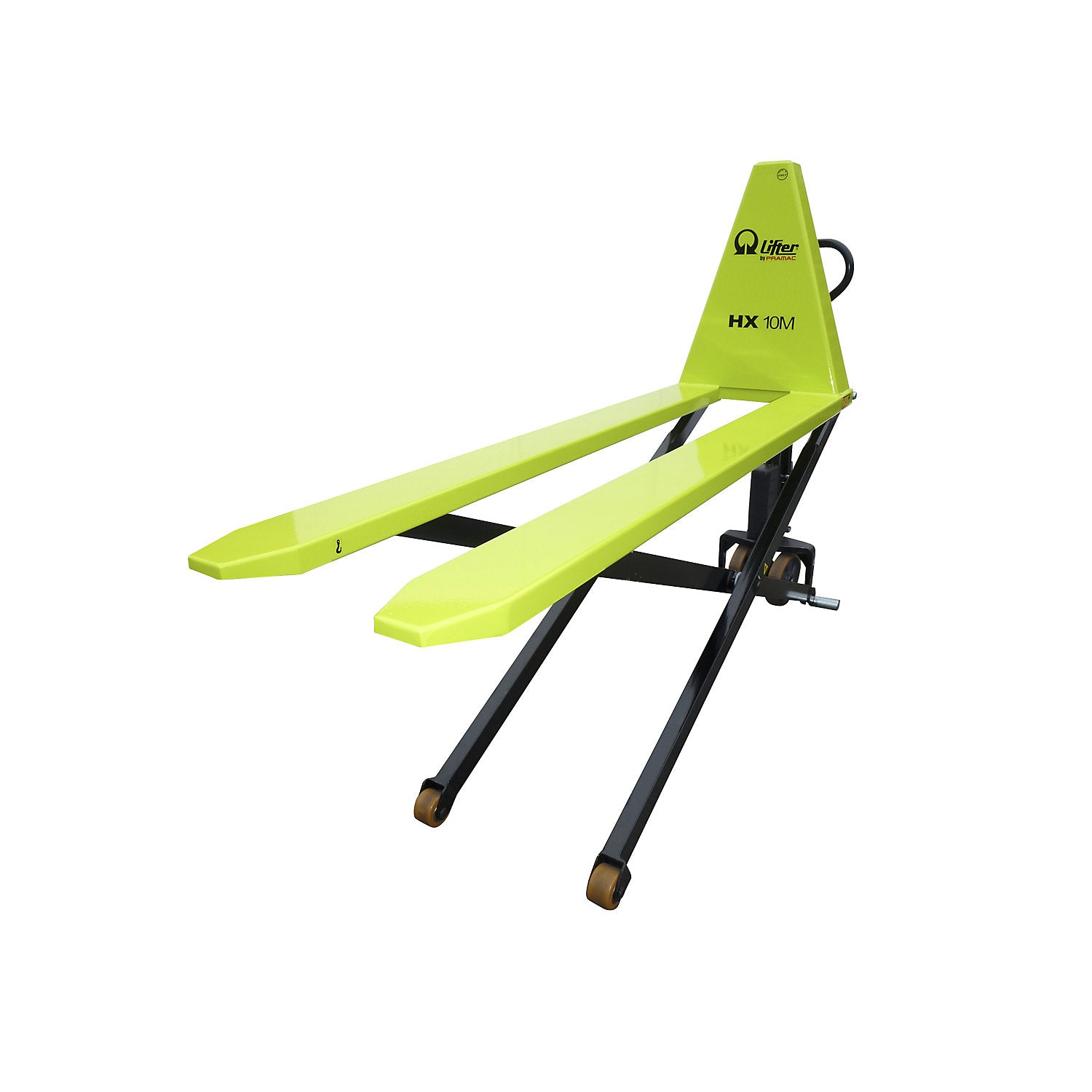

High-lift pallet truck, manual hydraulics, max. load 1000 kg, fork length 1500 mm.

Estimated delivery: 46 days

High-lift pallet truck, manual hydraulics, max. load 1000 kg, fork length 1500 mm

• Supplied = assembled
• Max. load = 1000 kg
• Lifting range = 85 - 800 mm
• Lift drive = manual hydraulics
• Fork length = 1500 mm
• Fork width = 160 mm
• Distance across forks = 540 mm
• Length = 1876 mm
• Width = 540 mm
• Height = 1250 mm
• Steering radius = 205 °
• Lift per pump stroke = 14 mm

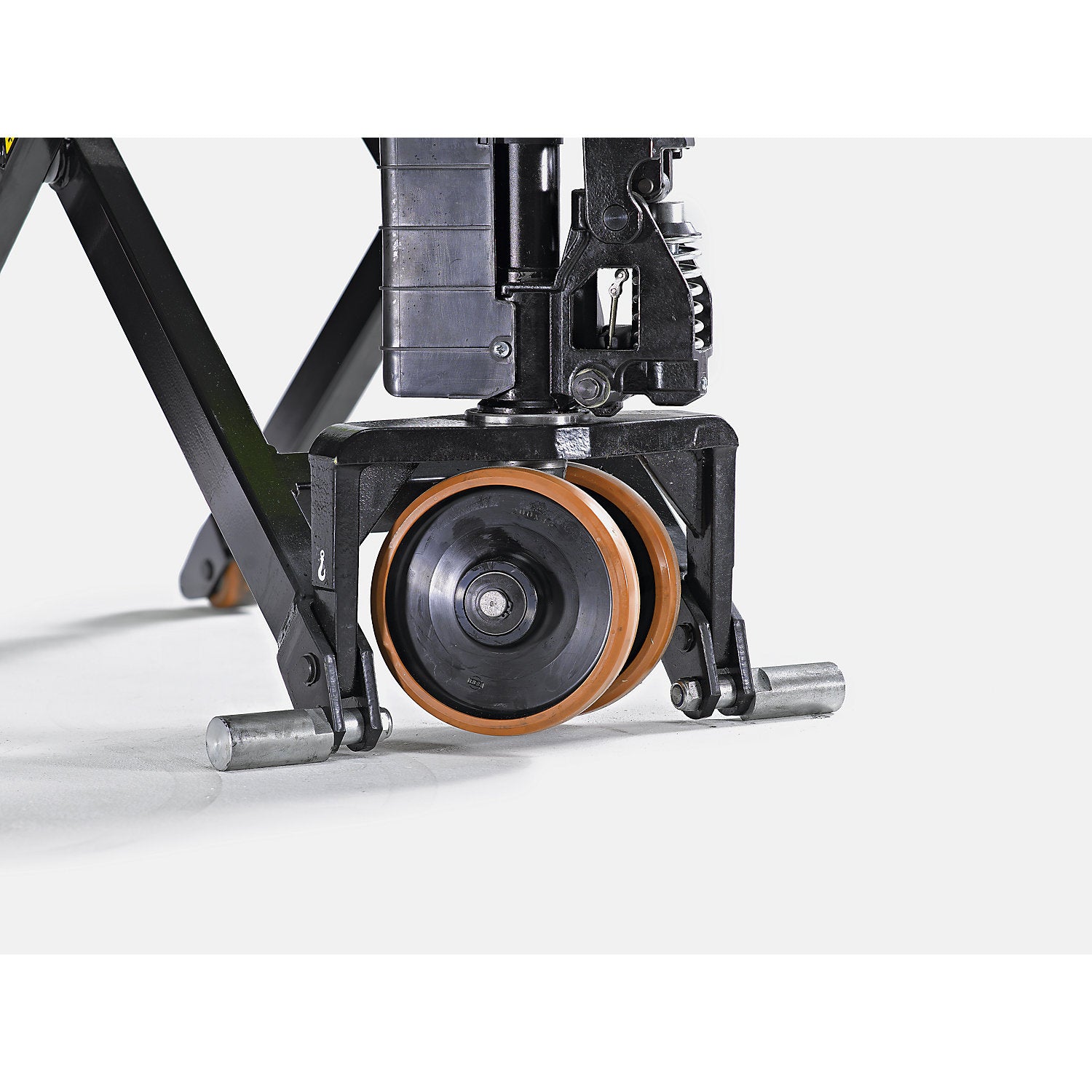

• Steering wheel material = polyurethane
• Steering wheel diameter = 200 mm
• Steering wheel width = 45 mm
• Roller material = polyurethane
• Fork roller version = single
• Fork roller diameter = 80 mm
• Fork roller width = 50 mm
• Colour = green
• Finish = powder coated
• Load centre = 750 mm
• Turning radius = 1722 mm
• Customs tariff number = 84279000
• Country of origin = ITA
• Gross weight = 200.5 kg
• Weight = 200 kg
• Sustainability = CO 2 footprint calculated
• Lift, move and deliver loads up to 1000 kg
• Work at an ideal height
• Thanks to the reduced weight and high manoeuvrability, this universal device can perform transport tasks, the storage and retrieval of parts, the supplying of assembly lines, and much more
• Up to a height of 400 mm, the devices can be easily moved with a load
• In addition, the standard stabilisers ensure a stable footing
• Compact design due to telescopic cylinder
• Self-lubricating scissor bearings
• Protection of the device against overloading by an overload pressure valve
• Precise control of the lowering speed
• High-quality powder coated in an attractive special shade of green.
