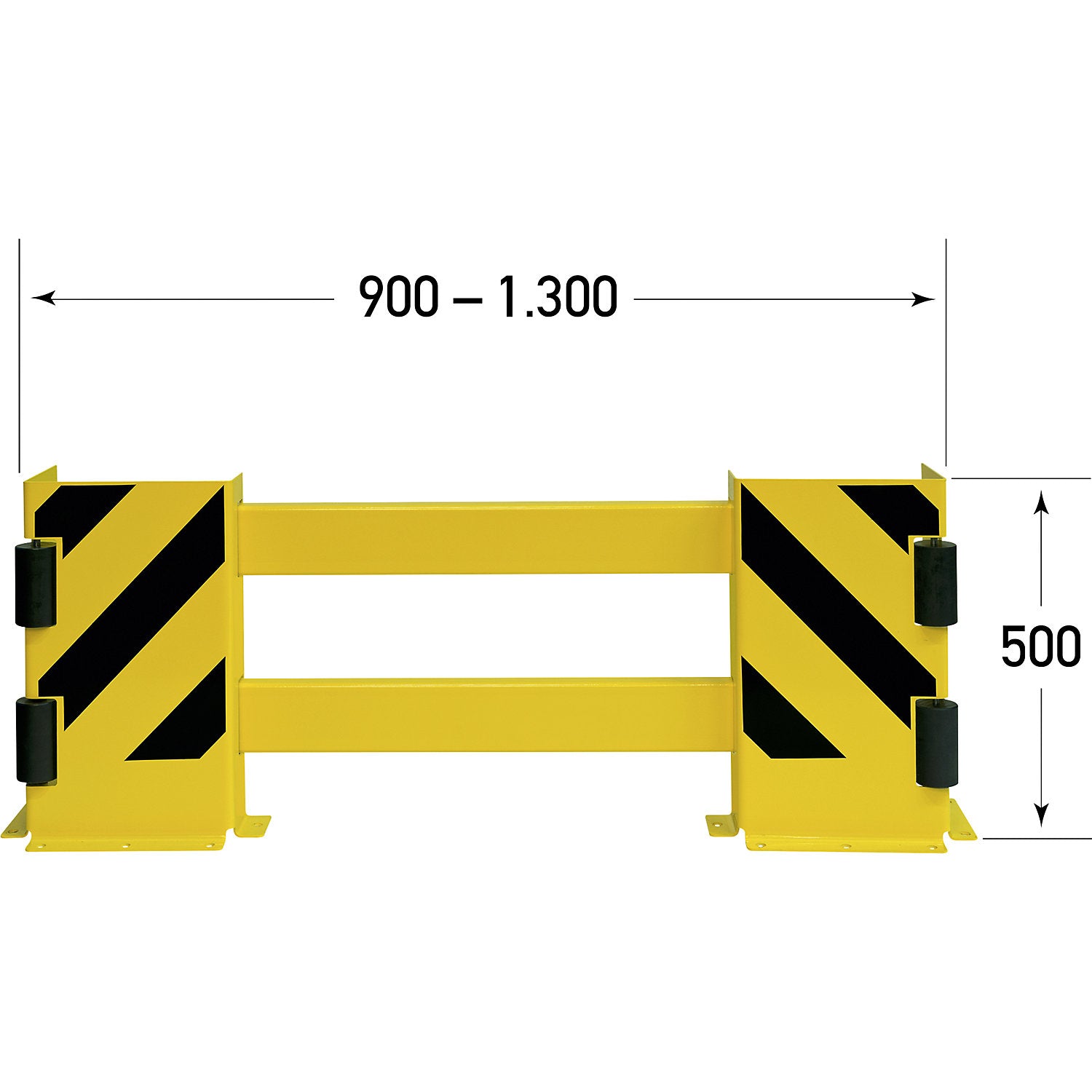

Rack protection guard rails B, HxW 500 x 190 mm, extendable to 1300 mm.

Estimated delivery: 41 days

Rack protection guard rails B, HxW 500 x 190 mm, extendable to 1300 mm

• Supplied = pre-assembled, final assembly by customer
• Type of mounting = for bolting in place
• Length = 1300 mm
• Width = 190 mm
• Height = 500 mm
• Colour = yellow, black
• Material = steel
• Finish = plastic coated
• Place of use = indoor use
• Product type = collision protection
• Customs tariff number = 73089098
• Country of origin = DEU
• Gross weight = 33.4 kg
• Weight = 30.4 kg
• Sustainability = CO 2 footprint calculated
• Diverts the majority of side impact forces through the rolls
• Protects the floor, increases the service life
• Can be used for all shelf unit widths (width adjustable)
• Reliably cushions impacts
• TÜV-tested in accordance with DGUV 208-061

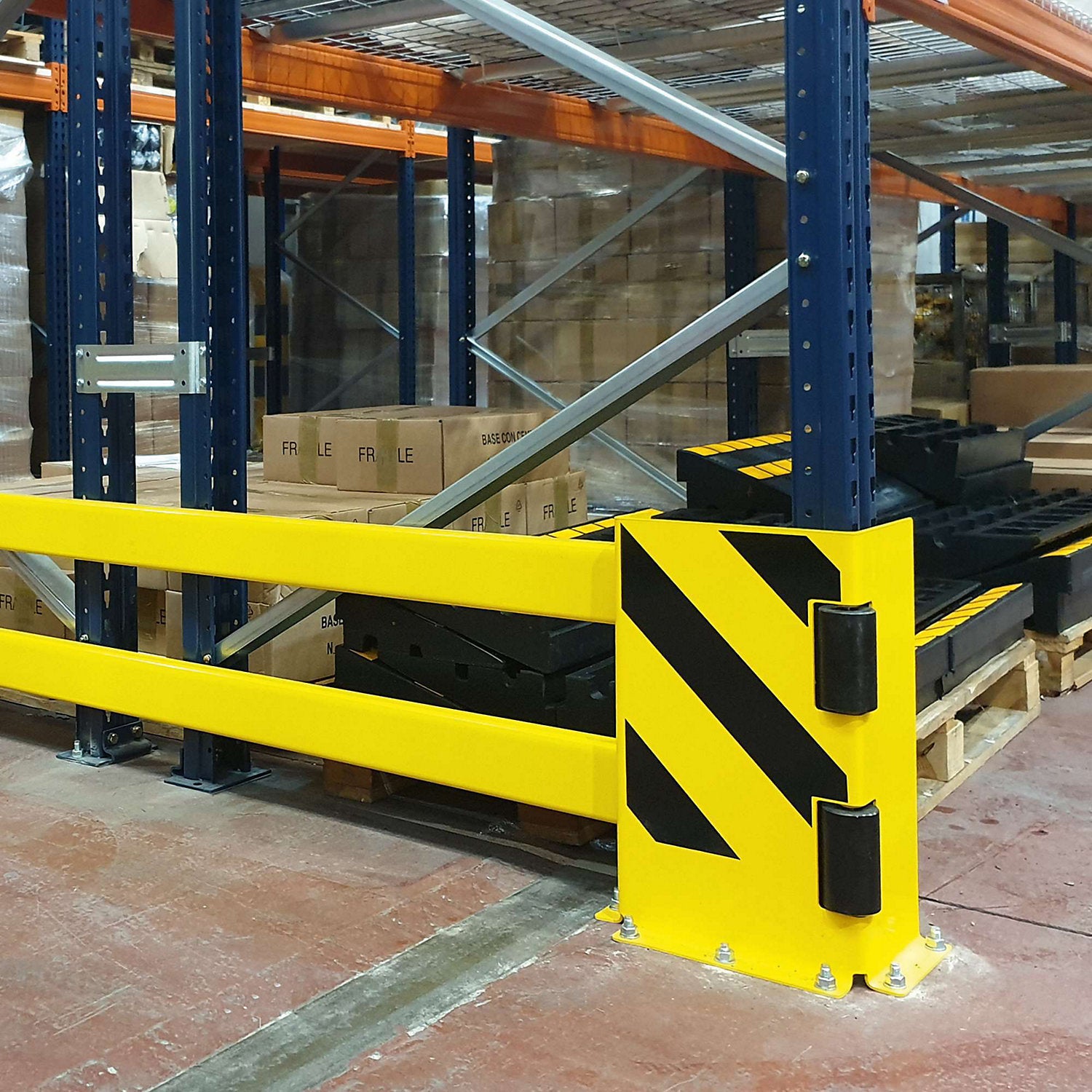

• The B-type rack protection guard rails are designed to protect racking from frontal impact damage caused by forklift and manoeuvring traffic and are ideal for use in busy warehouse zones
• The impact protection angles are shaped so that two steel guard rails with a C-profile can be inserted from the side
• The 300 mm wide protection angles allow the guard rails to be adjusted by up to 200 mm per protection angle
• This means each guard rail set can be individually adjusted in width by up to 400 mm
• The impact protection angles are each fitted with two vertically mounted guide rollers, which deflect the majority of lateral impact forces, dampen impacts and increase the service life

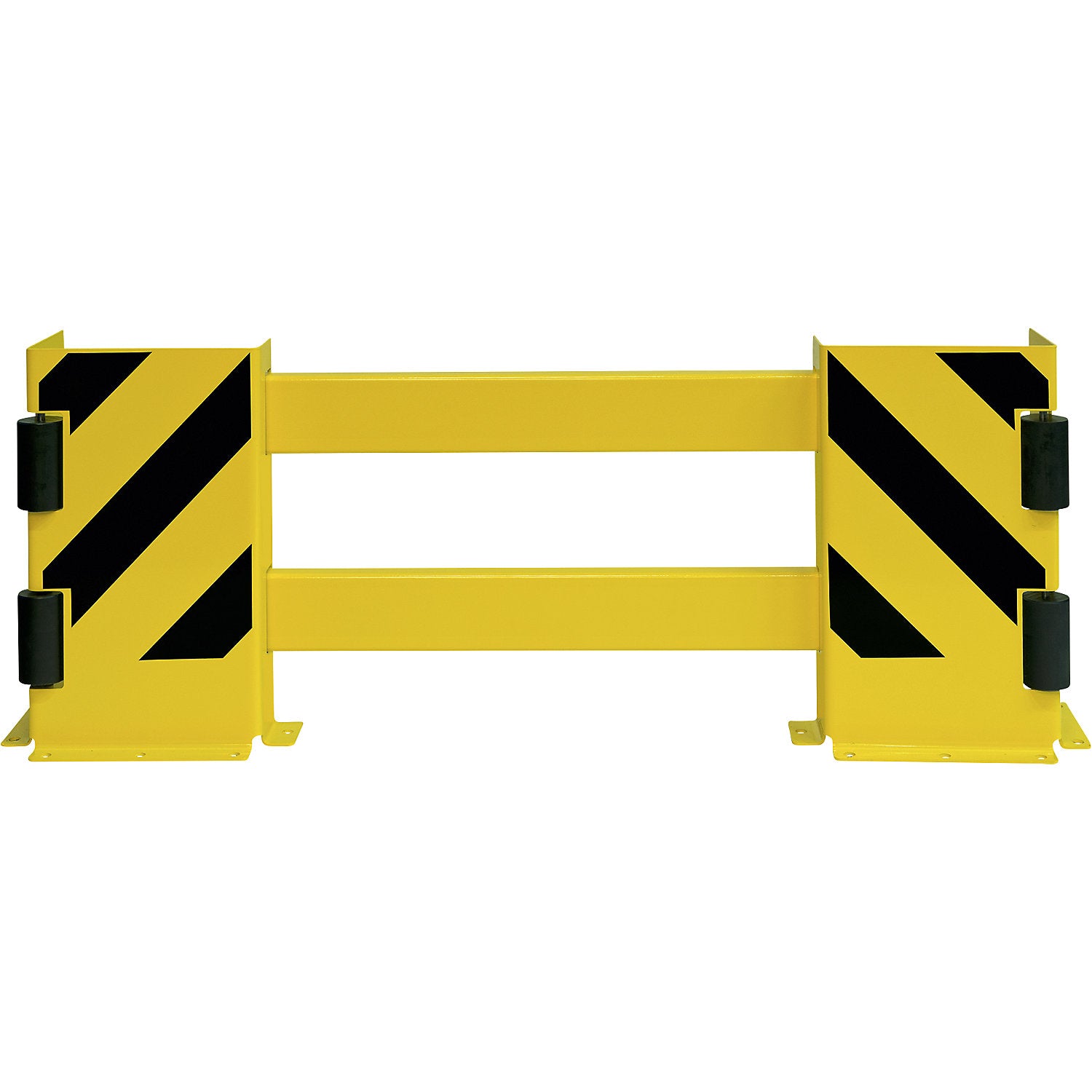

• One B-type guard rail set consists of two impact protection angles (500 x 300 x 190 mm, 4 mm material thickness), two guard rails (100 x 40 x 3 mm) and four clamping pieces.
