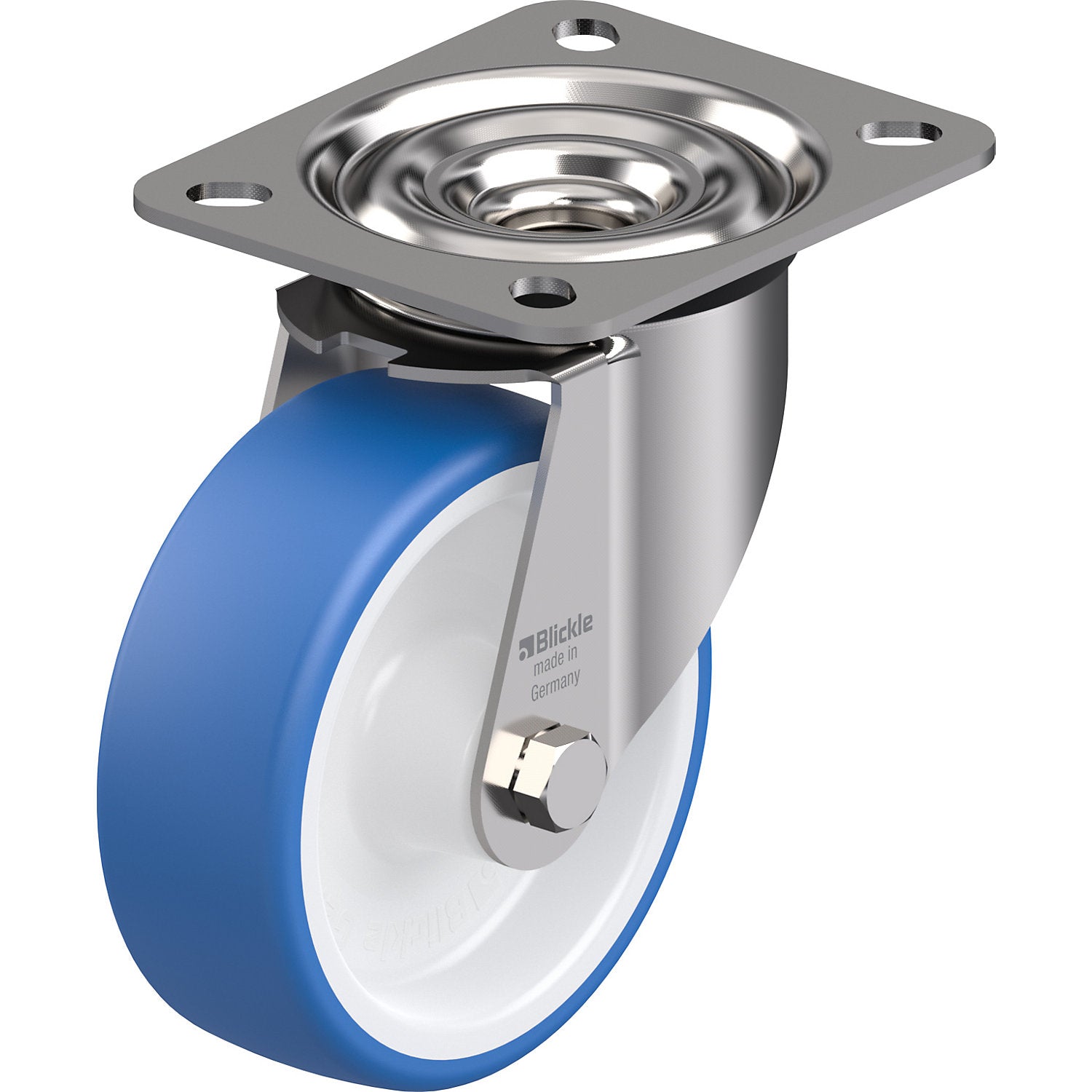

TPU wheel, stainless steel housing with plate, wheel Ø x width 100 x 35 mm, swivel castor, ball bearings.

Estimated delivery: 38 days

TPU wheel, stainless steel housing with plate, wheel Ø x width 100 x 35 mm, swivel castor, ball bearings

• Supplied = assembled
• Wheel diameter = 100 mm
• Structure = swivel castor
• Wheel material = polyurethane (TPU) - thermoplastic
• Material of rim = nylon
• Type of mounting = with top plate
• Housing material = stainless steel
• Max. load at 4 km/h = 150 kg
• Wheel width = 35 mm
• Overall height = 125 mm
• Wheel bearing = ball bearing
• Temperature resistance = -20 °C to +70 °C
• Swivel castor offset = 36 mm
• Screw hole diameter = 9 mm
• Model = stainless steel rollers
• Fixed castor plate dimensions = 100x85 mm
• Swivel castor plate dimensions = 100x85 mm
• Screw hole spacing = 80x60 mm
• Housing surface = stainless steel
• Shore hardness = 80 A
• Customs tariff number = 87169090
• Country of origin = DEU
• Gross weight = 0.712 kg
• Weight = 0.662 kg
• For use in hygienic and food processing areas
• Very smooth running
• Non-marking and non-staining
• Hardness 80A
• Temperature resistant from -20 °C to +70 °C
• The white rim and the blue tyre make the wheel easy to identify visually, and contribute to compliance with strict rules of hygiene, particularly in food processing areas
• Along with a low rolling resistance, it features very good shock absorbing properties, ensuring a quiet and low-vibration run
• Housing and wheel axle made of rust free stainless steel
• Swivel bearing with double ball race, swivel bearing protection.
