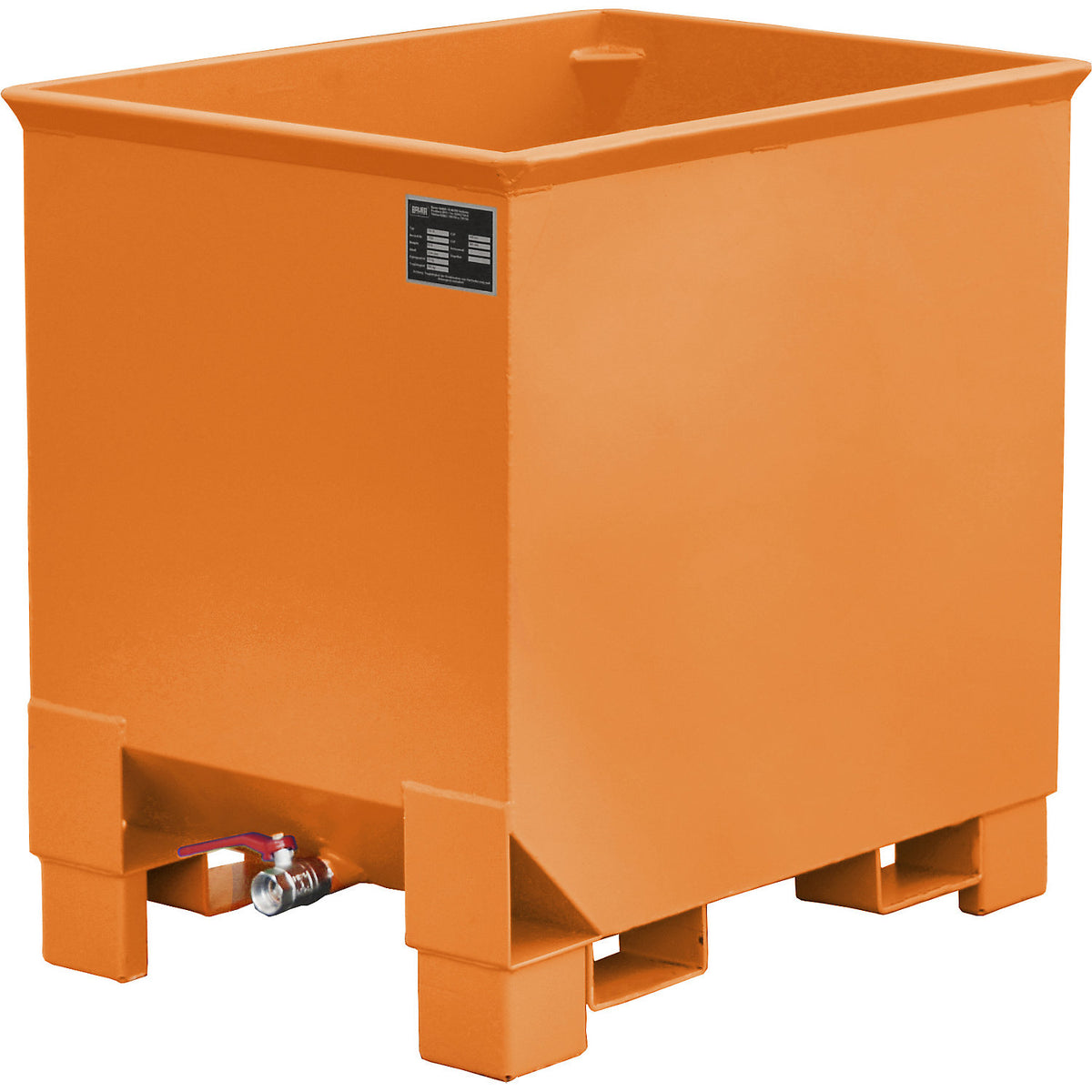

CS metal swarf collection container for tugger trains, LxWxH 620 x 840 x 800 mm, yellow orange.

Estimated delivery: 61 days

CS metal swarf collection container for tugger trains, LxWxH 620 x 840 x 800 mm, yellow orange

• Supplied = assembled
• Capacity = 0.3 m³
• Max. load = 500 kg
• Colour = yellow orange RAL 2000
• Material = sheet steel
• Finish = painted
• Design of tipping container = with forklift pockets
• Fork pocket dimensions = 150x60 mm
• Forklift pocket spacing = 260 mm
• Wheel fittings = without castors
• Length = 620 mm
• Width = 840 mm
• Height = 800 mm
• Height of front edge = 794 mm
• Customs tariff number = 73101000
• Country of origin = DEU
• Gross weight = 53.2 kg
• Weight = 53 kg
• Sustainability = CO 2 footprint calculated
• Robust steel construction with smooth interior walls. 100 mm base clearance
• Oilproof and watertight
• Up to 3 units can be stacked on 4 stacking corners
• Perforated steel insert, hole Ø 3 mm, spaced 6 mm apart

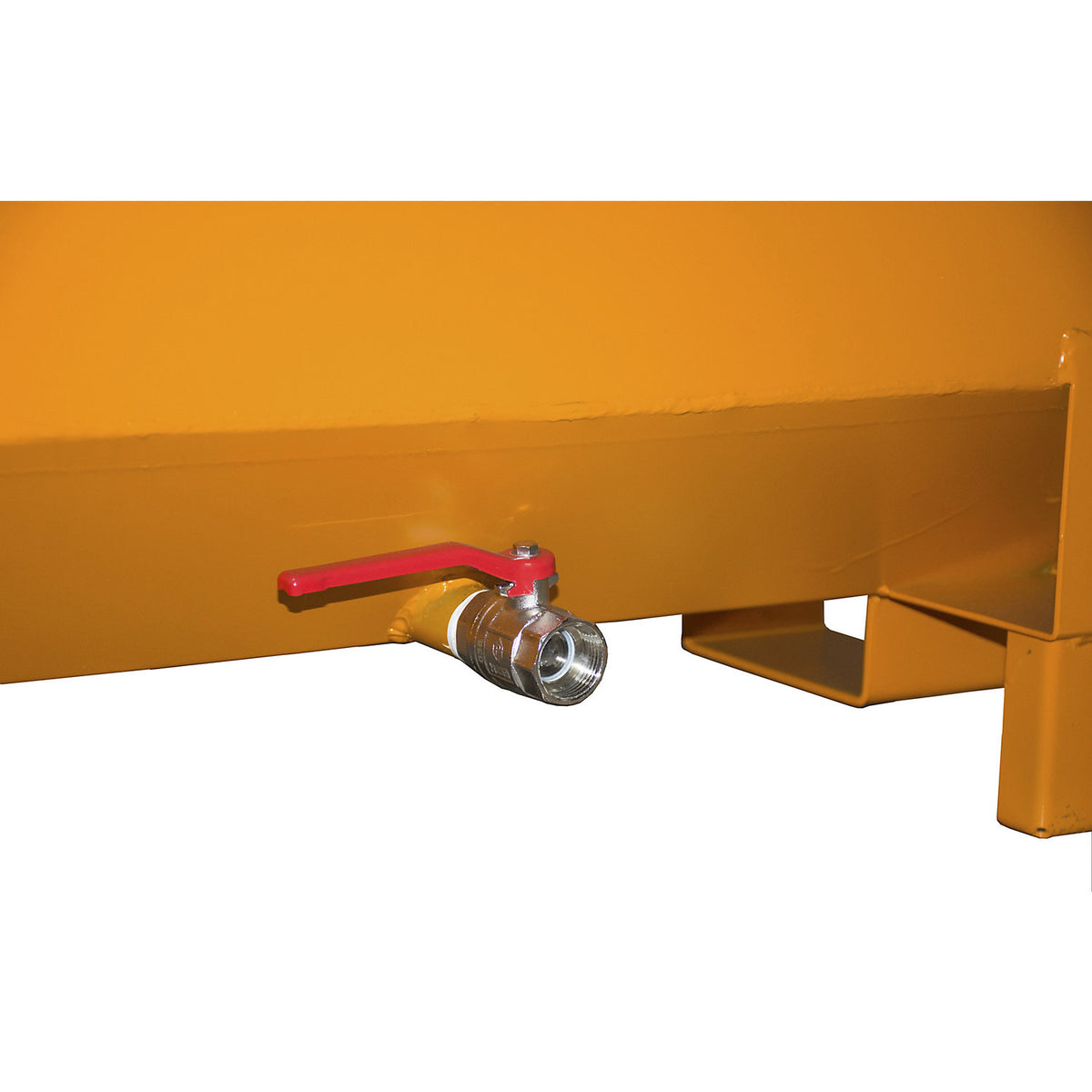

• Drain tap 1''
• CS chip collection container for tugger trains - robust steel container for efficient material flows The CS chip collection container for tugger trains supports the safe and orderly collection of chips in production and manufacturing areas
• Its robust steel construction and oil- and watertight model make the steel container a reliable solution for demanding operational processes
• The smooth inner walls facilitate the emptying and cleaning of the container
• An integrated perforated plate insert with a hole diameter of 3 mm and a pitch of 6 mm makes it possible to separate liquids from the collected chips
• Any liquids that accumulate can collect in the lower section and be drained in a controlled manner via the 1'' drain tap
• This makes the handling of oil- or water-wet chips much easier
• With an under-ride height of 100 mm, the storage container can be easily integrated into internal transport processes
• It is suitable for dollies with dimensions of 600 x 800 mm and 1200 x 800 mm and thus particularly supports material transport with tugger trains
• Four sturdy stacking corners make it possible to stack up to three containers on top of each other
• In this way, existing storage space can be used efficiently in terms of height
• At the same time, the stackability facilitates the space-saving provision of several steel containers in the plant
• As a robust storage container, the CS chip collection container supports the collection and internal transport of chips.
