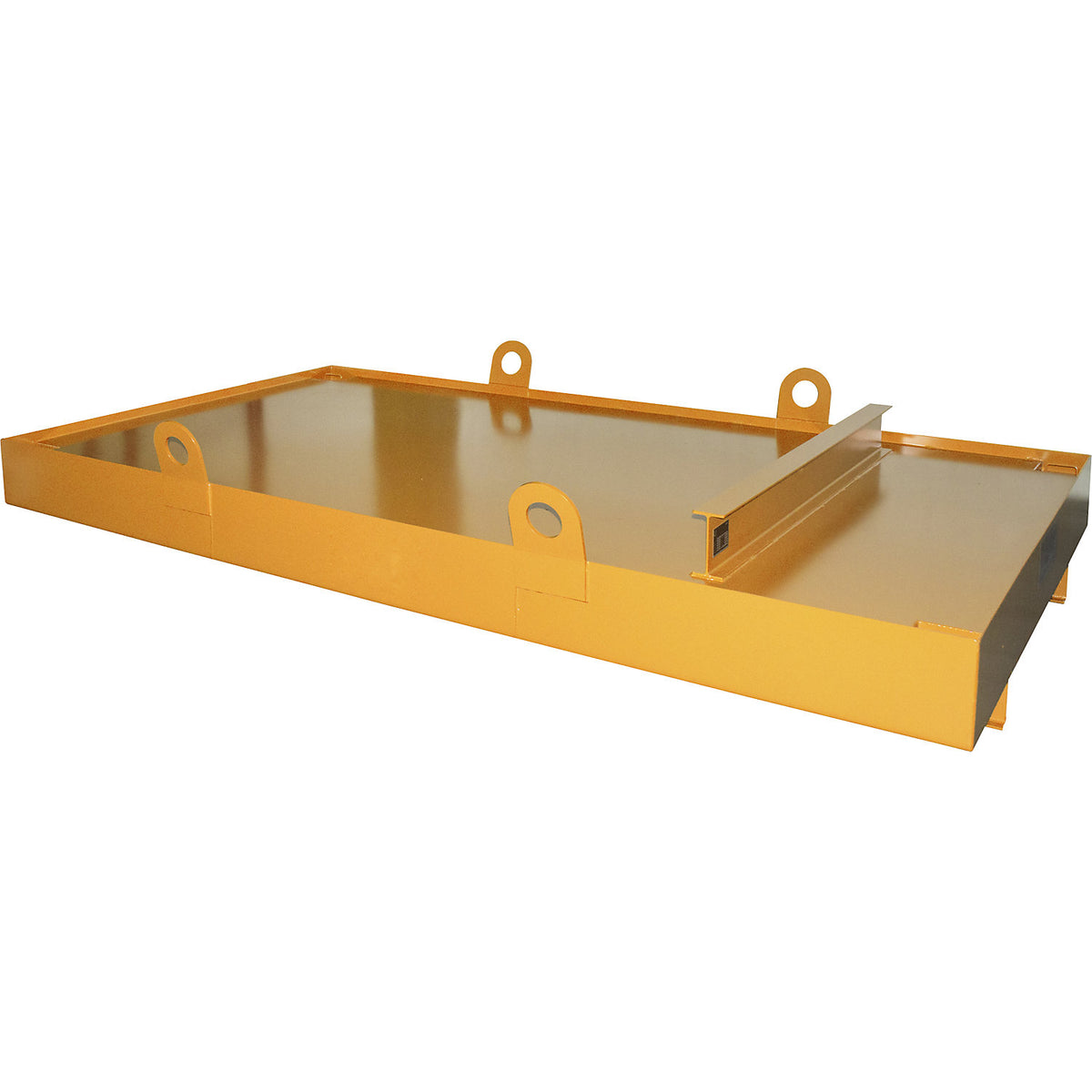

Sump tray for skip trailer, for skip trailers, sump capacity 1222 l, orange.

Estimated delivery: 71 days

Sump tray for skip trailer, for skip trailers, sump capacity 1222 l, orange

• Supplied = assembled
• Type of grate = without
• Sump capacity = 1222 l
• Length = 3300 mm
• Width = 2030 mm
• Height = 560 mm
• Colour = yellow orange RAL 2000
• Material = sheet steel
• Finish = painted
• Design of sump tray = with cover
• Max. load = 20000 kg
• Clearance height = 120 mm
• Test symbol = with general certification from the DIBt (German Institute for Construction Technology) Berlin
• Material thickness = 3 mm
• For media = flammable and water hazardous liquids
• Hazard class = for flammable liquids in GHS categories 1 - 3 as well as water hazardous liquids in GHS categories 1 - 4
• Distributed load = 20000 kg
• Customs tariff number = 73090059
• Country of origin = DEU
• Gross weight = 767 kg
• Weight = 767 kg
• Sustainability = CO 2 footprint calculated
• For the storage of skip containers with waste materials contaminated with oil, emulsion or cooling lubricants
• Sump tray cover to protect the liquids collected from contamination
• Lifting points for stackers and cranes
• General building inspection certification in accordance with DIBt (German Institute for Construction Technology)

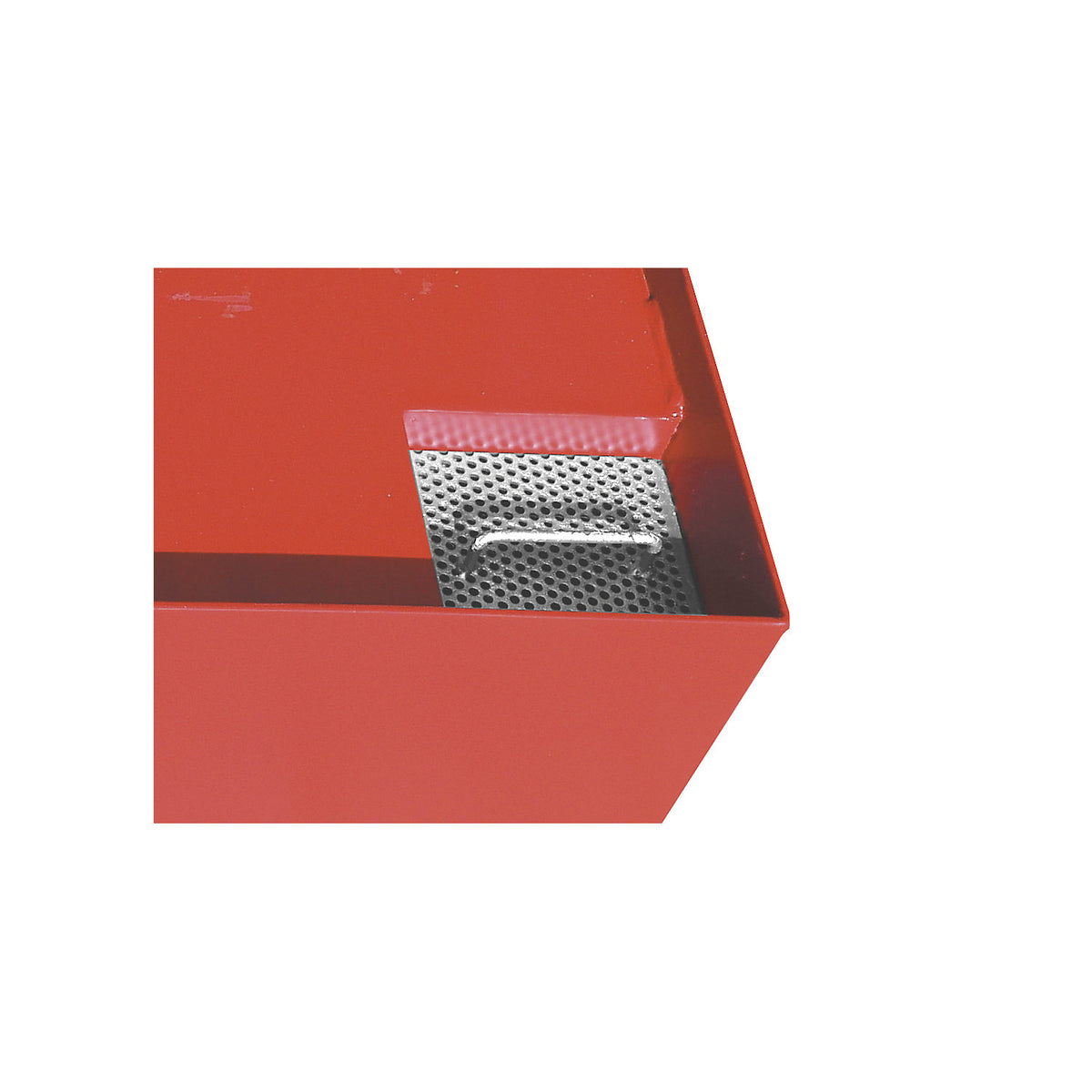

• Four suction openings protected by a removable strainer
• The sump tray for skip containers enables the safe and environmentally friendly storage of skip containers with waste materials contaminated with oil, emulsion or cooling lubricants - e.g. for swarf contaminated with cooling lubricants, oils etc
• Liquids hazardous to water and flammable liquids are reliably caught and do not enter the ground or groundwater
• The robust steel construction is suitable for skip containers according to DIN 30720 up to 10 m³ and can be used indoors as well as in covered outdoor areas
• An integrated tray cover protects the collected liquids from contamination
• The four suction openings are fitted with removable strainers
• They also serve as a practical fill level indicator
• Thanks to the base inclined by 5°, liquids can be drained in a targeted manner and suctioned off more easily
• In addition, the tray is easy to clean
• For internal transport, the sump tray has pockets for forklift trucks as well as crane eyelets
• This allows it to be safely positioned or relocated
• The general technical approval according to DIBt supports compliant use when storing water-hazardous and flammable liquids
• Depending on space requirements and the application area, the sump tray is available in three different sizes
• The colour scheme can also be selected to match company markings
• Available colours are flame red RAL 3000, yellow orange RAL 2000, light blue RAL 5012, mouse grey RAL 7005 and reseda green RAL 6011.
