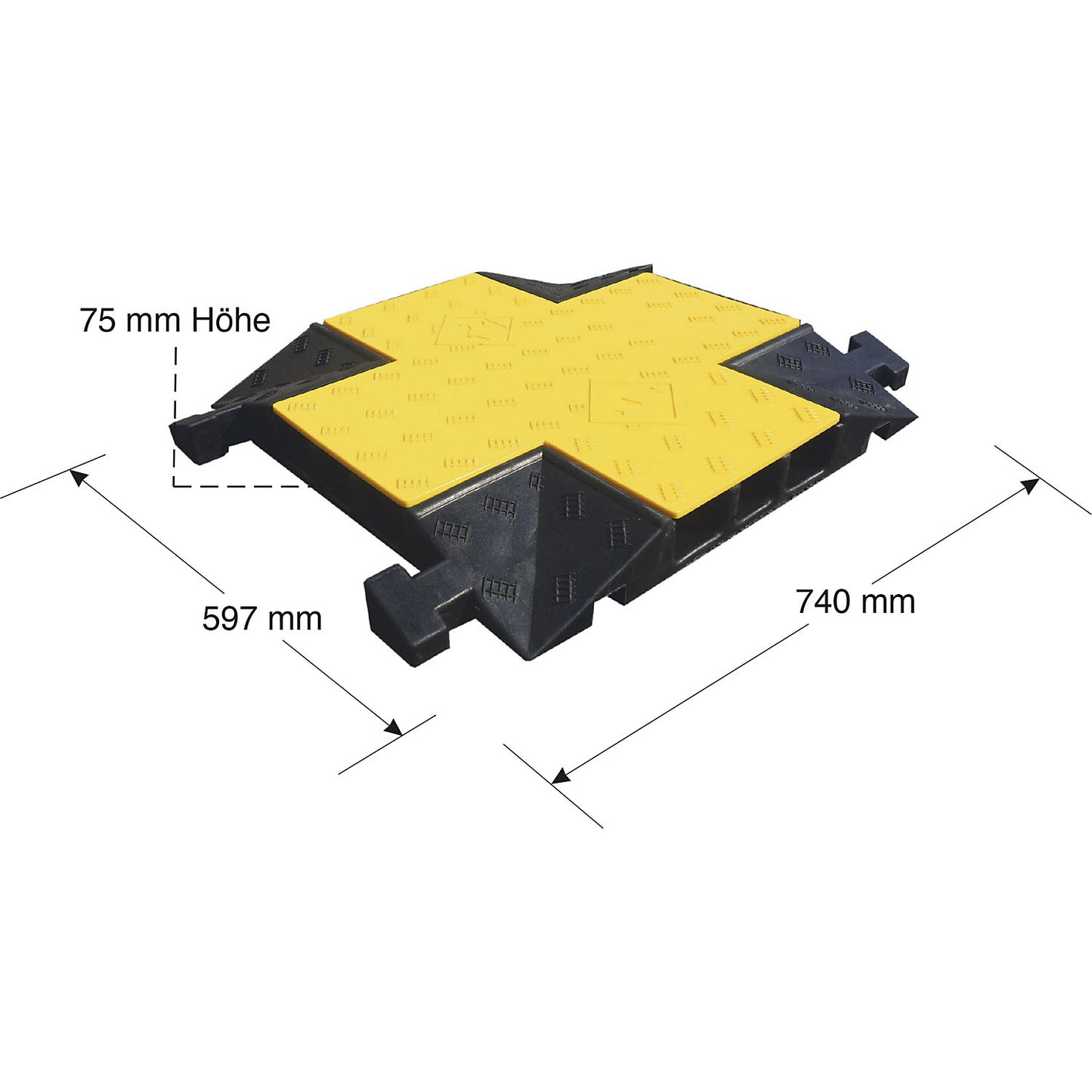

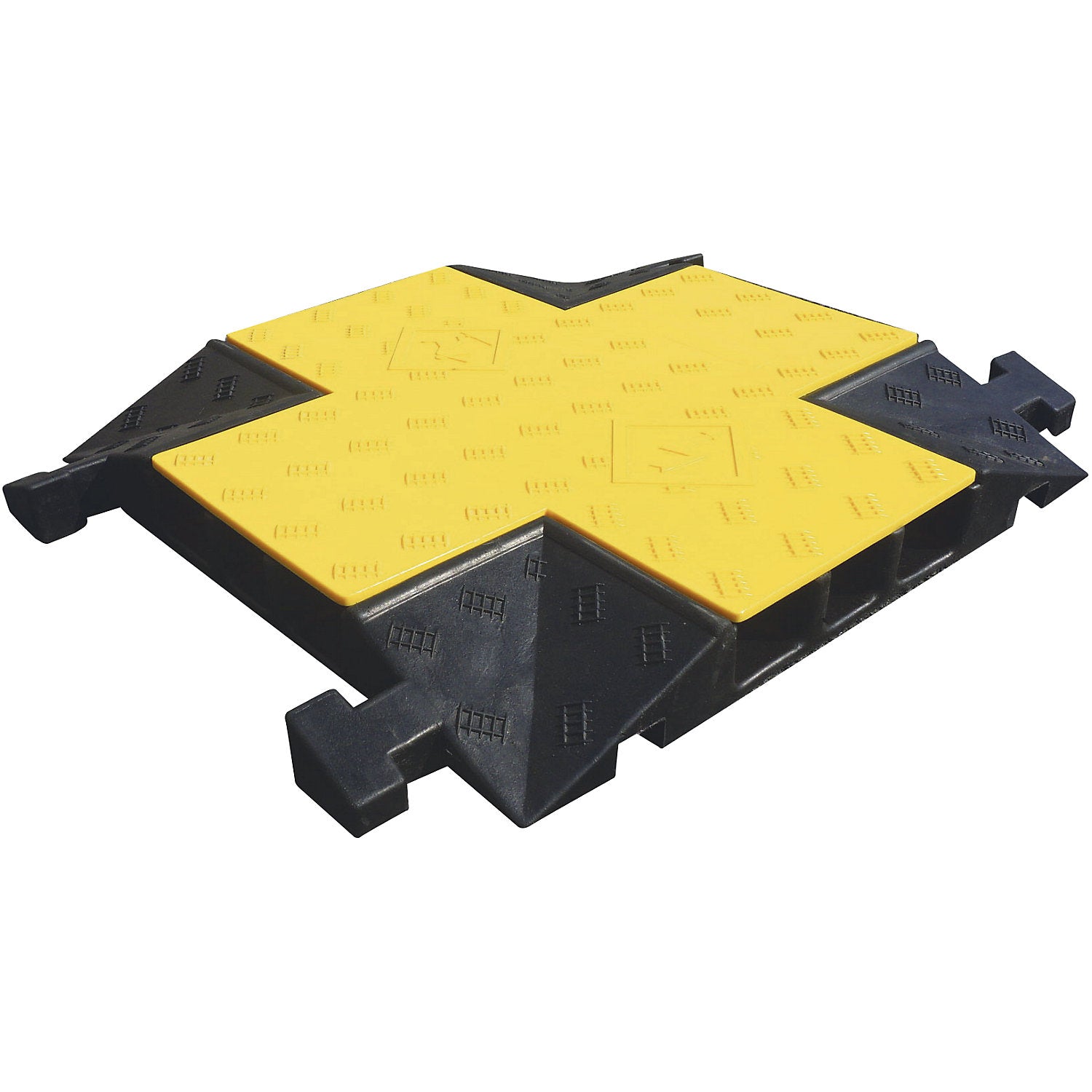

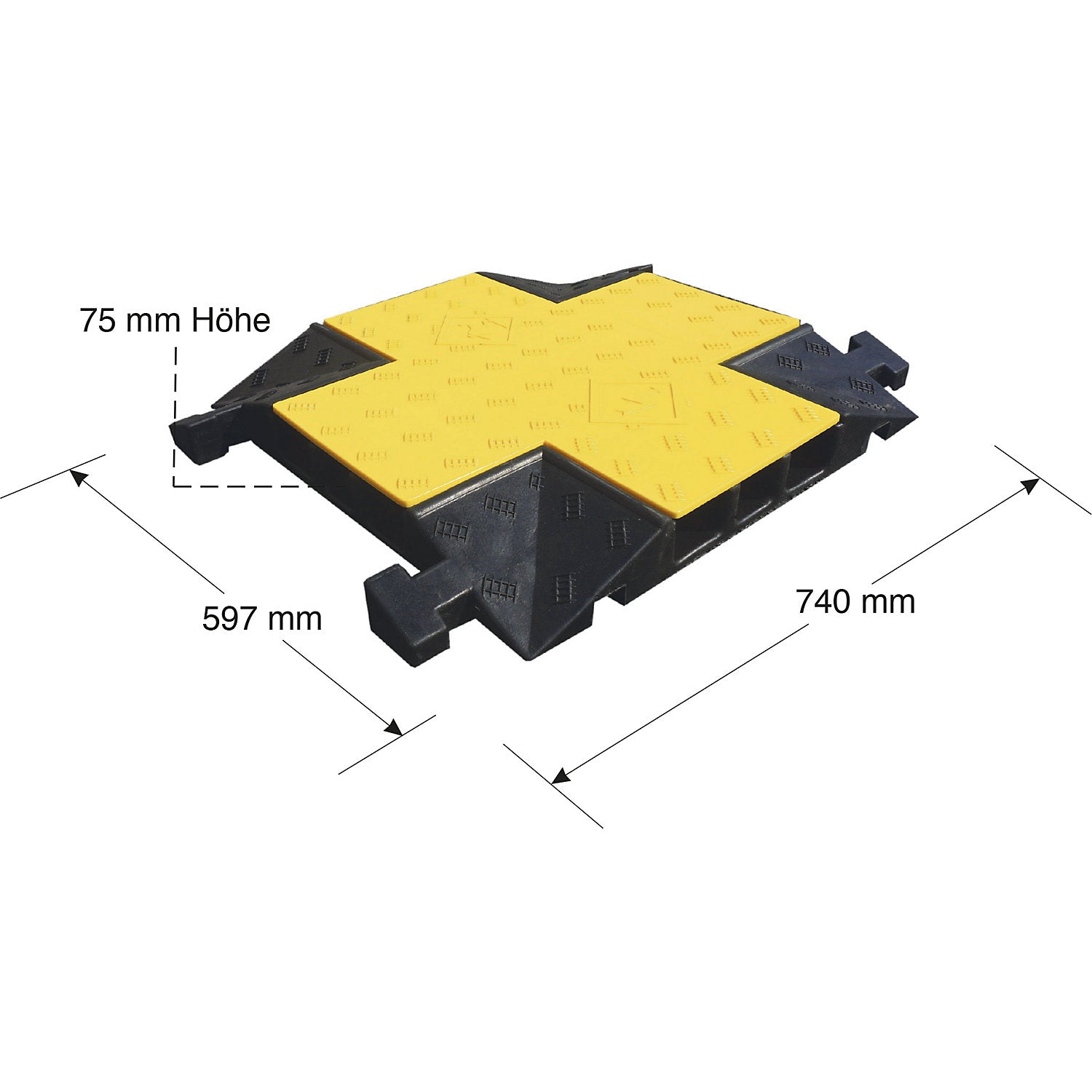

Cable bridge, height 75 mm, crossing element, black / yellow.

Estimated delivery: 34 days

Cable bridge, height 75 mm, crossing element, black / yellow

• Supplied = partially assembled
• Length = 597 mm
• Width = 600 mm
• Height = 75 mm
• Colour = black, yellow
• Material = hard rubber
• Finish = ribbed
• Function = can be driven on
• Number of cable ducts = 3 pcs
• Cable duct diameter = 65 mm
• For speed limit = 5 km/h
• Model = crossing
• Product type = cable ducts
• Customs tariff number = 40169952
• Country of origin = CHN
• Gross weight = 17.1 kg
• Weight = 16 kg
• Sustainability = CO 2 footprint calculated
• Safety due to anti-slip surface
• Signal effect due to yellow plastic cover
• Can withstand an axle load of up to 12 tonnes
• Can be extended as required - with tongue and groove system
• With three cable ducts

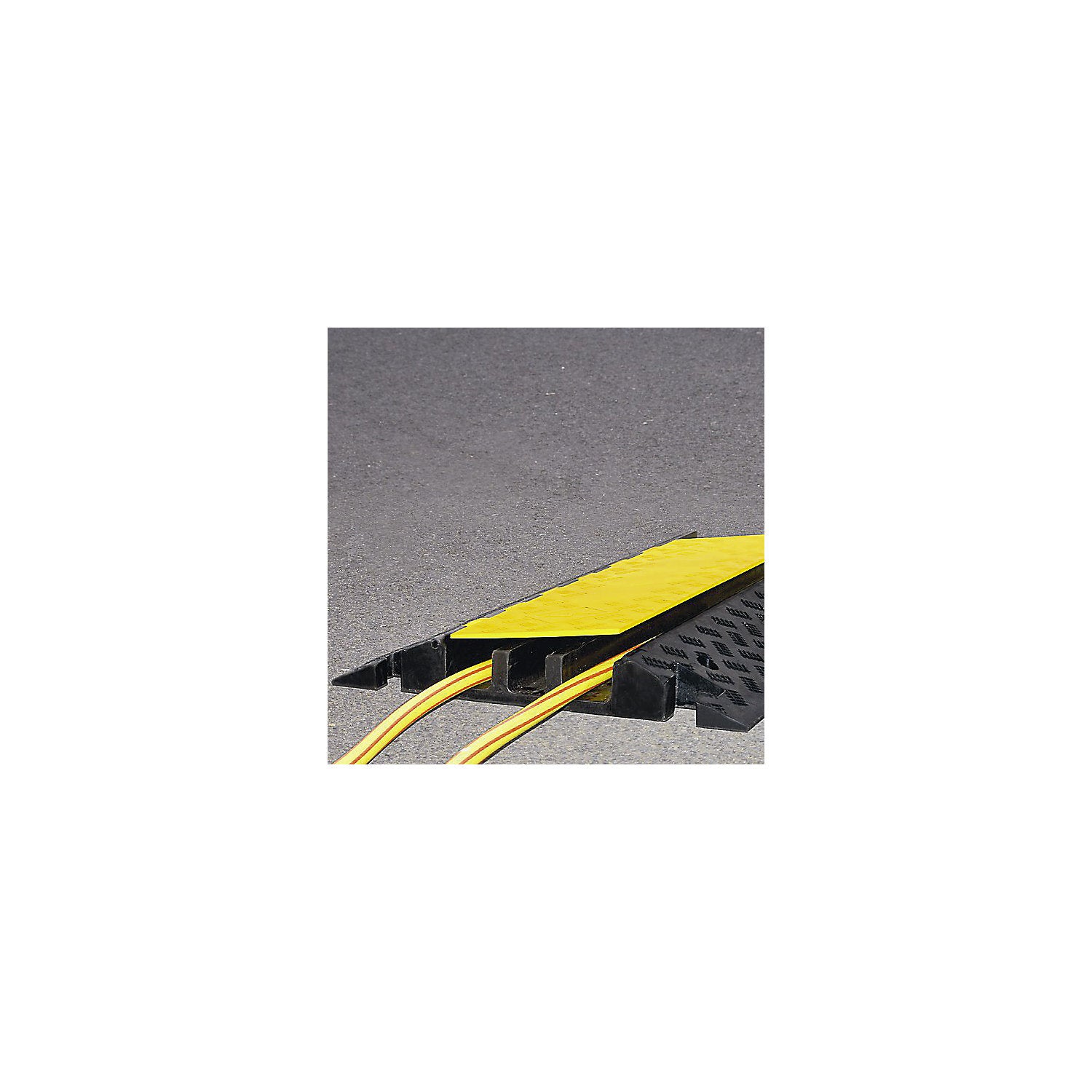

• The cable bridge, large, provides reliable protection for cables, hoses and pipes for professional use
• It features a well thought out modular system with standard elements, angled pieces and end pieces, which makes it flexible to extend
• It is also compatible with a wheelchair ramp system
• The cable bridge is designed for occasional heavy goods traffic and can withstand an axle load of up to 12 tonnes
• The recommended crossing speed is 5 km/h
• The robust construction is made of a special recycled hard rubber compound that guarantees durability and resilience
• High visibility is ensured by the yellow cover made of high quality plastic
• The ribbed surface is anti-slip and provides additional safety
• The crossing height is 75 mm, making the cable bridge ideal for use on roads and construction sites
• In addition, integrated plug bores allow it to be fixed in place permanently
• The tongue and groove system allows the individual elements to be extended as required, making endless assembly possible
• The cable bridge has three cable ducts with the following dimensions: two ducts each measuring 68 x 50 mm and one duct measuring 55 x 50 mm
• A protective cover and a practical carrying handle make easy work of transport and handling
• The cable protectors are not approved for use in forklift traffic.
