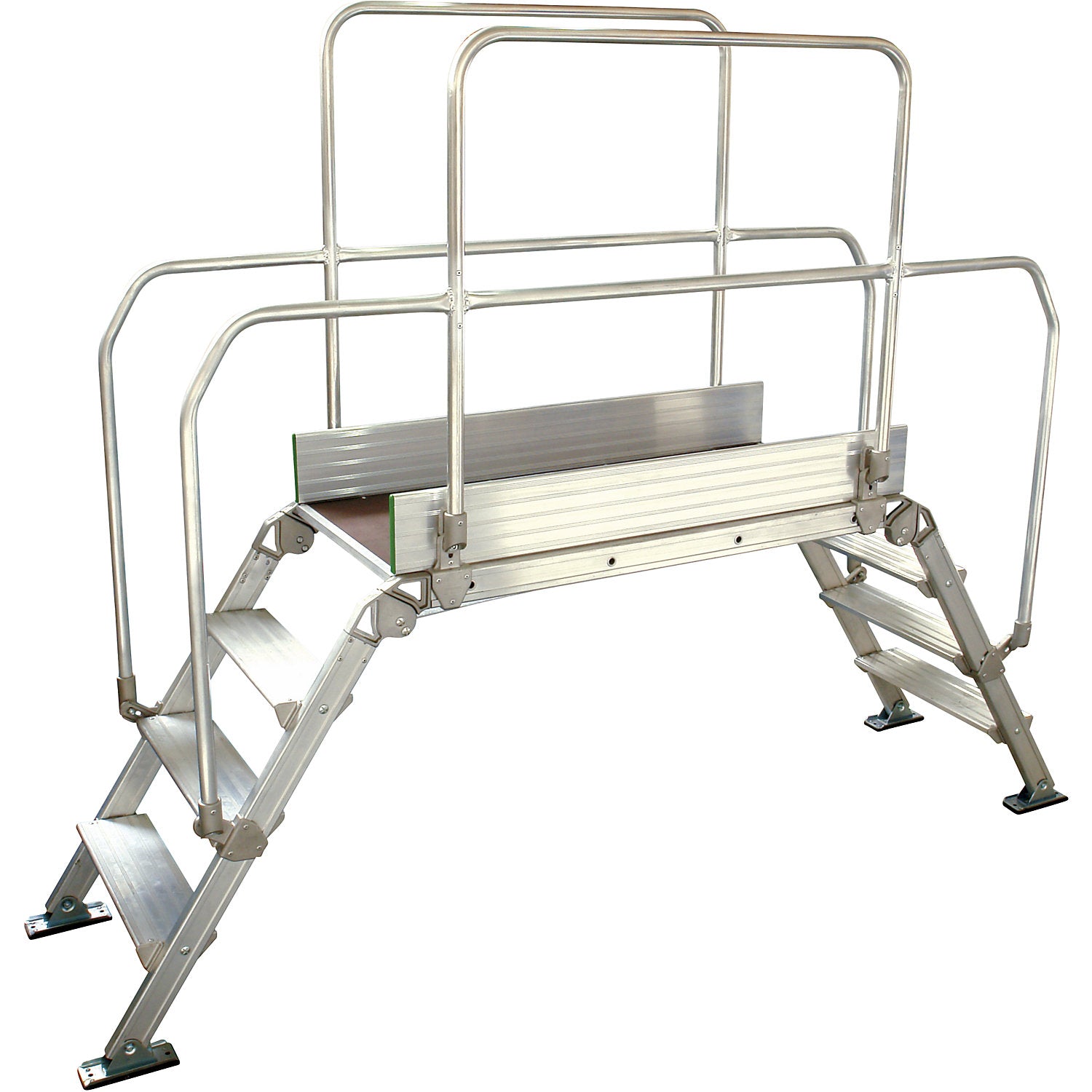

Aluminium ladder bridging, overall max. load 200 kg, 4 steps, platform 1200 x 530 mm.

Estimated delivery: 41 days

Aluminium ladder bridging, overall max. load 200 kg, 4 steps, platform 1200 x 530 mm

• Supplied = pre-assembled, final assembly by customer
• Platform length = 1200 mm
• Platform width = 530 mm
• Clear height = 830 mm
• Steps incl. platform = 4 pcs
• Material of treads = aluminium
• Step depth = 150 mm
• Step width = 530 mm
• Overall max. load = 200 kg
• Reach = 2244 mm
• Frame material = aluminium
• Slope = 60°
• Product type = crossover platforms
• Customs tariff number = 76169990
• Country of origin = ITA
• Gross weight = 36.8 kg
• Weight = 36.8 kg
• Sustainability = CO 2 footprint calculated
• For convenient crossover from machines and systems
• Safety railing on both sides, 1000 mm high
• Max load up to 200 kg
• The ladder bridging that can be walked over on both sides with a max. load of 200 kg

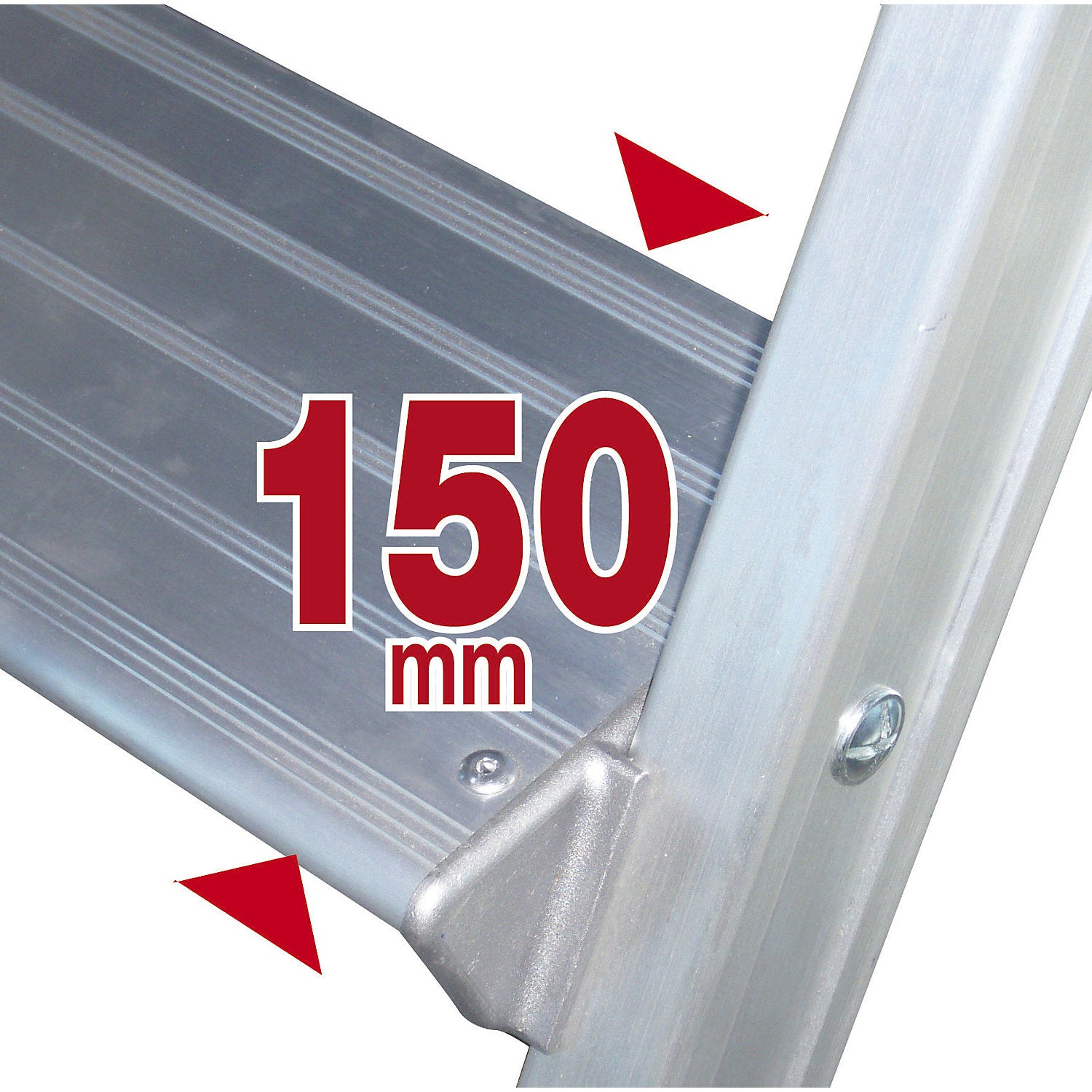

• The ladder step has a convenient 60° angle of inclination and steps with a generous depth of 150 mm
• The anti-slip platform has a 1 m high safety railing on both sides
• The crossover bridge can be easily fixed to the floor
• The articulated feet feature pre-drilled holes for this purpose
• Thanks to the high quality joints made of cast aluminium, the ladder bridging can be folded up, making it compact for transport or storage. 10 year manufacturer's warranty
• Mobile use with the optional wheel set available as an accessory is installed on the ladder.
