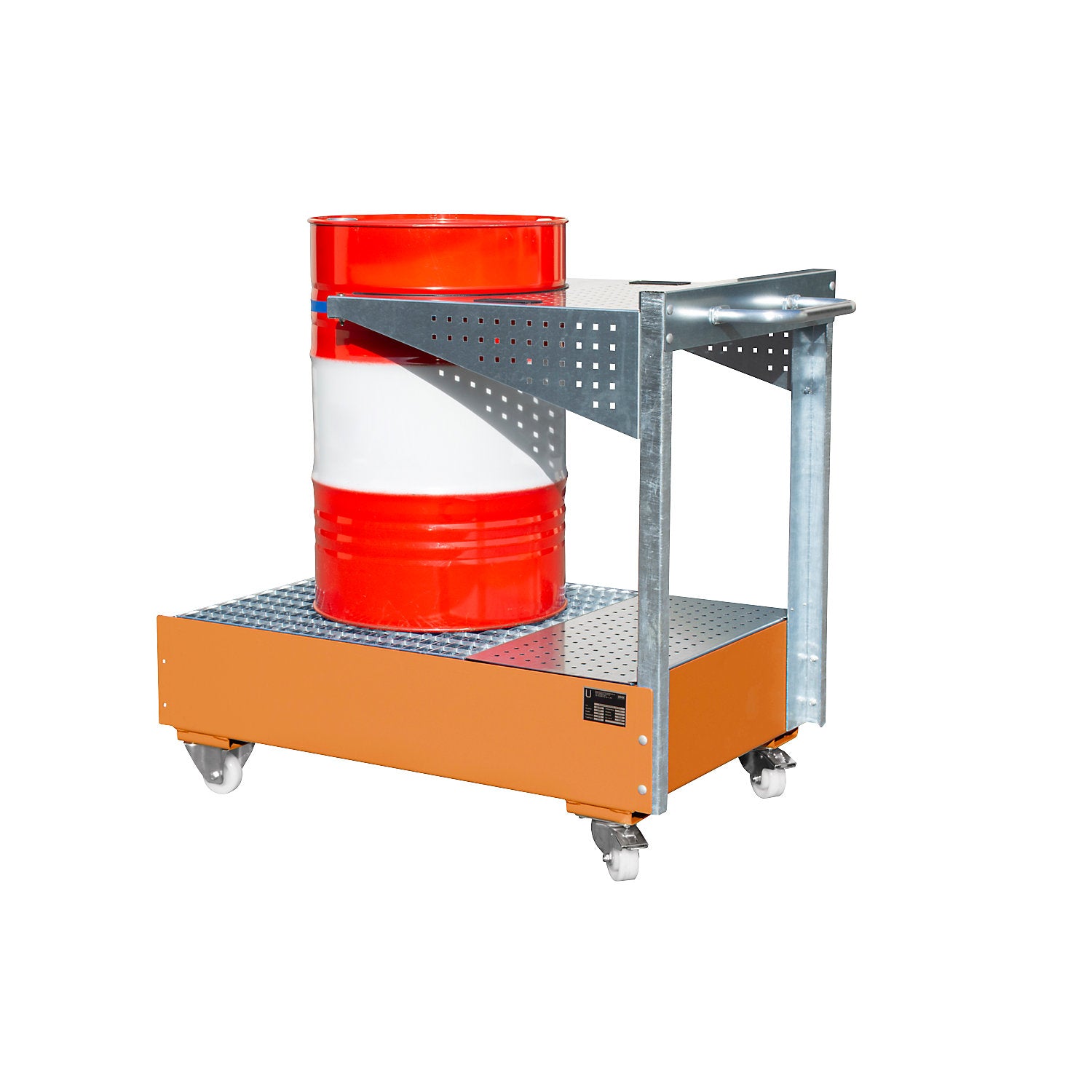

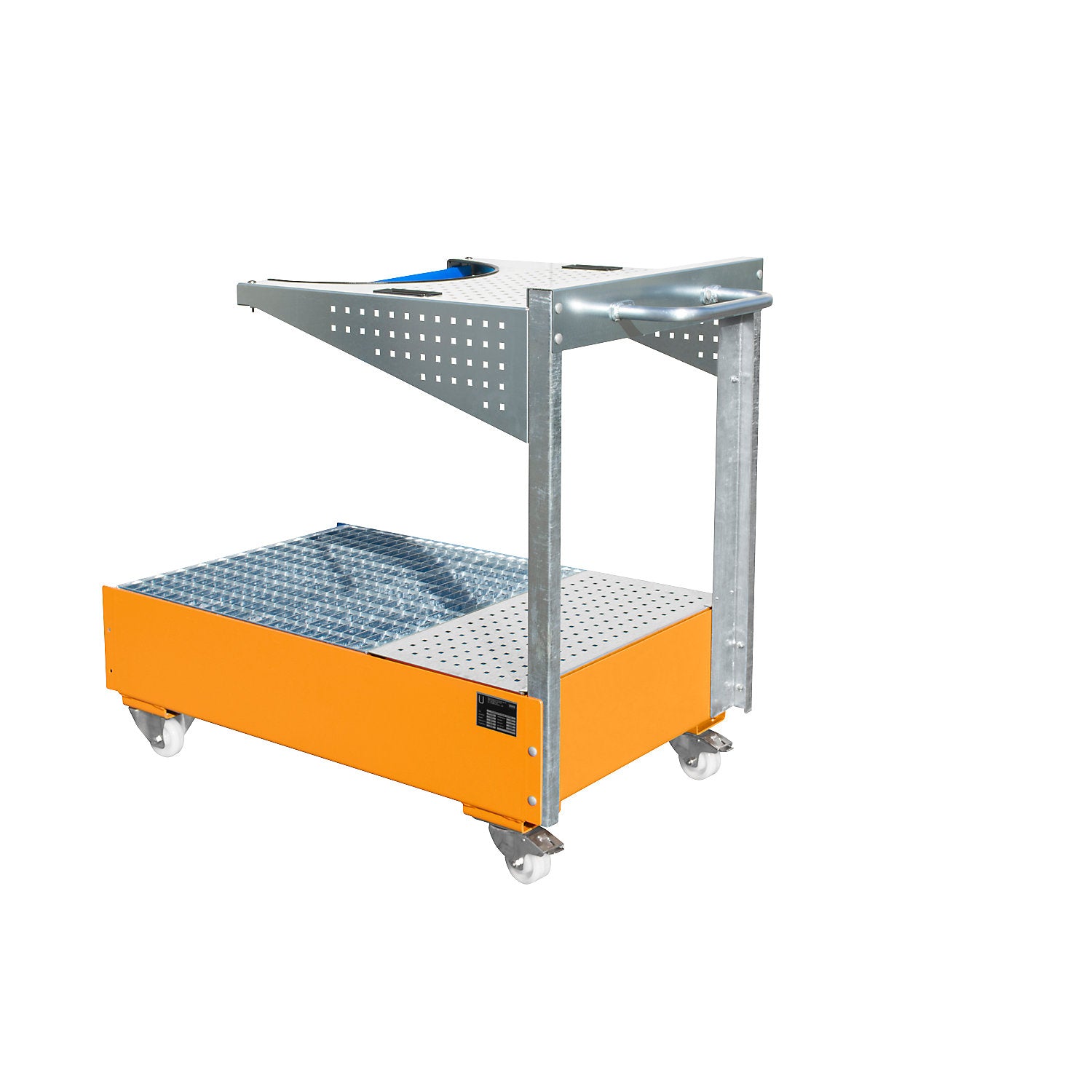

Mobile sump tray with perforated panel bracket, for 1 x 200 l drum, LxWxH 1450 x 800 x 1195 mm, painted yellow orange.

Estimated delivery: 45 days

Mobile sump tray with perforated panel bracket, for 1 x 200 l drum, LxWxH 1450 x 800 x 1195 mm, painted yellow orange

• Supplied = pre-assembled, final assembly by customer
• Type of grate = with zinc plated grate
• Sump capacity = 215 l
• Length = 1450 mm
• Width = 800 mm
• Height = 1195 mm
• Drum capacity = 1x200 l
• Material = sheet steel
• Finish = painted
• Colour = yellow orange RAL 2000
• Max. load = 1000 kg/m²
• Test symbol = manufacturers declaration of conformity in accordance with StawaR
• Material thickness = 3 mm
• For media = flammable and water hazardous liquids
• Hazard class = for flammable liquids in GHS categories 1 - 3 as well as water hazardous liquids in GHS categories 1 - 4
• Feature = mobile
• Distributed load = 1000 kg/m²
• Wheel type = nylon
• Max. wheel load = 350 kg
• Customs tariff number = 73101000
• Country of origin = DEU
• Gross weight = 101 kg
• Weight = 101 kg
• Sustainability = CO 2 footprint calculated
• Simple and safe filling at different points of consumption
• With perforated panel bracket and mounting plate
• Tray with manufacturer's declaration of conformity in accordance with StawaR
• Zinc plated grate with max. load 1000 kg/m². 2 swivel and 2 fixed castors made of nylon, 1 swivel castor with wheel stop
• Mobile sump tray for safe and easy filling of oils, lubricants, flammable and water hazardous liquids etc. from 200 l drums at various consumption points
• For an upright 200 litre drum
• Sump tray made of 3 mm sheet steel, galvanised grate (max. load 1000 kg/m²)
• Hot dip galvanised push handles
• Sturdy, galvanised perforated panel bracket with square holes (10 mm) in full length 38 mm grid for free positioning of tool holders
• Sturdy, galvanised mounting plate with square holes (10 mm) in a full length 38 mm grid on the sump tray
• Retaining strap for fixing the drums. 2 swivel and 2 fixed castors made of nylon Ø 100 mm, of which one swivel castor with wheel stop - overall height 125 mm
• Overall dimensions: LxWxH 1450 x 800 x 1195 mm
• Tray dimensions: LxWxH 1295 x 800 x 415 mm
• With certification manufacturers' declaration of conformity in accordance with StawaR - approved for flammable liquids in GHS categories 1 - 3 as well as water hazardous liquids in GHS categories 1 - 4.
