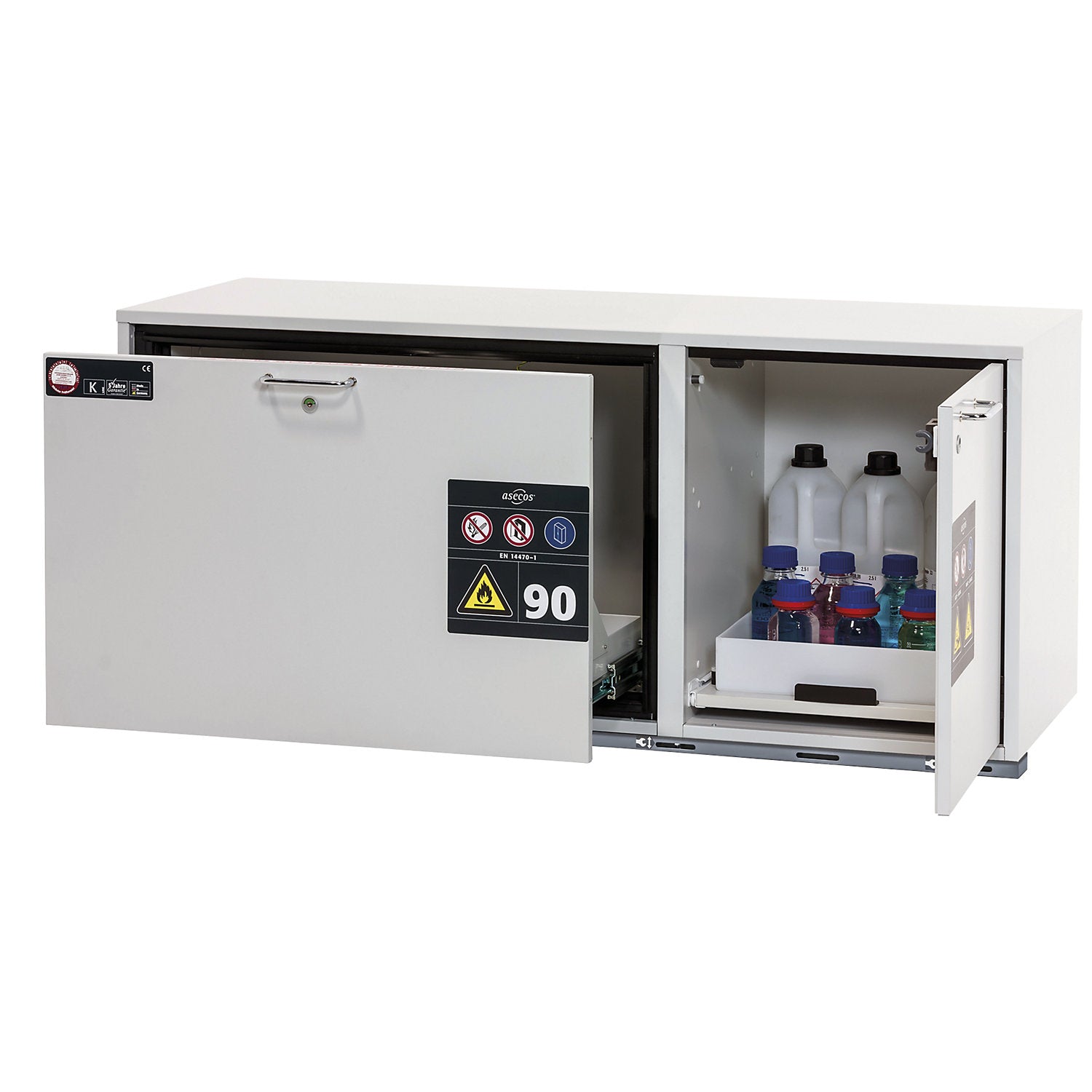

Type 90 fire resistant combination add-on drawer unit, width 1402 mm, 2 drawers, light grey.

Estimated delivery: 111 days

Type 90 fire resistant combination add-on drawer unit, width 1402 mm, 2 drawers, light grey

• Supplied = assembled
• Fire resistance = 90 minutes
• Material = special fire resistant boards, sheet steel, powder coated
• Height = 601 mm
• Width = 1402 mm
• Depth = 502 mm
• Body colour = light grey
• Door colour = light grey
• Internal fittings = 1 tray shelf, capacity 17 litres, 1 drawer, capacity 11 litres
• Internal height = 502 mm
• Internal width = 770 / 470 mm
• Internal depth = 381 mm
• Hazard class = for flammable media in work rooms in accordance with DIN EN 14470-1 and TRGS 510 (appendix 3), for corrosive media such as acids and alkalis
• Ventilation = ventilation connection (NW 50)
• Door type = hinged door
• Number of doors = 1 pcs
• Customs tariff number = 94032080
• Country of origin = DEU
• Gross weight = 189.961 kg
• Weight = 170.5 kg
• Sustainability = CO 2 footprint calculated
• For regulation compliant combined storage of flammable media and acids and alkaline solutions in laboratories in accordance with DIN EN 14470-1 and TRGS 510 (appendix 3)
• Separately lockable storage chambers separated by a centre partition in a high quality powder coated outer body
• Integrated venting system for both chambers for connection to a forced ventilation unit
• Safe and regulation compliant storage of corrosive and flammable hazardous goods in work rooms
• Function/construction: Robust and durable: outer body made of powder coated fine sheet steel
• Convenient: door and drawer lock in any position, access to all containers - entire drawer visible from above, door opening angle 93°, entire cupboard interior visible
• Safe: drawer with earth cable incl. clamp as standard, tray tested according to StawaR, drawer self-closing in case of fire
• No unauthorised use: door and drawer lockable with cylinder lock, locking status indicator (red/green)
• Mobile: castors optionally available with plinth panel, cupboard is easy to move
• Ventilation: integrated ventilation system for connection (NW 50) to a forced ventilation unit., air extraction from both chambers using only one fitting
• Interior fittings: - Tray shelf, max. load 50 kg, powder coated sheet steel, light grey RAL 7035 - Drawer with PE tray, max. load 25 kg, melamine coated/PP fibre panel Certificates: - Fireproof for 90 minutes - Tested model in accordance with EN 14470-1 - Compliant with EN 16121/16122 - Compliant with CE Interior fittings: - 1 tray shelf, max. load 50 kg, capacity 10 litres, powder coated sheet steel, light grey RAL 7035 - 2 drawers with PE tray, max. load 25 kg, capacity 11 litres, melamine coated/PP fibre panel
